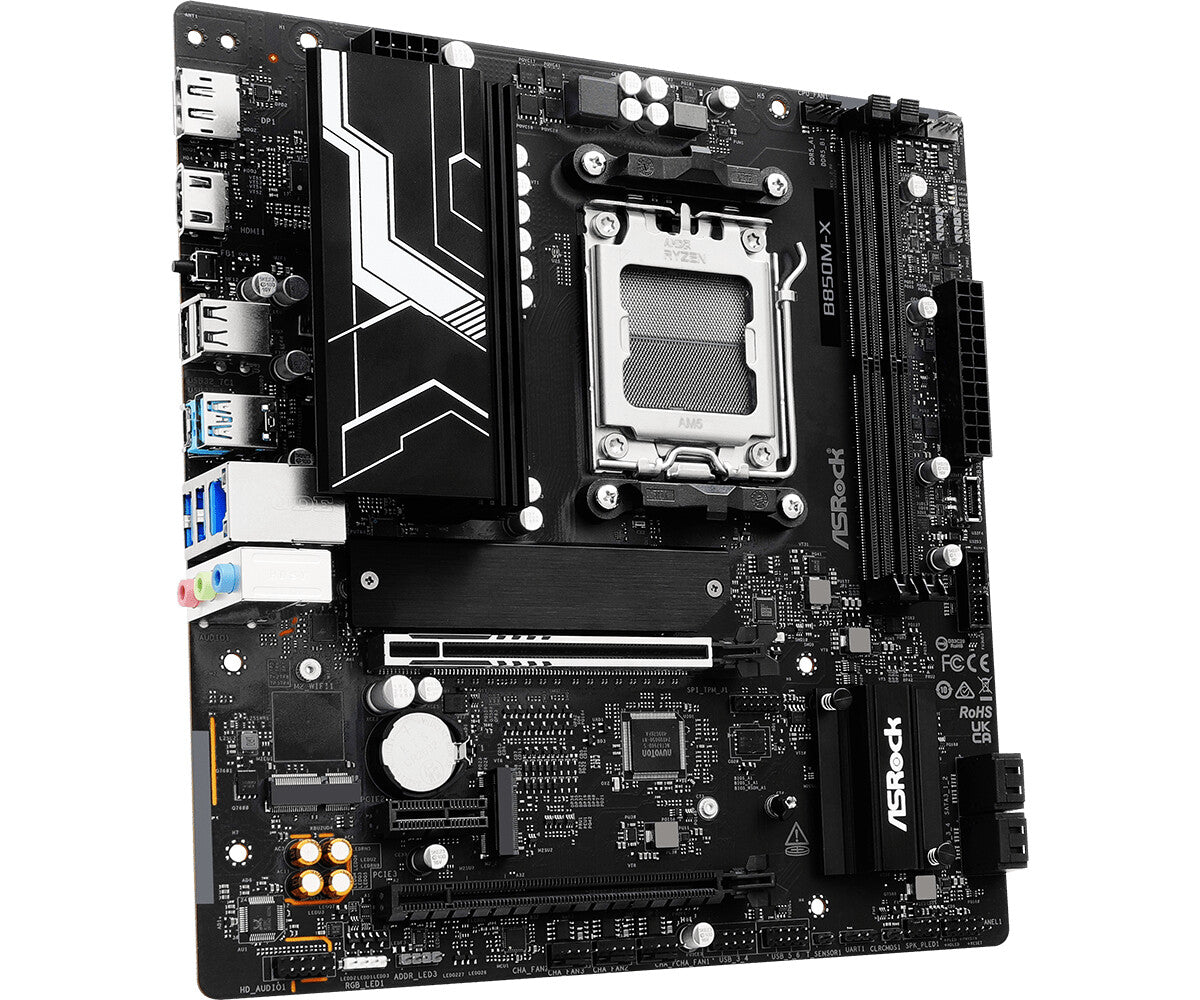

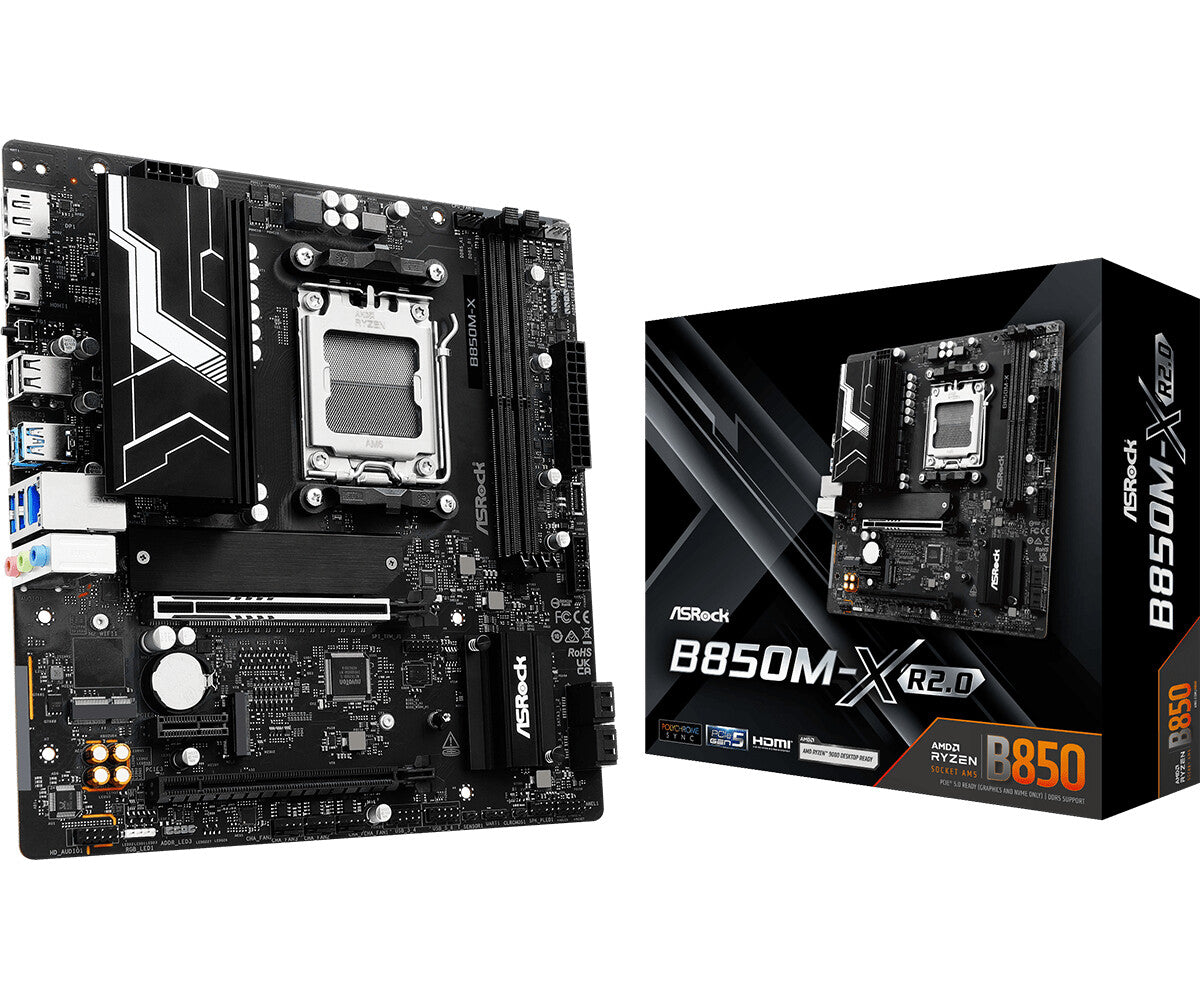

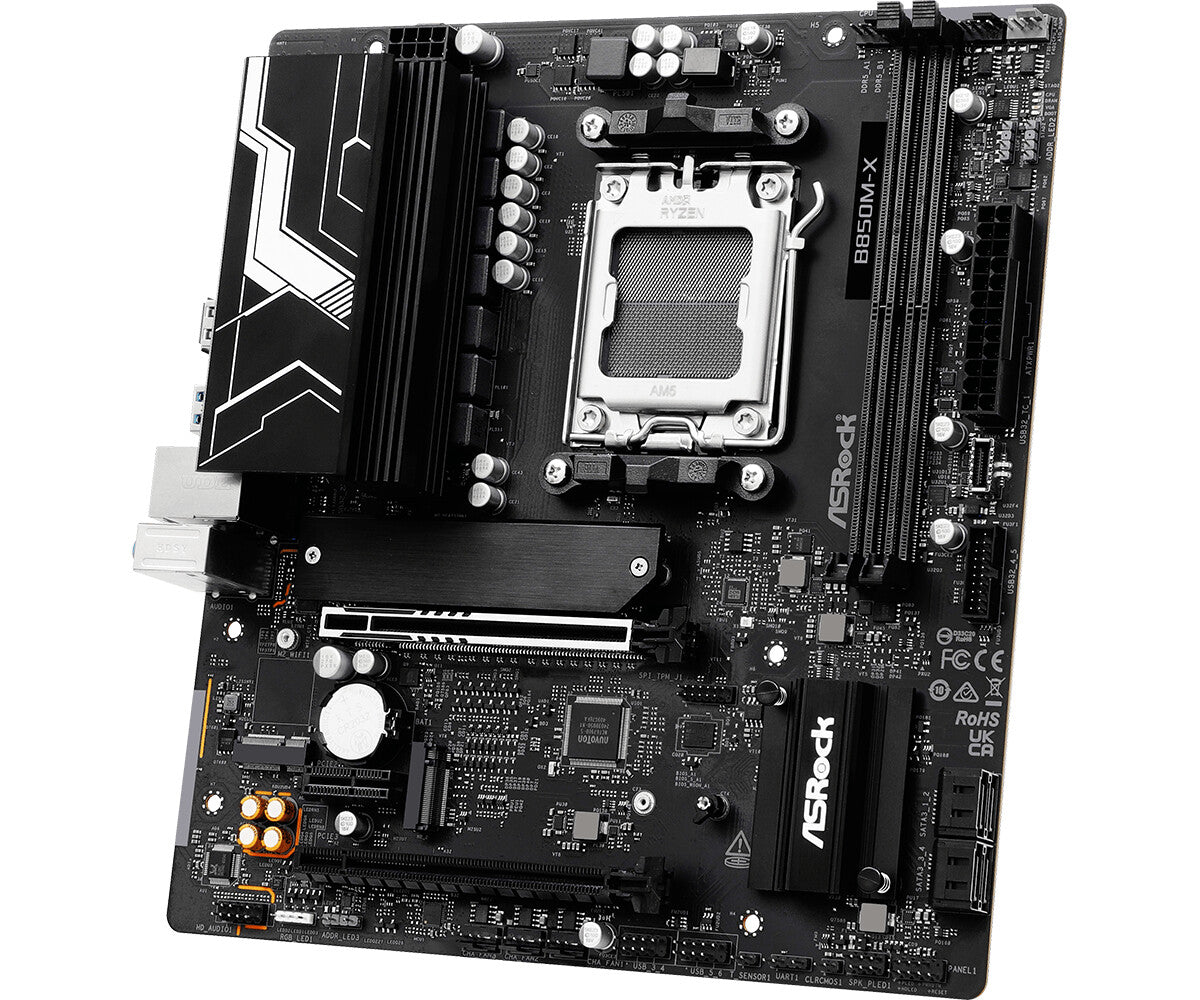

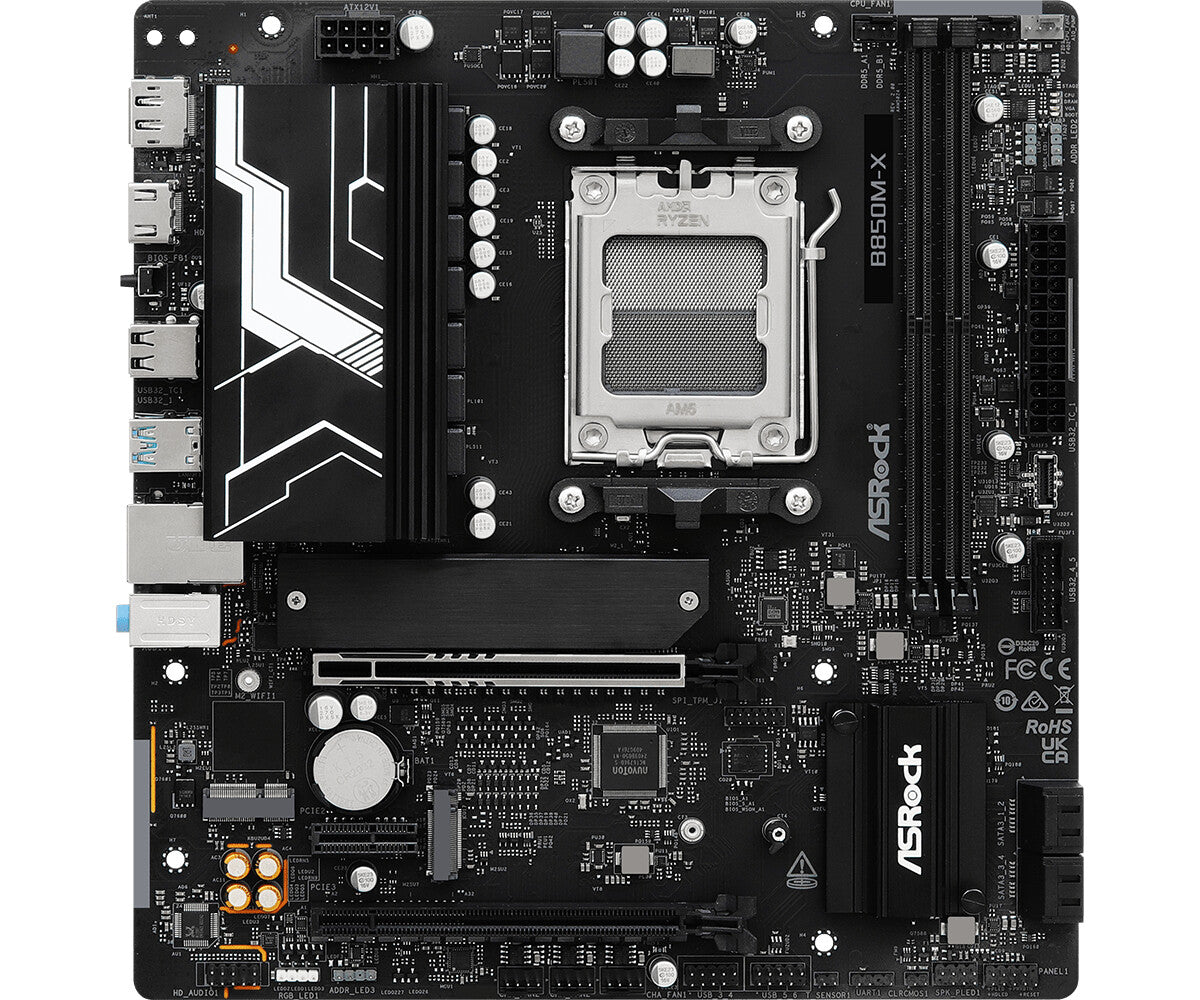

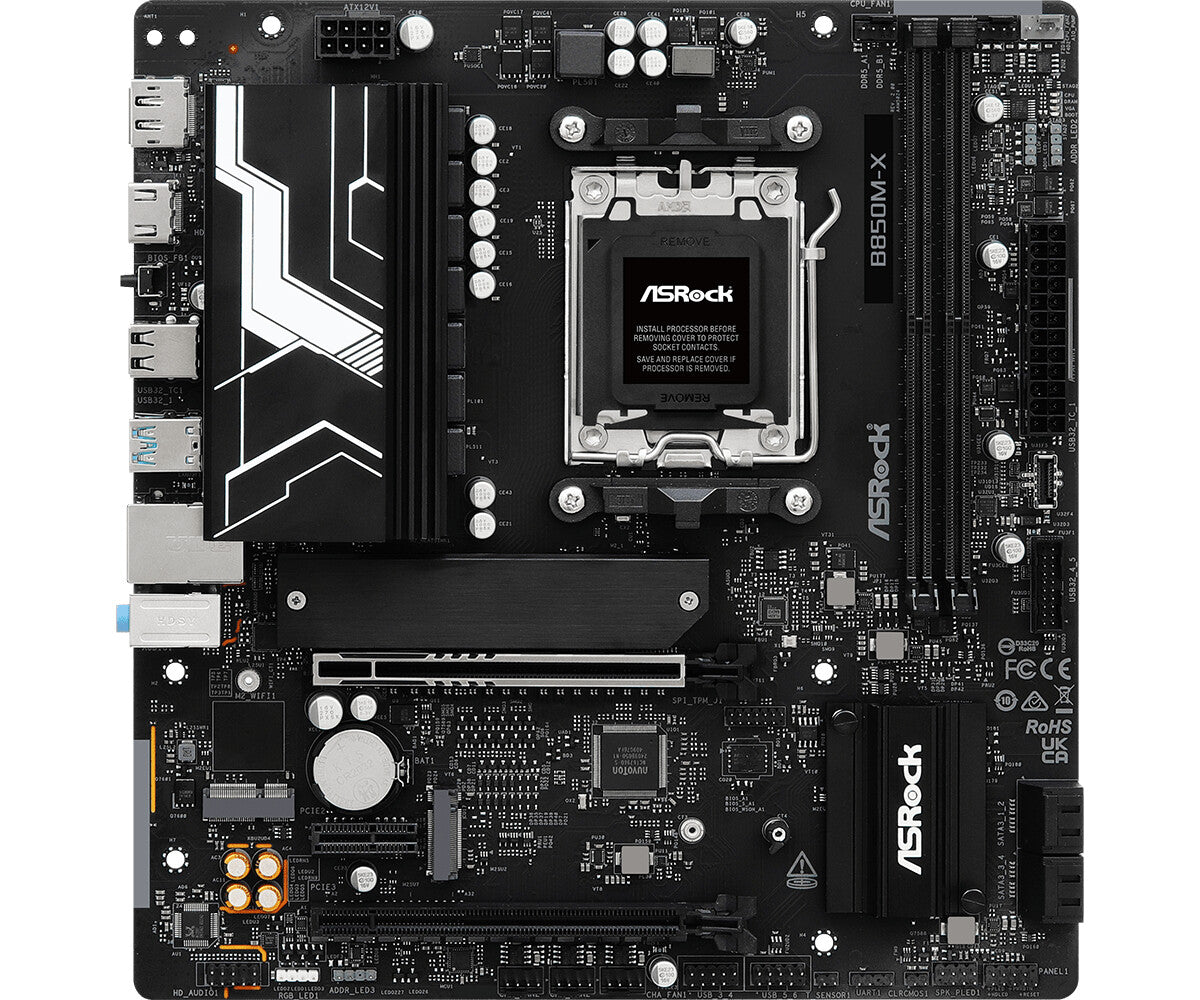

Asrock B850M-X R2.0 mATX Motherboard | AM5 | 2x DDR5 Slots
KEY FEATURES
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 6+1+1 Phase Power Design, Dr.MOS for VCore
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 8200+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 4 SATA3
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 USB 3.2 Gen1 (3 Rear, 2 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- Realtek 2.5G LAN
- Supports BIOS Flashback
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Asrock B850M-X R2.0 mATX Motherboard | AM5 | 2x DDR5 Slots
Description
The Asrock B850M-X R2.0 brings AMD's B850 chipset to the mATX form factor, supporting the latest Ryzen 7000, 8000, and 9000 series processors through the AM5 socket. This mainstream board balances affordability with solid capabilities, making it ideal for compact builds that don't compromise on modern features. The B850 chipset positions it between budget A620 boards and premium X870 options, delivering strong performance for gaming rigs, productivity workstations, and general-use systems where space matters.
Memory support centers on DDR5 with two DIMM slots supporting up to 128GB total capacity, along with ECC compatibility for users requiring error-corrected memory. The PCIe expansion is well-planned for a mATX board, featuring one PCIe 5.0 x16 slot for high-end graphics cards and one PCIe 4.0 x16 slot for additional expansion, plus a PCIe 4.0 x1 slot for smaller add-in cards. Connectivity includes 7.1-channel HD audio for quality sound output, while dual CPU fan headers provide flexible cooling management. An RGB LED pin header adds customization options for builders wanting lighting effects.
Setup remains straightforward with the 256MB AMI UEFI BIOS providing a modern interface for configuration and overclocking. The single 8-pin EPS power connector keeps cabling clean while delivering adequate power for most mainstream and enthusiast processors. Standard motherboard accessories include an I/O shield and user documentation to get builds started quickly. The board's compact mATX footprint makes it perfect for smaller cases while retaining the expansion capabilities needed for well-rounded PC builds.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

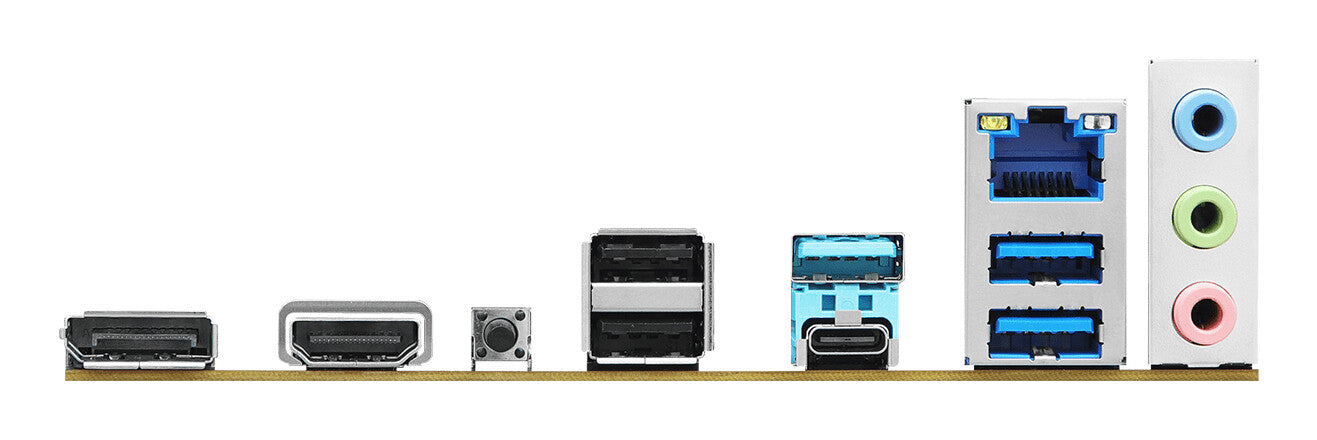

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 226 mm |
