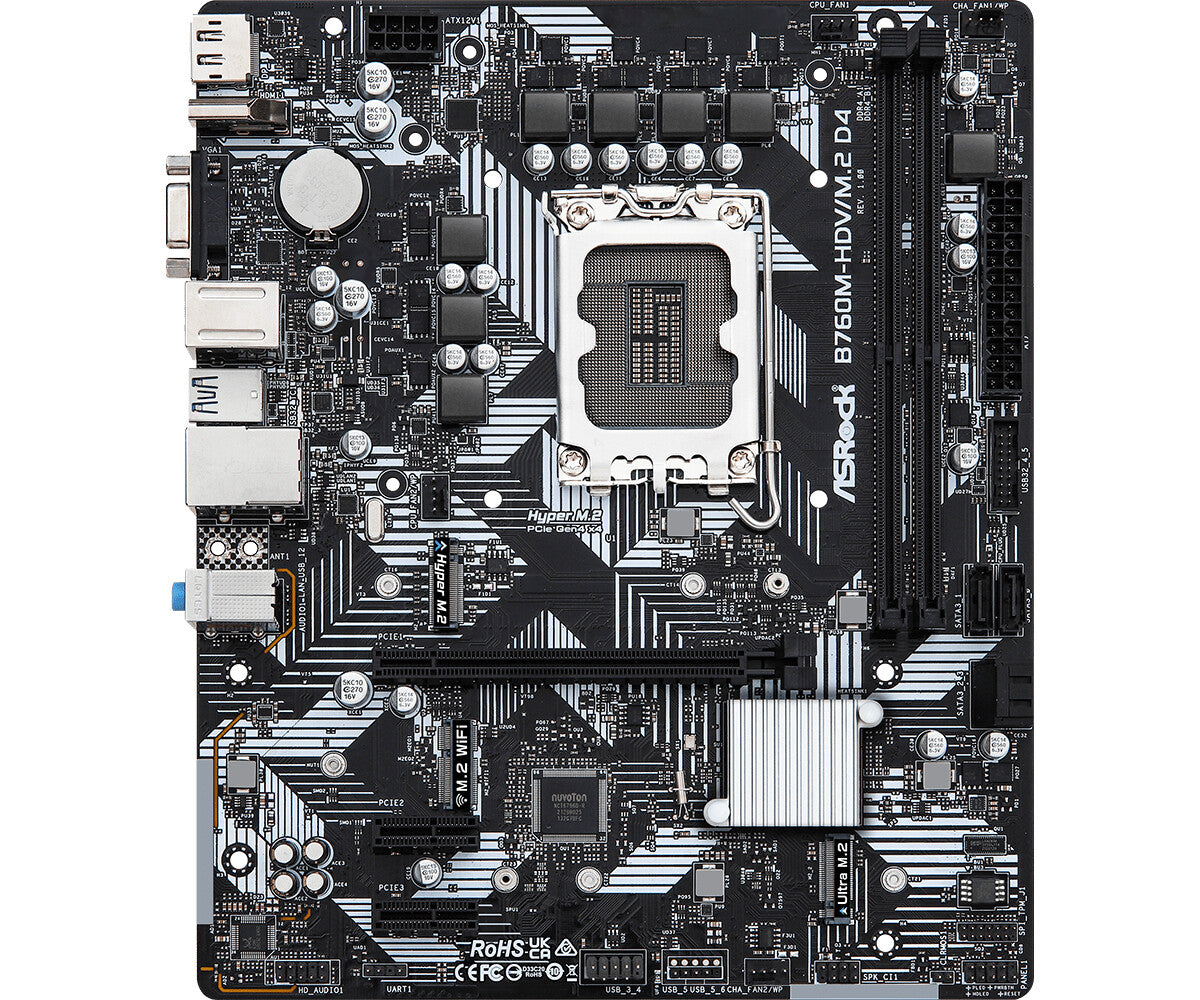

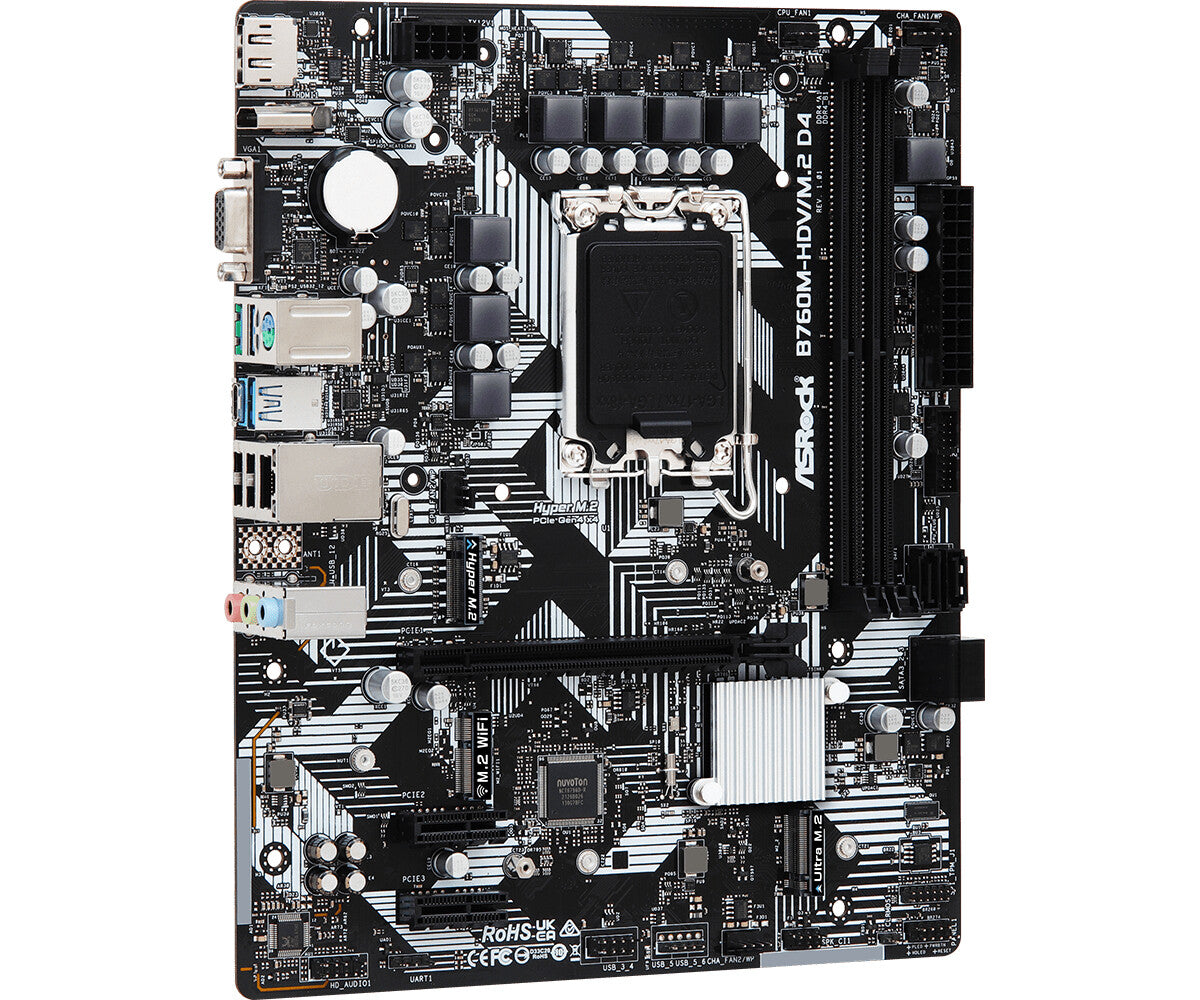

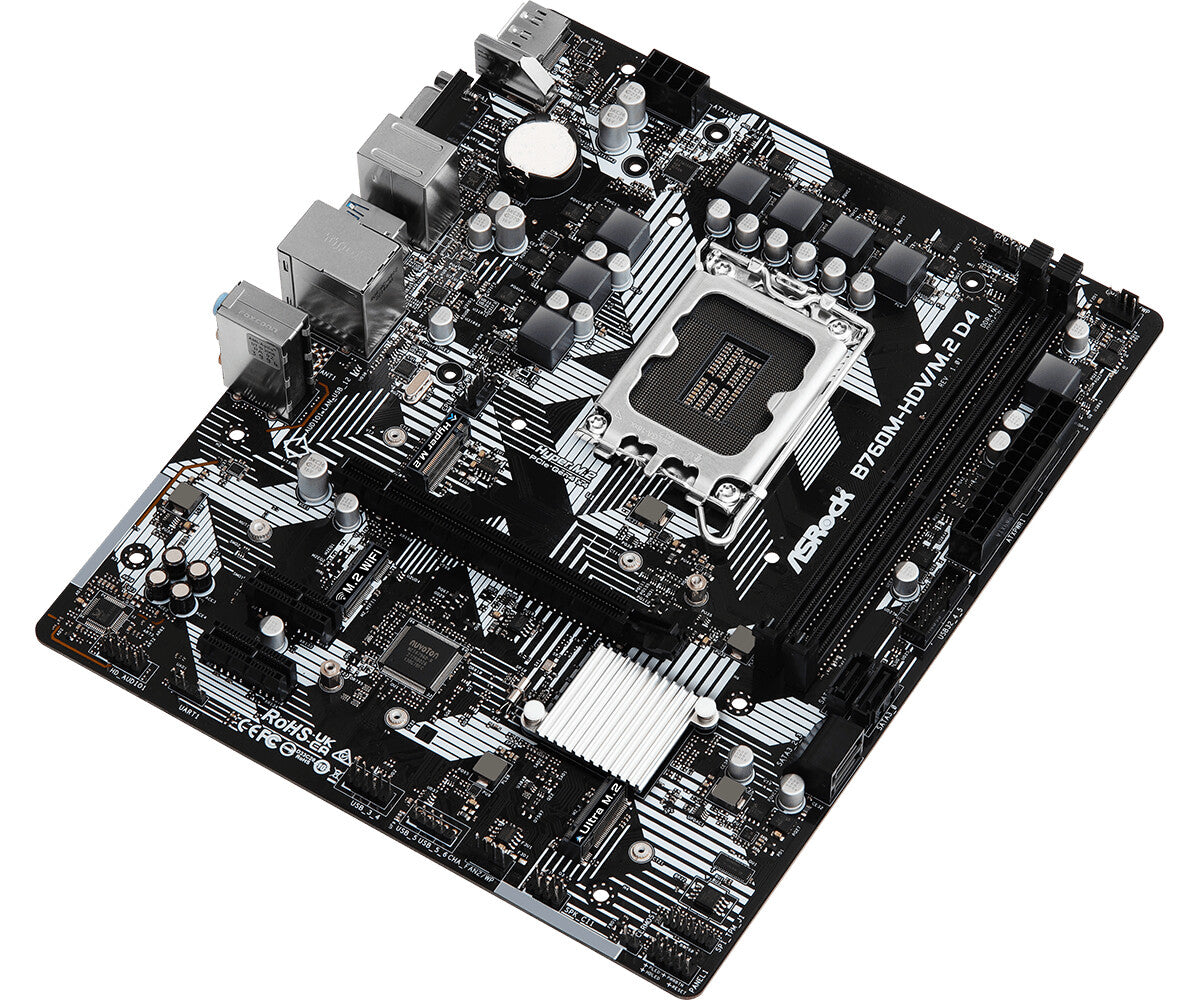

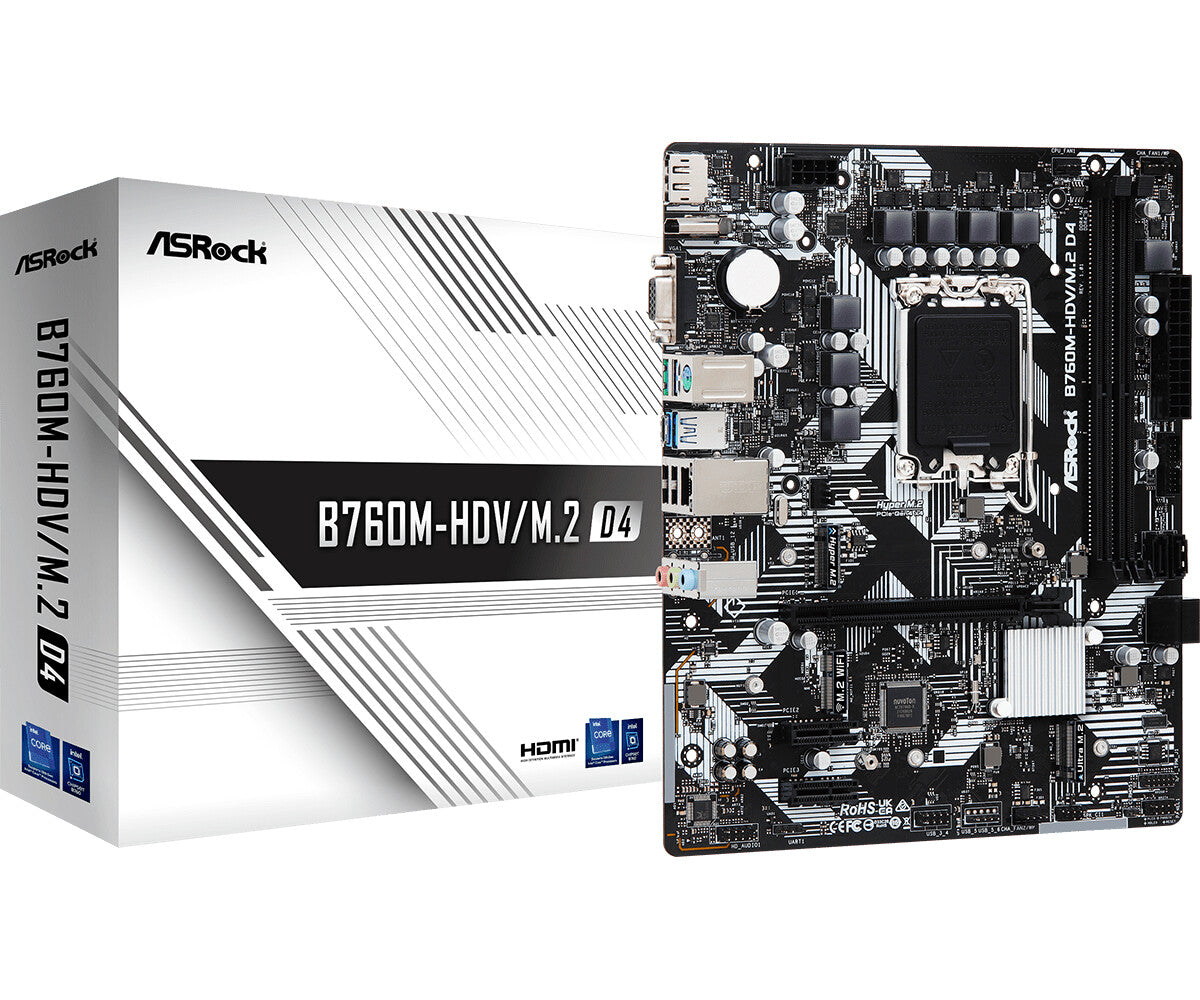

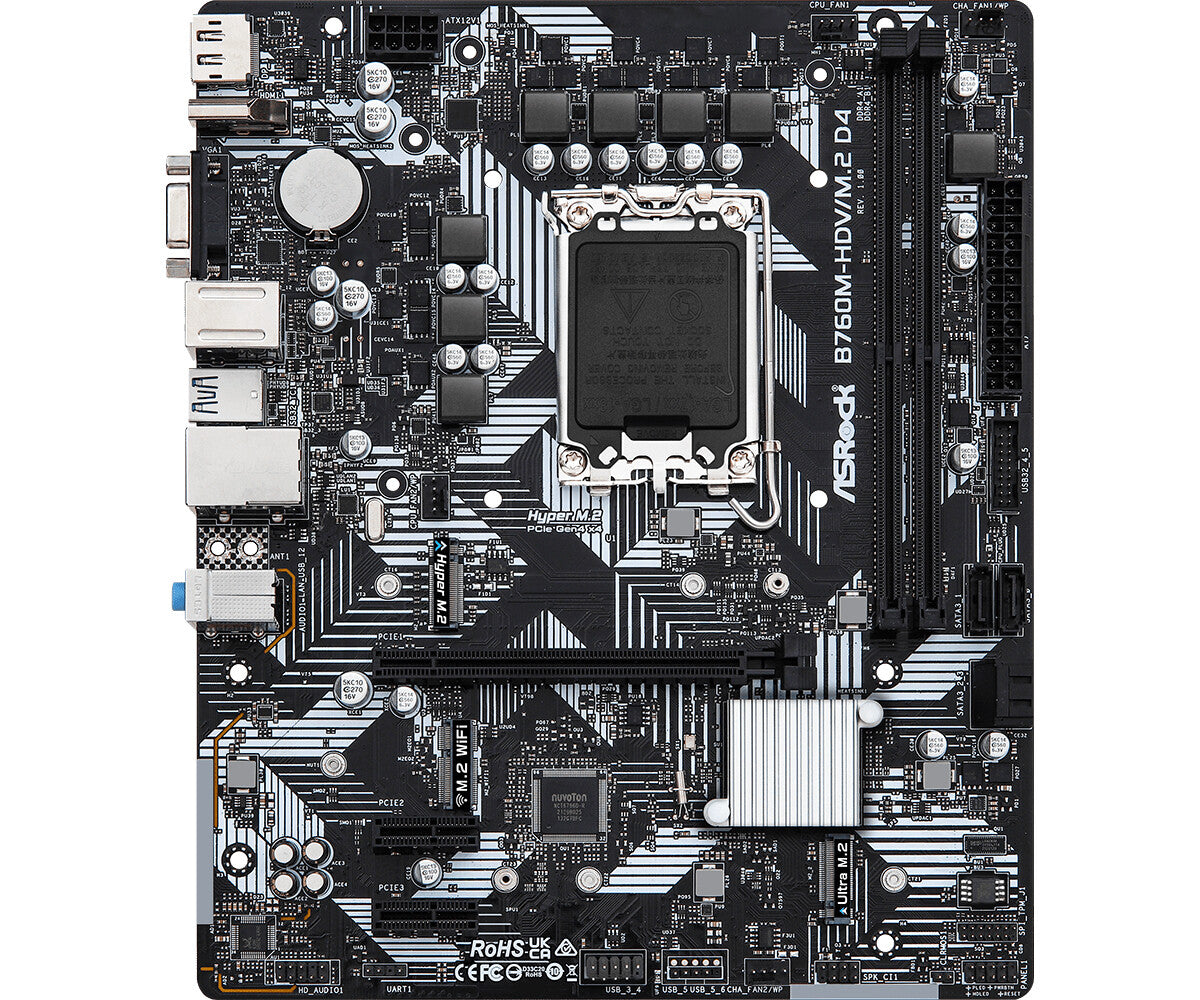

Asrock B760M-HDV/M.2 D4 mATX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase
- Supports DDR5 7200MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
- 1 Ultra M.2 (PCIe Gen3 x4)
- 1 USB 3.2 Gen1 Type-C (Rear)
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can I install on this motherboard?
Does it support WiFi connectivity?
What types of graphics outputs does this motherboard have?
Asrock B760M-HDV/M.2 D4 mATX Motherboard | LGA1700 | 2x DDR5 Slots
Description
The Asrock B760M-HDV/M.2 D4 delivers solid mainstream performance in a compact mATX form factor. Built around Intel's B760 chipset and LGA1700 socket, this board supports 12th, 13th, and 14th generation Intel Core processors from i3 through i9. The mATX size makes it ideal for smaller builds while still providing room for a full-size graphics card and essential expansion.
Memory support centers on DDR5 with two DIMM slots supporting up to 96GB total capacity. The single PCIe x16 Gen 4.0 slot handles modern graphics cards without bottlenecks, while two PCIe x1 Gen 3.0 slots add flexibility for sound cards, Wi-Fi adapters, or other expansion cards. Integrated 7.1 channel HD audio and Gigabit Ethernet provide solid multimedia and networking foundations without requiring additional cards.
Setup remains straightforward with included screws and mounting hardware. The board includes an RGB LED pin header for basic lighting customization, though this is clearly positioned as a practical rather than flashy option. XMP memory profiles ensure DDR5 modules run at their rated speeds with minimal configuration, making this a sensible choice for builders who want B760 chipset features and modern DDR5 support in a space-conscious package.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

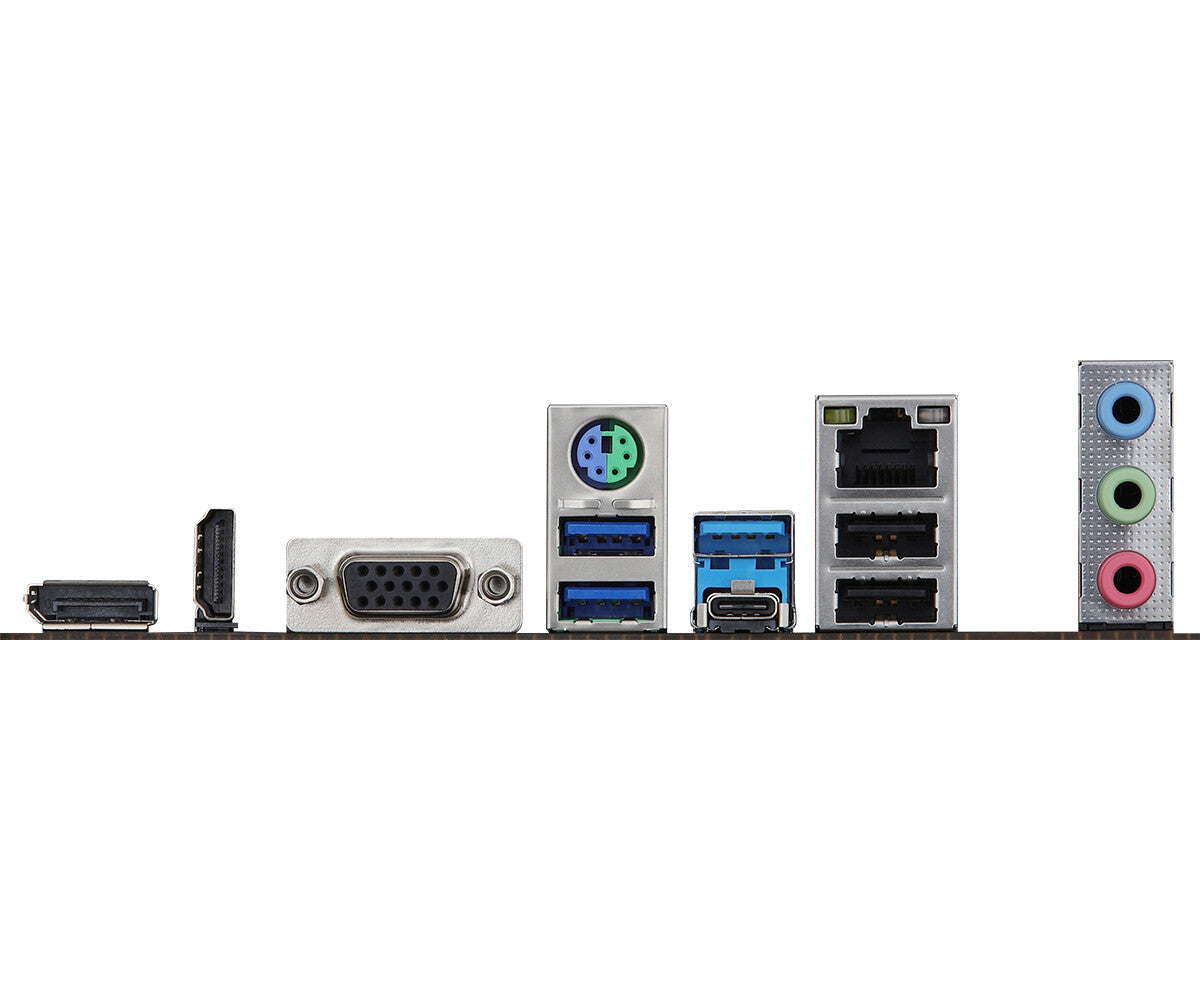

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 201 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Cables included | SATA |
