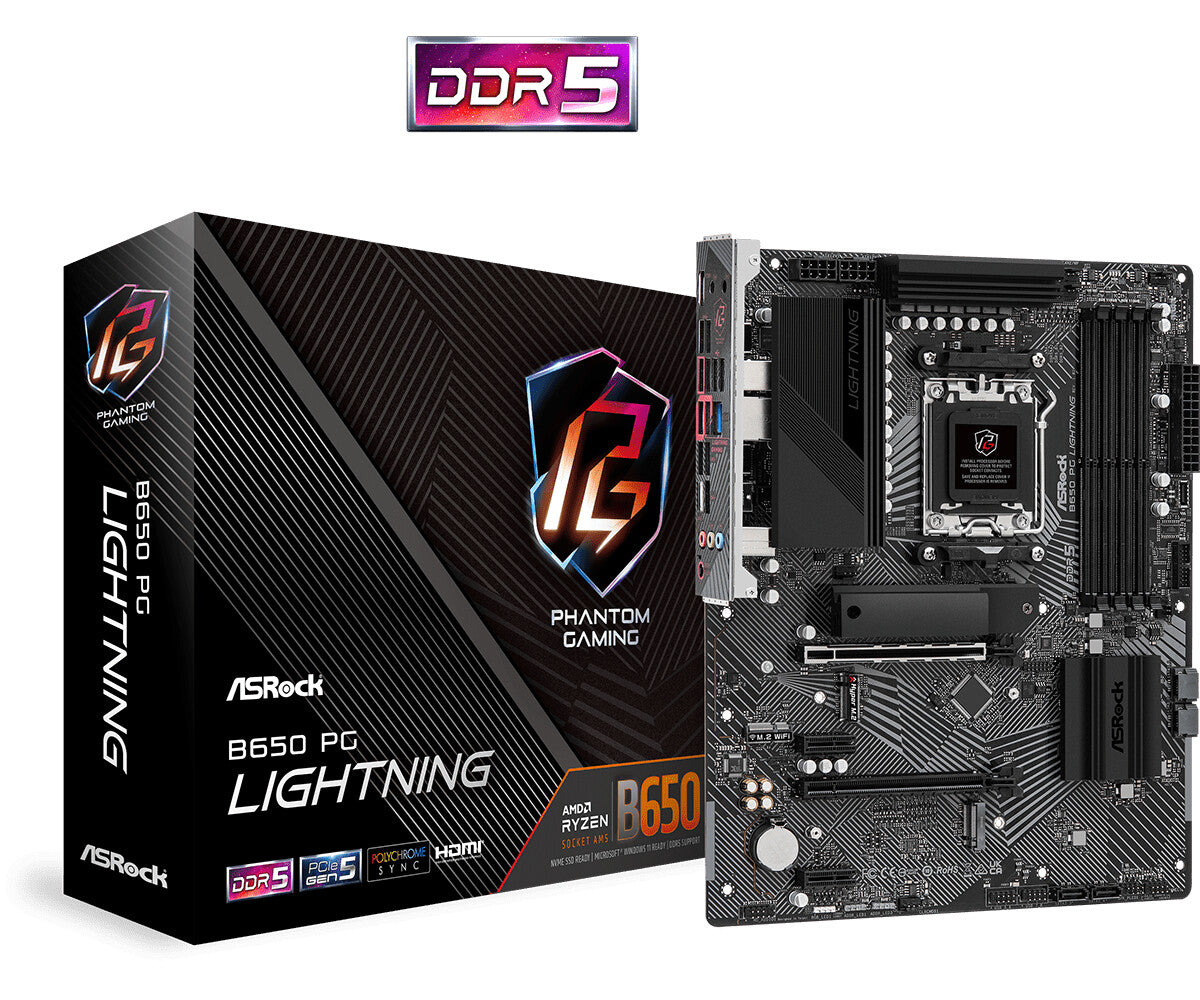

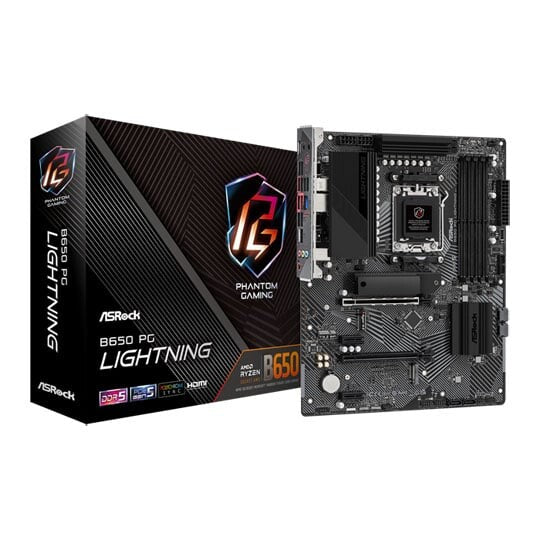

Asrock B650 PG Lightning ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- Supports AMD Ryzen™ 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6600+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front)
- Killer 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Asrock B650 PG Lightning?
How much memory can the motherboard support?
Does the motherboard support Wi-Fi?
Asrock B650 PG Lightning ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6E
Description
The ASRock B650 PG Lightning brings solid mainstream performance to AMD's AM5 platform in a full ATX layout. Built around the B650 chipset, this board supports all current Ryzen 7000 processors and future AM5 CPUs, making it a practical choice for both new builds and future upgrades. The full-size ATX format provides plenty of room for expansion while keeping costs reasonable compared to higher-end X670 boards.
Memory support reaches up to 128GB of DDR5 across four DIMM slots, with speeds up to 6800MHz when using compatible modules. Two PCIe x16 slots give you flexibility for multi-GPU setups or additional expansion cards, with one running at full PCIe 5.0 speeds for the latest graphics cards. The board includes both ECC and non-ECC memory compatibility, plus an RGB LED header for lighting customisation. Modern connectivity comes via 2.5 Gigabit Ethernet and Wi-Fi 6E with Bluetooth for wireless networking.
Setup is straightforward with included essentials like the I/O shield and user documentation. DDR5 memory profiles are supported through EXPO (AMD's equivalent to Intel's XMP), so compatible memory kits will run at their rated speeds with minimal configuration. The combination of current-generation features, solid expansion options, and Wi-Fi 6E connectivity delivers good value for mainstream AM5 builds without the premium pricing of enthusiast-class boards.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 6400,6600,6666,6800 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA II |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | AMD |
| Graphics card | AMD RDNA 2 |
| HDCP | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

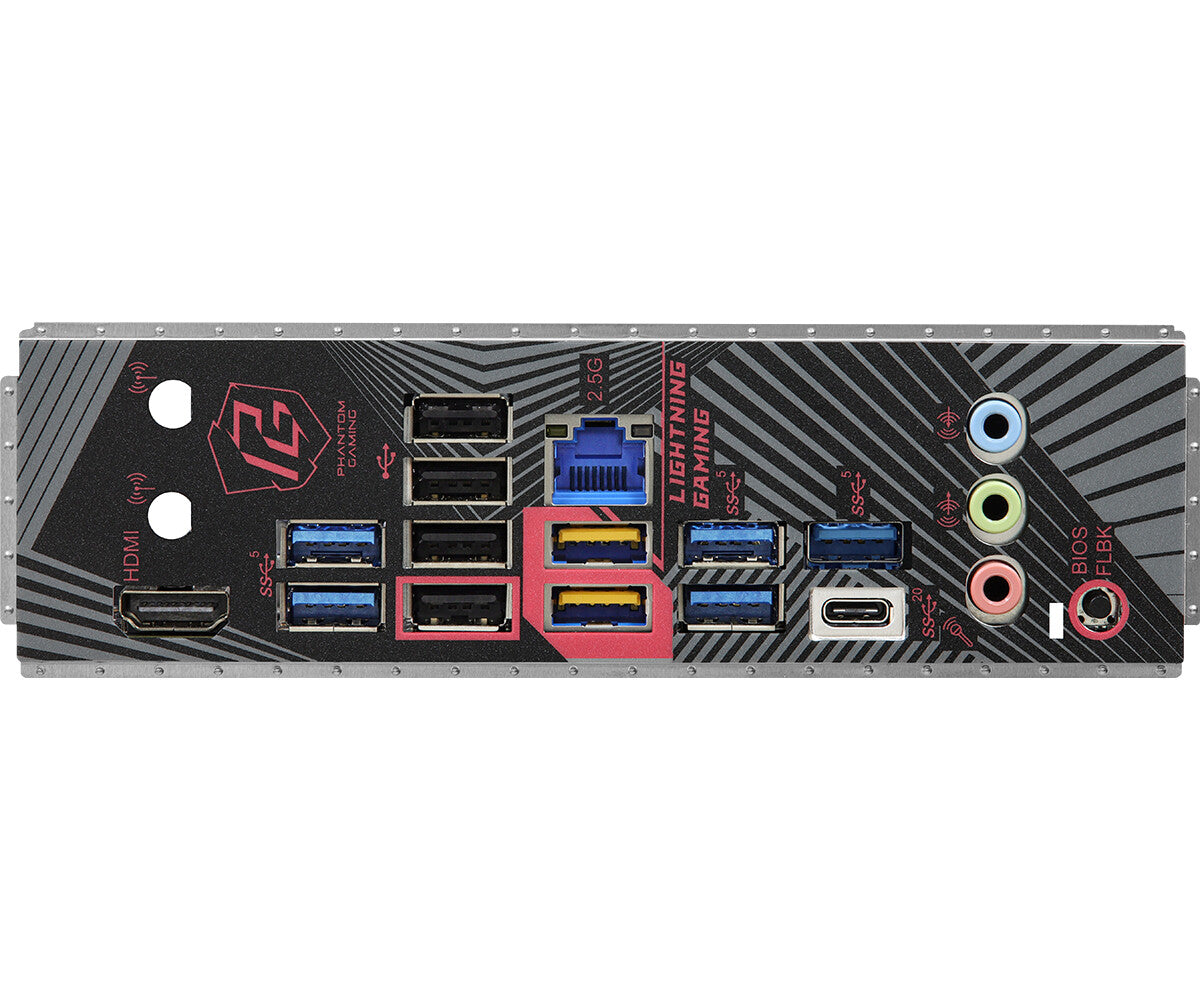

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
