Asrock A520M-HDV mATX Motherboard | AM4 | 2x DDR4 Slots
KEY FEATURES
- AMD Socket AM4 AMD Ryzen 3000 Series
- PC micro ATX 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- M.2, SATA III
- AMD Radeon Vega
- BIOS type: UEFI AMI
- Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Asrock A520M-HDV?
How many memory slots does the motherboard have?
What type of graphics outputs does this motherboard support?
Asrock A520M-HDV mATX Motherboard | AM4 | 2x DDR4 Slots
Description
The ASRock A520M-HDV is a budget-friendly micro ATX motherboard built on AMD's A520 chipset for Socket AM4 processors. This entry-level board supports AMD's Ryzen 3000 series CPUs, making it an economical choice for builders who want to tap into AMD's modern platform without paying for premium features. Despite its budget positioning, the board handles DDR4 memory speeds up to 4733 MHz when overclocked, giving you room to optimize performance with faster memory kits.
Memory support extends to 64 GB across two DIMM slots, which covers most home and office computing needs comfortably. The single PCIe 3.0 x16 slot provides graphics card support for gaming or professional work, while an additional PCIe 3.0 x1 slot gives you expansion flexibility for network cards or other add-ins. Connectivity includes multiple USB ports, SATA3 for storage drives, and an Ultra M.2 slot for fast NVMe SSDs that can dramatically improve boot times and application loading.
Audio comes courtesy of a 7.1-channel HD solution that delivers clear sound for multimedia and gaming. The retail package includes essential installation hardware and documentation to get your system running. Memory overclocking is supported through AMD's memory profiles, letting you push DDR4 kits beyond standard JEDEC speeds for better performance. This board strips away non-essential features to focus on core functionality at an accessible price point.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 5 |
| Graphics | |
|---|---|
| Graphics card family | AMD |
| Graphics card | Radeon Vega |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |

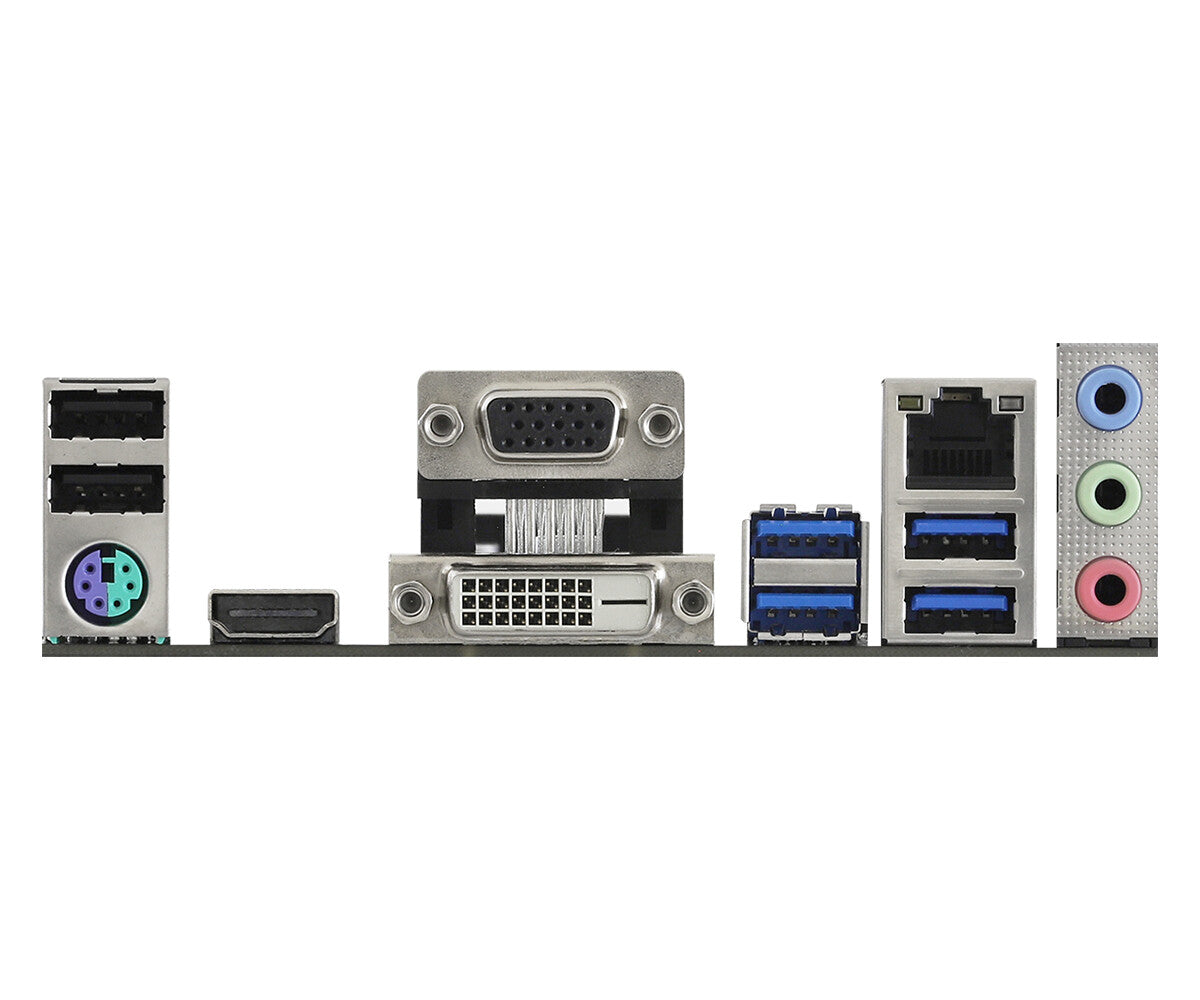

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 channels |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| Weight & dimensions | |
|---|---|
| Width | 230 mm |
| Depth | 201 mm |
Frequently Asked Questions
What processors are compatible with the Asrock A520M-HDV?
How many memory slots does the motherboard have?
What type of graphics outputs does this motherboard support?
Does the motherboard offer any protection against power surges?
