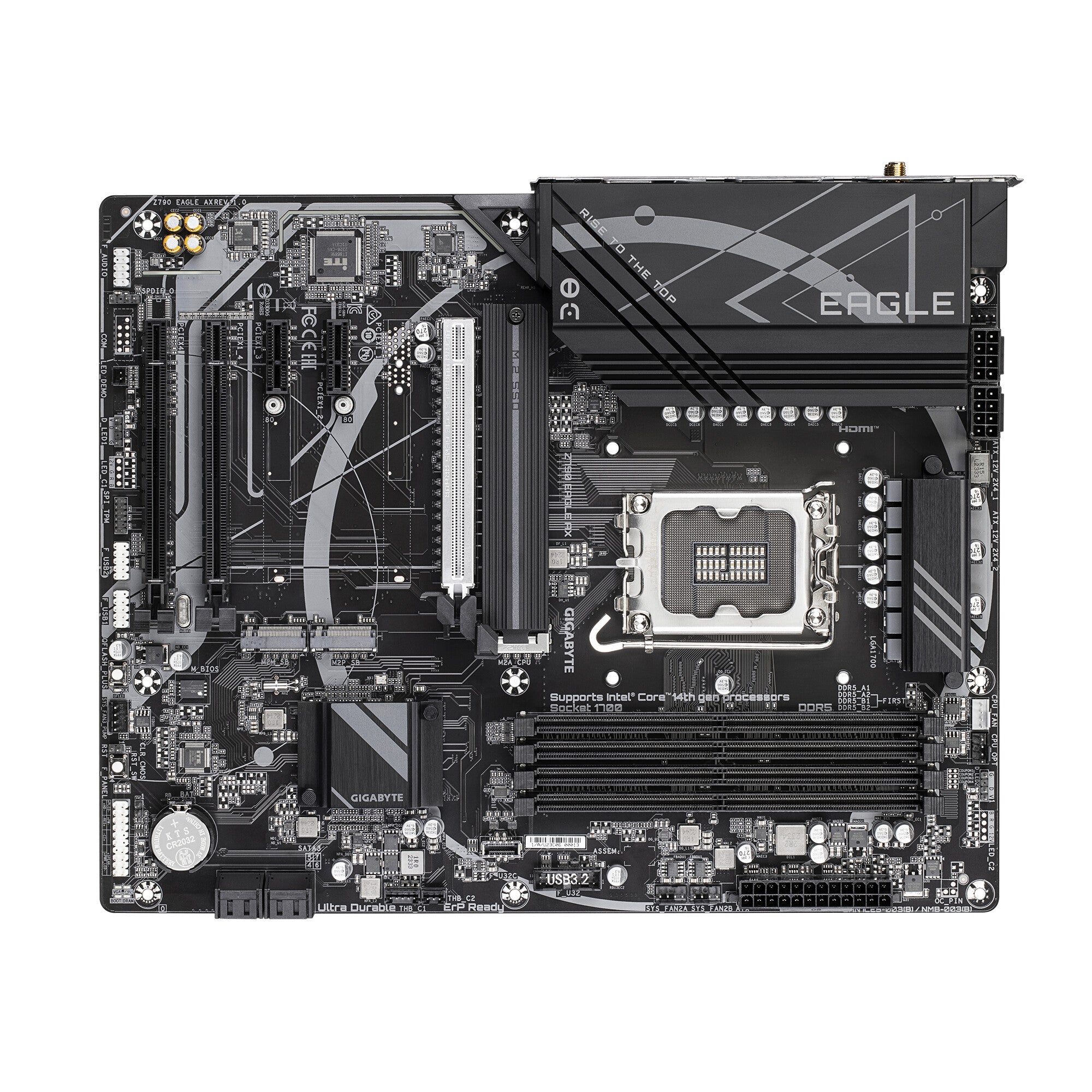

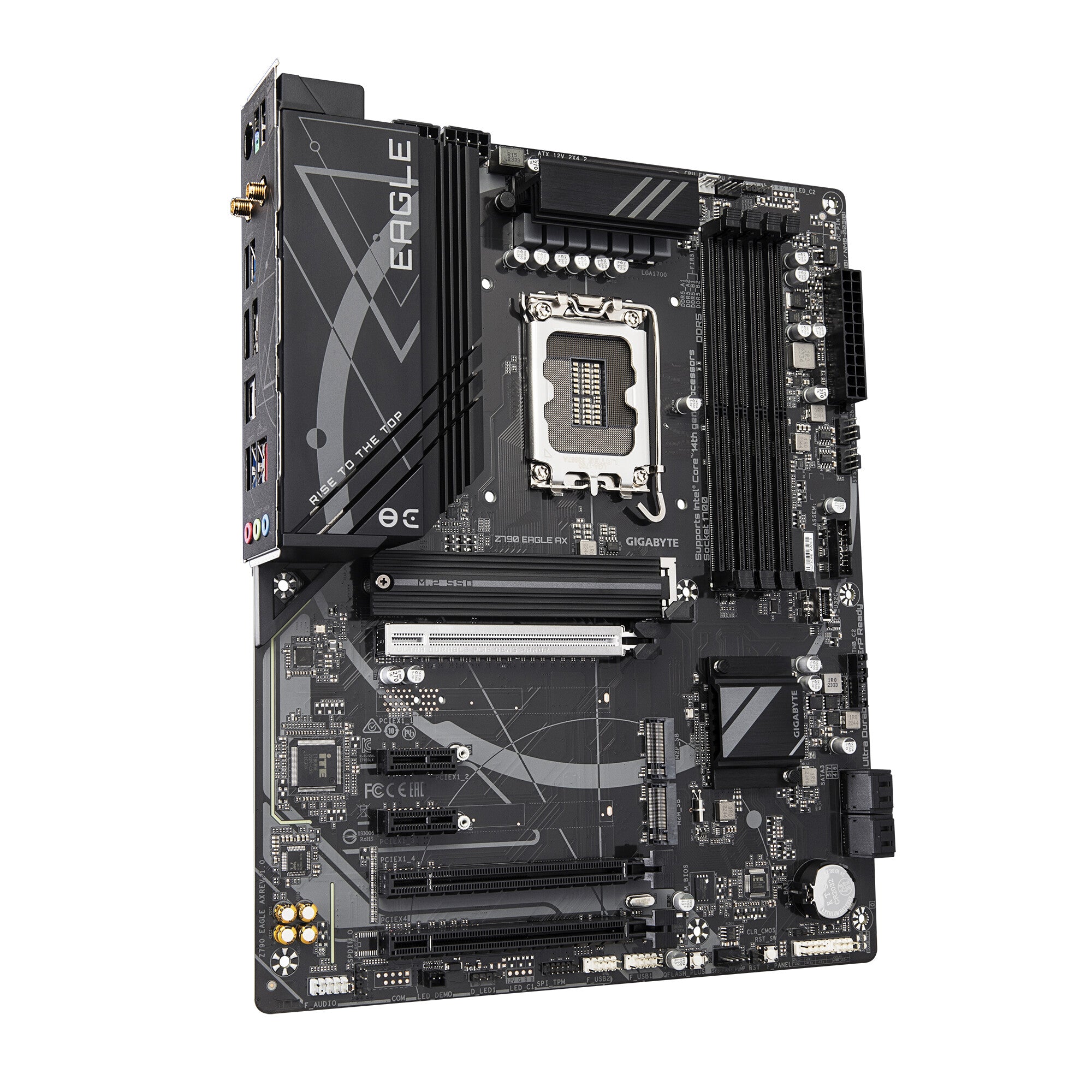

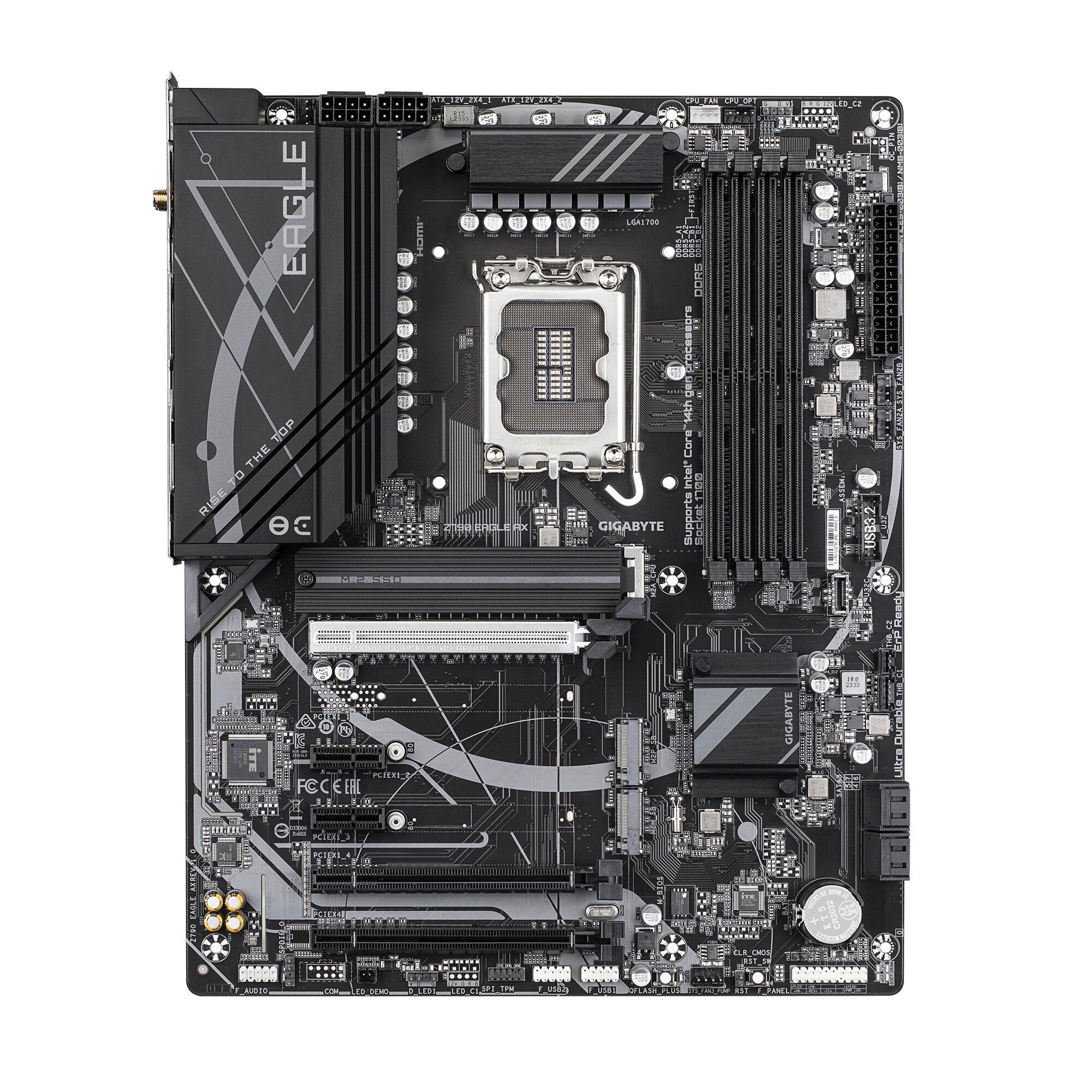

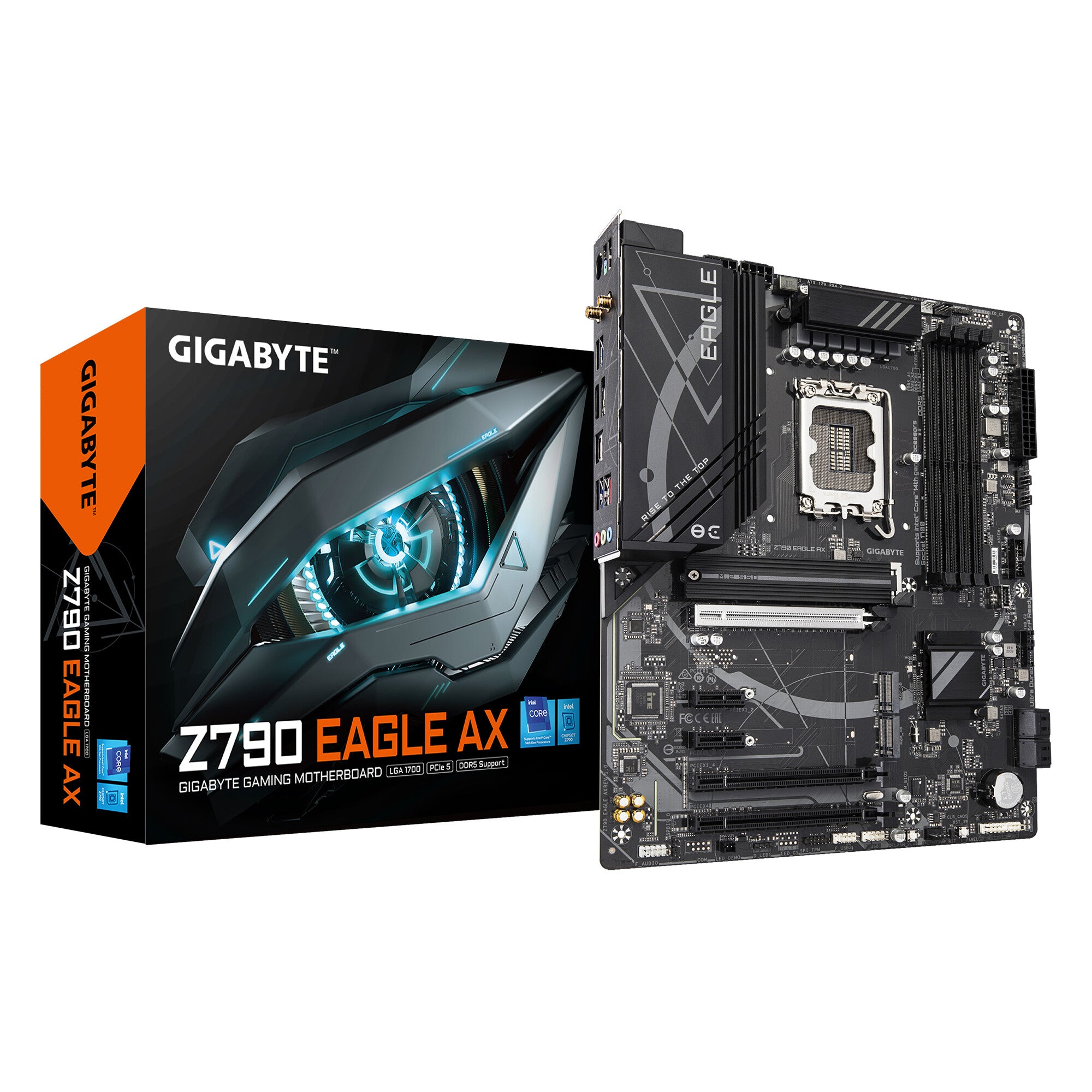

Gigabyte Z790 EAGLE AX ATX Intel Motherboard | LGA1700 Socket - 4 x DDR5 Memory Slots
KEY FEATURES
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe 5.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card* 6+6 phases parallel power design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte Z790 EAGLE AX?
How much memory can the motherboard support?
Does it come with Wi-Fi capabilities?
Gigabyte Z790 EAGLE AX ATX Intel Motherboard | LGA1700 Socket - 4 x DDR5 Memory Slots
Description
Elevate your computing experience with the Gigabyte Z790 EAGLE AX ATX Intel Motherboard. Designed for both gamers and professionals, this motherboard is a testament to Gigabyte's commitment to quality and performance. With its advanced features and innovative design, it caters to the needs of content creators and tech enthusiasts alike. Whether you're building a high-performance gaming rig or a powerful workstation, this motherboard ensures uncompromising reliability and cutting-edge technology.
Key Benefits
- Supports Intel Core 14th Gen CPUs: Experience the latest in processing power, ensuring your system is future-proof and capable of handling demanding applications.
- 12+1+1 Phases Digital VRM: Provides stable power delivery, enhancing performance and longevity, especially during intense gaming sessions or heavy workloads.
- Up to 7600MHz DDR5 (OC): Unlock the potential of high-speed memory, allowing for faster data transfer and improved multitasking capabilities.
- Wi-Fi 6E and 2.5GbE LAN: Enjoy lightning-fast internet connectivity with reduced latency, perfect for online gaming and streaming.
- Multiple M.2 and SATA Interfaces: Flexibility in storage options allows you to configure your system to meet your specific needs, whether for speed or capacity.
- RGB LED Pin Header: Customise your build with vibrant lighting, adding a personal touch to your setup.
Addtional Features
The Gigabyte Z790 EAGLE AX motherboard is equipped with four DDR5 memory slots, supporting a maximum internal memory of 192 GB. This ample capacity ensures that you can run multiple applications smoothly without any hiccups. The motherboard's ATX form factor provides a perfect balance of size and expandability, making it suitable for a wide range of PC cases.
Additionally, it features PCIe 4.0 and PCIe 5.0 slots, allowing for the latest graphics cards and expansion cards to be installed, ensuring your system remains at the forefront of technology. The inclusion of USB 3.2 Gen 2 ports means faster data transfer rates for your peripherals, enhancing your overall user experience.
Why Buy
Choosing the Gigabyte Z790 EAGLE AX ATX Intel Motherboard means investing in a product that embodies performance, reliability, and innovation. With its robust feature set and compatibility with the latest Intel processors, it is designed to meet the demands of both gaming and professional environments. Elevate your computing experience and enjoy the benefits of cutting-edge technology with a motherboard that stands out in both performance and aesthetics.
Warranty: Comes with a 3-year warranty, ensuring peace of mind with your purchase.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 192 GB |
| Supported processor sockets | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 192 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory clock speeds | 4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Discrete graphics support | Yes |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Thunderbolt headers | 2 |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Number of EATX power connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Total number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

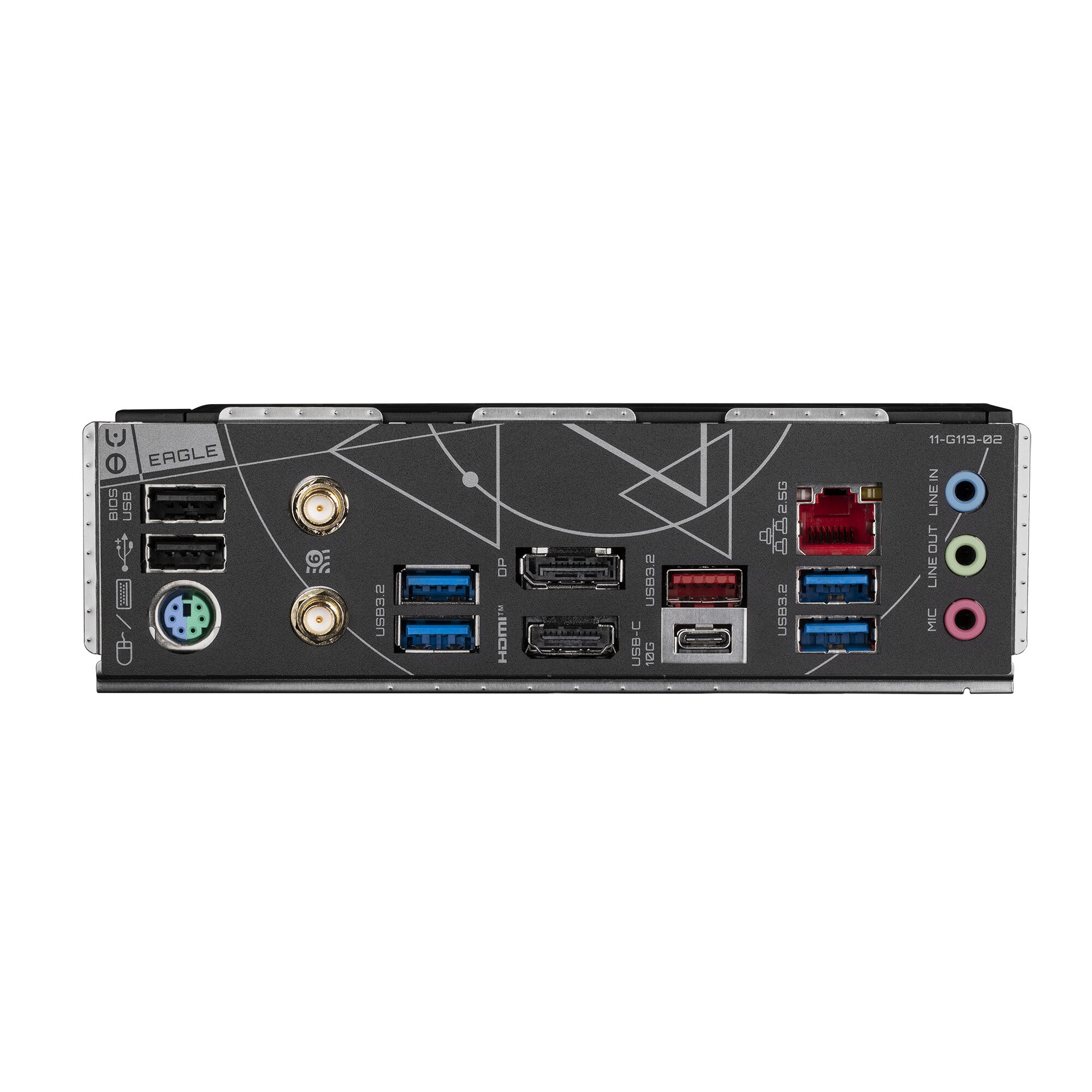

| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | Intel Z790 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 1.81 kg |
| Package height | 80 mm |
| Package depth | 270 mm |
| Package width | 335 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Antenna included | Yes |
| Batteries included | Yes |
| Cables included | SATA |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
