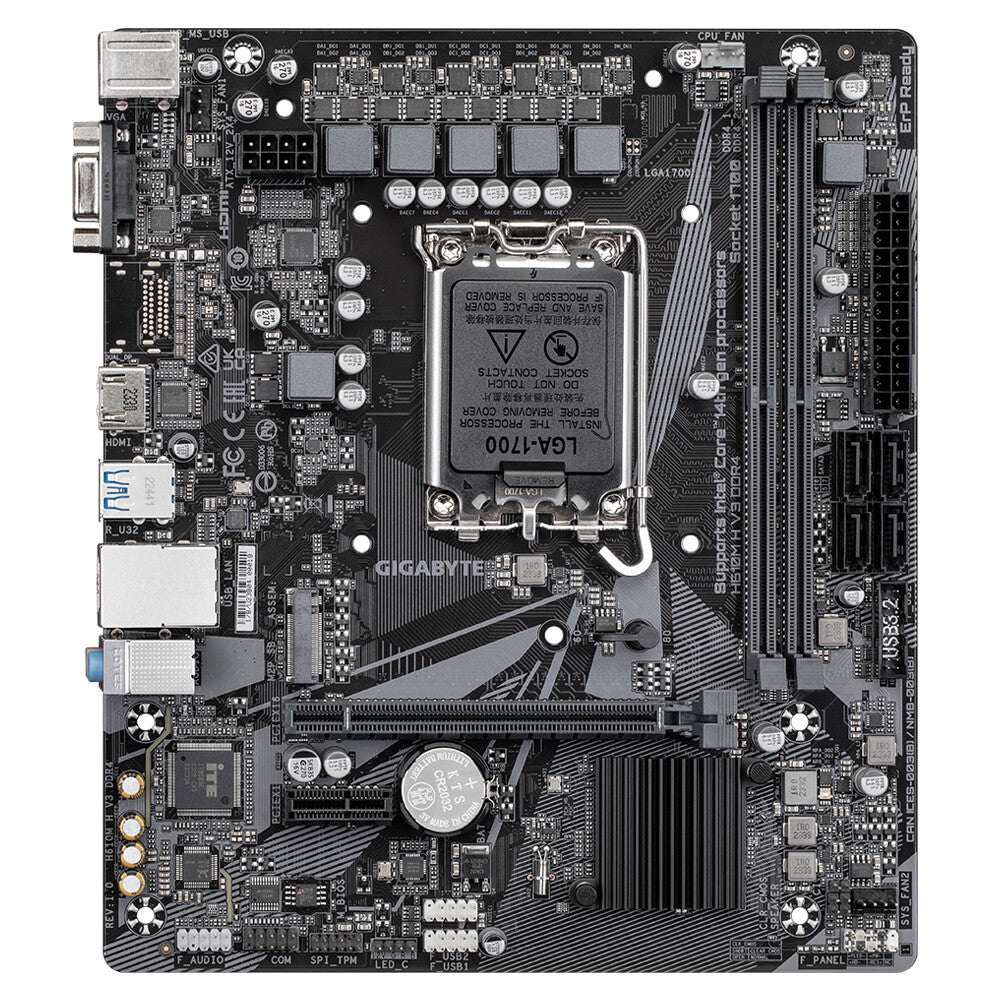

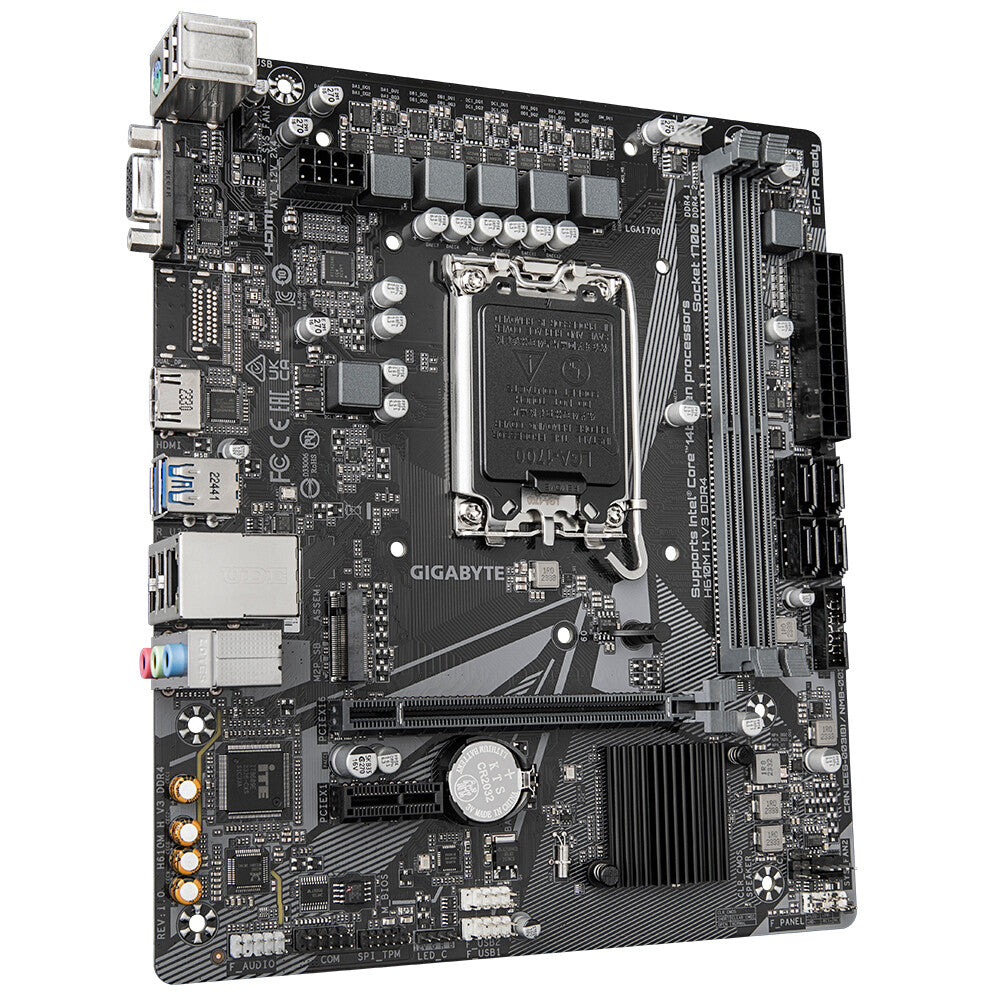

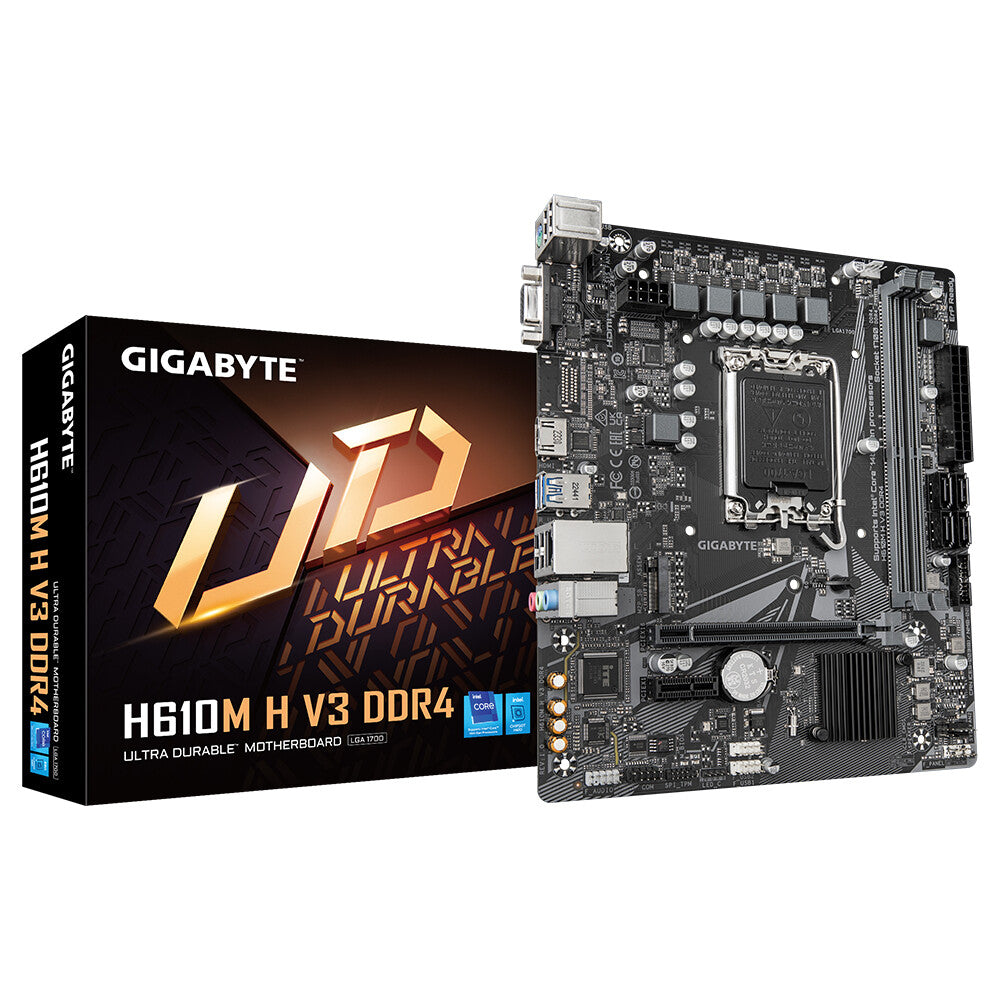

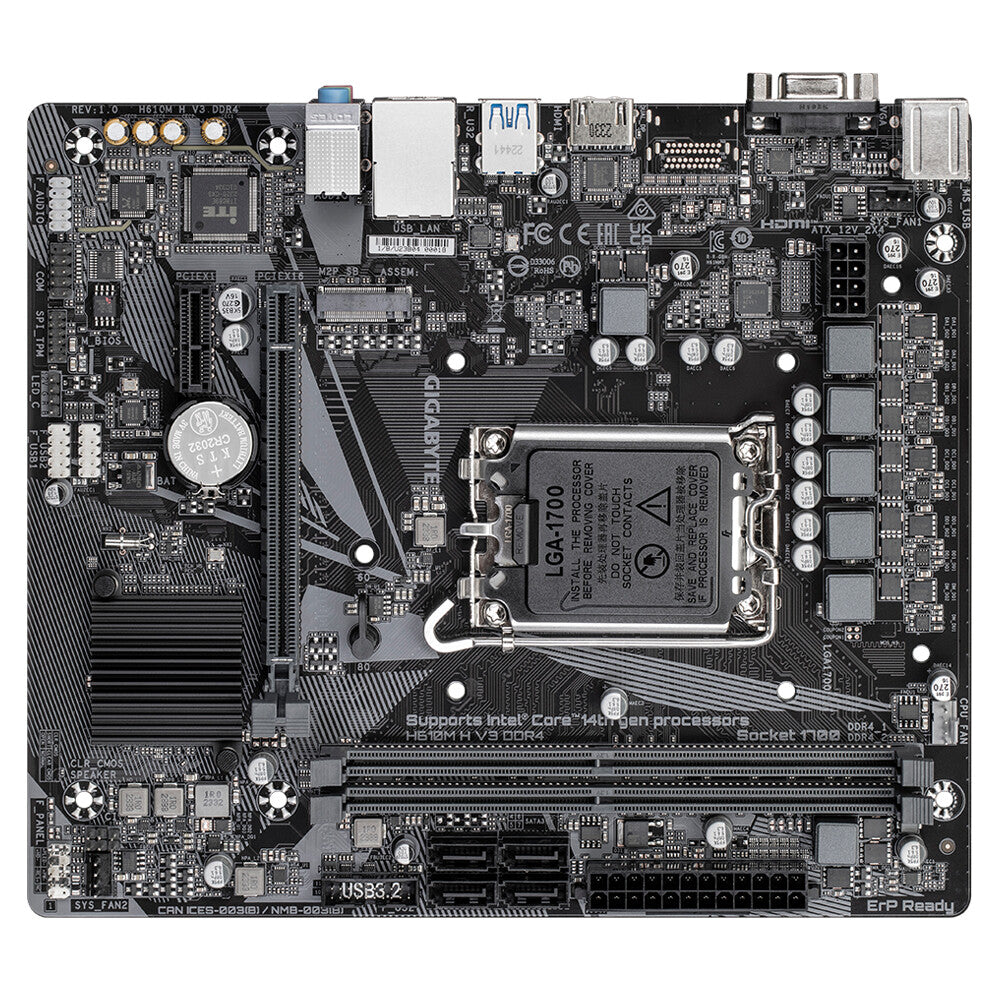

Gigabyte H610M H V3 DDR4 micro ATX Intel Motherboard | LGA1700 Socket - 2 x DDR4 Memory Slots
KEY FEATURES
- Supports Intel Core 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What is the maximum memory capacity of this motherboard?
Does this motherboard support RGB lighting?
What is the warranty period for this motherboard?
Gigabyte H610M H V3 DDR4 micro ATX Intel Motherboard | LGA1700 Socket - 2 x DDR4 Memory Slots
Description
Elevate your computing experience with the Gigabyte H610M H V3 DDR4 micro ATX Intel Motherboard. Designed for those who demand exceptional performance, this motherboard is compatible with Intel's latest processors, ensuring that your system runs smoothly and efficiently. Whether you're a gamer, a content creator, or a professional seeking reliability, this motherboard is tailored to meet your needs.
Key Benefits
- Supports Intel Core 14th CPUs: Experience the power of the latest Intel processors, providing you with the speed and efficiency needed for demanding tasks.
- 4+1+1 Hybrid Phases Digital VRM Design: This advanced power delivery system ensures stable performance, even under heavy loads, allowing for seamless multitasking.
- Up to 3200MHz DDR4 Memory Support: With two DDR4 memory slots, you can enhance your system's memory capacity, improving overall performance and responsiveness.
- PCIe 4.0 Support: Enjoy faster data transfer rates with PCIe 4.0, ideal for high-speed SSDs and graphics cards, ensuring your system is future-proof.
- Smart Fan 6 Technology: Keep your system cool and quiet with advanced fan control, allowing you to optimise airflow based on your needs.
- Anti-Sulfur Resistor Design: This feature enhances durability and reliability, protecting your motherboard from environmental factors that could affect performance.
Addtional Features
The Gigabyte H610M H V3 is not just about performance; it also boasts a range of features designed to enhance your overall experience. With a micro ATX form factor, it fits perfectly into compact cases while still providing ample connectivity options. The motherboard includes 1 PCI Express x16 slot for graphics cards, ensuring that you can expand your system as needed. Additionally, it supports both HDD and SSD storage with M.2 and SATA III interfaces, giving you flexibility in how you manage your data. The RGB LED pin header allows for customisable lighting, adding a personal touch to your build.
Why Buy
Choosing the Gigabyte H610M H V3 DDR4 micro ATX Intel Motherboard means investing in a product that combines cutting-edge technology with reliability. Its robust design and advanced features cater to a wide range of users, from gamers to professionals. With a warranty period of 3 years, you can trust in the quality and durability of this motherboard. Elevate your PC build with a motherboard that not only meets but exceeds your expectations.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory clock speeds | 3200, 3000, 2933, 2666, 2400, 2133 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Number of HDDs supported | 1 |
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Graphics card | HD Graphics |
| Graphics card family | Intel |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A |
| Microphone in | Yes |
| Headphone outputs | 3 |
| DisplayPorts quantity | 2 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Cooling type | Active |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | Intel H610 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 684 g |
| Package height | 52 mm |
| Package depth | 235 mm |
| Package width | 265 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 215 mm |
| Width | 230 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Batteries included | Yes |
| Cables included | SATA |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
