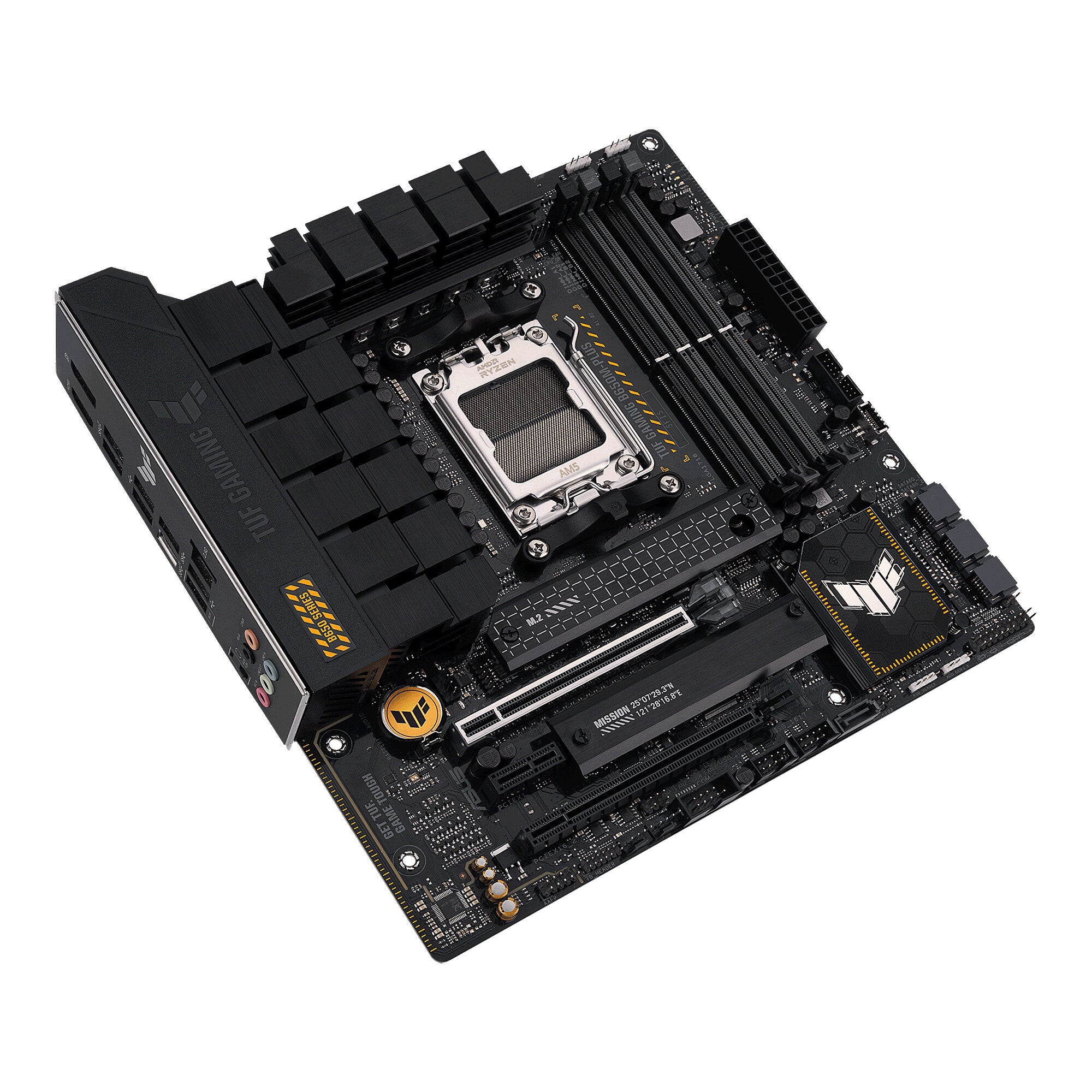

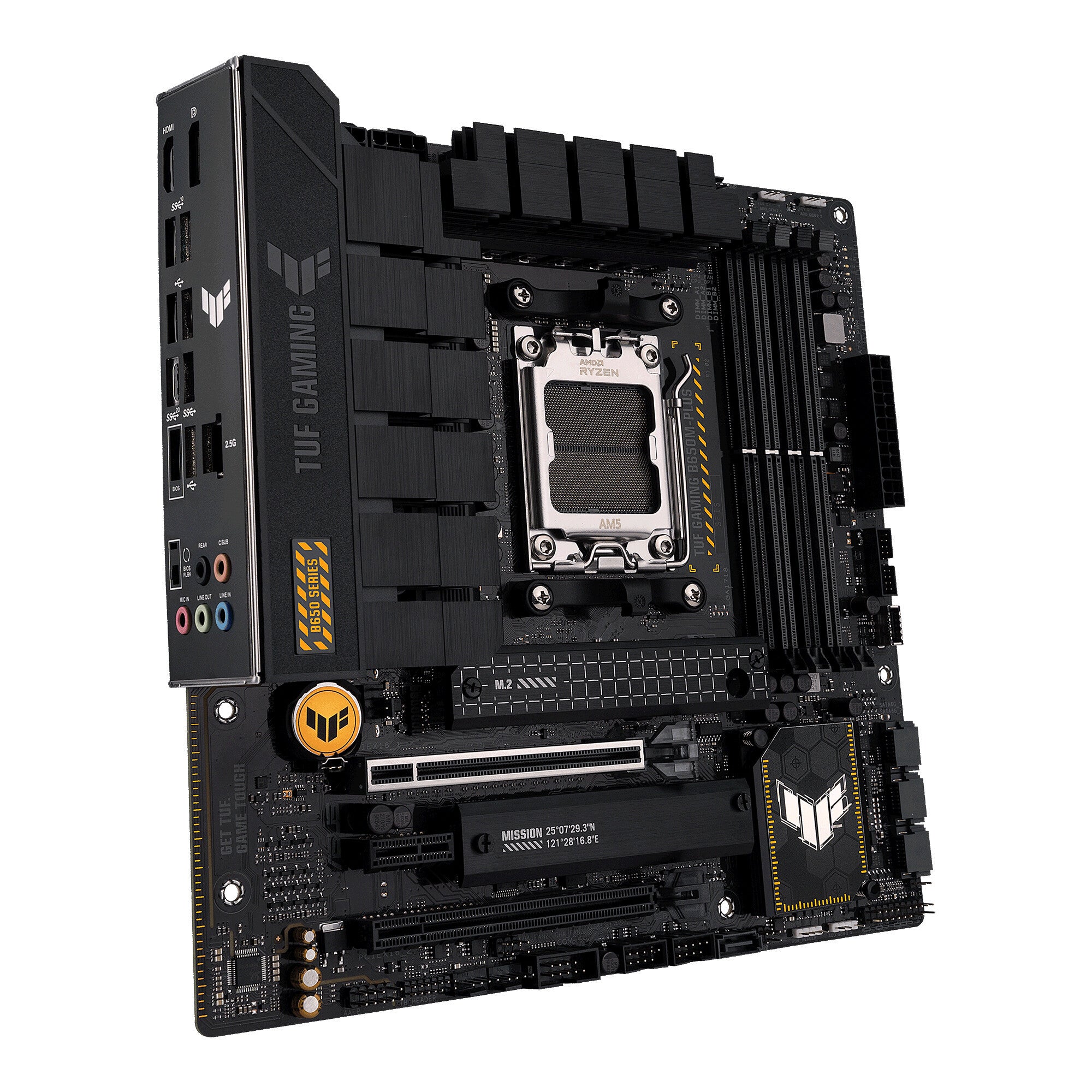

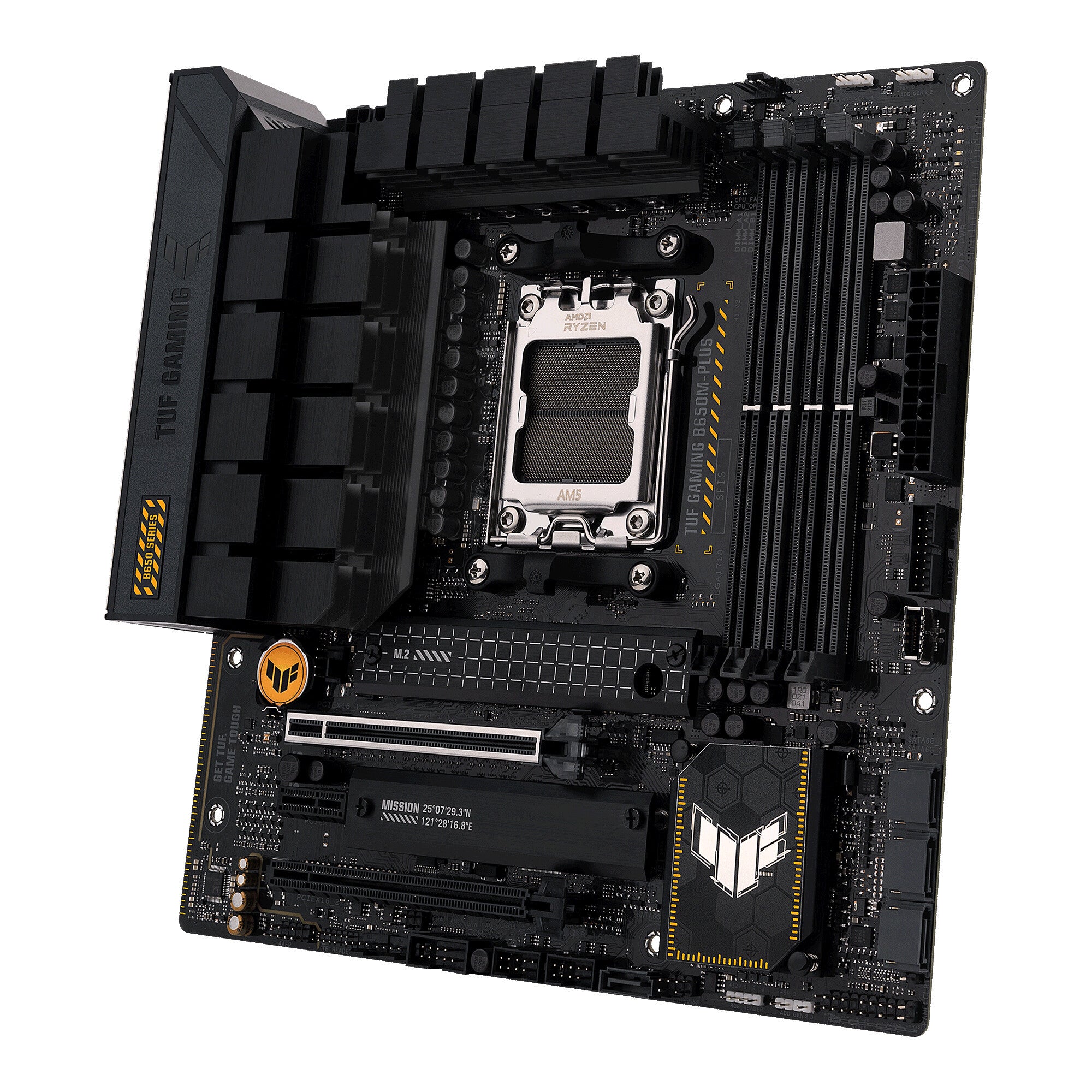

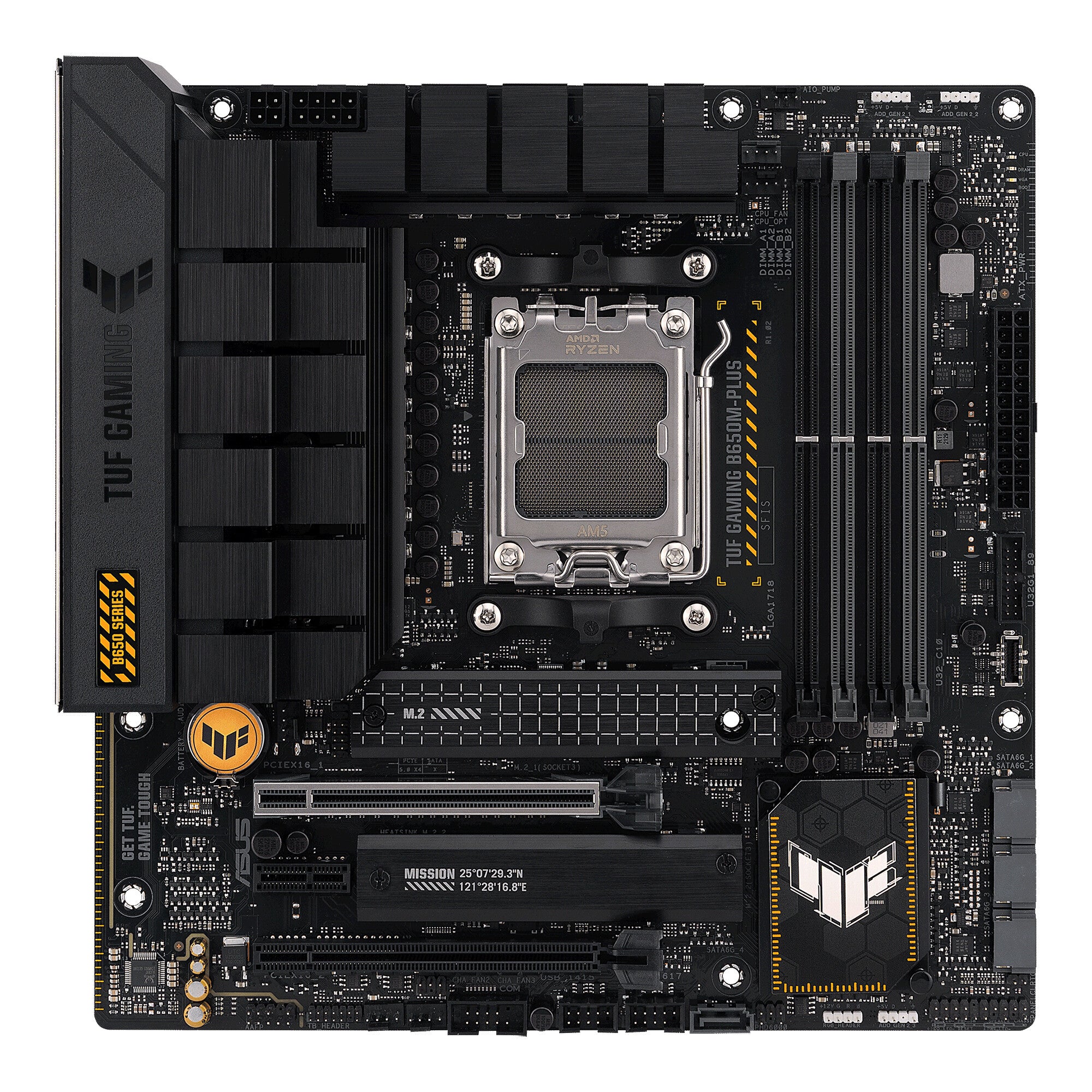

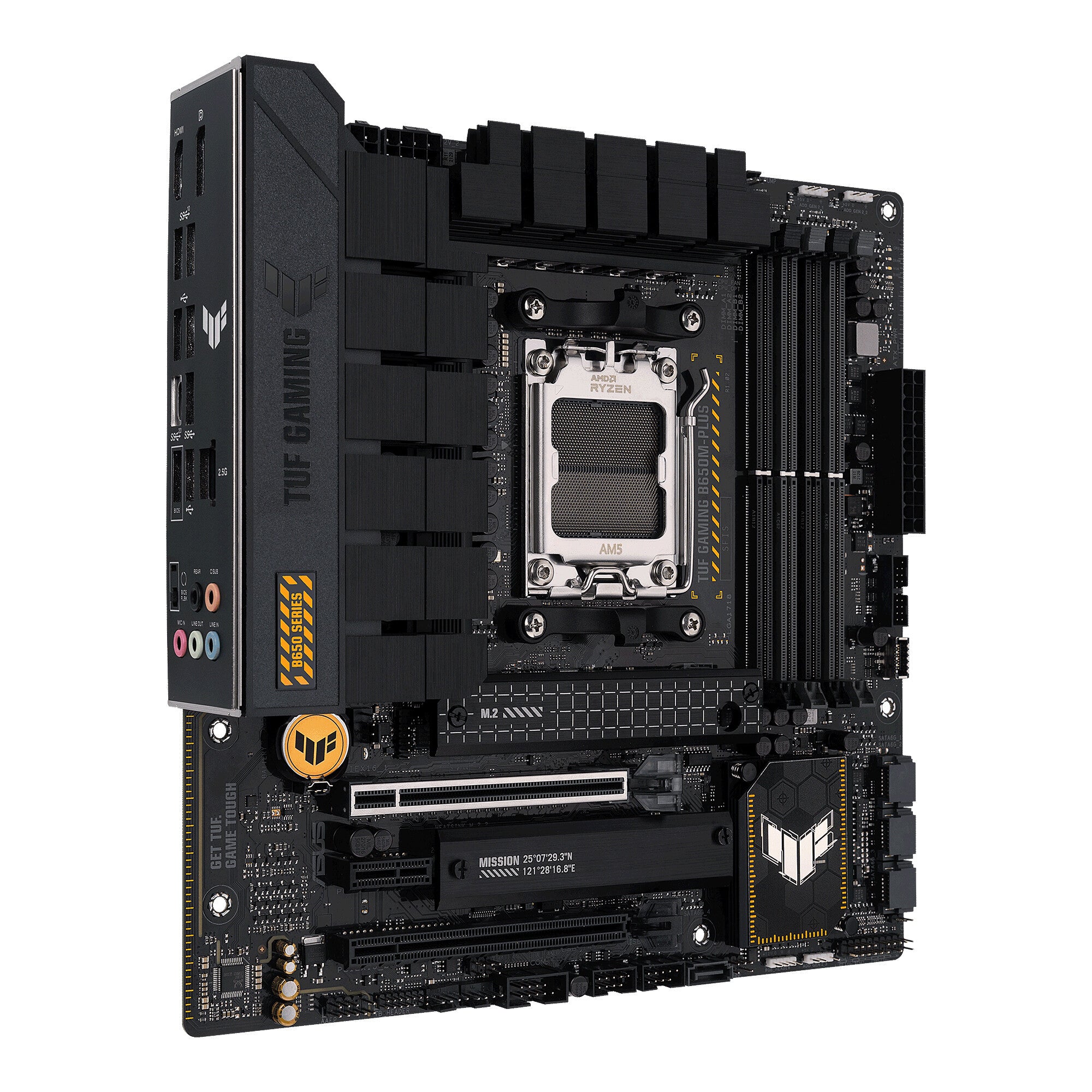

ASUS TUF GAMING B650M-PLUS mATX Motherboard | AM5 | 4x DDR5 Slots
KEY FEATURES
- AMD Socket AM5 AMD Ryzen 7000 Series
- PC micro ATX AMD B650 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the motherboard support?
What type of cooling solutions does this motherboard offer?
Does the motherboard support RGB lighting?
ASUS TUF GAMING B650M-PLUS mATX Motherboard | AM5 | 4x DDR5 Slots
Description
The ASUS TUF GAMING B650M-PLUS brings mainstream AMD B650 capabilities to compact Micro-ATX builds, making it ideal for Ryzen 7000 series processors in smaller cases or desktop setups where space matters. This AM5 socket board balances practical features with reliable performance, offering dual PCIe 4.0 x16 slots for multi-GPU setups or expansion cards alongside modern connectivity including USB 3.2 Gen 2x2 Type-C and 2.5 Gigabit Ethernet. The 14-phase power delivery provides stable power for current and future Ryzen CPUs without unnecessary complexity.
Memory performance reaches DDR5-6400 through four DIMM slots supporting up to 128GB total capacity, with both ECC and standard memory compatibility for professional or enthusiast builds. The board handles memory speeds from DDR5-4800 up to DDR5-6400, covering everything from budget kits to high-performance modules. ASUS includes memory profile support for easy overclocking, while the dual PCIe x16 slots give flexibility for graphics cards and high-speed storage or network adapters.
Built with TUF series durability in mind, the board includes RGB LED headers for lighting customization through Aura Sync software, letting you coordinate effects across compatible components. The package includes an I/O shield, SATA cables for storage connections, and installation hardware to get your build started. Setup remains straightforward with ASUS's UEFI interface, making this board suitable for first-time AMD builders or experienced users downsizing to Micro-ATX without sacrificing essential features.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

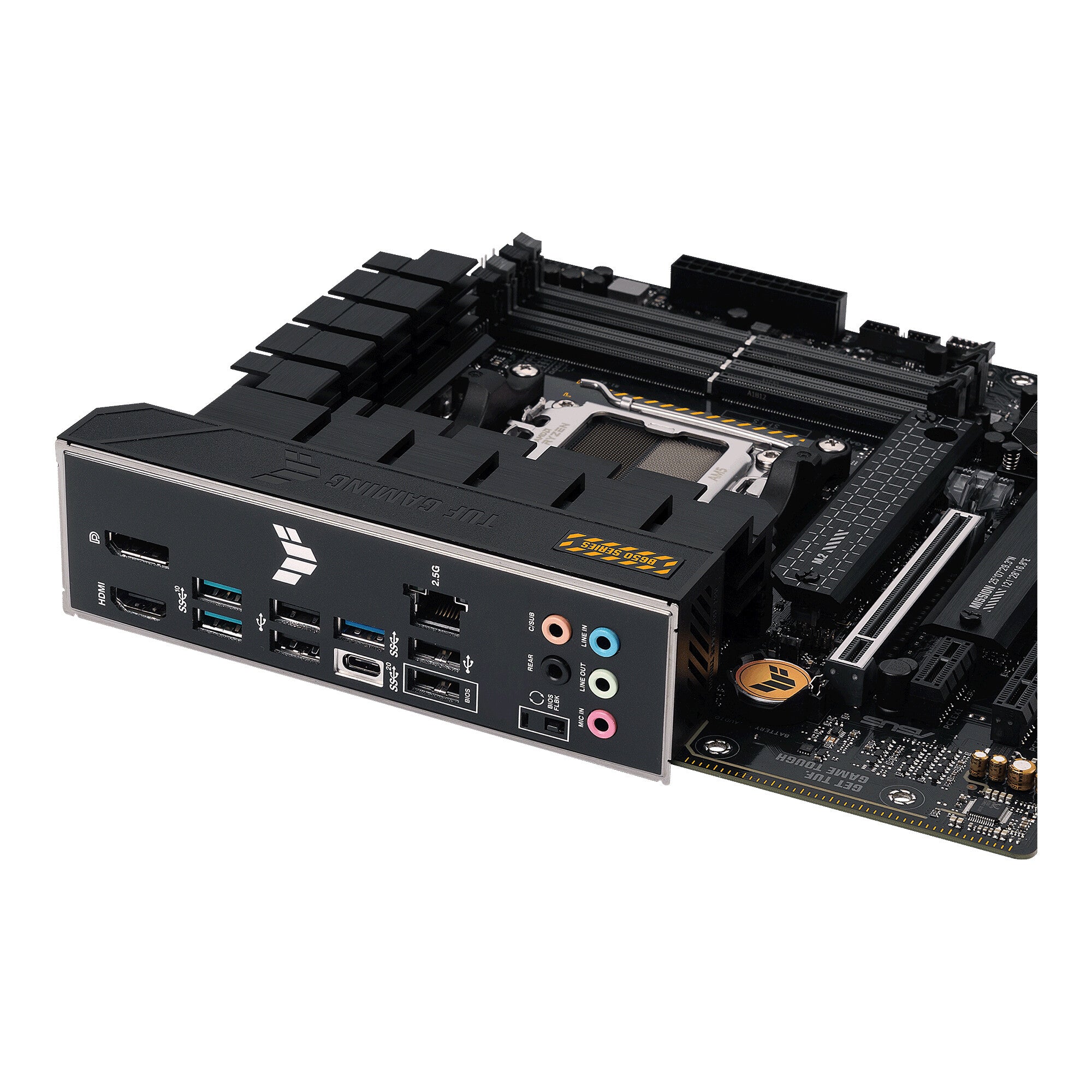

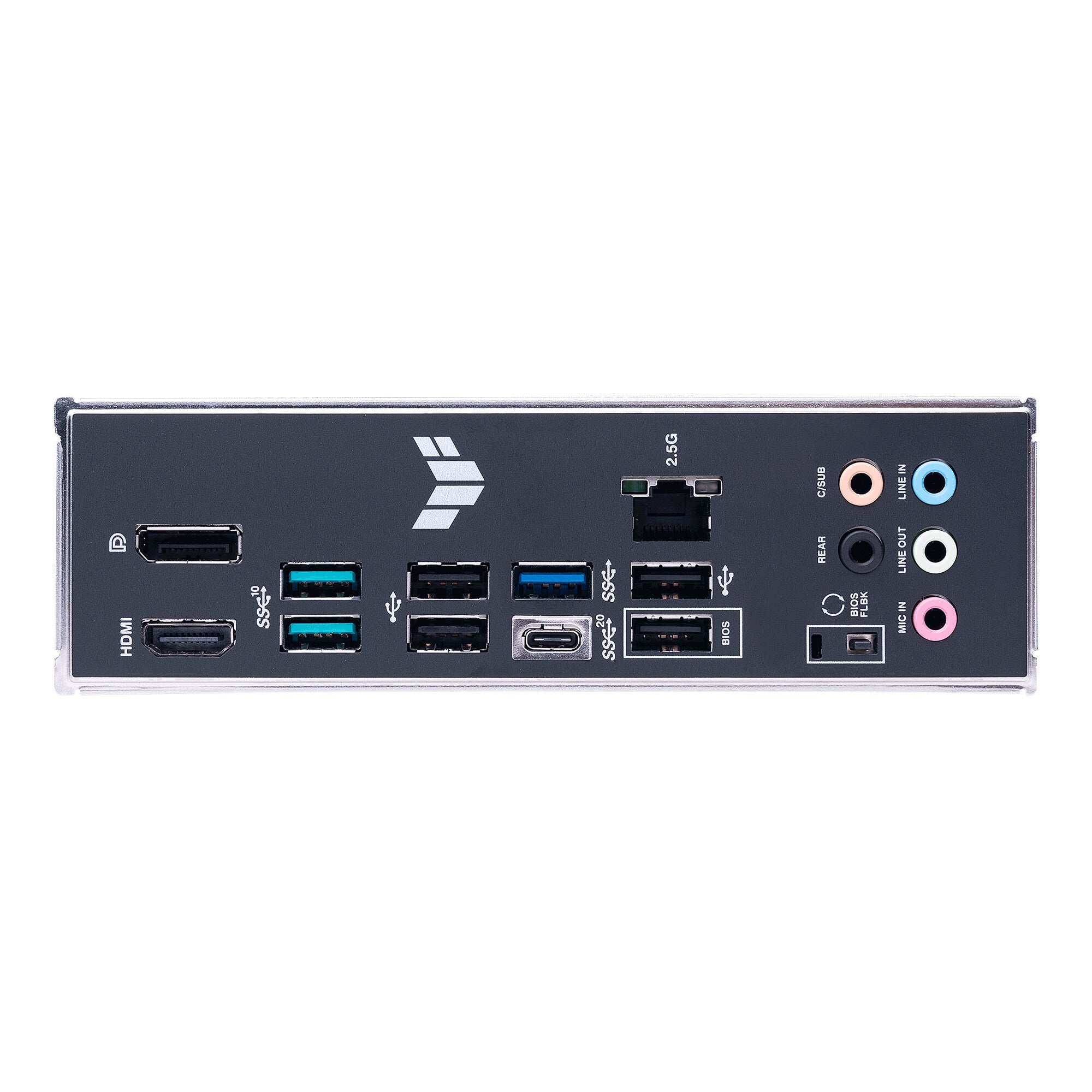

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x4 (Gen 1.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Other features | |
|---|---|
| Back-to-BIOS button | Yes |
