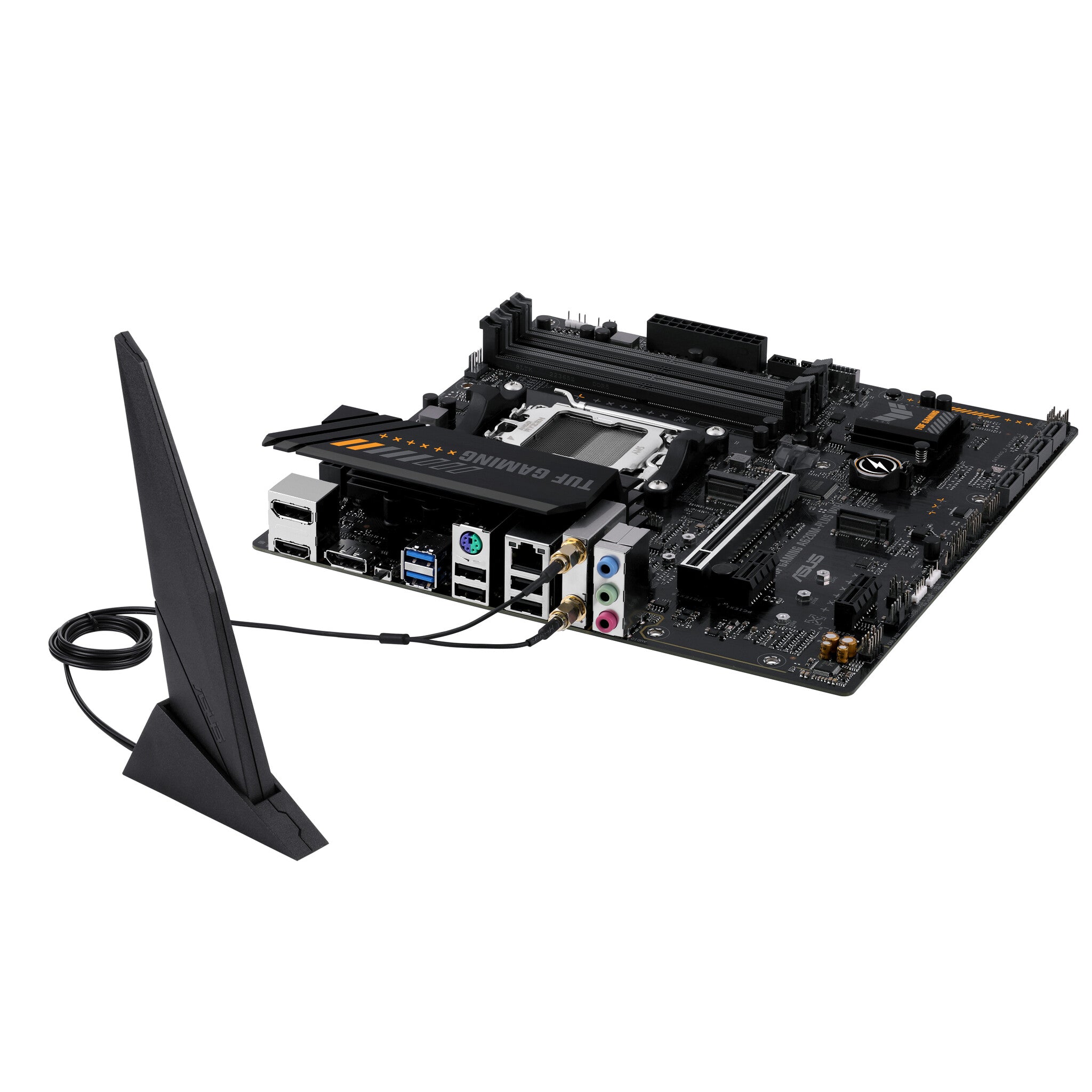

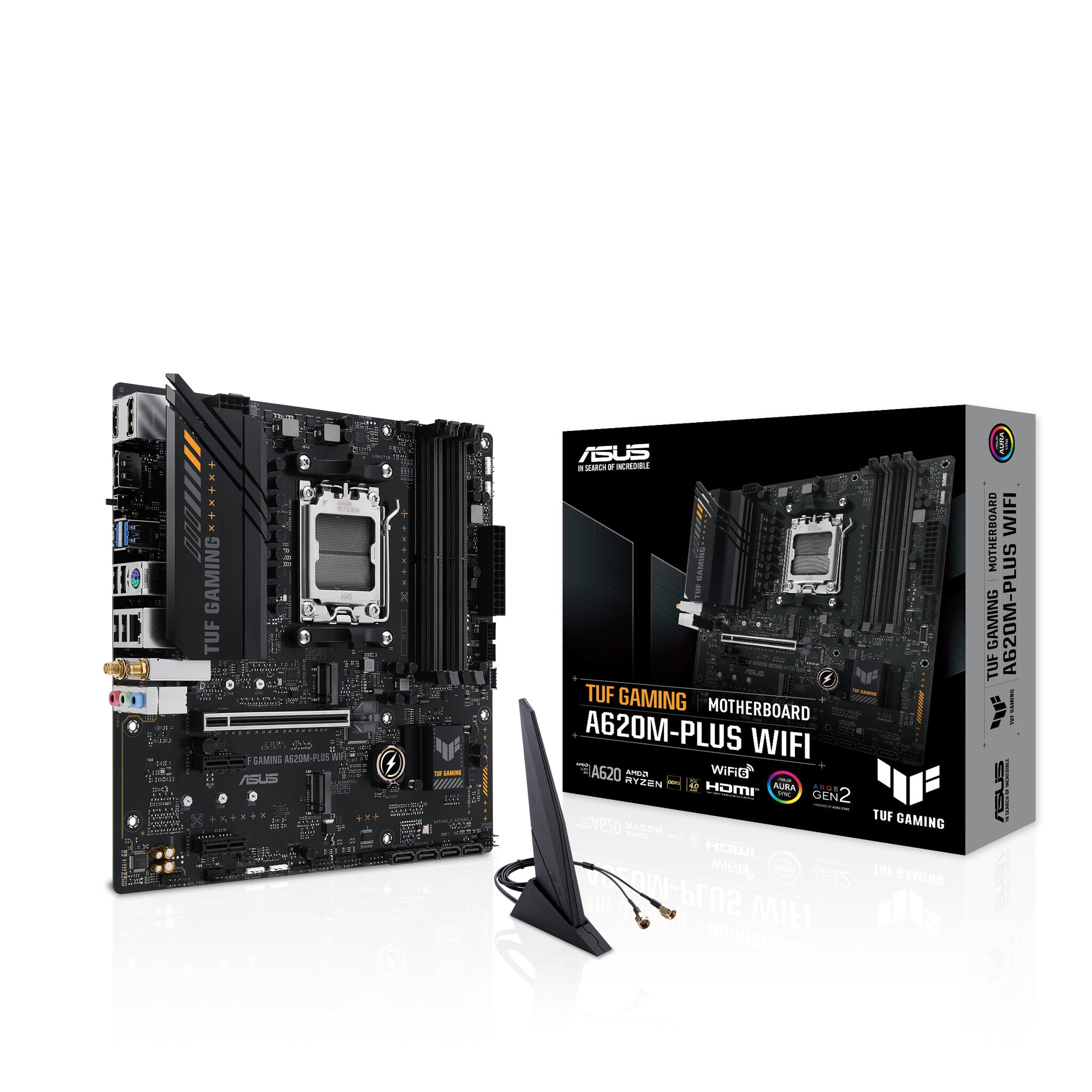

ASUS TUF GAMING A620M-PLUS WIFI mATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6
KEY FEATURES
- AMD Socket AM5 AMD Ryzen 7000 Series
- PC micro ATX AMD A620 7.1 channels
- DDR5-SDRAM 4 Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS TUF GAMING A620M-PLUS WIFI motherboard?
How much memory can I install on this motherboard?
Does this motherboard support Wi-Fi?
ASUS TUF GAMING A620M-PLUS WIFI mATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6
Description

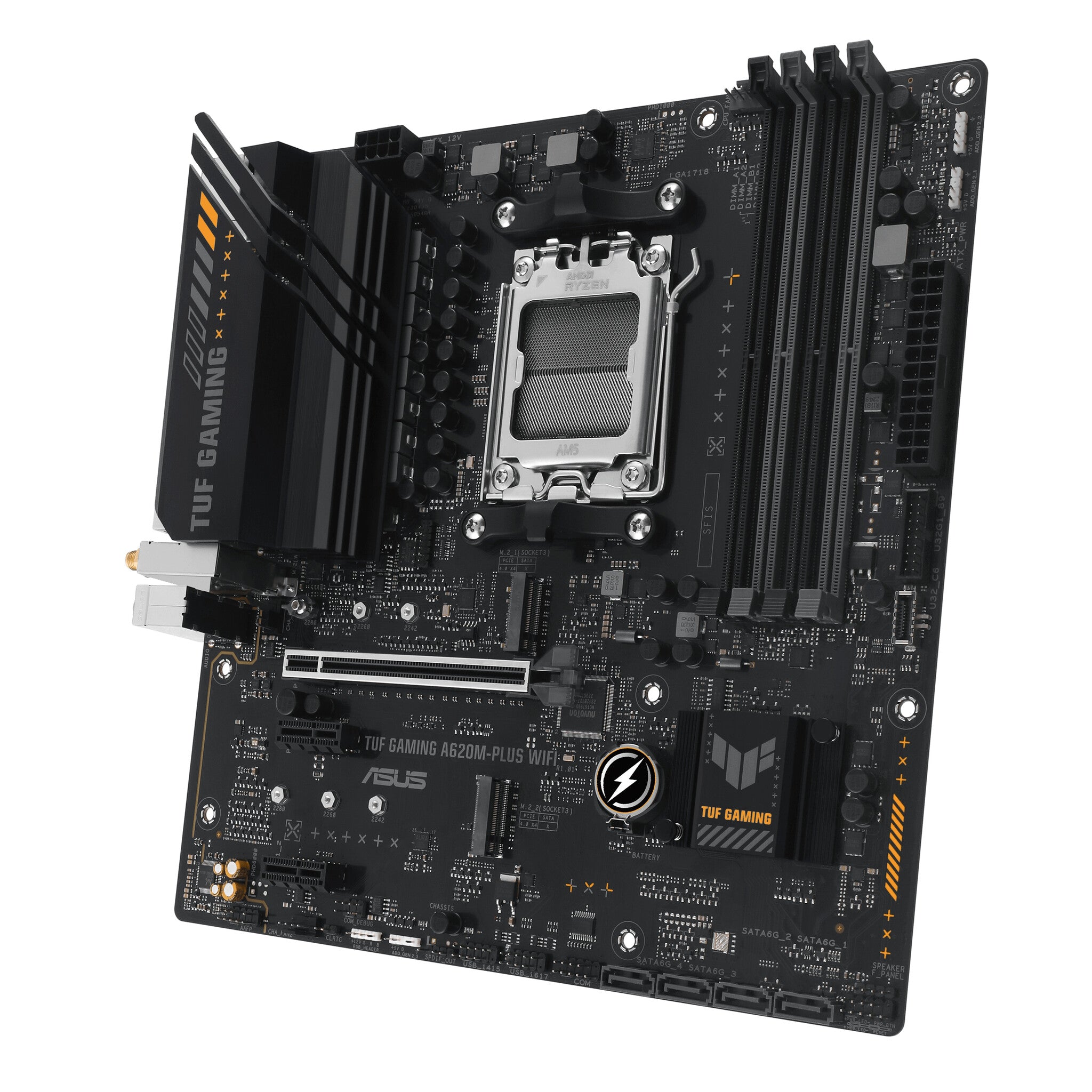

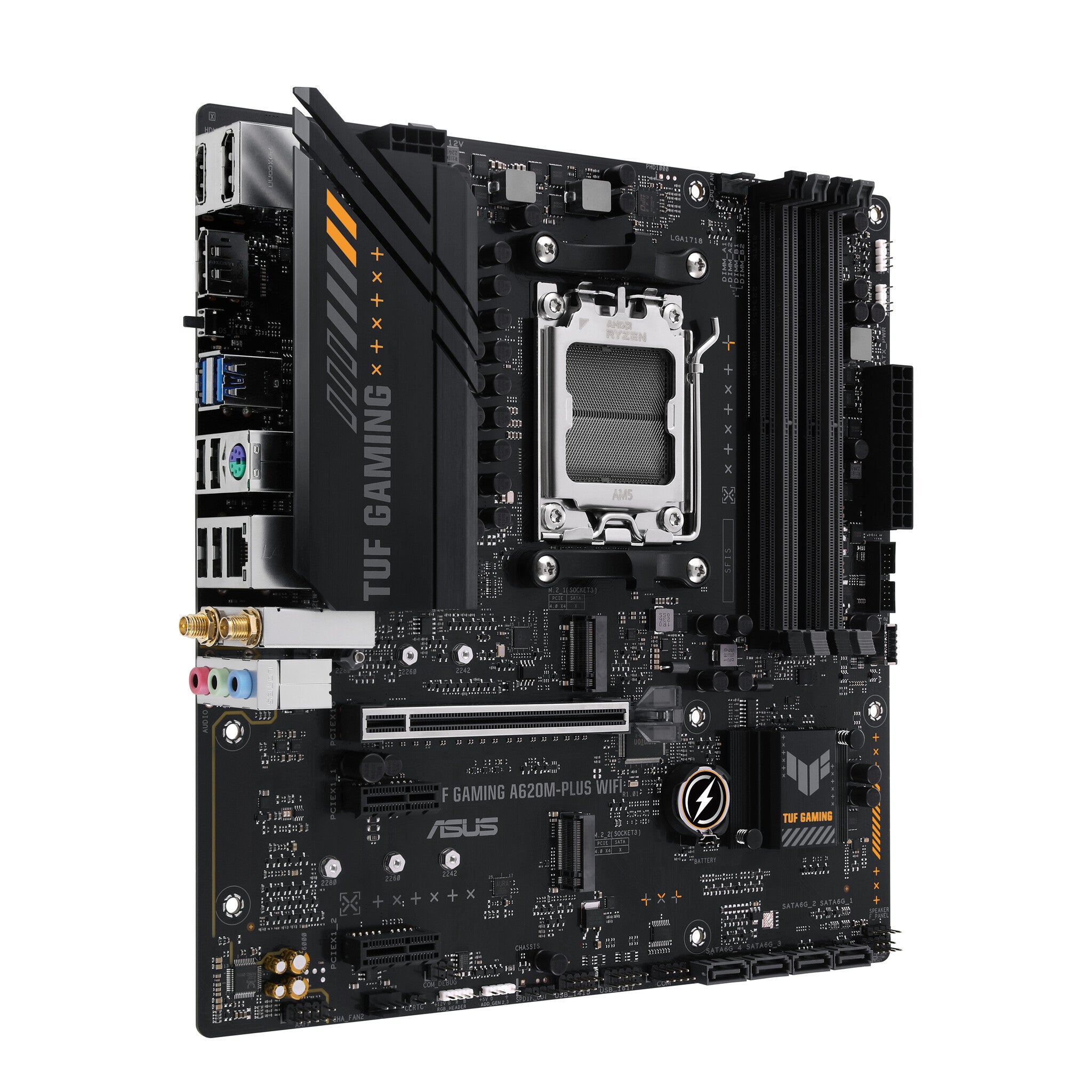

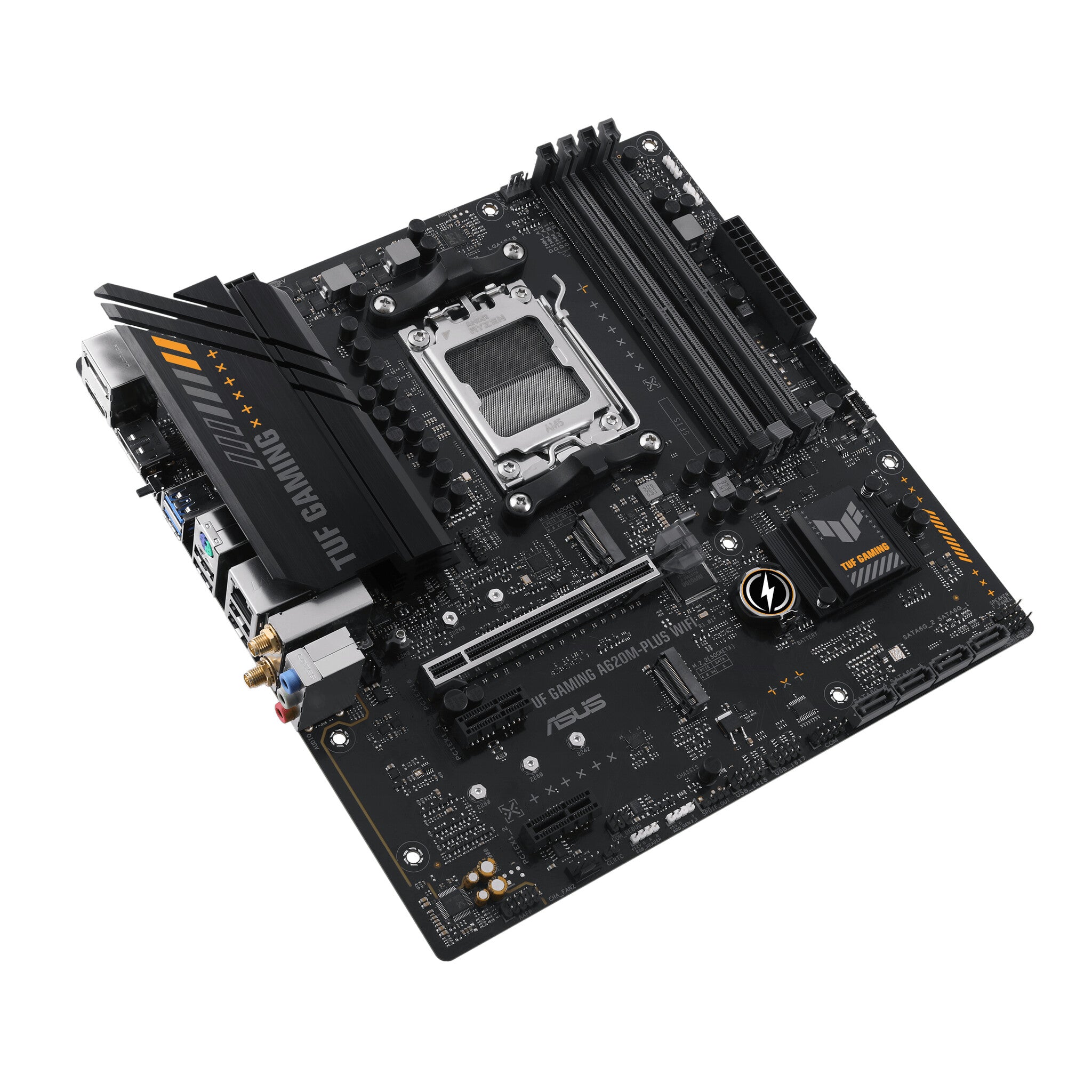

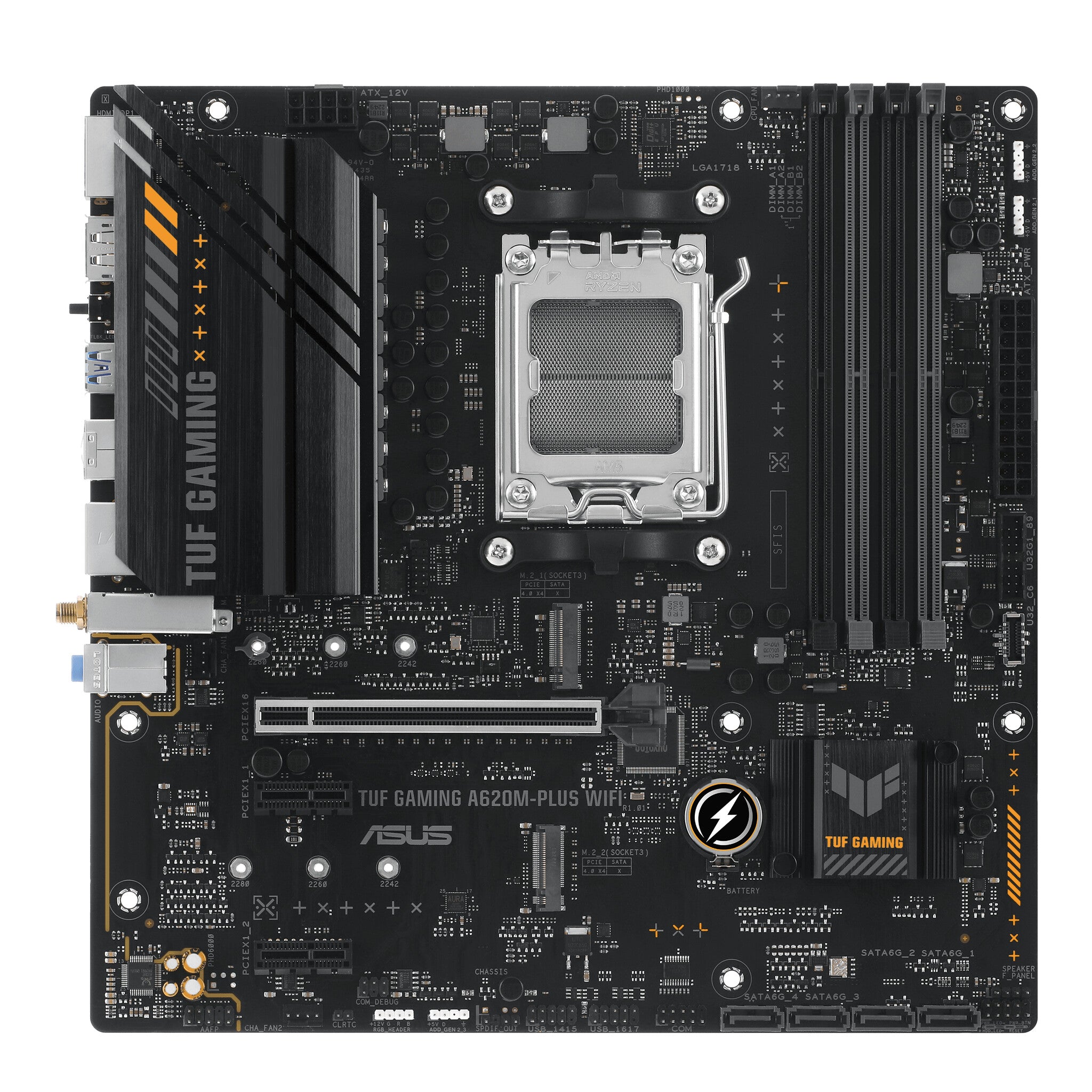

The ASUS TUF GAMING A620M-PLUS WIFI is a micro ATX motherboard built around AMD's budget-friendly A620 chipset for Socket AM5. This entry-level board supports the full range of AMD Ryzen 7000 series processors, making it an accessible foundation for new AM5 builds without the premium price tag of higher-end chipsets. The micro ATX form factor fits comfortably in smaller cases while still providing room for essential expansion.
Memory support covers DDR5 across four slots with speeds from 4800MHz up to 6400MHz, accommodating up to 128GB total capacity. The board includes built-in Wi-Fi 6 and 2.5 Gigabit Ethernet for fast networking, plus dual display outputs with HDMI and two DisplayPort connections for integrated graphics users. Two M.2 slots handle modern NVMe storage, while PCIe 4.0 support ensures compatibility with current and upcoming graphics cards.

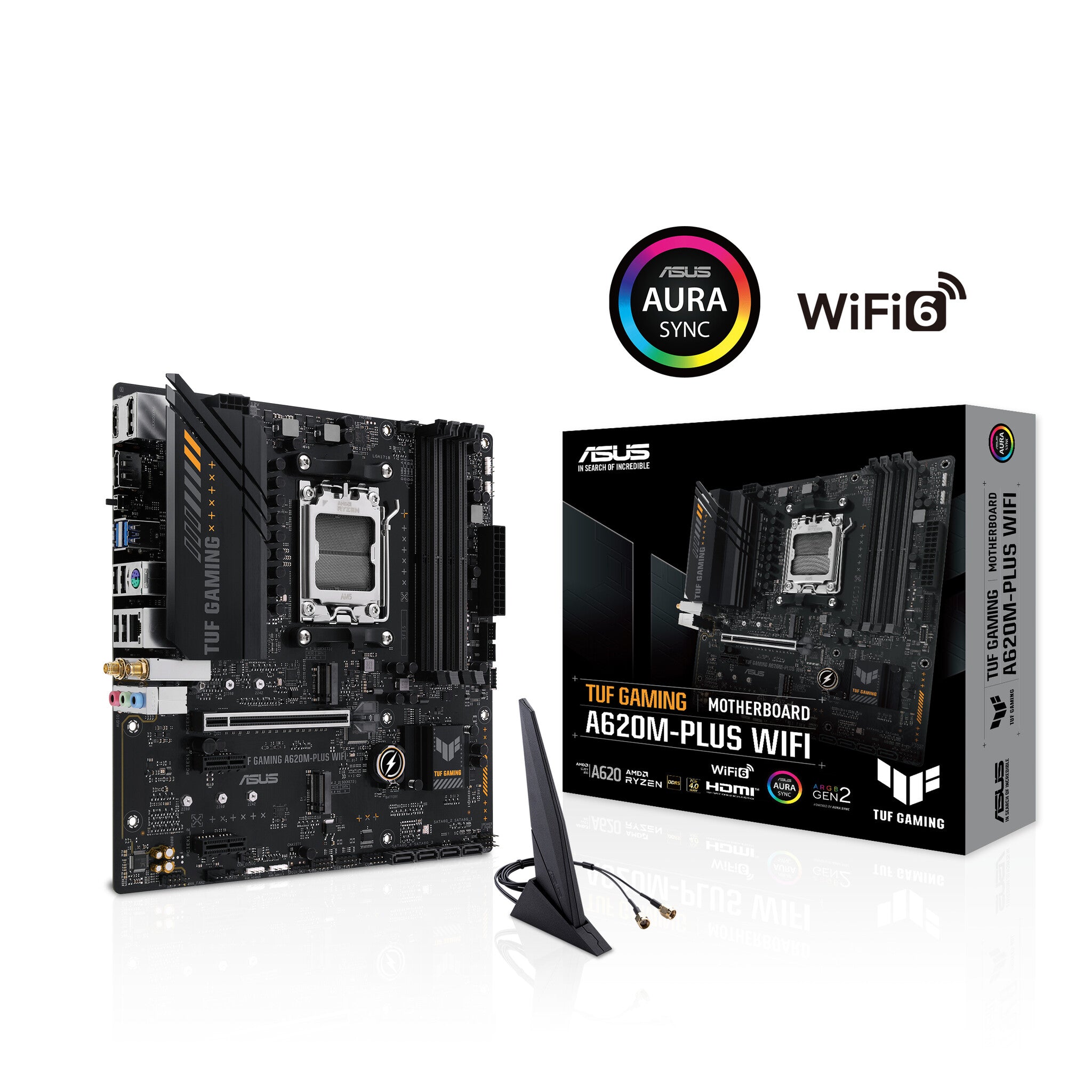

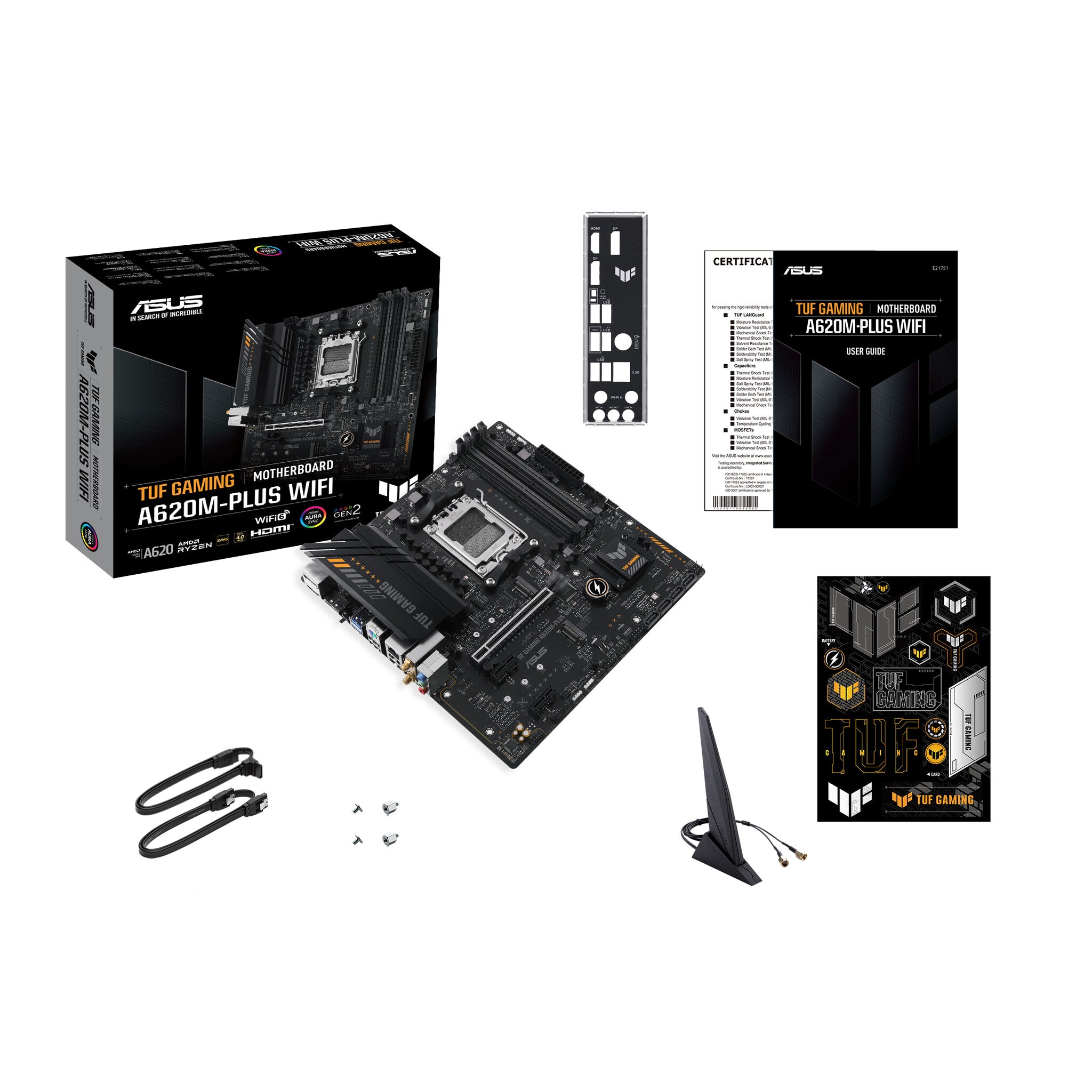

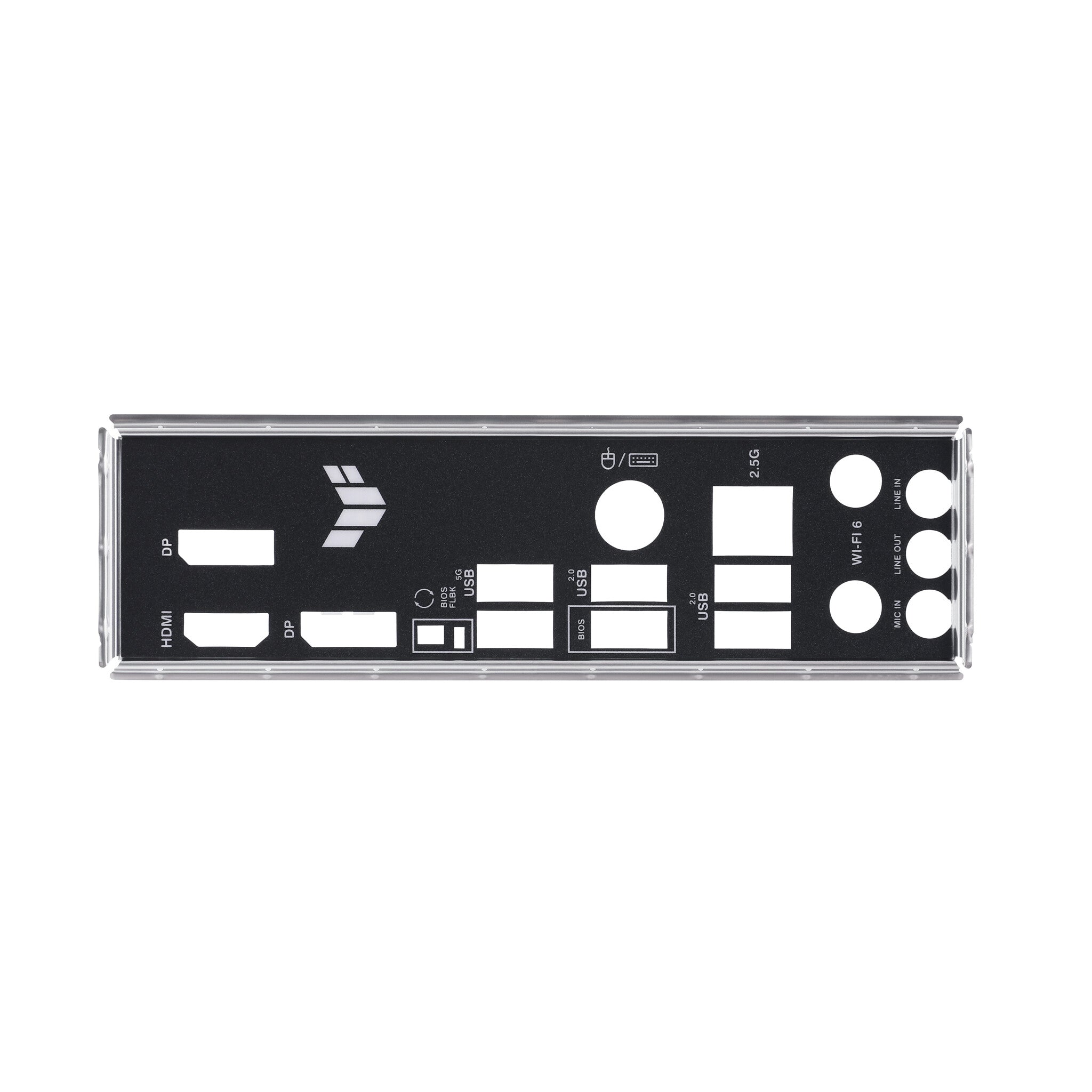

Setup benefits from EXPO memory profile support for easy DDR5 overclocking, and the package includes the rear I/O shield plus necessary installation hardware. The TUF Gaming series brings ASUS's reliability focus to the budget segment, with enhanced component durability and a straightforward BIOS interface. RGB headers let you add lighting effects, while ECC memory compatibility provides extra data integrity options for users who need it.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

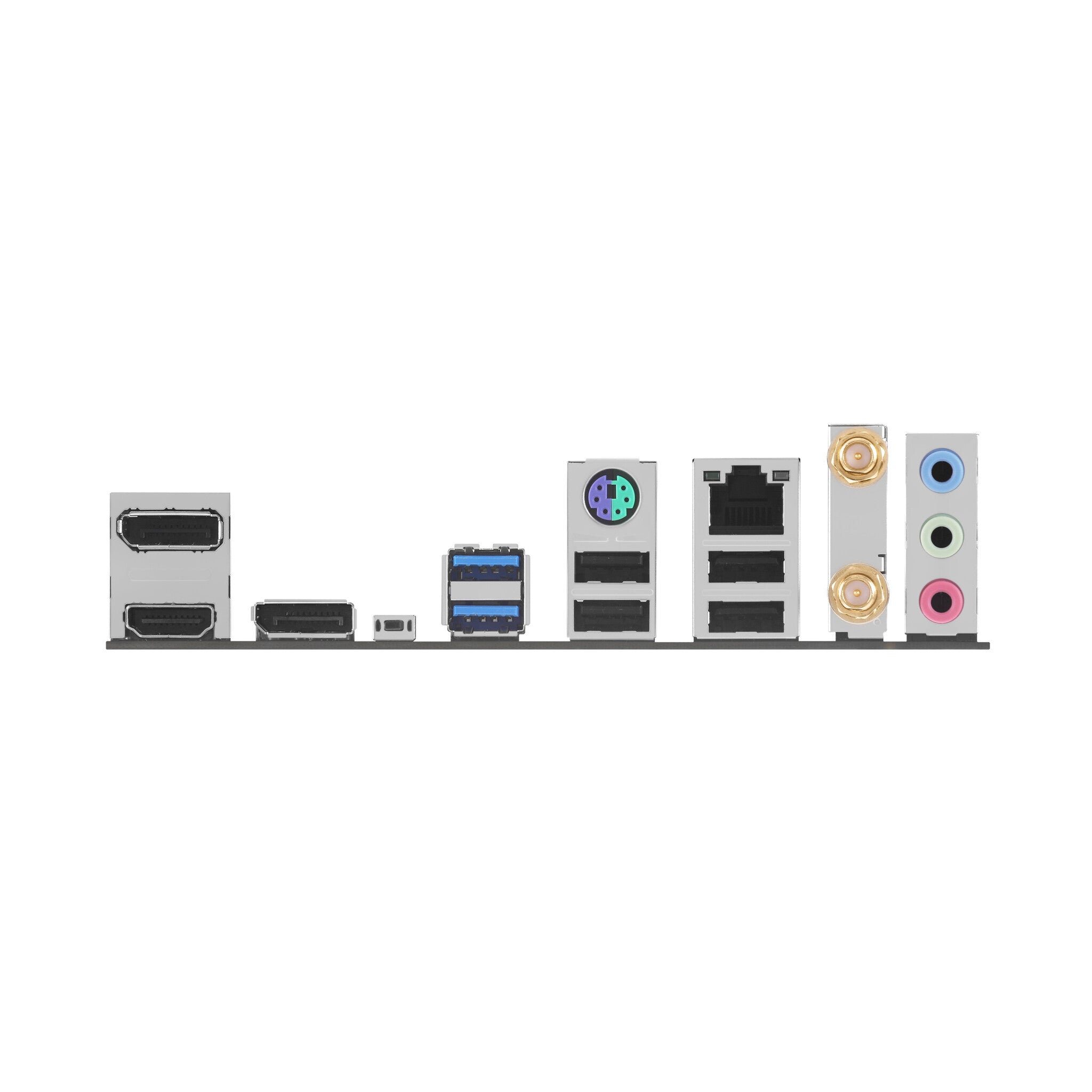

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
|---|---|
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 920 g |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 50 mm |
| Other features | |
|---|---|
| Weight | 800 g |
Frequently Asked Questions
What processors are compatible with the ASUS TUF GAMING A620M-PLUS WIFI motherboard?
How much memory can I install on this motherboard?
Does this motherboard support Wi-Fi?
What type of storage does this motherboard support?
