ASUS PRIME H610M-A D4-CSM mATX Motherboard | LGA1700 | 2x DDR4 Slots
KEY FEATURES
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 2 ports
- Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the ASUS PRIME H610M-A D4-CSM support?
What cooling solutions does this motherboard offer?
Does the motherboard support RGB lighting?
ASUS PRIME H610M-A D4-CSM mATX Motherboard | LGA1700 | 2x DDR4 Slots
Description

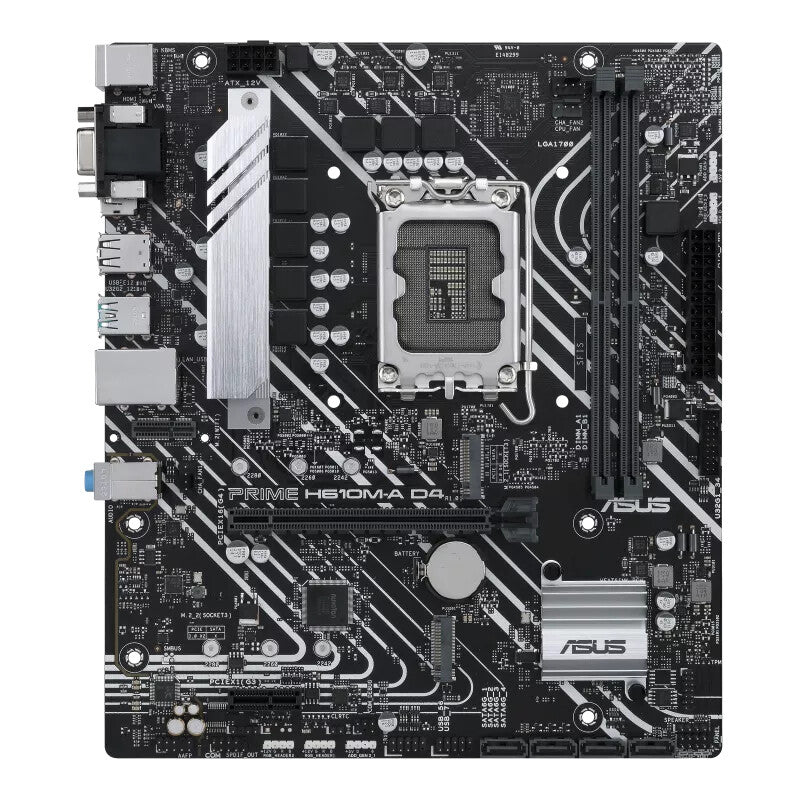

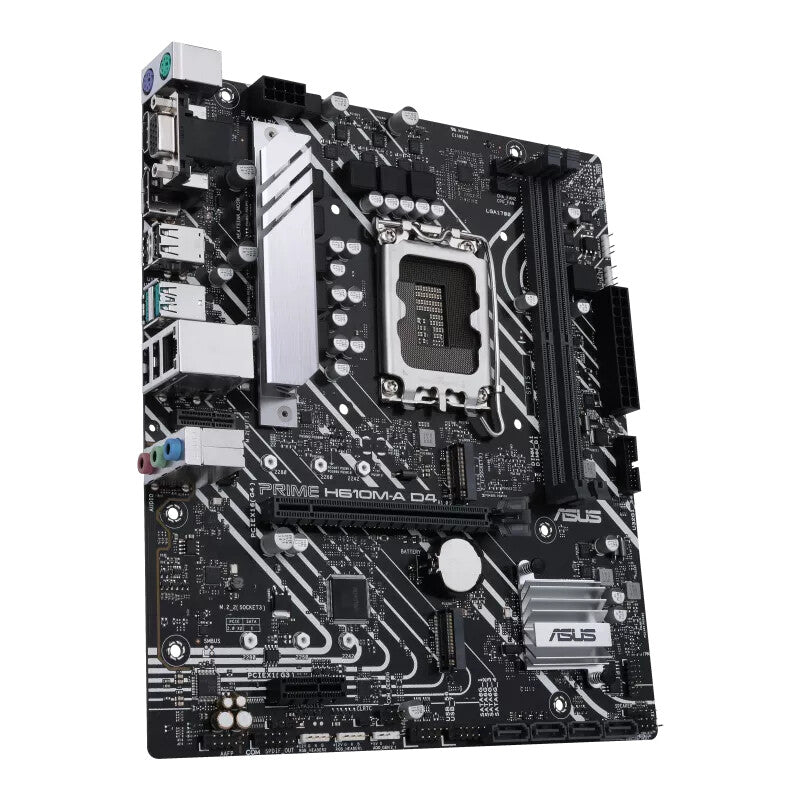

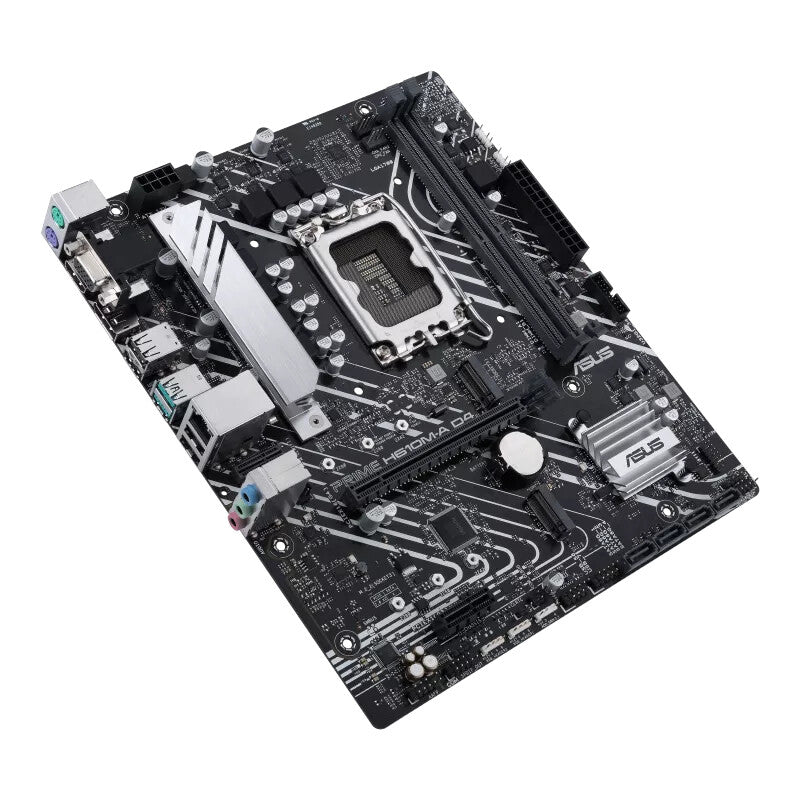

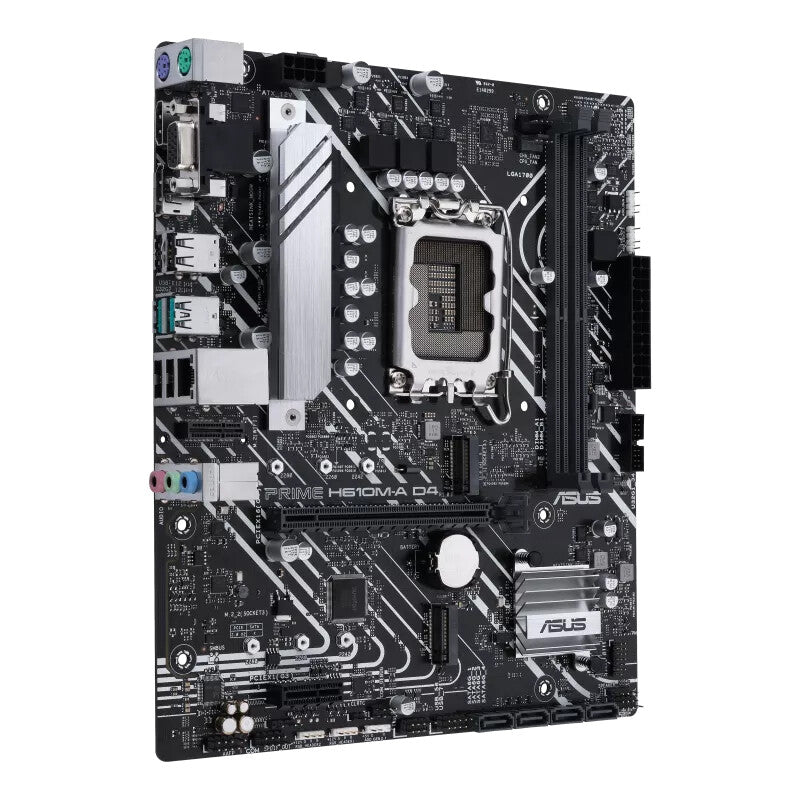

The ASUS PRIME H610M-A D4-CSM is a micro ATX motherboard built around Intel's H610 chipset, designed for budget-conscious builders who need essential functionality without unnecessary extras. Supporting LGA1700 processors from Intel's 12th and 13th generation lineups - including Celeron, Pentium, Core i3, i5, i7, and i9 CPUs - this board provides a solid foundation for everything from basic office systems to capable gaming builds. The micro ATX form factor makes it suitable for compact cases while still offering room for essential expansion.

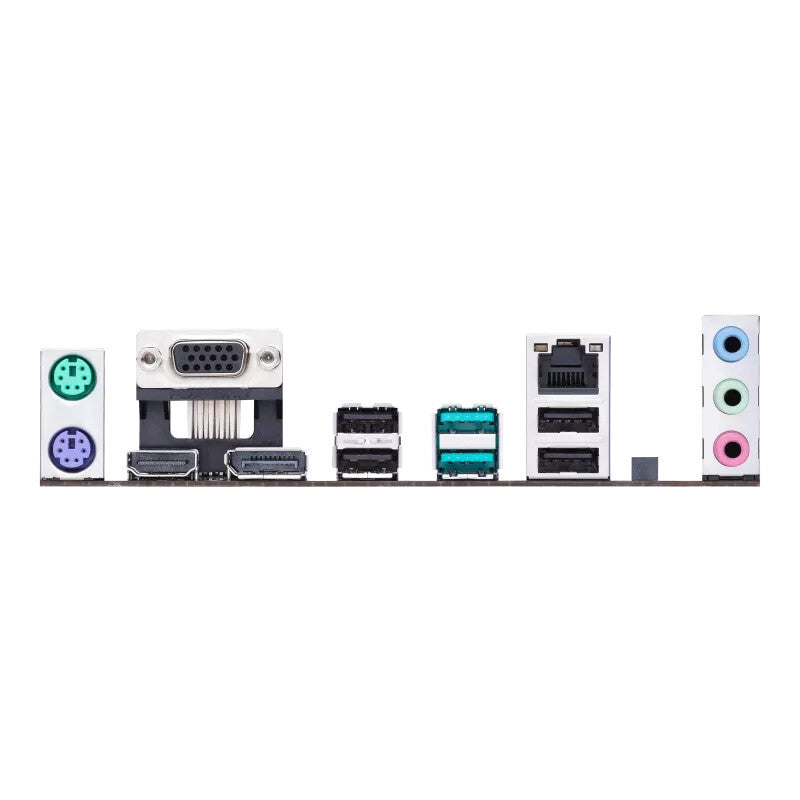

Memory support covers DDR4 across two DIMM slots, accommodating up to 64GB total capacity with speeds ranging from DDR4-2133 through DDR4-3200. The single PCIe 4.0 x16 slot handles modern graphics cards, while an additional PCIe 3.0 x1 slot provides room for expansion cards like Wi-Fi adapters or sound cards. Multiple display outputs including HDMI, DisplayPort, and VGA ensure compatibility with various monitor setups, particularly useful for integrated graphics configurations.

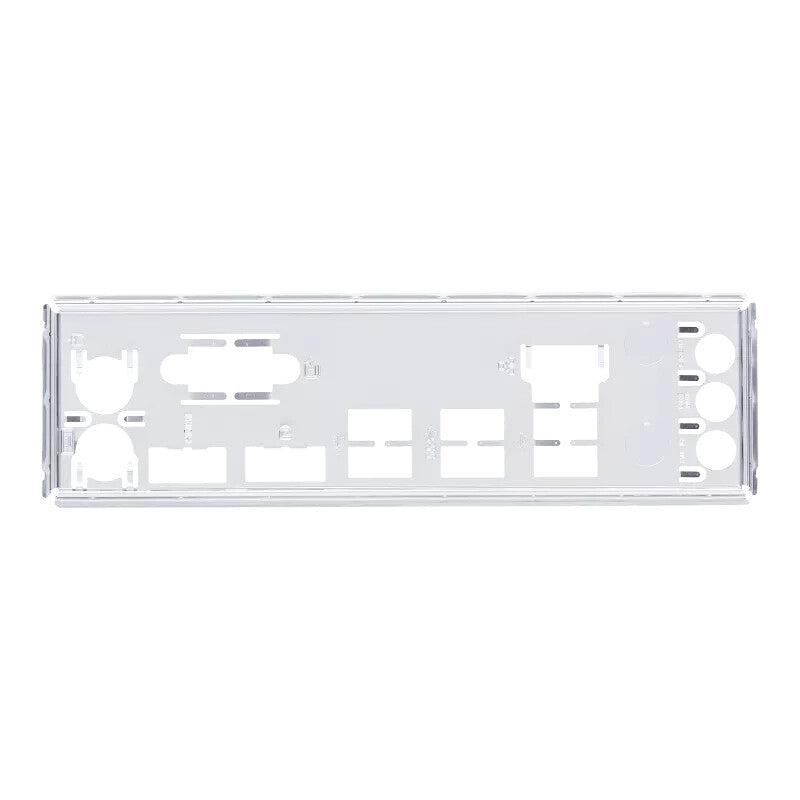

Connectivity covers the essentials with Gigabit Ethernet, USB 3.2 ports, and SATA III connections for storage drives. The board includes standard features like XMP memory profile support for easy DDR4 overclocking and an RGB LED header for lighting customization. ASUS includes the necessary installation accessories in the box, including an I/O shield and user documentation to get your system running smoothly.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM, LPDDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 211 mm |
| Height | 221 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 382 g |
