ASUS PRIME B760M-K D4 micro ATX Intel Motherboard | LGA1700 Socket - 2 x DDR4 Memory Slots
KEY FEATURES
- Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- PC micro ATX Intel B760 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 128 Mbit
- 2.5 Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can I install on this motherboard?
What type of storage interfaces does this motherboard support?
Is this motherboard suitable for gaming?
ASUS PRIME B760M-K D4 micro ATX Intel Motherboard | LGA1700 Socket - 2 x DDR4 Memory Slots
Description
The ASUS ASUS PRIME B760M-K D4 micro ATX Intel Motherboard is engineered for those who demand reliability and performance in their PC builds. With its LGA 1700 socket and compatibility with a range of Intel processors, this motherboard is a solid foundation for your next computing project. Whether you're a gamer, content creator, or simply looking to upgrade your home office, the PRIME B760M-K D4 offers the features and flexibility you need.
Key Benefits
- Versatile Processor Compatibility: Supports a wide range of Intel processors, including Celeron, Core i3, i5, i7, and i9, allowing you to tailor your system to your specific needs.
- Enhanced Memory Support: With 2 DDR4 memory slots, you can expand your RAM up to 64 GB, ensuring smooth multitasking and efficient performance for demanding applications.
- Advanced Connectivity Options: Featuring 2.5 Gigabit Ethernet, HDMI, and VGA outputs, this motherboard provides fast and reliable connections for all your devices and peripherals.
- Flexible Storage Solutions: Equipped with M.2 and SATA III interfaces, you can easily integrate both HDDs and SSDs, offering you the speed and capacity you require.
- Future-Proof Design: The Intel B760 chipset ensures compatibility with the latest technologies, making this motherboard a smart investment for years to come.
- Customisable Aesthetics: The inclusion of an RGB LED pin header allows you to personalise your build's lighting, adding a unique touch to your setup.
Addtional Features of the ASUS ASUS PRIME B760M-K D4
The PRIME B760M-K D4 is not just about performance; it's also designed with user experience in mind. The motherboard's micro ATX form factor makes it an ideal choice for compact builds, while its robust construction ensures durability. With PCIe 4.0 support, you can take advantage of faster graphics cards and expansion cards, enhancing your system's capabilities. Additionally, the non-ECC compatibility allows for a straightforward setup, making it accessible for both novice and experienced builders alike.
Why Buy the ASUS ASUS PRIME B760M-K D4?
Investing in the ASUS ASUS PRIME B760M-K D4 micro ATX Intel Motherboard means choosing a product that combines performance, versatility, and future-proofing. Its thoughtful design and comprehensive features make it suitable for a wide range of applications, from gaming to professional workstations. When you choose this motherboard, you're not just buying a component; you're laying the groundwork for a powerful and efficient computing experience.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 64 GB |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

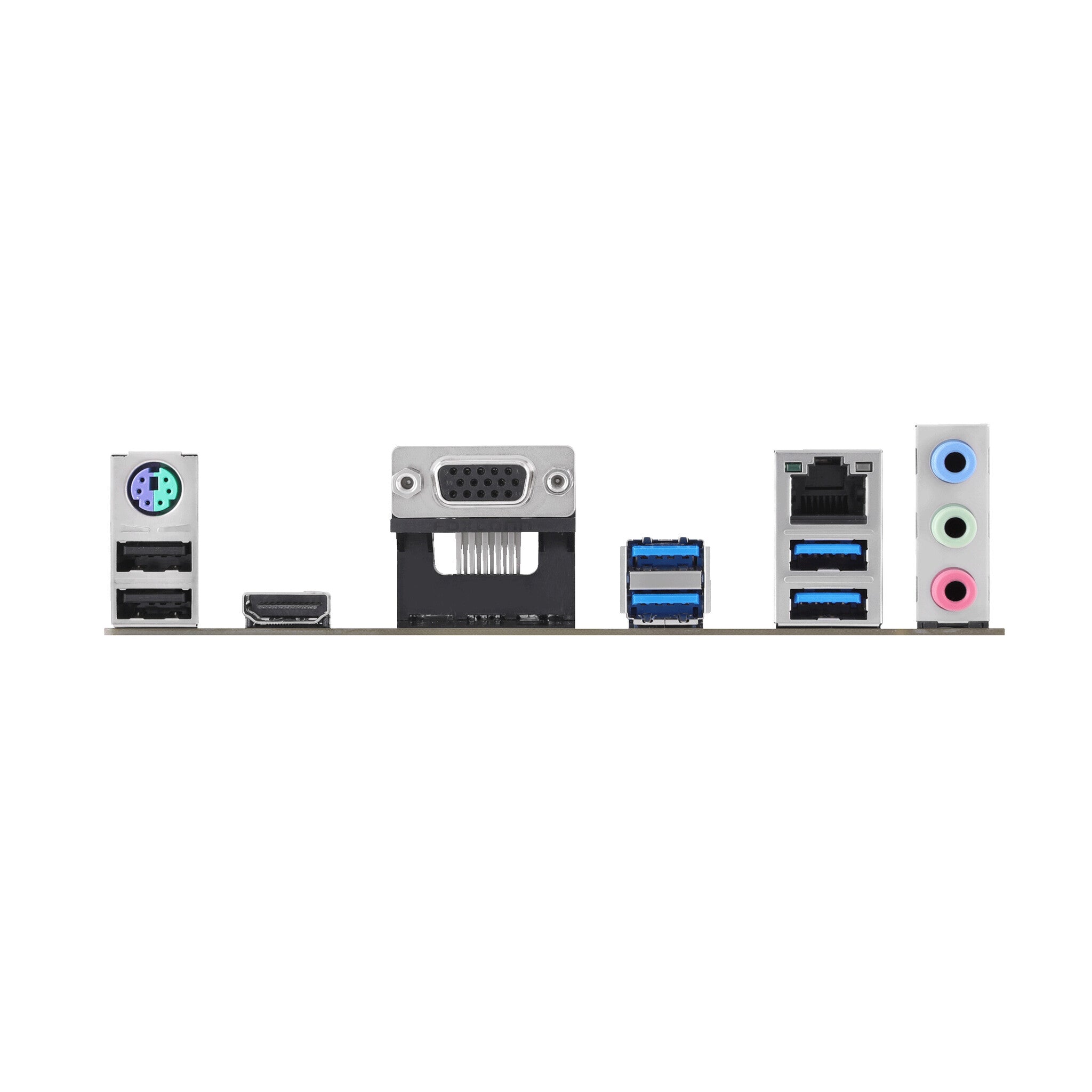

| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 926.3 g |
| Package height | 263 mm |
| Package depth | 51.5 mm |
| Package width | 270 mm |
| Weight & dimensions | |
|---|---|
| Height | 36 mm |
| Depth | 211 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 528 g |
