ASUS PRIME B760-PLUS ATX Intel Motherboard | LGA1700 Socket - 4 x DDR5 Memory Slots
KEY FEATURES
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS PRIME B760-PLUS?
How many memory slots does the motherboard have?
What cooling options are available with this motherboard?
ASUS PRIME B760-PLUS ATX Intel Motherboard | LGA1700 Socket - 4 x DDR5 Memory Slots
Description
The ASUS ASUS PRIME B760-PLUS ATX Intel Motherboard is designed to elevate your computing experience, expertly crafted to harness the full capabilities of the 13th Gen Intel® Core™ Processors. With its robust power design, comprehensive cooling solutions, and intelligent tuning options, this motherboard is perfect for both seasoned builders and newcomers to PC DIY. Whether you're gaming, creating, or multitasking, the PRIME B760-PLUS ensures your system runs smoothly and efficiently.
Key Benefits
- Optimised Performance: The PRIME B760-PLUS is engineered to maximise the potential of Intel's latest processors, providing a seamless experience for demanding applications and gaming.
- Flexible Tuning Options: With comprehensive controls at your fingertips, you can easily adjust system settings to match your workflow, enhancing productivity and performance.
- User-Friendly UEFI BIOS: The renowned ASUS UEFI BIOS simplifies the configuration process, offering guided wizards and intuitive settings for both beginners and experts.
- Energy Efficiency: The Power Saving function optimises power consumption, allowing you to save energy without sacrificing performance, making it an eco-friendly choice.
- Advanced Cooling Solutions: ASUS Fan Xpert 2+ software gives you complete control over cooling systems, ensuring your rig stays quiet and cool, even under heavy loads.
- Versatile Connectivity: Equipped with PCIe 5.0 and multiple M.2 slots, the motherboard supports a wide range of storage options and peripherals, future-proofing your setup.
Addtional Features
The ASUS PRIME B760-PLUS motherboard comes with four DDR5 memory slots, supporting a maximum internal memory of 192 GB, ensuring you have ample space for all your applications. Its ATX form factor allows for easy integration into various cases, while the Intel B760 chipset guarantees compatibility with a wide range of Intel processors, including Celeron, Core i3, i5, i7, and i9.
The motherboard also features Realtek 2.5Gb Ethernet for high-speed networking, along with multiple display outputs including DisplayPort, VGA, and HDMI™, catering to diverse visual needs. With USB 3.2 Gen 2x2 Type-C and Thunderbolt (USB4) support, you can connect modern devices effortlessly, enhancing your overall user experience.
Why Buy
The ASUS ASUS PRIME B760-PLUS ATX Intel Motherboard is not just a component; it's a gateway to a powerful and efficient computing experience. With its intelligent design, user-friendly features, and robust performance capabilities, it stands out as an ideal choice for anyone looking to build or upgrade their PC. Invest in the PRIME B760-PLUS to ensure your system is equipped for the demands of today and the challenges of tomorrow.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 192 GB |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of chassis fan connectors | 3 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |

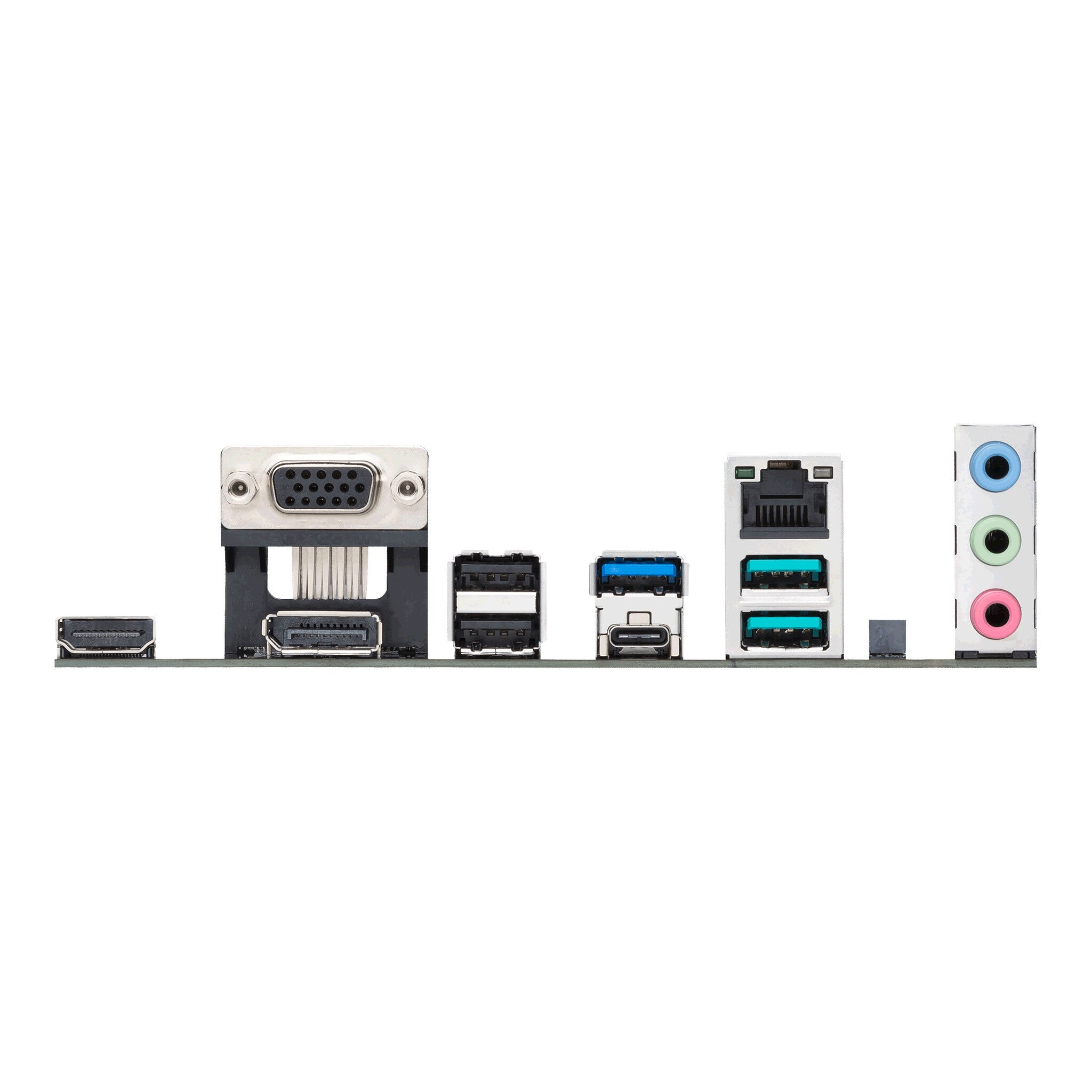

| Rear panel I/O ports | |
|---|---|
| Line-in | Yes |
| Headphone outputs | 1 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Cooling type | Passive |
| Power source type | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 1.2 kg |
| Package height | 53 mm |
| Package depth | 266 mm |
| Package width | 328 mm |
| Weight & dimensions | |
|---|---|
| Height | 36 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 760 g |
