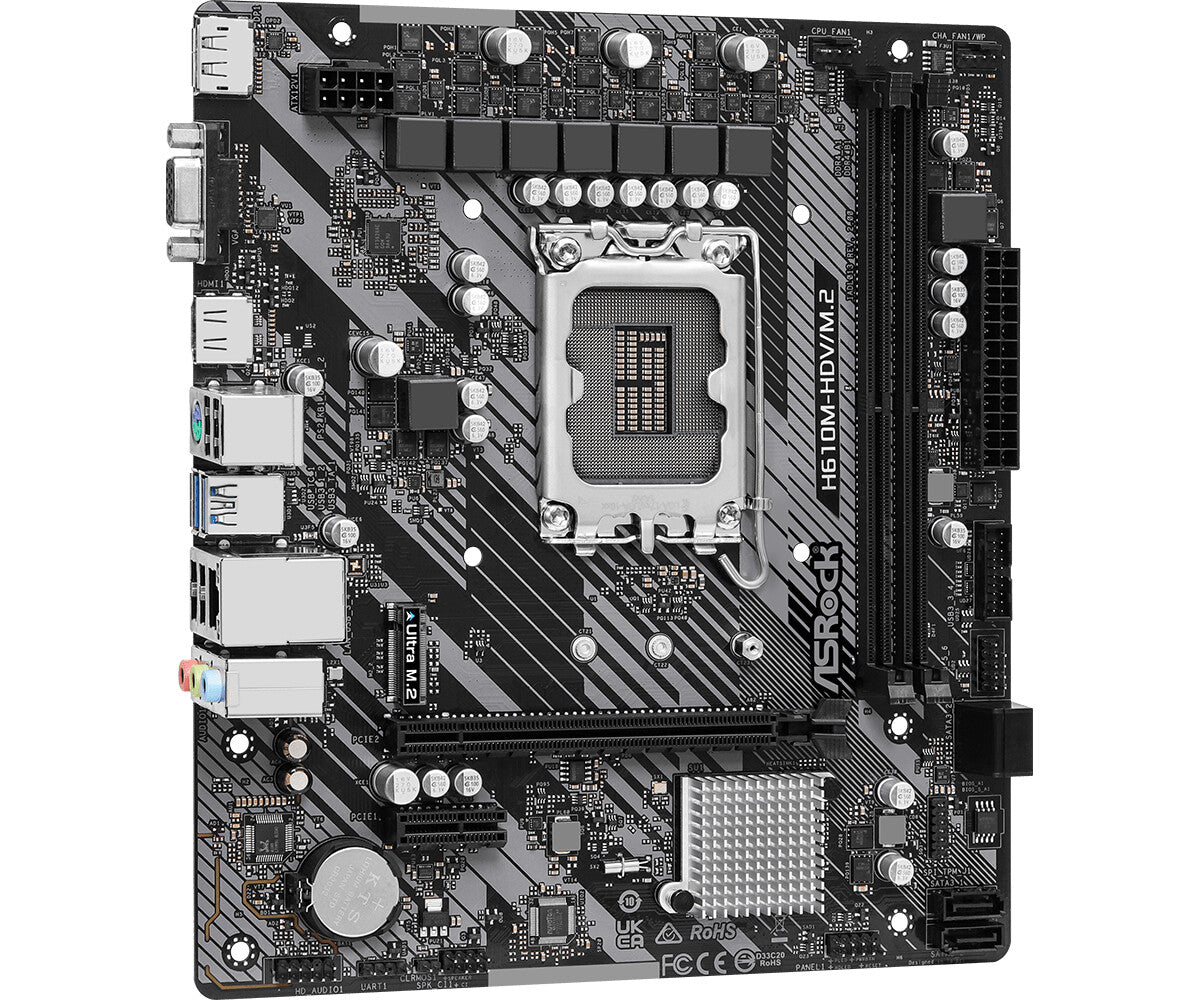

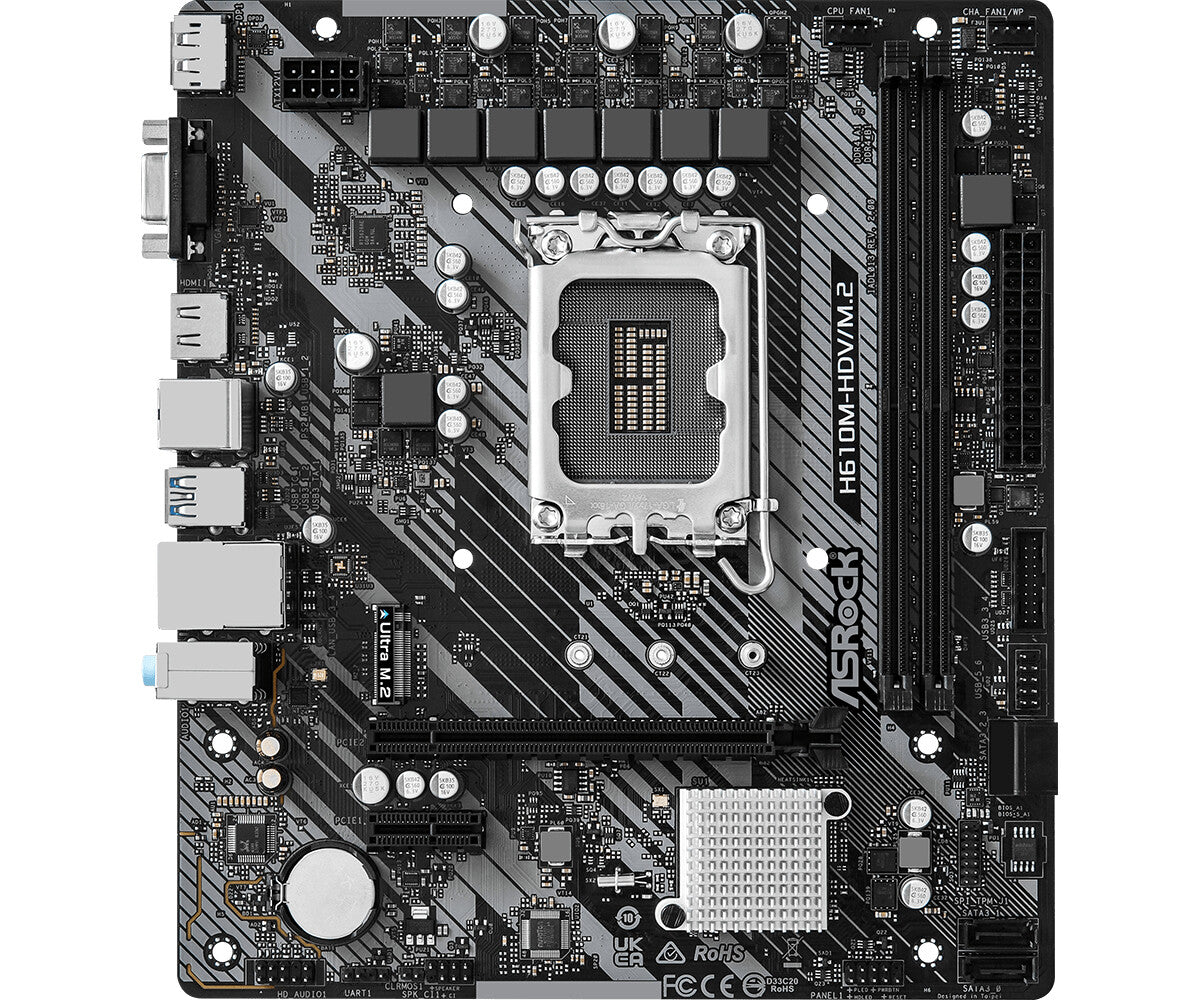

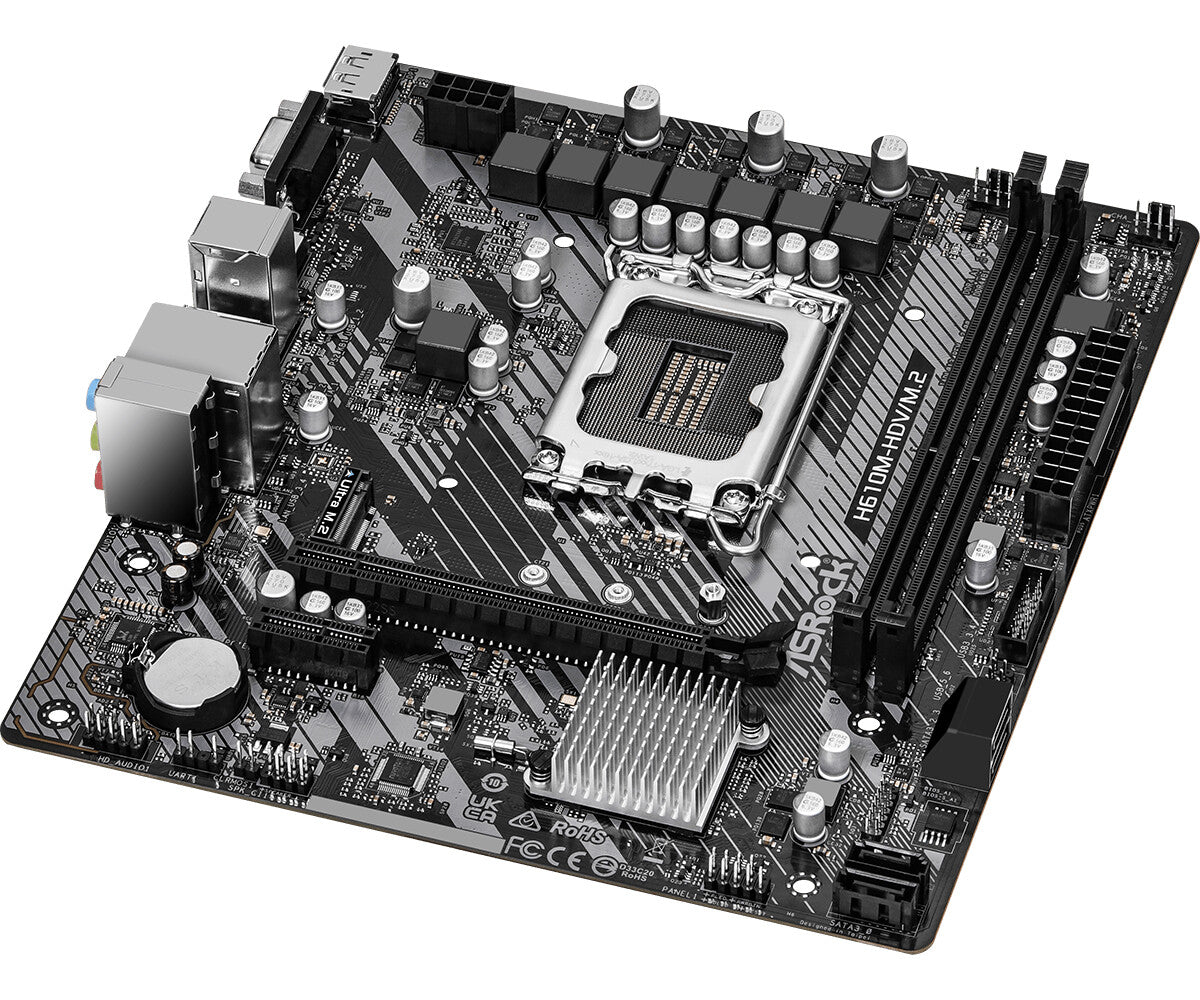

Asrock H610M-HDV/M.2 R2.0 mATX Motherboard | LGA1700 | 2x DDR4 Slots
KEY FEATURES
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 6+1+1 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does this motherboard have?
What is the maximum internal memory supported?
Does this motherboard support 4K output?
Asrock H610M-HDV/M.2 R2.0 mATX Motherboard | LGA1700 | 2x DDR4 Slots
Description
The Asrock H610M-HDV/M.2 R2.0 is a budget-friendly micro ATX motherboard built around Intel's H610 chipset and LGA1700 socket. This compact board brings 12th and 13th generation Intel Core processor support to smaller builds without breaking the bank. Its mATX form factor makes it ideal for budget gaming systems, home office computers, and compact builds where space is at a premium but you still want room for a dedicated graphics card.
Memory support includes two DDR4 DIMM slots supporting up to 64GB of RAM at speeds up to DDR4-3200, with ECC compatibility for enhanced data integrity when needed. The board provides one PCIe 4.0 x16 slot for modern graphics cards plus one PCIe 3.0 x1 slot for additional expansion cards. Display connectivity is built in with both HDMI and DisplayPort outputs, allowing for dual monitor setups when using integrated graphics. Gigabit Ethernet handles wired networking, while the 128MB AMI UEFI firmware provides a user-friendly setup experience.

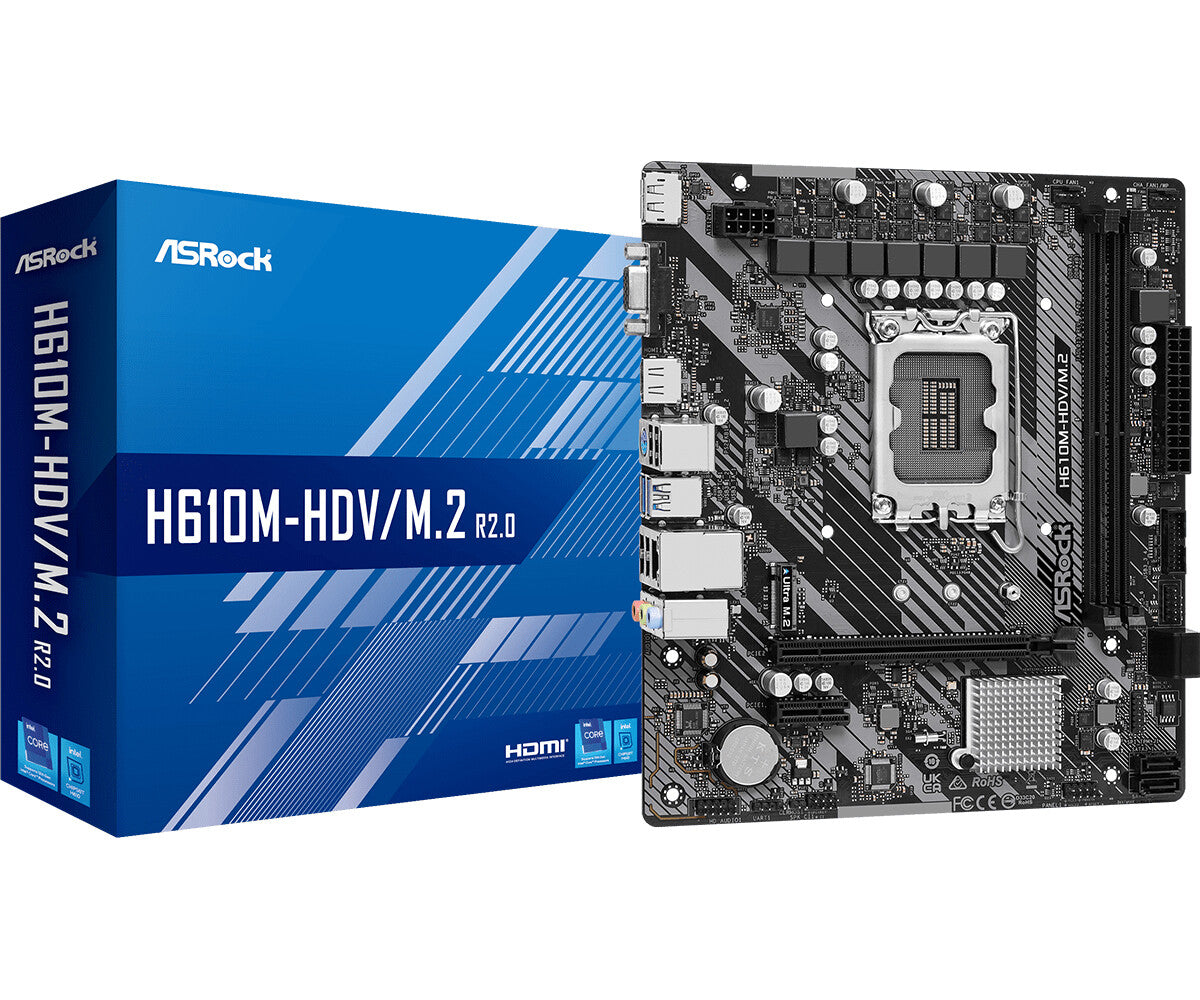

This revision 2.0 model represents Asrock's refined take on their popular H610M platform, incorporating feedback and improvements from the original design. The board ships with essential accessories including an I/O shield and user documentation to get your build started. For builders seeking a reliable foundation for mainstream Intel processors in a compact package, this H610 board delivers the core features needed for everyday computing, light gaming, and productivity tasks.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |

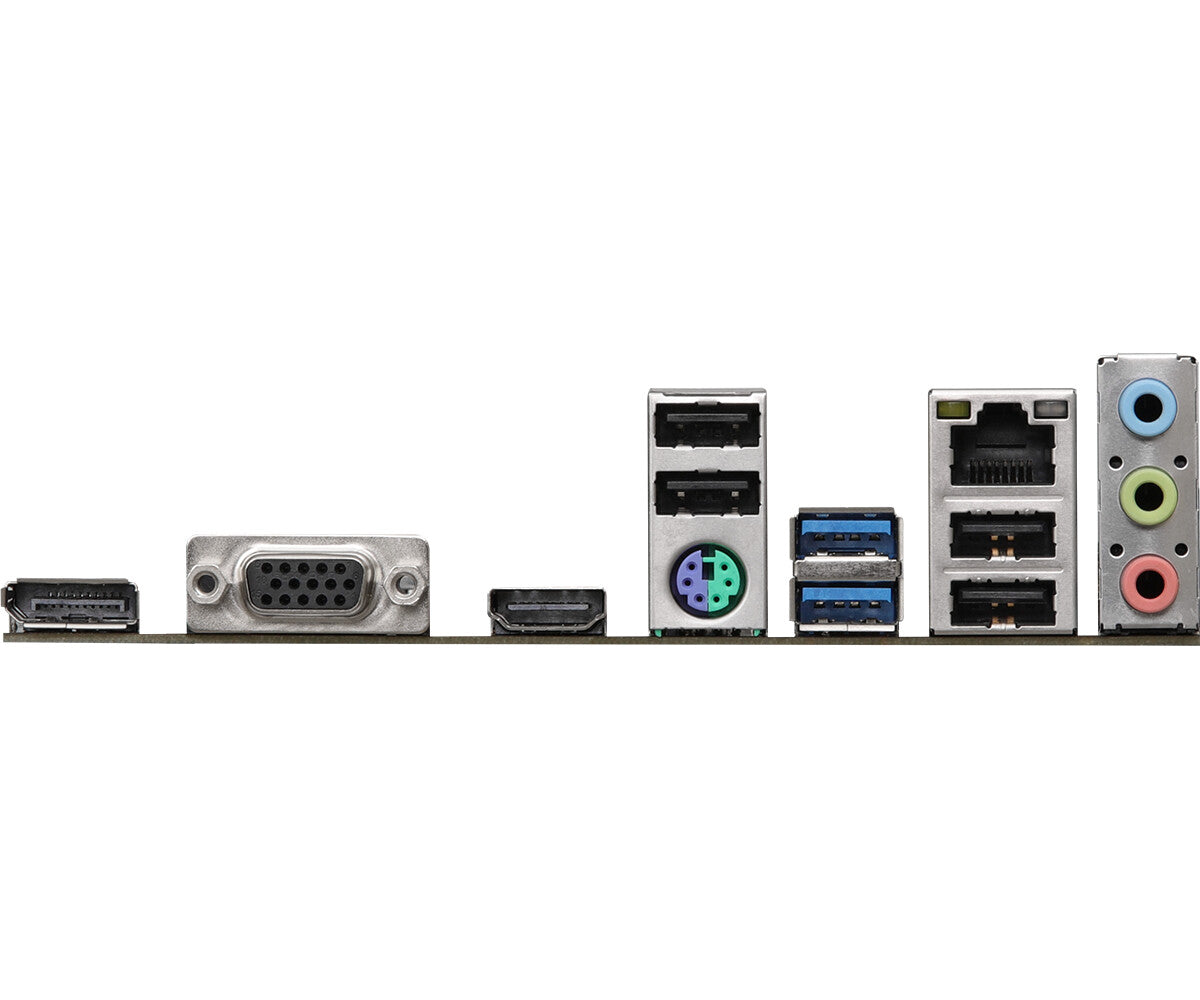

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Certification | - FCC, CE- ErP/EuP ready |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 6.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Weight & dimensions | |
|---|---|
| Width | 220 mm |
| Depth | 193 mm |
