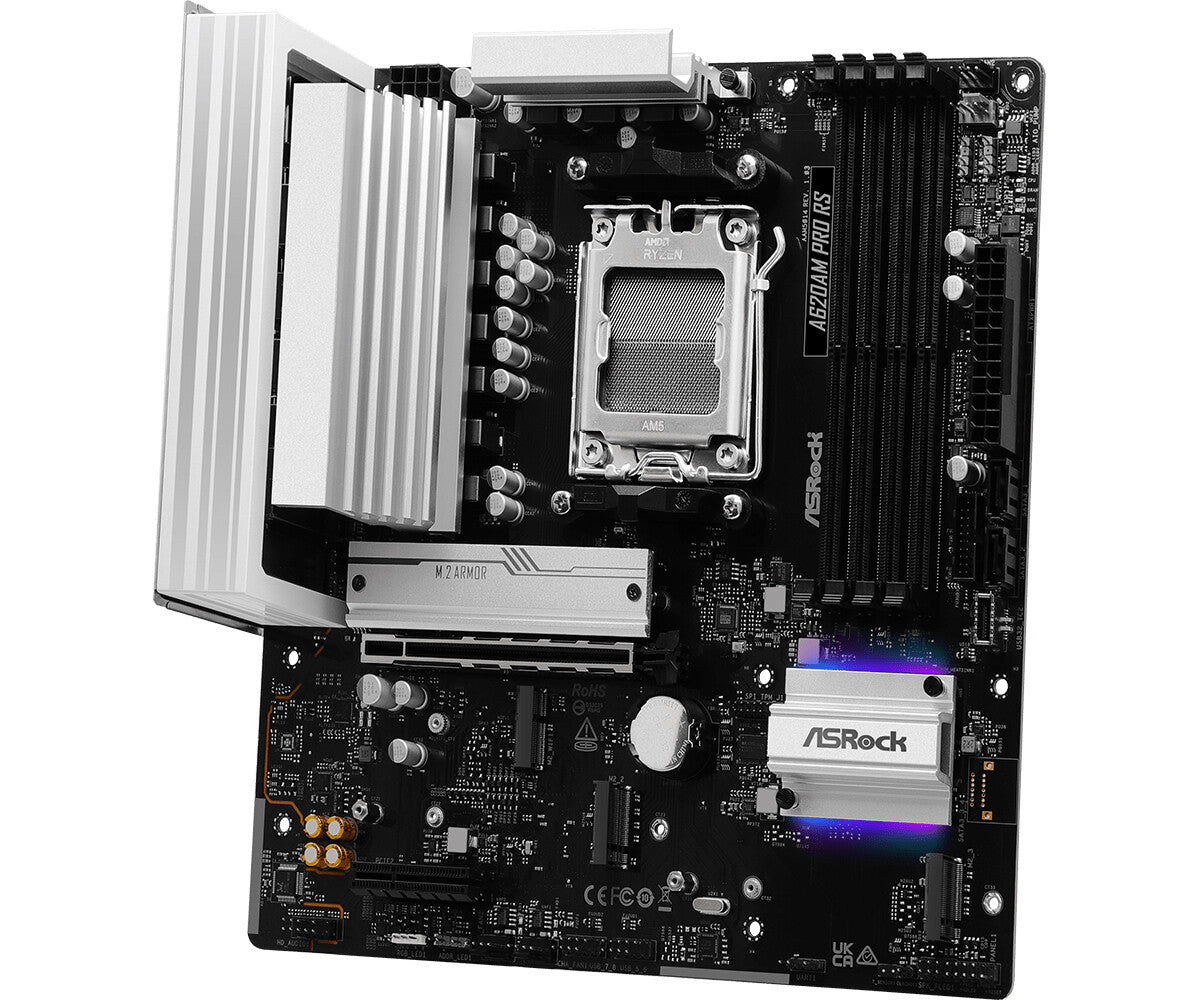

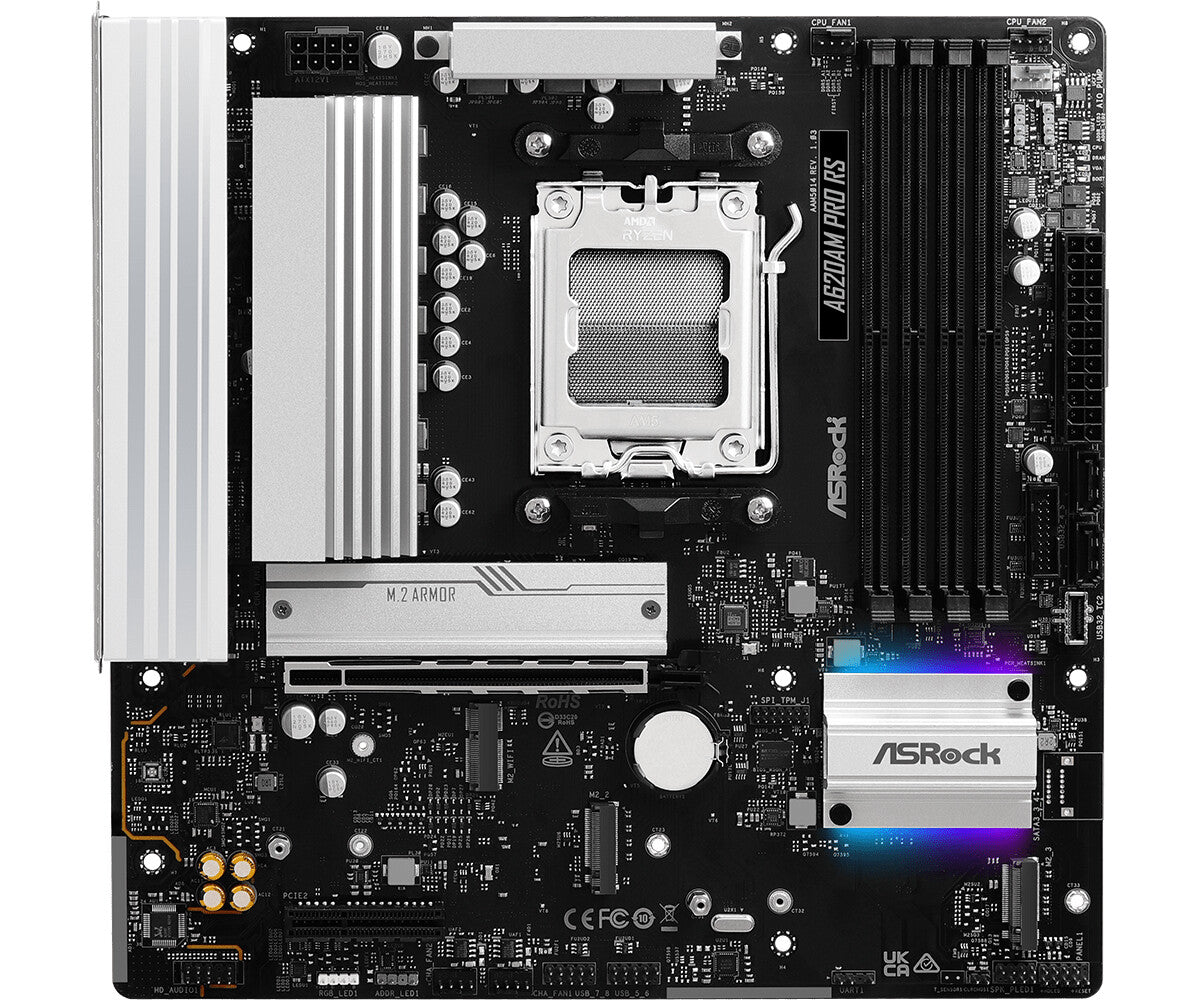

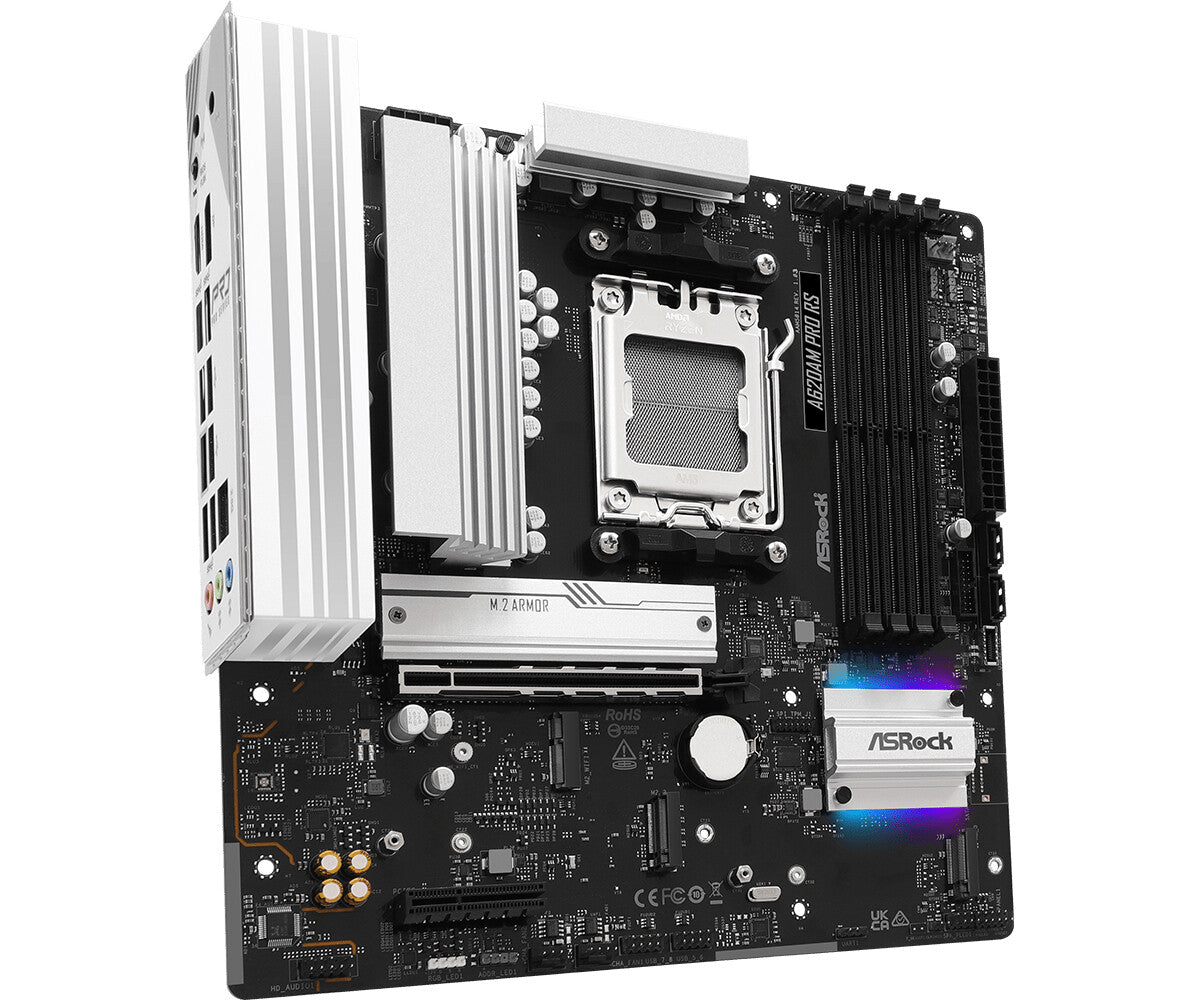

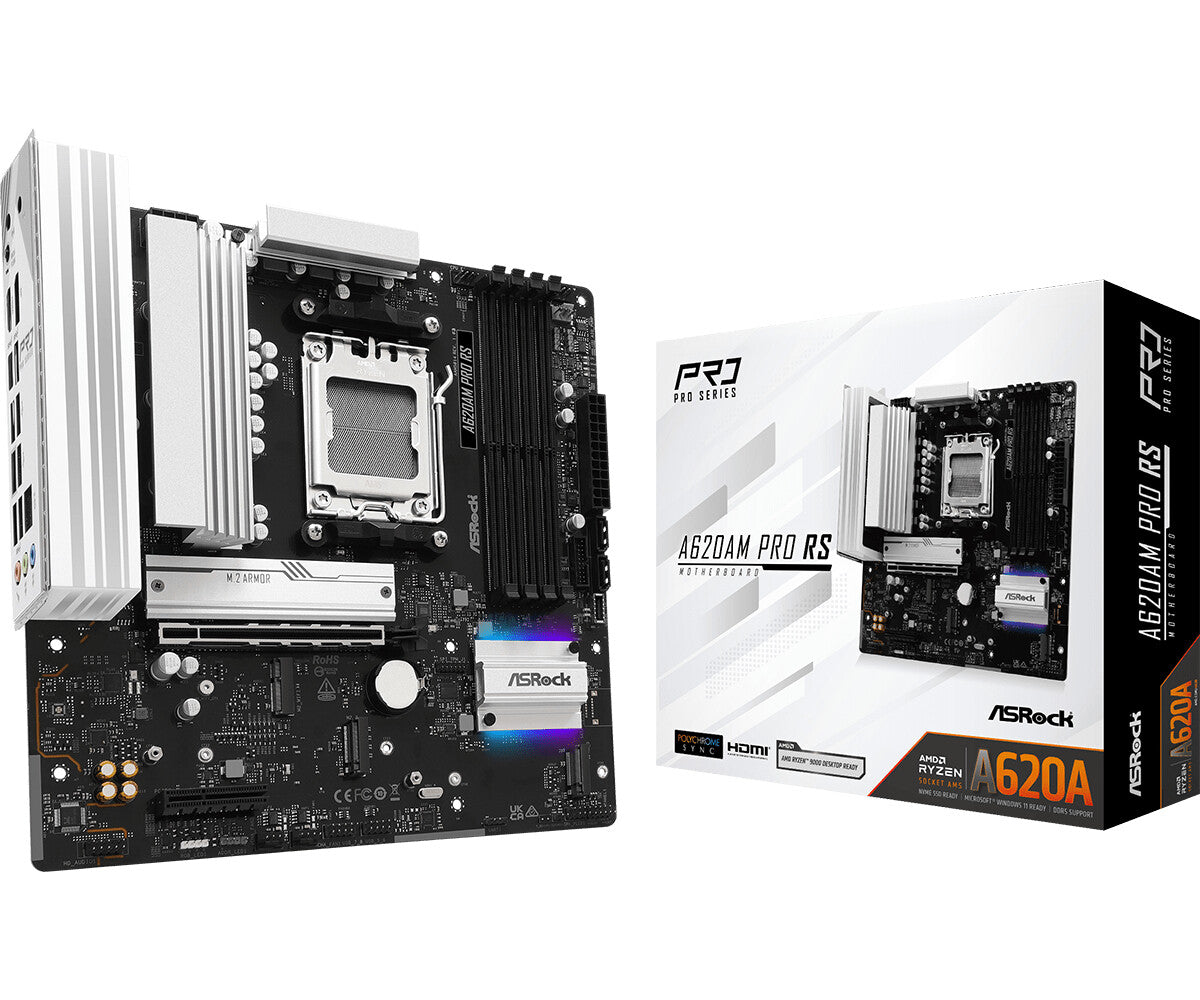

Asrock A620AM Pro RS mATX Motherboard | AM5 | 4x DDR5 Slots
KEY FEATURES
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen PRO 7000 Series, AMD Ryzen PRO 8000 Series, AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 5000 WX-Series, AMD Ryzen Threadripper PRO 7000 WX-Series
- PC micro ATX AMD A620A Realtek ALC897 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Asrock A620AM Pro RS mATX Motherboard | AM5 | 4x DDR5 Slots
Description
The Asrock A620AM Pro RS delivers essential features for budget-conscious builders entering the AM5 ecosystem. Built around AMD's entry-level A620A chipset, this mATX motherboard supports the latest Ryzen 7000, 8000, and 9000 series processors along with Ryzen PRO variants. The A620 chipset positions this board as a cost-effective option for mainstream builds where overclocking isn't required but modern platform features remain important.
Memory support extends to DDR5 across four DIMM slots with a maximum capacity of 256GB, accommodating both ECC and non-ECC modules for flexibility in different build scenarios. The board includes one PCIe 4.0 x16 slot for graphics cards and provides standard connectivity through integrated LAN and USB options. Two SATA III ports handle traditional storage drives, while modern NVMe storage connects via the single M.2 slot.
Setup remains straightforward with Asrock's UEFI AMI interface managing system configuration and the included RGB LED pin header allowing basic lighting customization. The package includes mounting screws and covers the fundamentals needed for assembly. This motherboard suits builders who want AM5 platform access and DDR5 memory support without premium features, making it ideal for office systems, light gaming builds, or budget workstations where reliable performance matters more than advanced overclocking capabilities.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen PRO 7000 Series, AMD Ryzen PRO 8000 Series, AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 5000 WX-Series, AMD Ryzen Threadripper PRO 7000 WX-Series |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 256 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

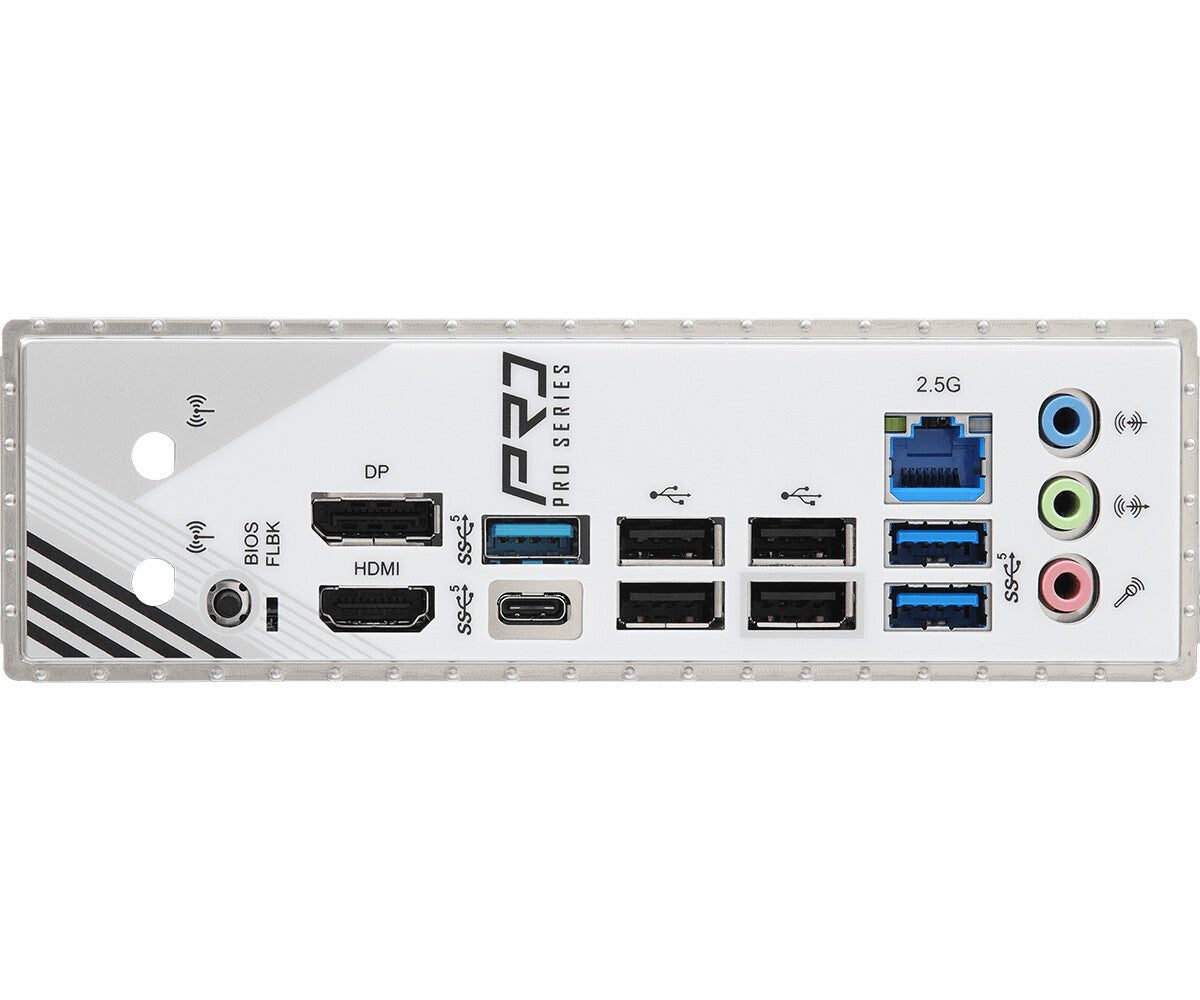

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125AG |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620A |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Cables included | SATA |
