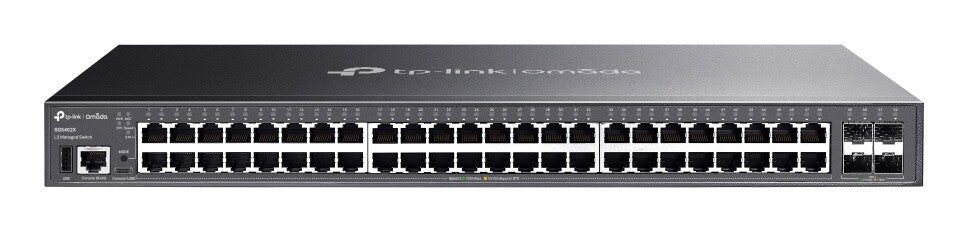

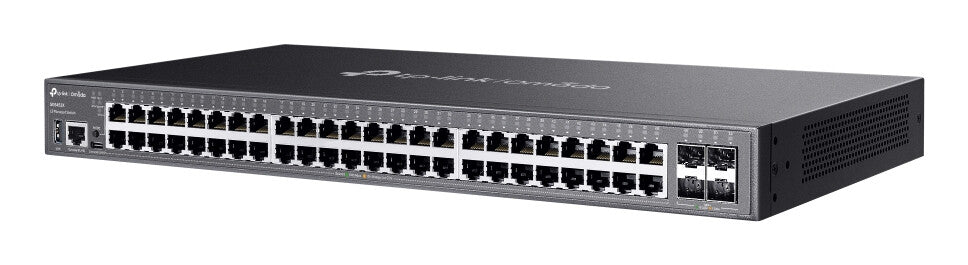

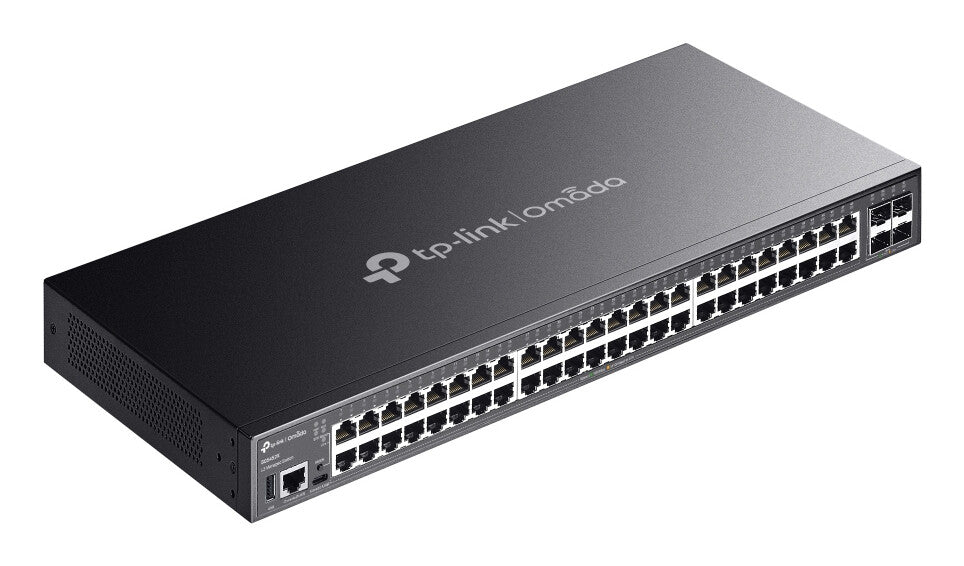

TP-Link Omada SG5452X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
KEY FEATURES
- 48× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 176 Gbps switching capacity per unit
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
TP-Link Omada SG5452X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
Description
TP-Link Omada SG5452X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Rack mounting
What This Product Does
Omada SG5452X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 48× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452X offers a reliable networking solution for SMEs, and ISPs.
High-speed Connectivity and Powerful Stacking
48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5452X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
3 year limited warranty for normal product and 5 year warranty for managed switch
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP+ module slots quantity | 4 |
| USB Type-C ports quantity | 1 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.94 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| Security | |
|---|---|
| DHCP features | DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| IP-MAC-Port binding | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| General | |
|---|---|
| Product family | Omada |
| Performance | |
|---|---|
| Physical stacking (units) | 4 |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 512 MB |
| Telnet | Yes |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 211.644 h |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 34.1 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 116.42 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Packaging data | |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Other features | |
|---|---|
| Management level | 4 |
| Bandwidth | 88 Gbit/s |
