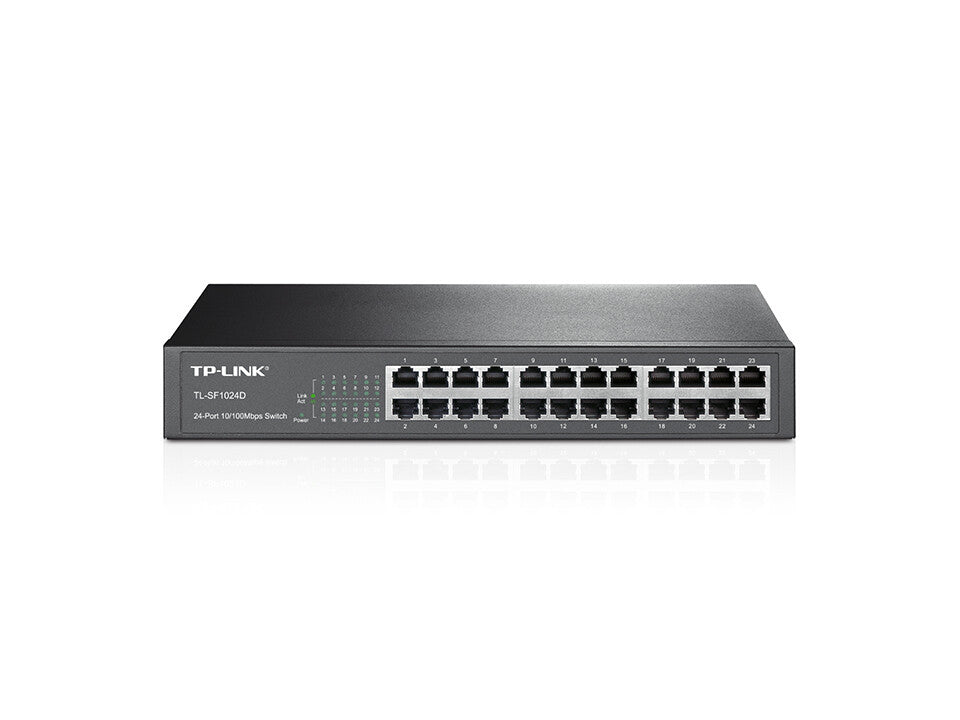

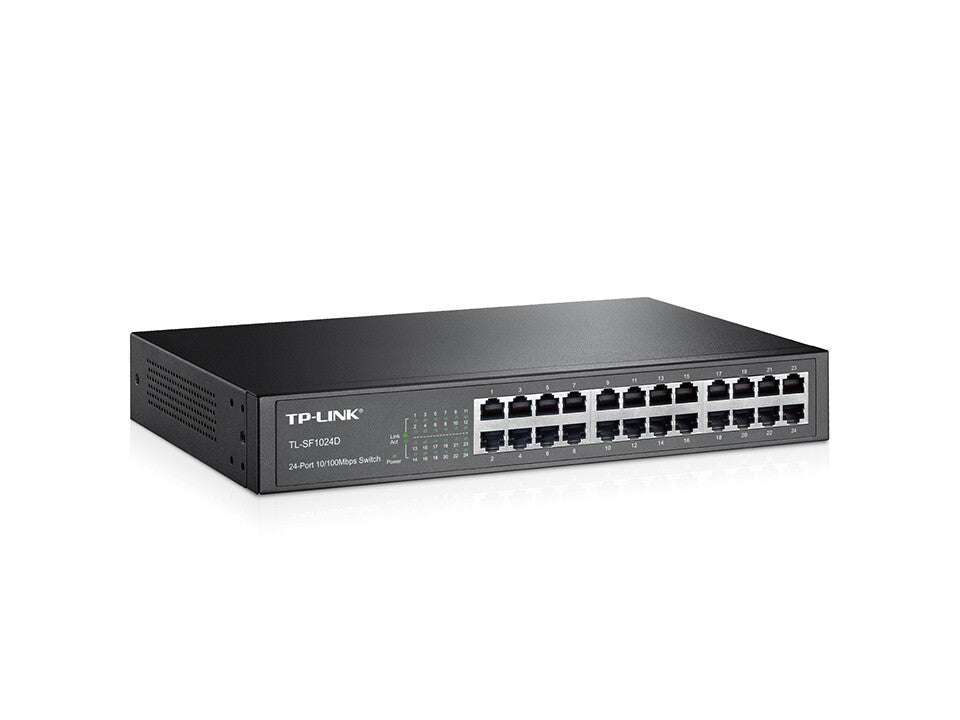

TP-Link 24-port 10/100Mbps Desktop/Rackmount Network Switch
KEY FEATURES
- 24 10/100M RJ45 ports
- Innovative energy-efficient technology saves power up to 75%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 13-inch steel case
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
TP-Link 24-port 10/100Mbps Desktop/Rackmount Network Switch
Description
TP-Link 24-port 10/100Mbps Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U
What This Product Does
The TL-SF1024D Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 24 user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.
TP-LINK Green Technology
This new generation The TL-SF1024D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Half duplex | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 4.8 Gbit/s |
| Forwarding rate | 3.57 Mpps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 2 MB |
| Security | |
|---|---|
| MAC address filtering | Yes |
| Protocols | |
|---|---|
| Supported network protocols | CSMA/CD, TCP/IP |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Link, Power |
| Certification | FCC, CE |
| Performance | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 3.19 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 10.88 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging data | |
|---|---|
| Quick start guide | Yes |
| Package width | 400 mm |
| Package depth | 250 mm |
| Package height | 80 mm |
| Package weight | 2 kg |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 294 x 180 x 44 mm |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Power requirements | 100 - 240VAC, 50/60Hz |
