Zyxel XMG2230-28HP Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
KEY FEATURES
- Managed L2/L3
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/USB Type-C
- 10G support 2.5GBASE-T, 100BASE-T, 1000BASE-T
- MAC address table: 32000 entries Switching capacity: 200 Gbit/s
- 1U Rack mounting Stackable
- AC/PoE Power supply included Power over Ethernet (PoE)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Zyxel XMG2230-28HP Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
Description
Zyxel XMG2230-28HP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 50 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Flexible Multi-Gig port configuration for diversified deployments
The XMG2230-28HP offers PoE-capable 2.5G Multi-Gig ports, while the XMG2230-52HP provides a mix of 1G and 2.5G PoE ports. Both models include four 10G SFP+ fiber uplinks for high-speed connectivity. The 52-port model’s port mix enables efficient bandwidth allocation based on device needs, balancing cost and performance for scalable, future-proof networks.
Dual power for
always-on connectivity

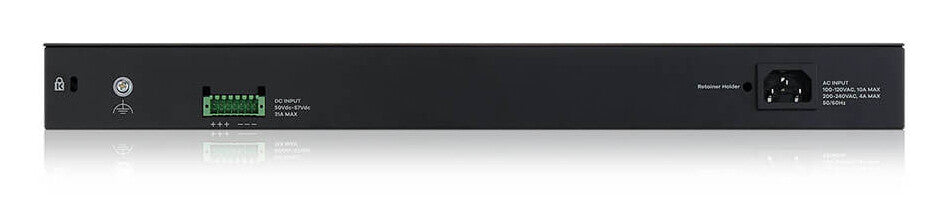

The XMG2230 Series is designed with superior network resiliency in mind, featuring dual power sources: an internal AC input as the primary source and an optional DC input for connection to an external DC power system. This active-standby power redundancy enables automatic switchover to backup power if the main AC source fails. The dual power design helps prevent unexpected outages and ensures stable, 24/7 connectivity.
High-power, adaptive PoE for modern business devices
The XMG2230-28HP supports PoE++ on all ports, while the XMG2230-52HP offers a mix of PoE+ and PoE++ for greater deployment flexibility. The series provides adaptive PoE power budget with either internal AC power 700W (28HP)/960W (52HP) or external DC power system 1440W (28HP)/2400W (52HP). It is built for higher capacity, improved efficiency, and reliable operation in demanding environments such as high-performance WiFi, video conferencing, IP surveillance, thin/zero clients, smart building, IoT, and AV applications.
Segment your network
more effectively for security
Designed for SME networks, this series of switches supports full L2 feature sets such as VLAN, ACL, port aggregation, and mirroring, along with advanced security to keep your business protected. It also provides essential L3 access features for converged voice, video, and data. With support for static routing, the switches ensure efficient traffic flows across your network, while the built-in DHCP server simplifies device onboarding and reduces IT overhead.
Click. Tap. Done.
Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required.
Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere.
Search: Zyxel Nebula Mobile
Powerful, effortless and
scalable connectivity.
With Nebula, you can manage your entire network – wireless, switching, security and LTE/5G – through a single centralized cloud platform. Deploy and configure devices quickly and remotely, without the need for extra hardware controllers or software.
Whether you're managing one site or many, Nebula delivers real-time monitoring, instant alerts and complete network visibility – anytime, anywhere.
Scale confidently, simplify operations and stay secure – all through one intuitive platform.
Dedicated networked
AV mode
The Networked AV mode in standalone mode simplifies deployment with an intuitive setup wizard and AI-driven auto-configuration. A visual dashboard highlights key AV settings like IGMP, while a simplified menu streamlines management. With high performance plus built-in Dante and AES67 profile support, the XMG2230 ensures smooth, reliable AVoIP streaming for professional AV environments.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45/USB Type-C |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Virtual LAN features | IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Routing entries | 64 |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-T, 1000BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 2 MB |
| Jumbo frames | 12 |
| Jumbo frames support | Yes |
| Number of IP interfaces | 32 |
| Number of static routes | 4000 |
| Static route | Yes |
| Forwarding rate | 148.8 Mpps |
| Switching capacity | 200 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Static port security | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| IP-MAC-Port binding | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Authentication type | IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
|---|---|
| Certification | FCC Part 15 (Class A)CE EMC (Class A)BSMI EMC |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 554612.62 h |
| Noise level | 48.85 dB |
| Flash memory | 64 MB |
| Internal memory | 1000 MB |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, Low Voltage Directive (LVD), RoHS |
| Power | |
|---|---|
| Power consumption (max) | 1519.1 W |
| DC input voltage | 50 - 57 V |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 1440 W |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 2856 BTU/h |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.53 kg |
| Height | 44 mm |
| Depth | 330 mm |
| Width | 441 mm |
| Packaging data | |
|---|---|
| Package weight | 6.81 kg |
| Package height | 95 mm |
| Package depth | 503 mm |
| Package width | 580 mm |
