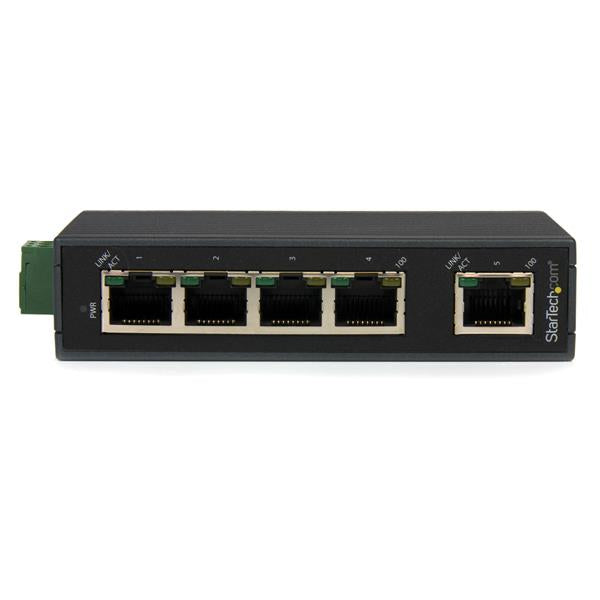

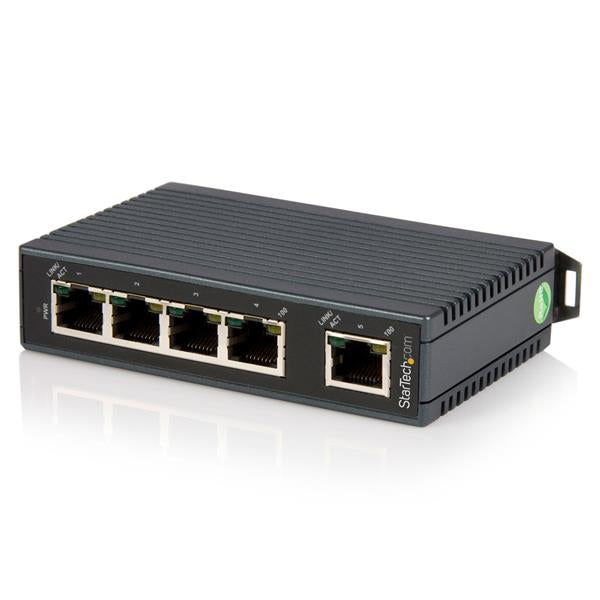

StarTech.com 5-port industrial Ethernet switch - DIN rail mountable
KEY FEATURES
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- Rack mounting
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
StarTech.com 5-port industrial Ethernet switch - DIN rail mountable
Description
StarTech.com 5-port industrial Ethernet switch - DIN rail mountable. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex, Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Rack mounting
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch
This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time

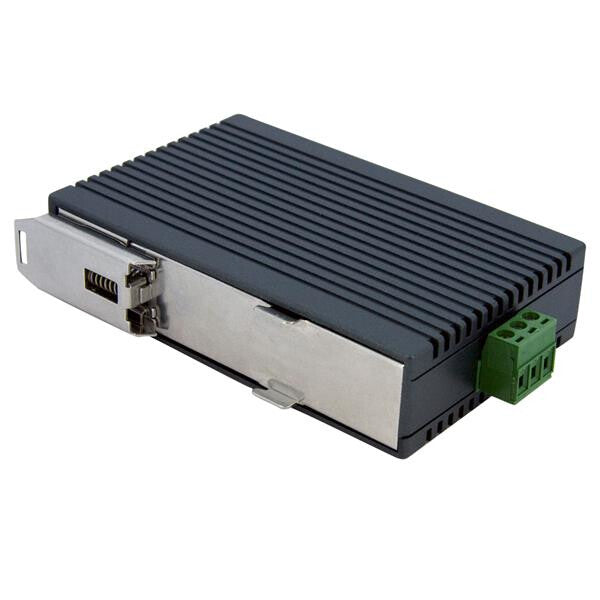

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch

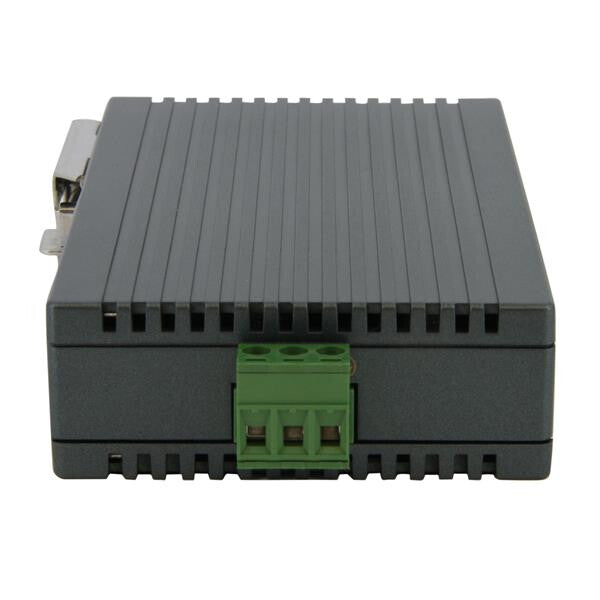

- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
Warranty: 2 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Data transmission | |
|---|---|
| Jumbo frames support | No |
| Store-and-forward | Yes |
| Design | |
|---|---|
| Regulatory Approvals | EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea |
| Certification | CE, FCC |
| International Protection (IP) code | IP30 |
| LED indicators | Activity, Link, Power |
| Housing material | Plastic |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Mean time between failures (MTBF) | 1179133 h |
| Maximum cable length | 100 m |
| Buffer size | 56 KB |
| Maximum data transfer rate | 200 Mbit/s |
| Power | |
|---|---|
| Power consumption (max) | 2.12 W |
| Input voltage | 12 - 48 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 148 g |
| Height | 110 mm |
| Depth | 70 mm |
| Width | 25 mm |
| Packaging data | |
|---|---|
| Package weight | 312 g |
| Package height | 79 mm |
| Package depth | 198 mm |
| Package width | 178 mm |
| Terminal block included | Yes |
| Manual | Yes |
