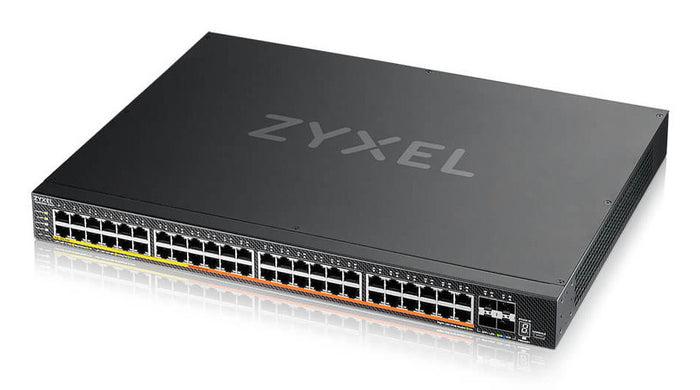

Zyxel XMG2230-52HP Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
KEY FEATURES
- Managed L2/L3
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45/USB Type-C
- 10G support 2.5GBASE-T, 100BASE-T, 1000BASE-T
- MAC address table: 32000 entries Switching capacity: 224 Gbit/s
- 1U Rack mounting Stackable
- AC/PoE Power supply included Power over Ethernet (PoE)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Zyxel XMG2230-52HP Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
Description
Zyxel XMG2230-52HP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 50 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Flexible Multi-Gig port configuration for diversified deployments
The XMG2230-28HP offers PoE-capable 2.5G Multi-Gig ports, while the XMG2230-52HP provides a mix of 1G and 2.5G PoE ports. Both models include four 10G SFP+ fiber uplinks for high-speed connectivity. The 52-port model’s port mix enables efficient bandwidth allocation based on device needs, balancing cost and performance for scalable, future-proof networks.
Dual power for
always-on connectivity

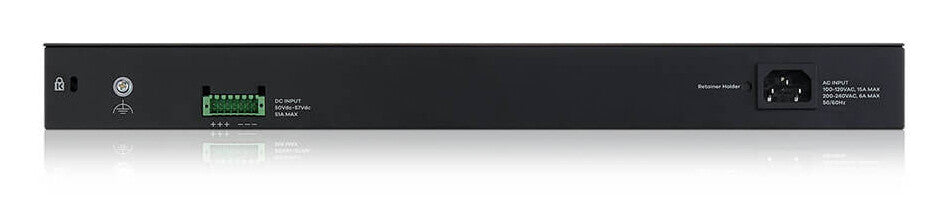

The XMG2230 Series is designed with superior network resiliency in mind, featuring dual power sources: an internal AC input as the primary source and an optional DC input for connection to an external DC power system. This active-standby power redundancy enables automatic switchover to backup power if the main AC source fails. The dual power design helps prevent unexpected outages and ensures stable, 24/7 connectivity.
High-power, adaptive PoE for modern business devices
The XMG2230-28HP supports PoE++ on all ports, while the XMG2230-52HP offers a mix of PoE+ and PoE++ for greater deployment flexibility. The series provides adaptive PoE power budget with either internal AC power 700W (28HP)/960W (52HP) or external DC power system 1440W (28HP)/2400W (52HP). It is built for higher capacity, improved efficiency, and reliable operation in demanding environments such as high-performance WiFi, video conferencing, IP surveillance, thin/zero clients, smart building, IoT, and AV applications.
Segment your network
more effectively for security
Designed for SME networks, this series of switches supports full L2 feature sets such as VLAN, ACL, port aggregation, and mirroring, along with advanced security to keep your business protected. It also provides essential L3 access features for converged voice, video, and data. With support for static routing, the switches ensure efficient traffic flows across your network, while the built-in DHCP server simplifies device onboarding and reduces IT overhead.
Click. Tap. Done.
Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required.
Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere.
Search: Zyxel Nebula Mobile
Powerful, effortless and
scalable connectivity.
With Nebula, you can manage your entire network – wireless, switching, security and LTE/5G – through a single centralized cloud platform. Deploy and configure devices quickly and remotely, without the need for extra hardware controllers or software.
Whether you're managing one site or many, Nebula delivers real-time monitoring, instant alerts and complete network visibility – anytime, anywhere.
Scale confidently, simplify operations and stay secure – all through one intuitive platform.
Dedicated networked
AV mode
The Networked AV mode in standalone mode simplifies deployment with an intuitive setup wizard and AI-driven auto-configuration. A visual dashboard highlights key AV settings like IGMP, while a simplified menu streamlines management. With high performance plus built-in Dante and AES67 profile support, the XMG2230 ensures smooth, reliable AVoIP streaming for professional AV environments.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/USB Type-C |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| Routing entries | 64 |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 224 Gbit/s |
| Forwarding rate | 166.6 Mpps |
| Static route | Yes |
| Number of static routes | 4000 |
| Number of IP interfaces | 32 |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
| Packet buffer memory | 2 MB |
| Security | |
|---|---|
| DHCP features | DHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Authentication type | IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+ |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Certification | FCC Part 15 (Class A)CE EMC (Class A)BSMI EMC |
| Performance | |
|---|---|
| Internal memory | 1000 MB |
| Flash memory | 64 MB |
| Noise level | 63.76 dB |
| Mean time between failures (MTBF) | 401112.3 h |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, Low Voltage Directive (LVD), RoHS |
| Power | |
|---|---|
| Power source | AC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 50 - 57 V |
| Power consumption (max) | 2525 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Total Power over Ethernet (PoE) budget | 2400 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 4153.7 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 441 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 5.03 kg |
| Packaging data | |
|---|---|
| Package width | 580 mm |
| Package depth | 503 mm |
| Package height | 95 mm |
| Package weight | 7.33 kg |
