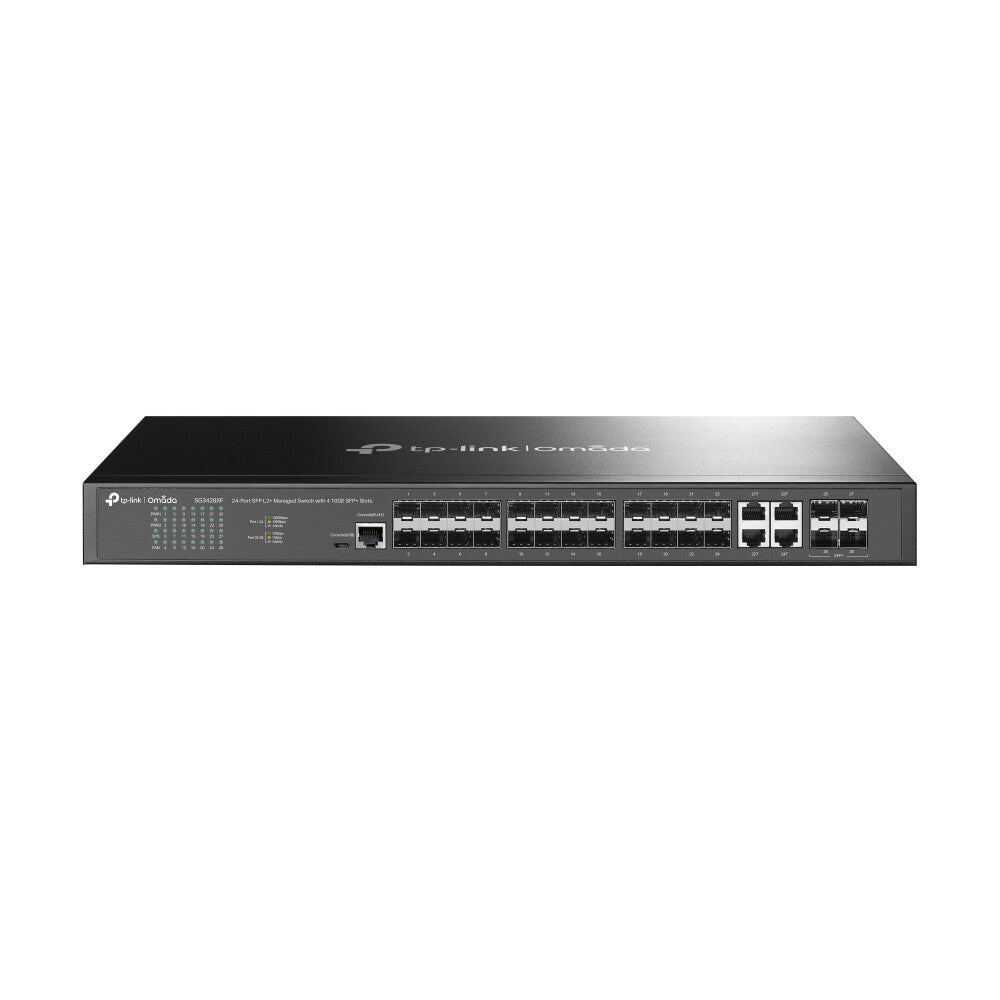

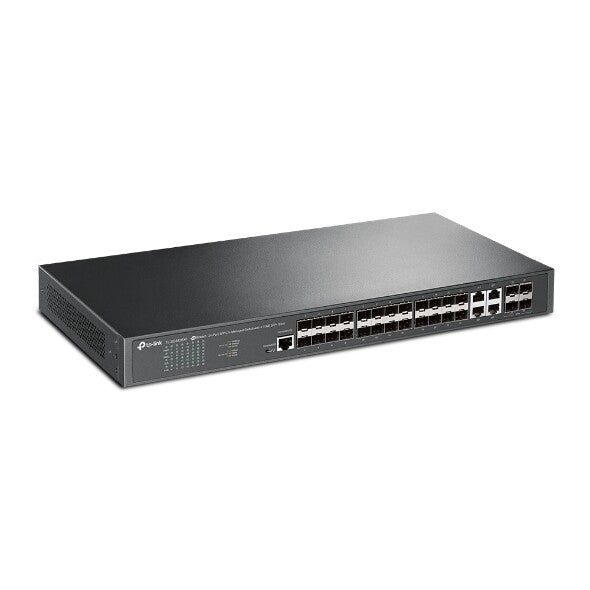

TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
KEY FEATURES
- 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
- 20× Gigabit SFP slots and 4× Gigabit Combo SFP/RJ45 ports
- 128 Gbps switching capacity
- Two power supplies backing each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
Description
TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae,.... Power connector: AC-in jack. Rack mounting, Form factor: 1U
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
3 year limited warranty for normal product and 5 year warranty for managed switch
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 4 |
| Fiber ports quantity | 20 |
| Fiber optic connector | SFP, SFP+ |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| IP routing | Yes |
| Routing entries | 512 |
| IPv6 routes | 48 |
| IPv4 routes | 48 |
| Rate limiting | Yes |
| Head-of-line (HOL) blocking | Yes |
| Active link detection | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Number of static routes | 48 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| Security | |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| Authentication | Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Protocols | |
|---|---|
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| General | |
|---|---|
| Product family | Omada |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power consumption (max) | 35.7 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 121.81 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Packaging data | |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| Manual | Yes |
