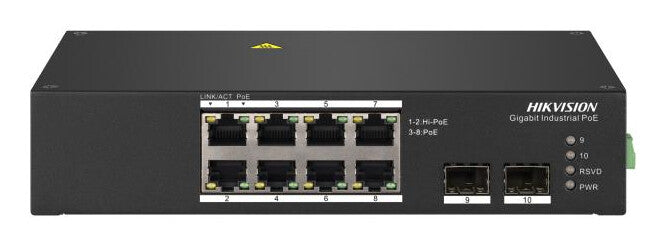

Hikvision DS-3T0510HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
KEY FEATURES
- 8 x Gigabit PoE Ports, 2 x Gigabit SFP Fiber Optical Ports
- Up to 90 W Hi-PoE Output for Ports 1-2
- IEEE 802.3 af/at/bt Compliant
- PD Power Intelligent Detection with System-Level Overload Protection
- 6 KV Surge Protection
- Up to 300 m Long-range Transmission
- Wider Temperature (-40 °C to 75 °C) Design
- DIN Rail Design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Hikvision DS-3T0510HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Description
Hikvision DS-3T0510HP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching optical modules type: Gigabit Ethernet. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 48 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)
The Hikvision DS-3T0510HP unmanaged industrial switch can support eight Gigabit PoE Ports and two Gigabit SFP Fiber Optical Ports. Designed for harsh industrial environments, it can provide an economical solution for your industrial Ethernet connection. The DS-3T0510HP PoE model supports centralized power supply and each port provides 30 W power. The operating temperature of industrial switches ranges from -40 °C to 75 °C. All models undergo rigorous aging tests to ensure they meet the specific needs of industrial automation control applications. In addition, the DS-3T0510HP unmanaged switch features a rugged aluminum alloy housing that ensures suitability for industrial environments and an option for fiber connection.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| SFP module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| 10G support | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Optical fiber | |
|---|---|
| Switching optical modules type | Gigabit Ethernet |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Forwarding rate | 14.88 Mpps |
| Switching capacity | 20 Gbit/s |
| MAC address table | 4000 entries |
| Design | |
|---|---|
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368- 1: 2014+A11: 2017) |
| DIN rail mounting | Yes |
| LED indicators | Yes |
| Housing material | Aluminium |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Performance | |
|---|---|
| Fanless | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CB, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, WEEE |
| Sustainability compliance | Yes |
| Power | |
|---|---|
| Power protection features | Surge protection |
| Surge protection voltage | 6 kV |
| Surge protection | Yes |
| Power consumption (max) | 120 W |
| Power consumption (typical) | 10 W |
| Input current | 2.5 A |
| DC input voltage | 48 - 57 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 110 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 585 g |
| Height | 114.2 mm |
| Depth | 42.2 mm |
| Width | 197 mm |
| Packaging data | |
|---|---|
| Package weight | 1.11 kg |
| Quick start guide | Yes |
