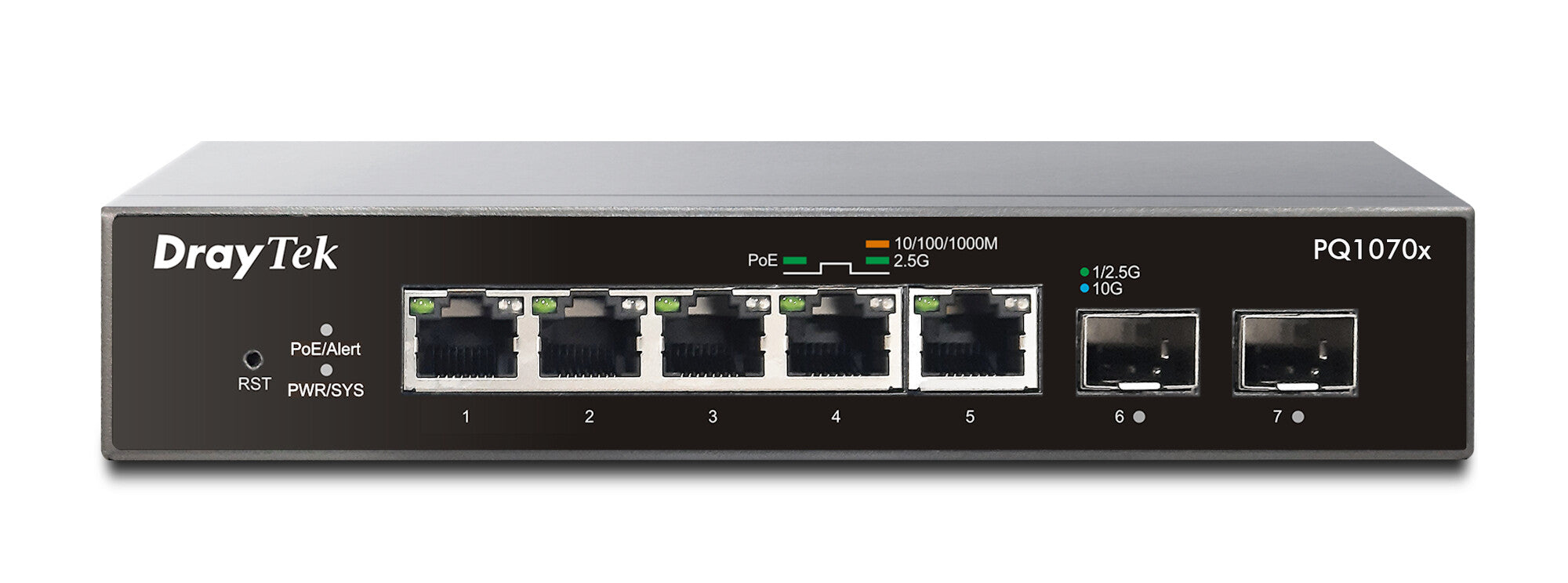

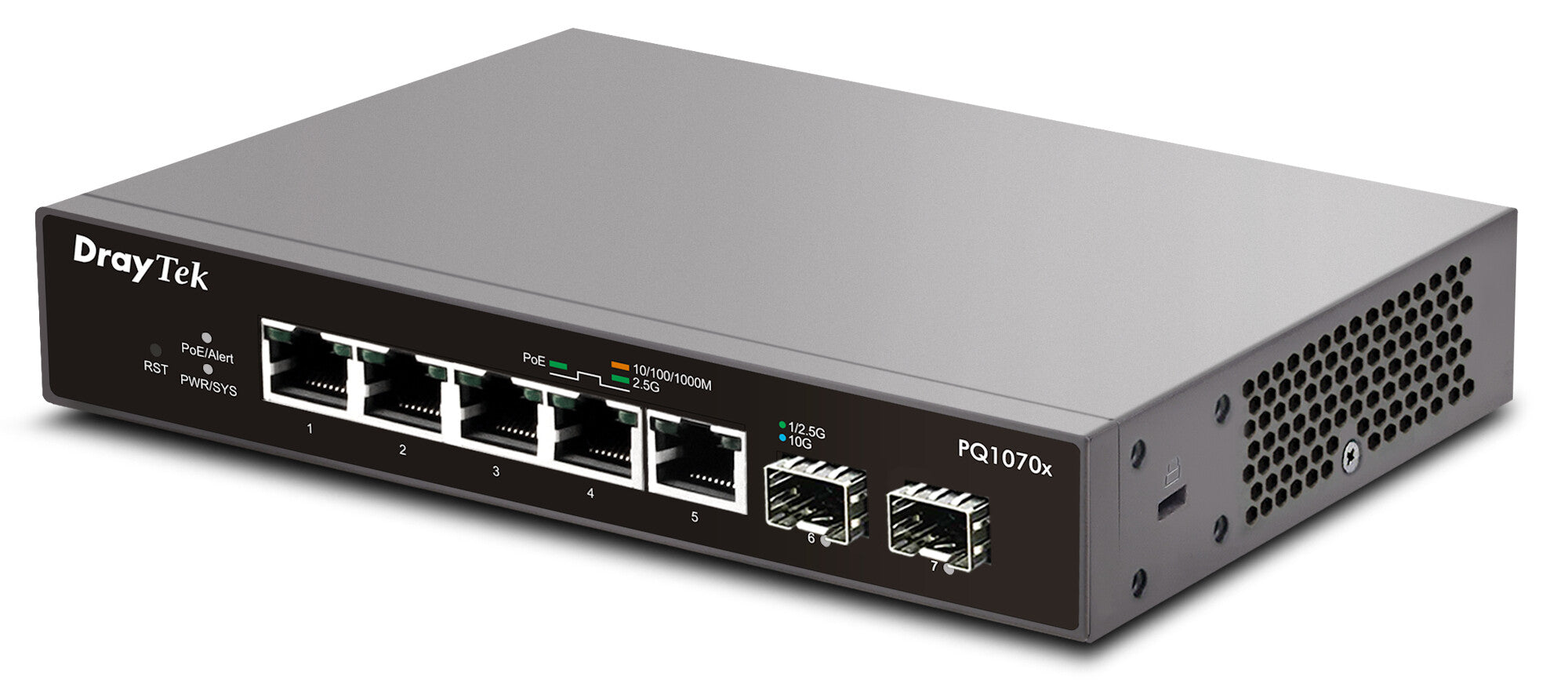

DrayTek PQ1070x Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black
KEY FEATURES
- 5 x RJ-45 2.5 Gigabit Ethernet Ports
- 2 x SFP+ 10GbE Ports for Uplink / Fibre
- Compact form factor
- Wall Mountable
- Fanless (Silent) Operation
- Low Power Consumption
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
DrayTek PQ1070x Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black
Description
DrayTek PQ1070x. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 16000 entries, Switching capacity: 65 Gbit/s. Power over Ethernet (PoE). Wall mountable
VigorSwitch PQ1070x is a 2.5 Gigabit switch with 5 PoE+ 2.5GbE ports (total of 75W output) and 2 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.
This compact in size networking switch helps with expanding the network in critical areas where additional fast 2.5GbE interfaces are needed, supported by up to 10Gbps SFP+ uplink interfaces.
Two (2) Year, RTB
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 5 |
| SFP+ module slots quantity | 2 |
| Network | |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 65 Gbit/s |
| Forwarding rate | 48.36 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 8 MB |
| Security | |
|---|---|
| Loop protection | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 64 |
| Multicast Listener Discovery (MLD) snooping | v1, v2 |
| Design | |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Power | |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Power consumption (max) | 89.6 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) ports quantity | 5 |
| Power over Ethernet plus (PoE+) ports quantity | 5 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 75 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 175 mm |
| Depth | 114 mm |
| Height | 32 mm |
| Weight | 1.16 kg |
| Packaging data | |
|---|---|
| Quick start guide | Yes |
