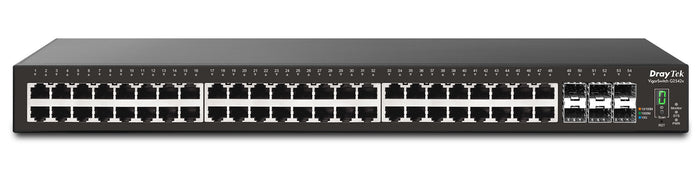

DrayTek VigorSwitch G2542x Managed Switch
KEY FEATURES
- Managed L2+ Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
- 10G support
- MAC address table: 32000 entries Switching capacity: 216 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC/DC Power supply included
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
DrayTek VigorSwitch G2542x Managed Switch
Description
DrayTek VigorSwitch G2542x Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Power connector: AC/DC. Rack mounting, Form factor: 1U
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 6 |
| Console port | RJ-45 |
| Power connector | AC/DC |
| Network | |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 160 Mpps |
| Static route | Yes |
| Security | |
|---|---|
| DHCP features | DHCP Option 66, DHCP Option 67, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | LAN |
| Market segment | Business |
| Performance | |
|---|---|
| Operating system installed | DrayOS |
| Firmware upgradeable | Yes |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Power | |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 196 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 281 mm |
| Height | 44 mm |
| Weight | 3.95 kg |
| Packaging data | |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Package type | Box |
