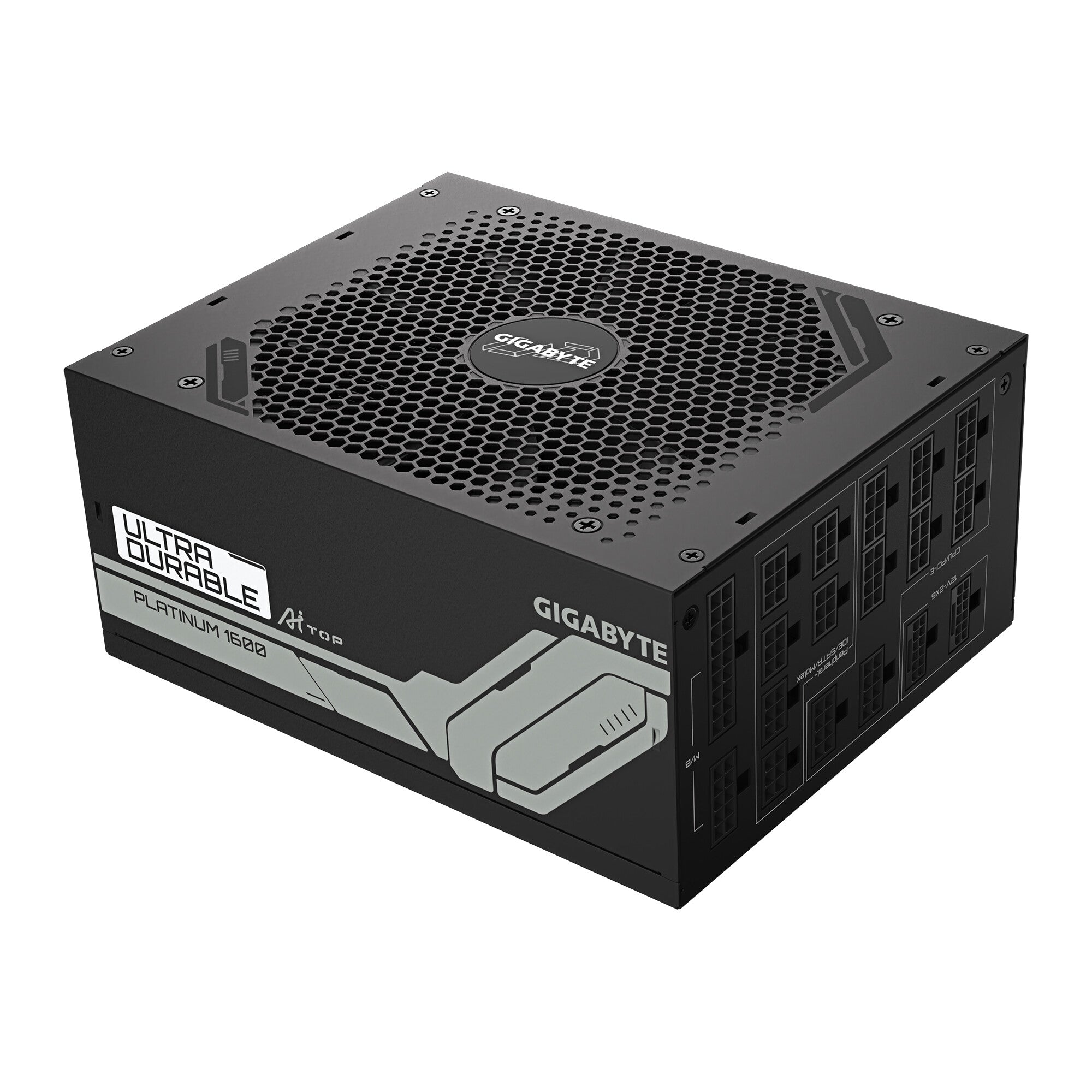

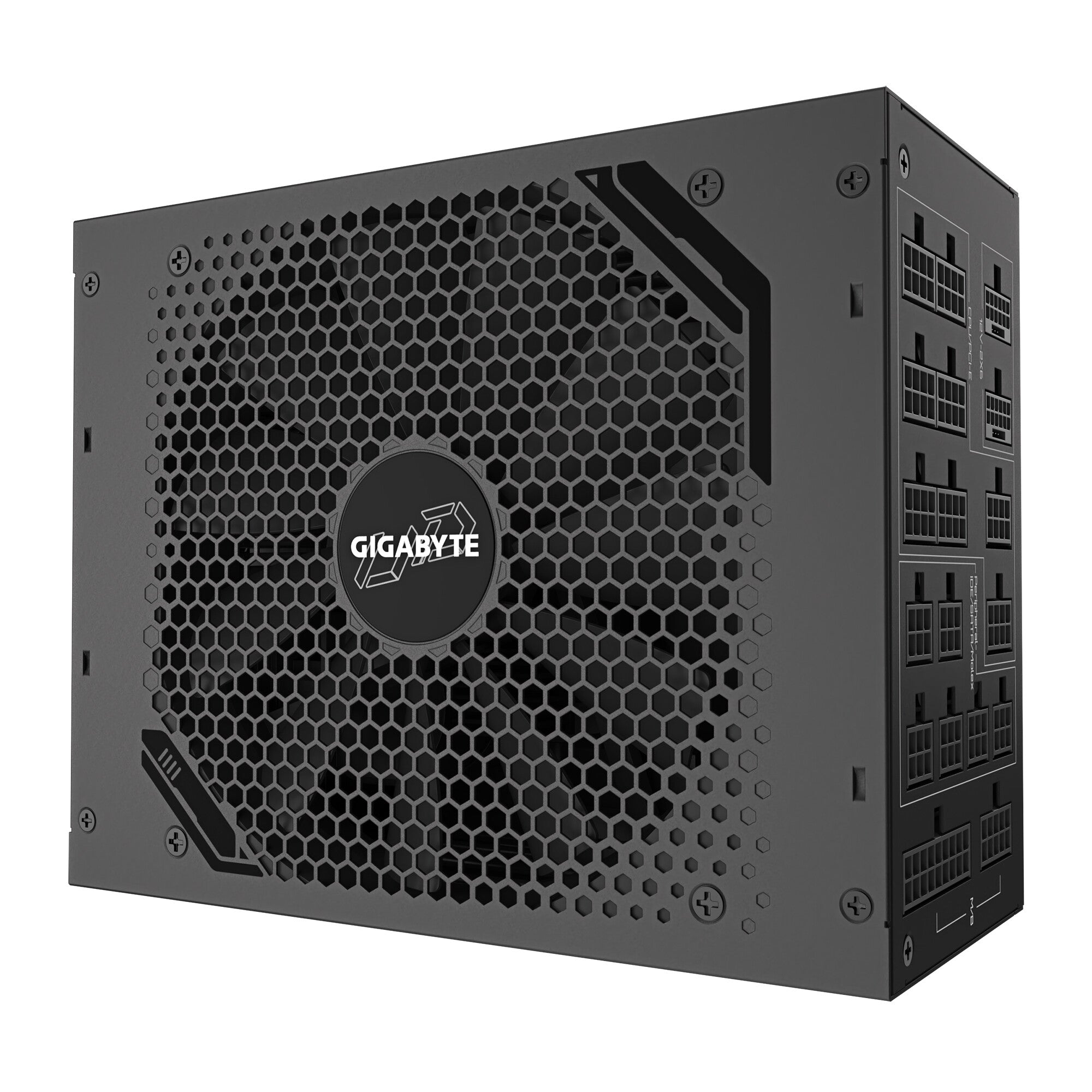

GIGABYTE UD1600PM PG5 AI TOP power supply unit 1600 W 20+4 pin ATX ATX Black
KEY FEATURES
- 16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
- ATX 3.1 and PCIe Gen 5.0 ready
- Server-grade Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution

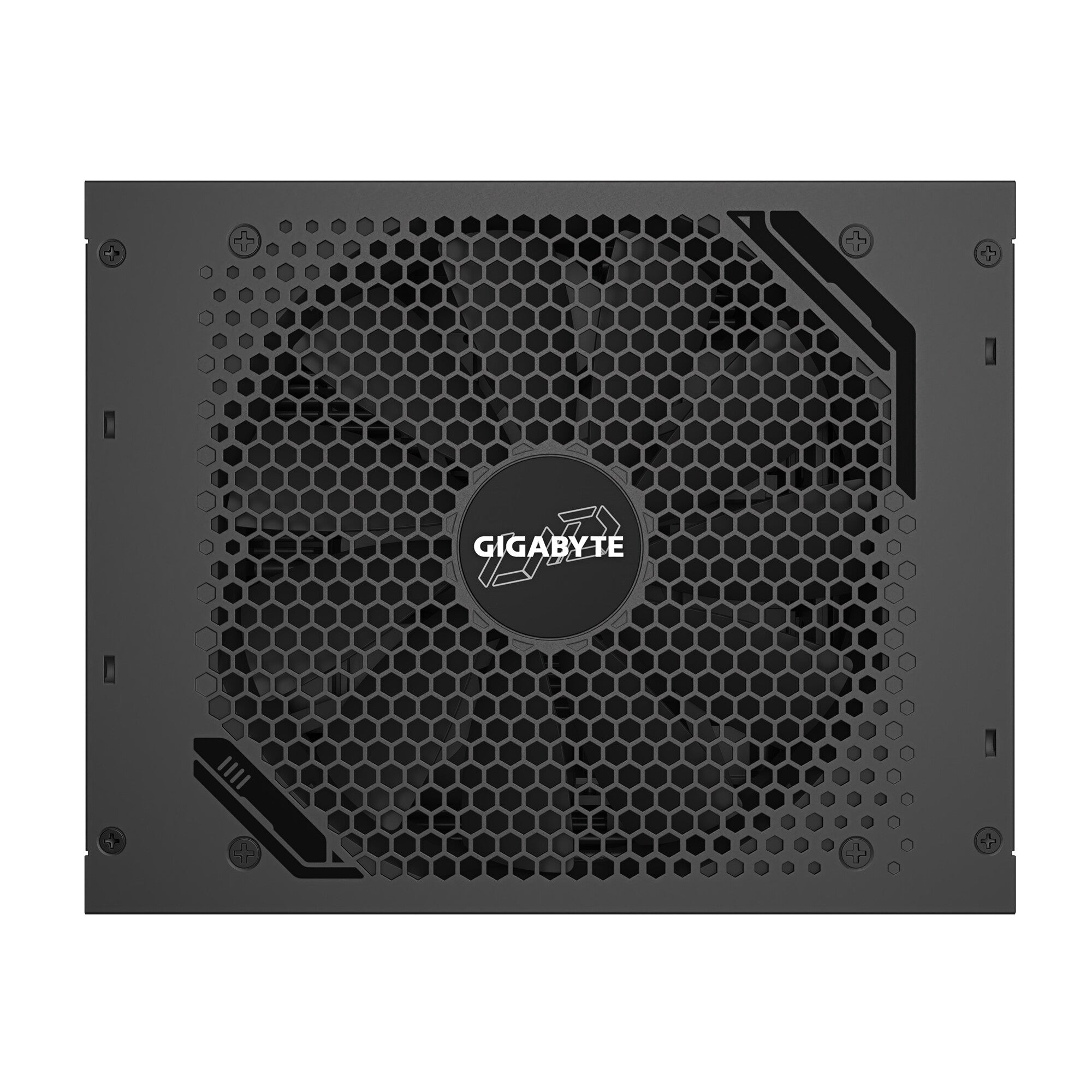

- 140mm smart double ball bearing fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 80 PLUS Platinum certified

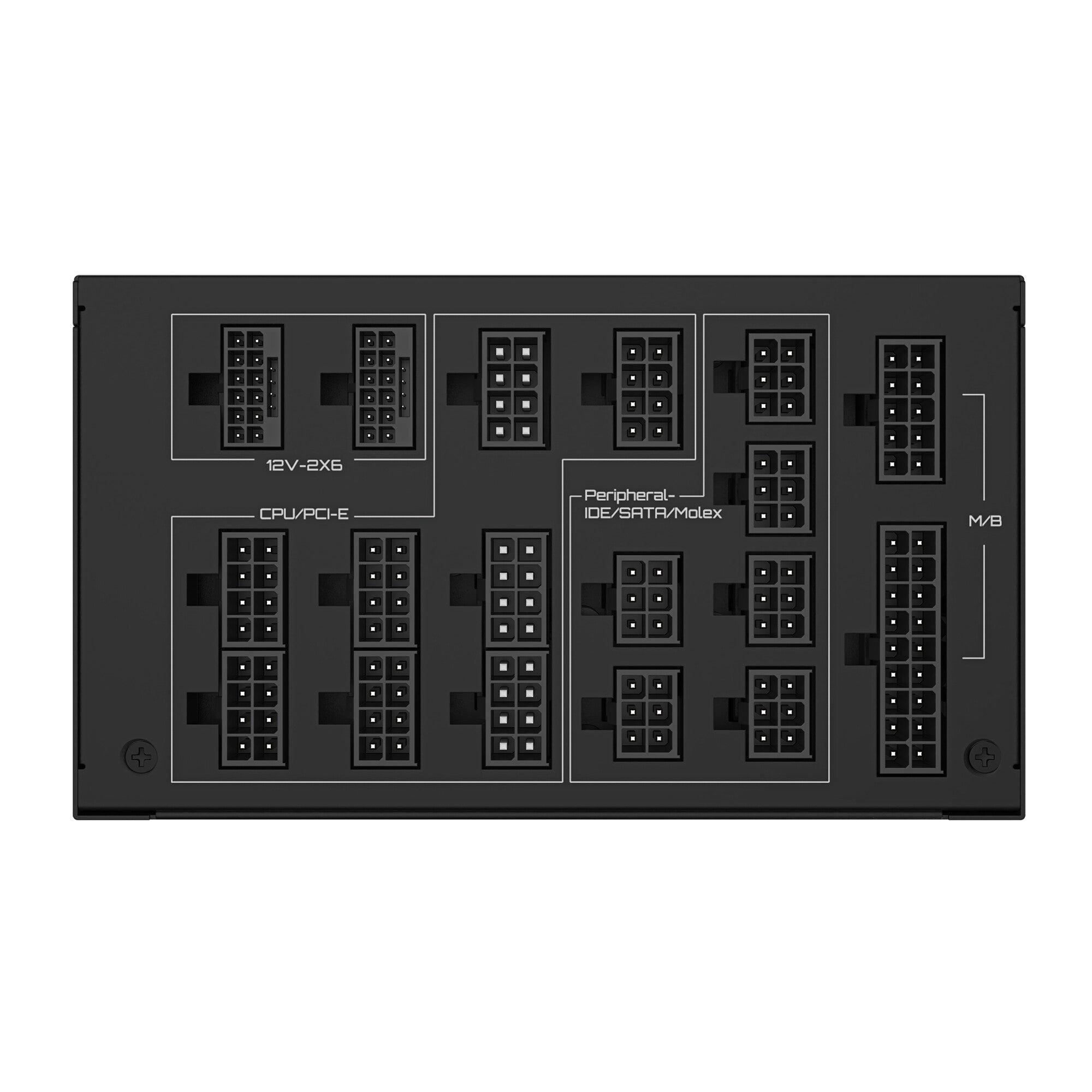

- Fully modular design
- Powerful single +12V rail
- 10 years warranty (Adjusted according to different regions)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
GIGABYTE UD1600PM PG5 AI TOP power supply unit 1600 W 20+4 pin ATX ATX Black
Description
GIGABYTE UD1600PM PG5 AI TOP. Total power: 1600 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 190 mm, Height: 86 mm
16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
Equipped with two PCIe 16pin to PCIe 16pin connectors, it supports up to two high-end graphics cards simultaneously, providing each card with a robust 600W power supply to meet demanding high-performance computing needs. Additionally, it features two two 8pin to PCIe 16pin connectors, enabling simultaneous support for four PCIe Gen 5.0 graphics cards, with each card receiving an independent 300W power supply to fully satisfy multi-card computing requirements.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 7.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |

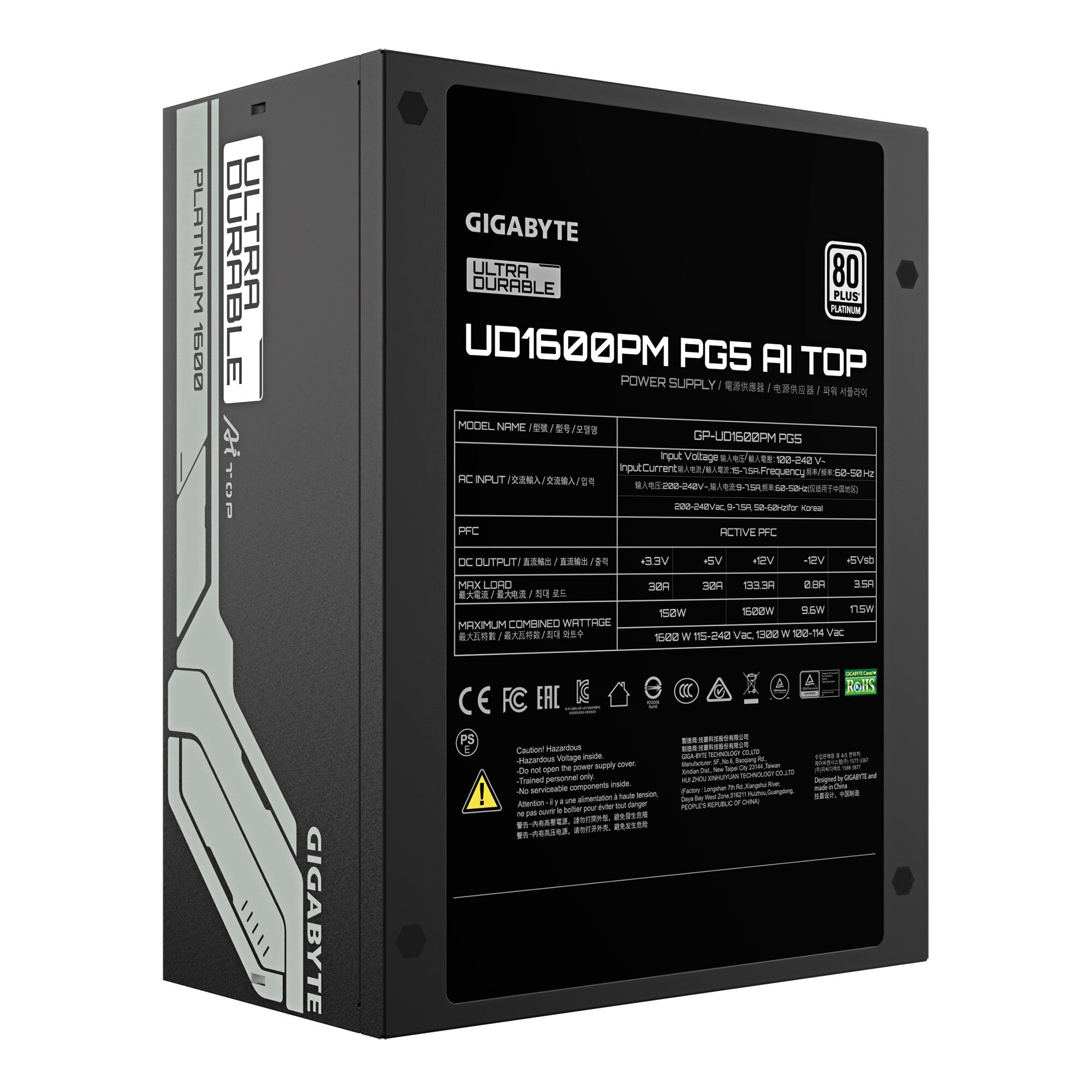

| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3.5 A |
| Power Good signal delay range | 100 - 150 ms |
| Efficiency | 92% |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 16 |
| SATA power cable length | 150,650 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

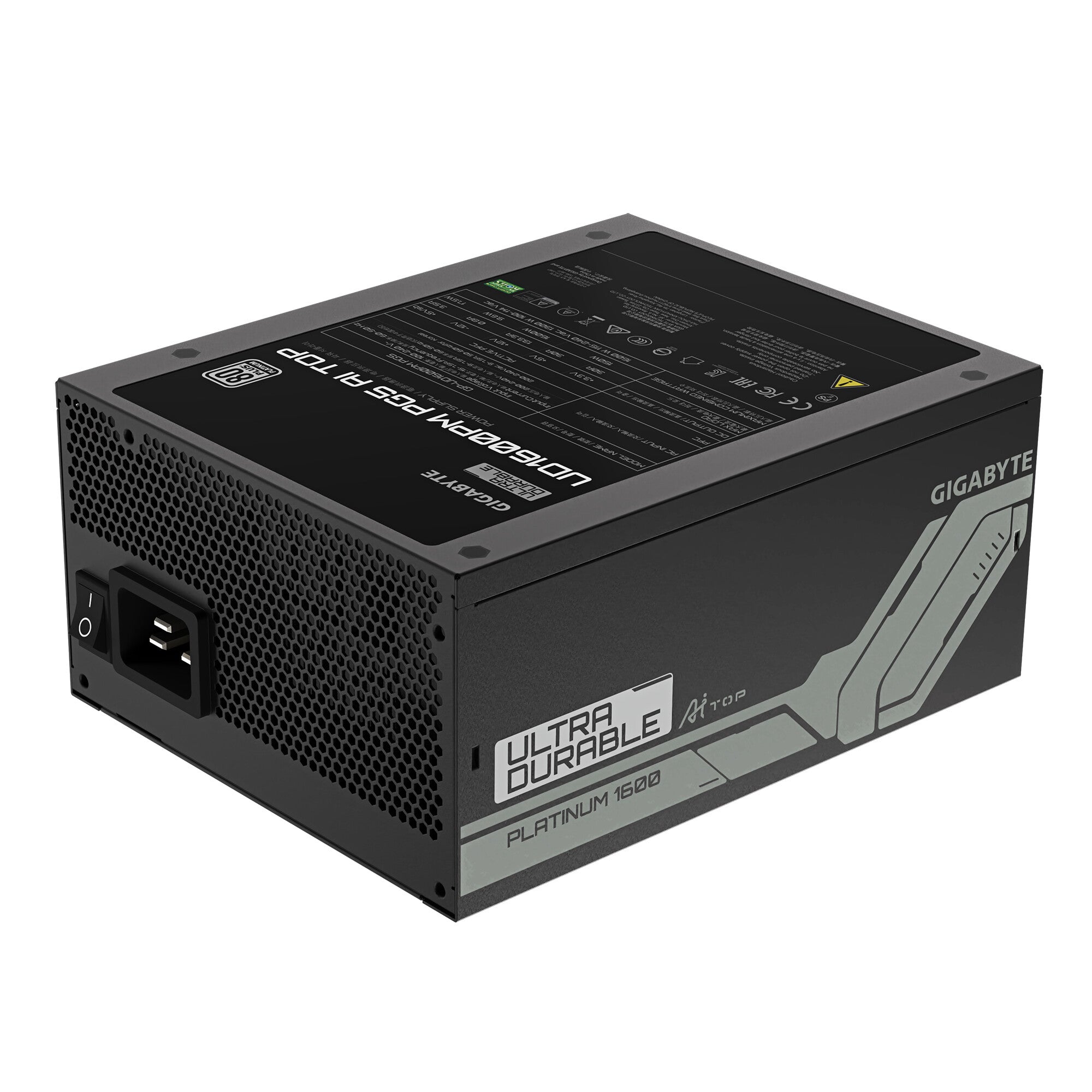

| On/off switch | Yes |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
| Weight | 5.3 kg |
| Packaging data | |
|---|---|
| Package width | 410 mm |
| Package depth | 219 mm |
| Package height | 145 mm |
| Package weight | 5.58 kg |

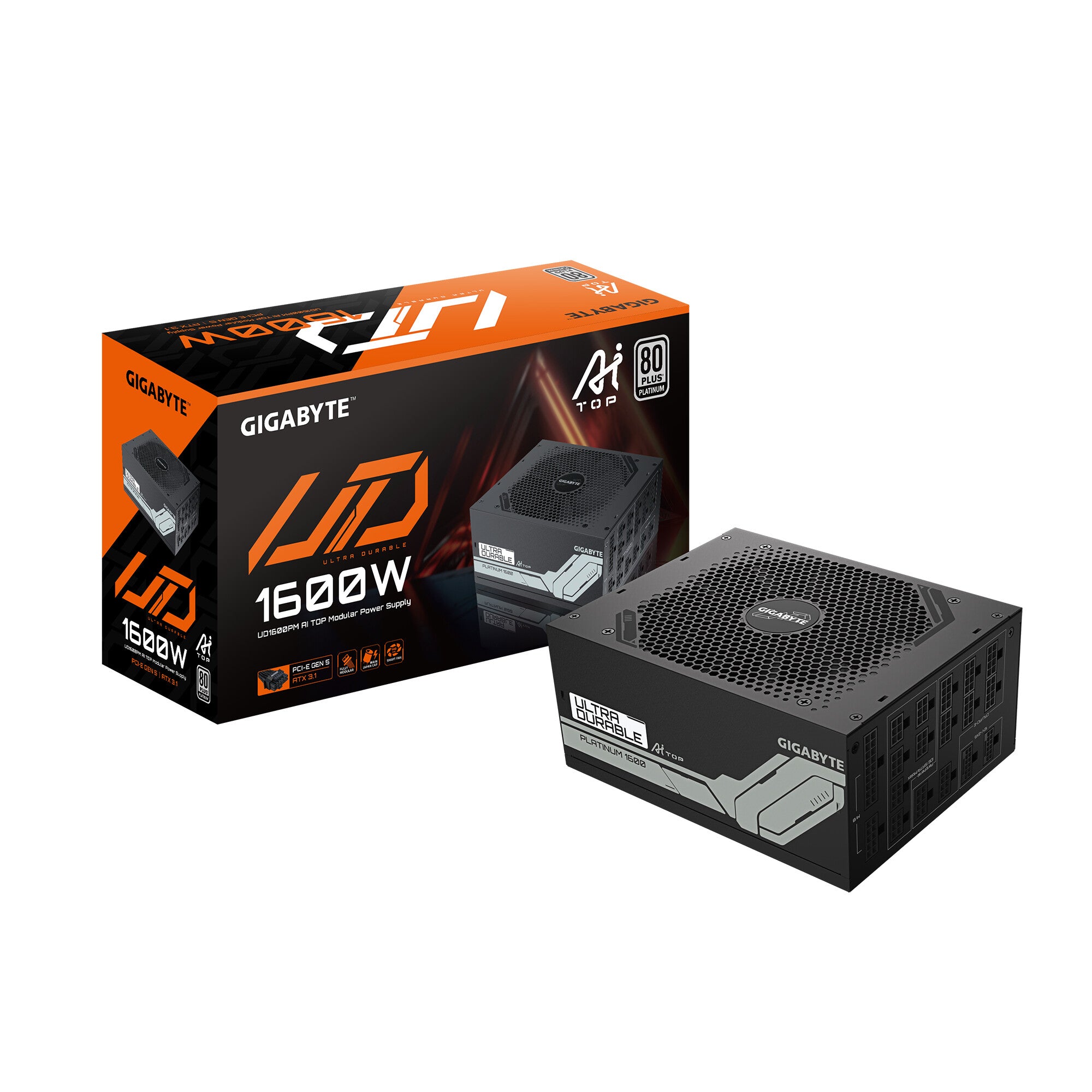

| Package type | Box |
| Technical details | |
|---|---|
| Warranty period | 10 year(s) |
