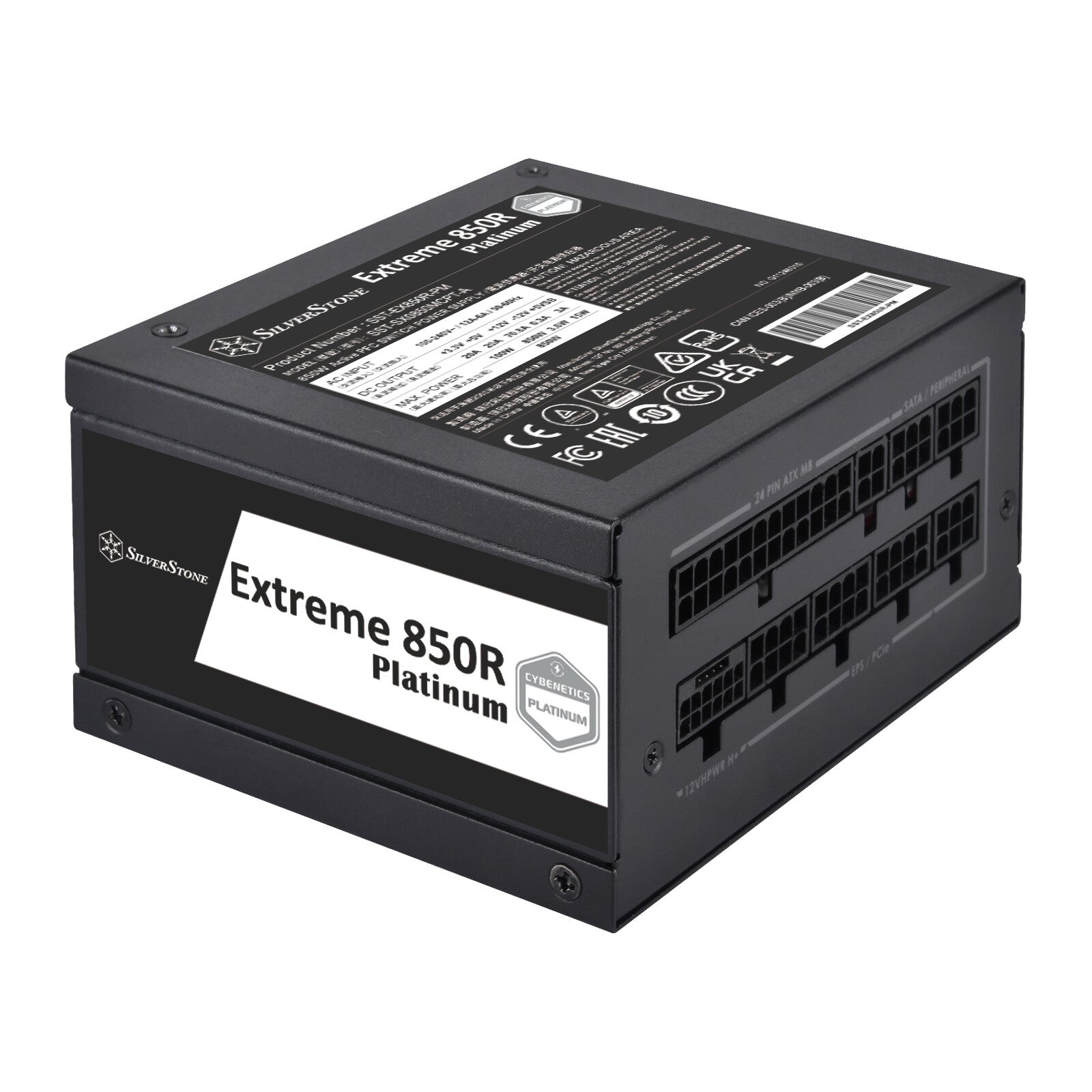

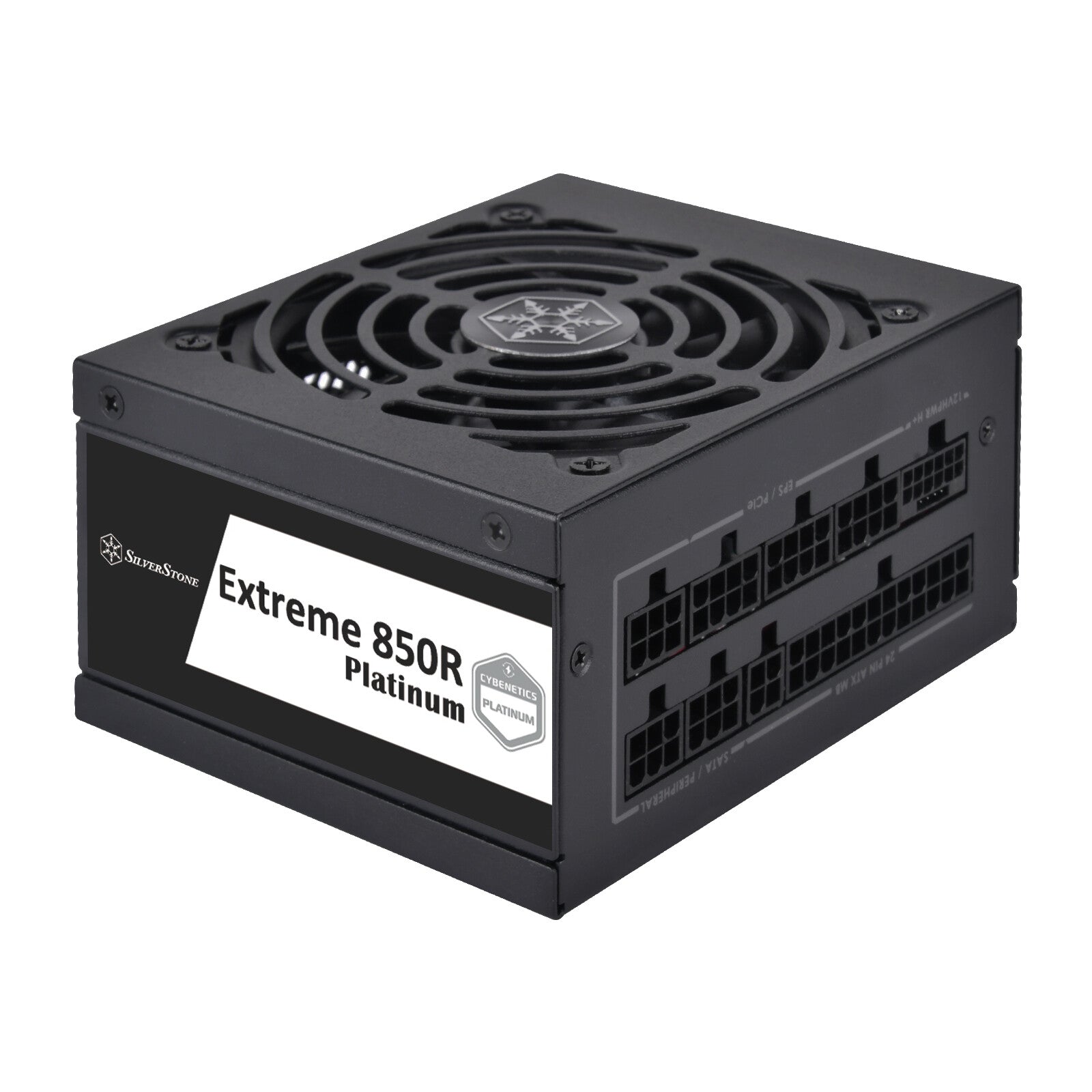

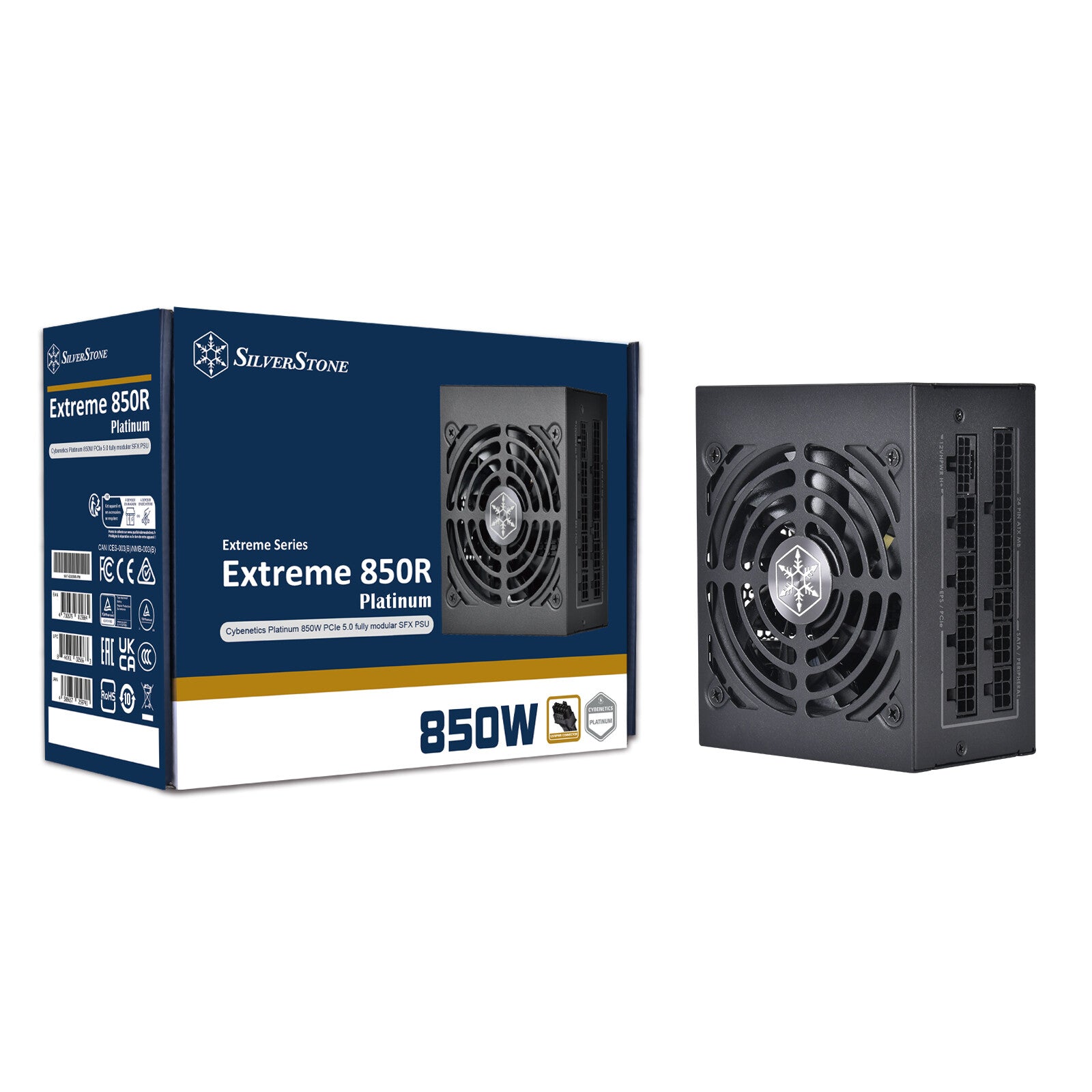

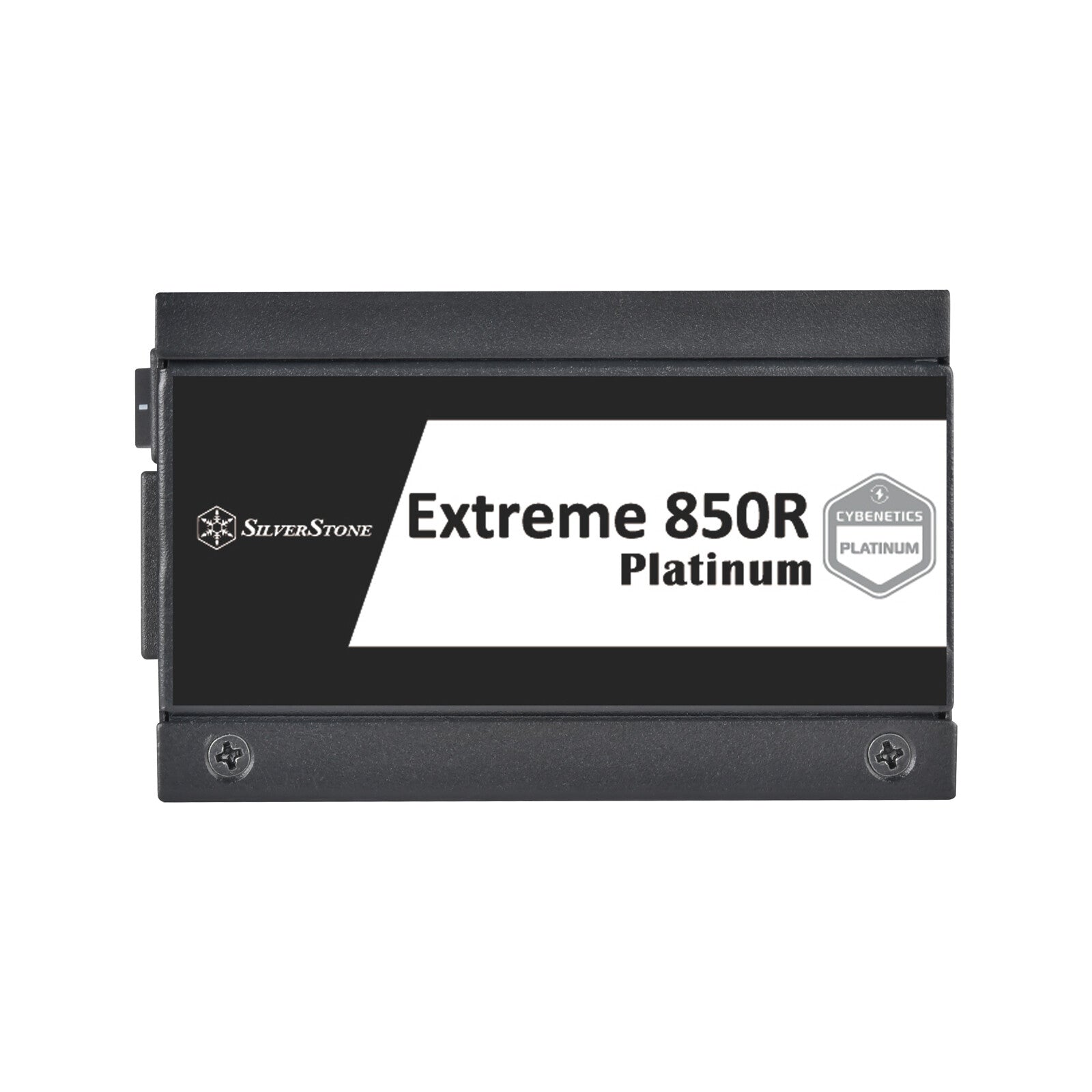

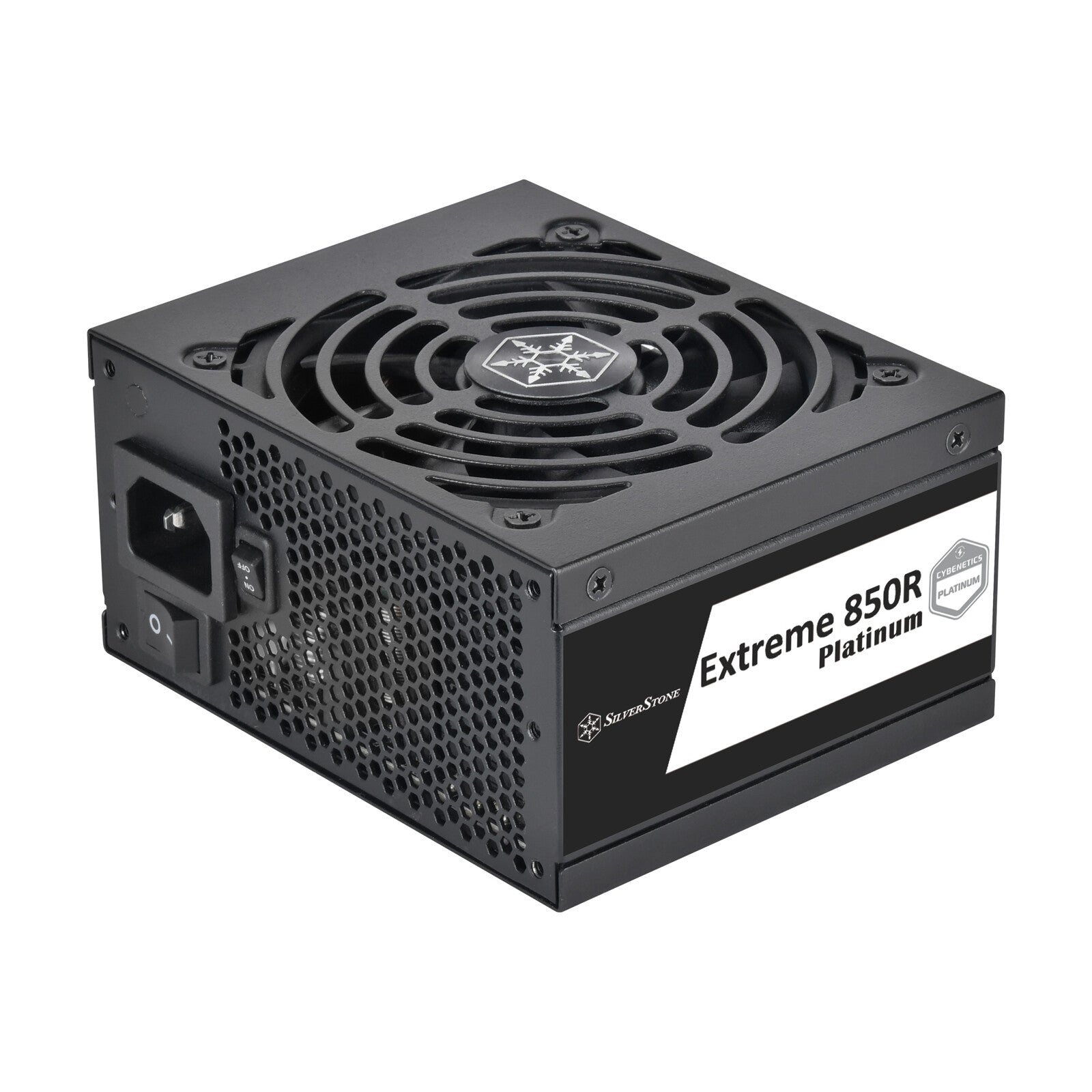

Silverstone SST-EX850R-PM power supply unit 850 W 20-pin ATX SFX Black
KEY FEATURES
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel SFX 12V V4.0 specification standard
- Cybenetics Platinum efficiency certification
- 24/7 continuous power output with 50℃operating temperature
- Ultra-silent 92mm FDB fan with fan intelligent deactivates and delayed shut off function
- Flexible flat cables have much greater flexibility to allow for tighter folding
- Fully Modular design
- All Japanese electrolytic capacitors
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Silverstone SST-EX850R-PM power supply unit 850 W 20-pin ATX SFX Black
Description
Silverstone SST-EX850R-PM. Total power: 850 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20-pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 100,200,300 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, Bearing technology: FDB. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 125 mm, Depth: 100 mm, Height: 63.5 mm
Equipped with Gen5 12VHPWR PCIe connector, meeting Intel SFX 12V V4.0 specification standard
Cybenetics Platinum efficiency certification
Powerful single +12V rail design, ideal for future high-end component upgrades and overclocking
All Japanese electrolytic capacitors

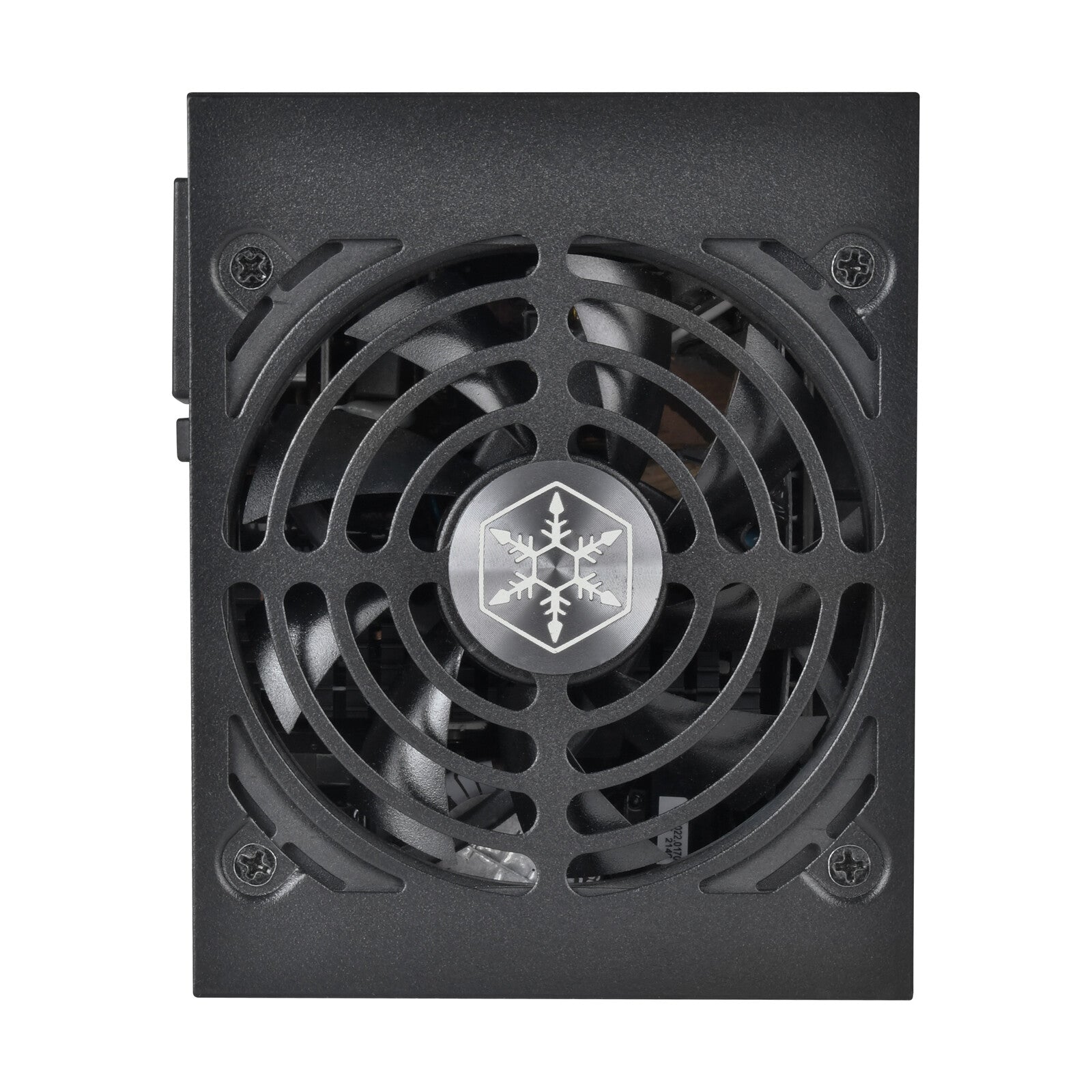

Ultra-silent 92mm Fluid Dynamic Bearing (FDB) fan with fan intelligent stop and delayed shut off function

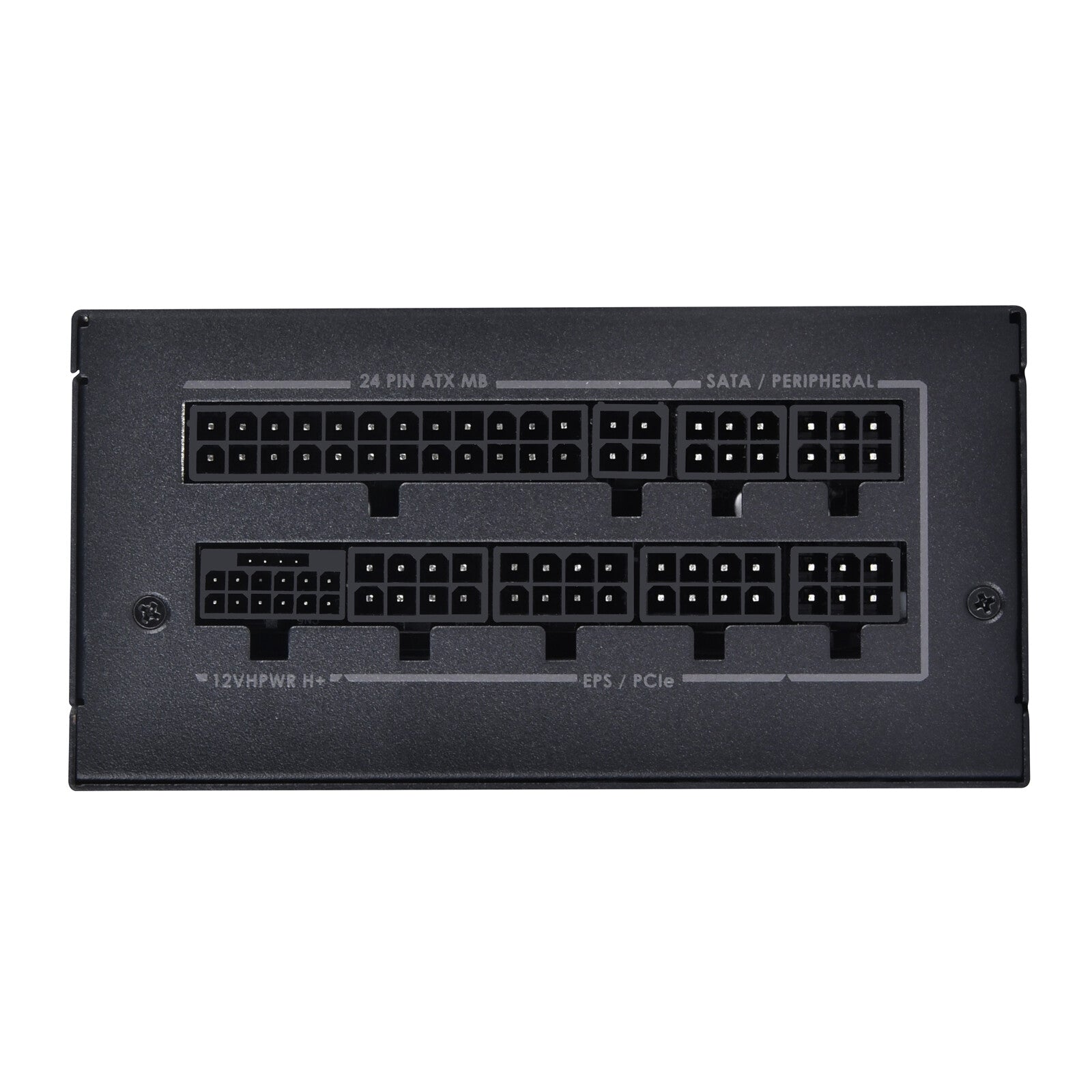

Fully modular cabling design with flexible flat array cables
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery

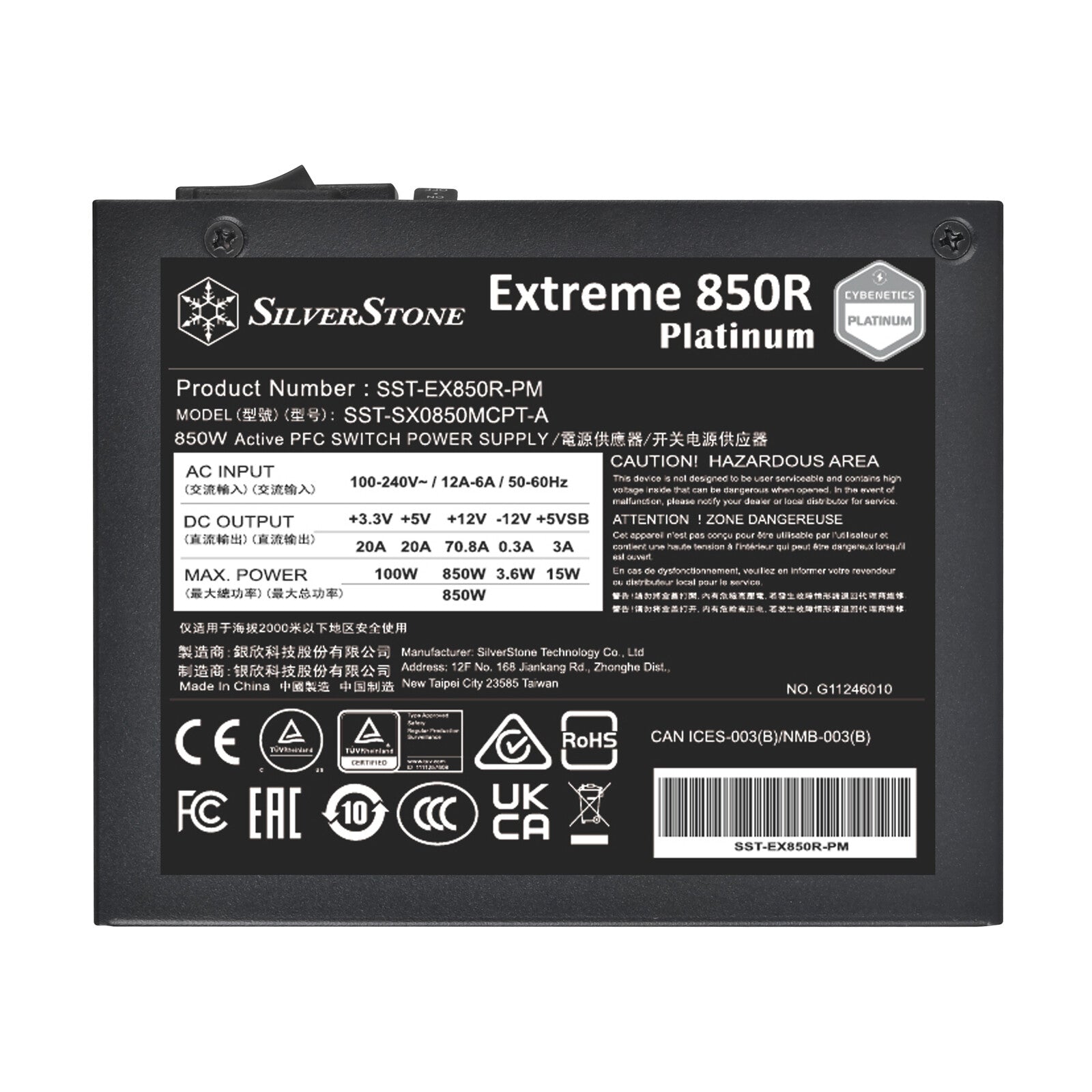

| Power | |
|---|---|
| Total power | 850 W |
| AC input voltage | 180 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20-pin ATX |
| Motherboard power cable length | 30 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 100,200,300 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 200,300 mm |
| PCI Express power connectors (6+2 pin) | 16 |
| PCI Express power connectors (12+4 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 40 cm |
| Floppy disk drive cable length | 10 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | No |
| Silent mode | Yes |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
| Weight | 1.6 kg |
