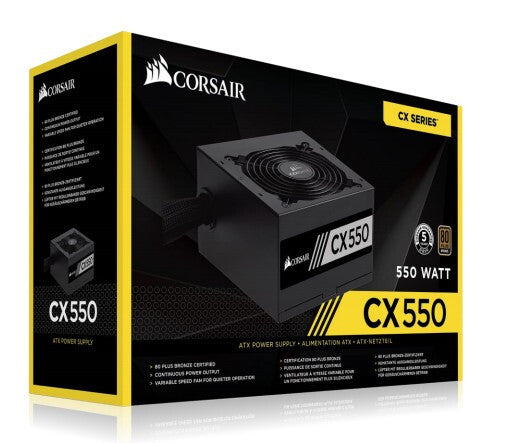

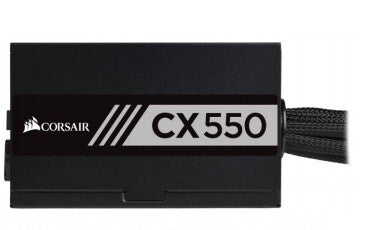

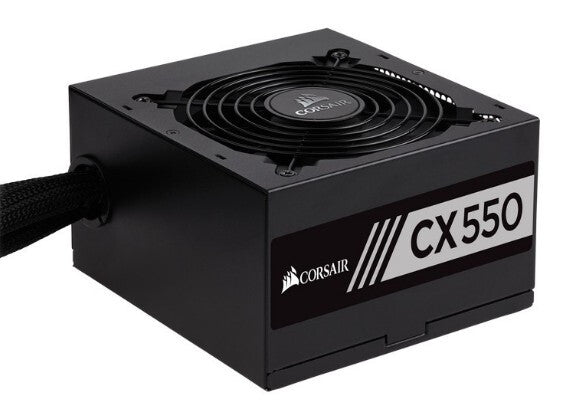

Corsair CX550 550W ATX Non-Modular Power Supply Unit | 80 PLUS Bronze
KEY FEATURES
- 550 W 100 - 240 V 47 - 63 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Bronze
- Active 12 cm
- Black
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Corsair CX550 550W ATX Non-Modular Power Supply Unit | 80 PLUS Bronze
Description
Corsair CX550. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, PCI Express power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
The CX Series of power supplies provides modern power supply technologies and 80 PLUS Bronze efficiency.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 549.6 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 45.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.8 A |
| Power protection features | Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| Cabling type | Non-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
| EPS version | 2.92 |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Certification | FCC, ICES, CE, UL, cUL, RCM, TÜV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.73 kg |
| Packaging data | |
|---|---|
| Package width | 184 mm |
| Package depth | 96 mm |
| Package height | 264 mm |
| Package weight | 2.38 kg |
| Package type | Box |
