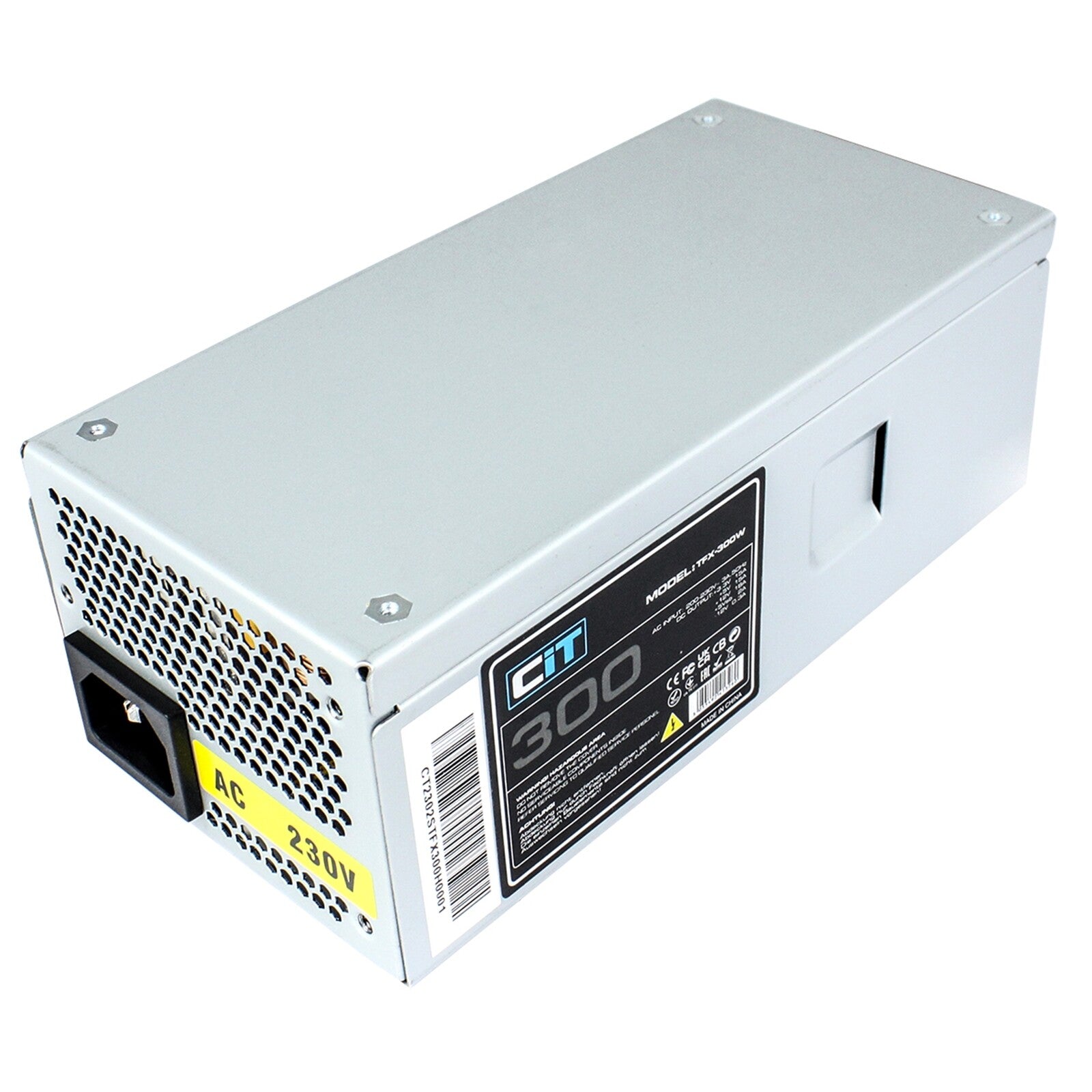

CiT CIT-TFX-300W 300W TFX Power Supply Unit | No
KEY FEATURES
- Support standard TFX form factor
- Low Noise 8cm Fan with intelligent fan speed control
- Honeycomb ventilation design for optimal heat dissipation
- Powerful +12V rail of 18A offering stable DC output and support high-end graphic card and PC system
- Low ripple noise
- Flat black cables
- OPP/OVP/UVP/SCP electrical protection included
- Safety / EMI Approvals
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
CiT CIT-TFX-300W 300W TFX Power Supply Unit | No
Description
Inject your PC system with the TFX-300 it is a TFX 12 V v2.31 compliant, small and compact for small desktop cases. Expanding the scope of SFF design possibilities.The best choice for system builders with features that enthusiasts want such as all silver exterior coating, low noise 80mm fan, and flat black cables.
In addition, the TFX-300 features a strong 12V rail design supports high stability outputs for even the most demanding hardware to provide reliable and high-performing system operation.
Specifications
Dimensions:
85mm x 65mm x 175mm (W x H x D)
Input Voltage:
200-230VAC
Input Current:
3A
Input Frequency Range:
50-60Hz
PFC:
PFC
Power Good Signal:
100-500ms
Hold Up Time:
10ms-40ms
Efficiency:
>72%
MTBF:
100,000 Hours
Protection:
OVP / UVP / OPP / SCP
Power:
300W
Operation Temperature:
0-40°C
Safety:
CE / UKCA / FCC / CB / REACH / EAC / RoHS
Cooling:
80mm Black Fan
Noise:
<17 dBA
Manufacturer Part Number:
CIT-TFX-300W
EAN Number:
5055492413260
Has Mains Plug:
No
Colour:
Silver
What's In The Box:
PSU
Manual
Unit (Product) Dimensions (mm):
85mm x 65mm x 175mm (W x H x D)
Packaging Dimensions (mm):
210mm x 76mm x 142mm (W x H x D)
Net Weight (KGs):
0.83 KGs
Gross Weight (KGs):
0.93 KG
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Total power | 300 W |
| AC input voltage | 230 V |
| AC input frequency | 50/60 Hz |
| Input current | 3 A |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 18 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 72% |
| Hold time | 10 ms |
| Power protection features | Over power, Over voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 33 cm |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 33.5 cm |
| ATX Power connector (24-pin) | Yes |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | TFX |
| 80 PLUS certification | No |
| Noise level | 17 dB |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
| Weight | 830 g |
| Packaging data | |
|---|---|
| Package width | 280210 mm |
| Package depth | 142 mm |
| Package height | 76 mm |
| Package weight | 930 g |
| Package type | Box |
| Technical details | |
|---|---|
| Compliance certificates | CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), REACH, RoHS |
| Warranty period | 2 year(s) |
| Sustainability compliance | Yes |
