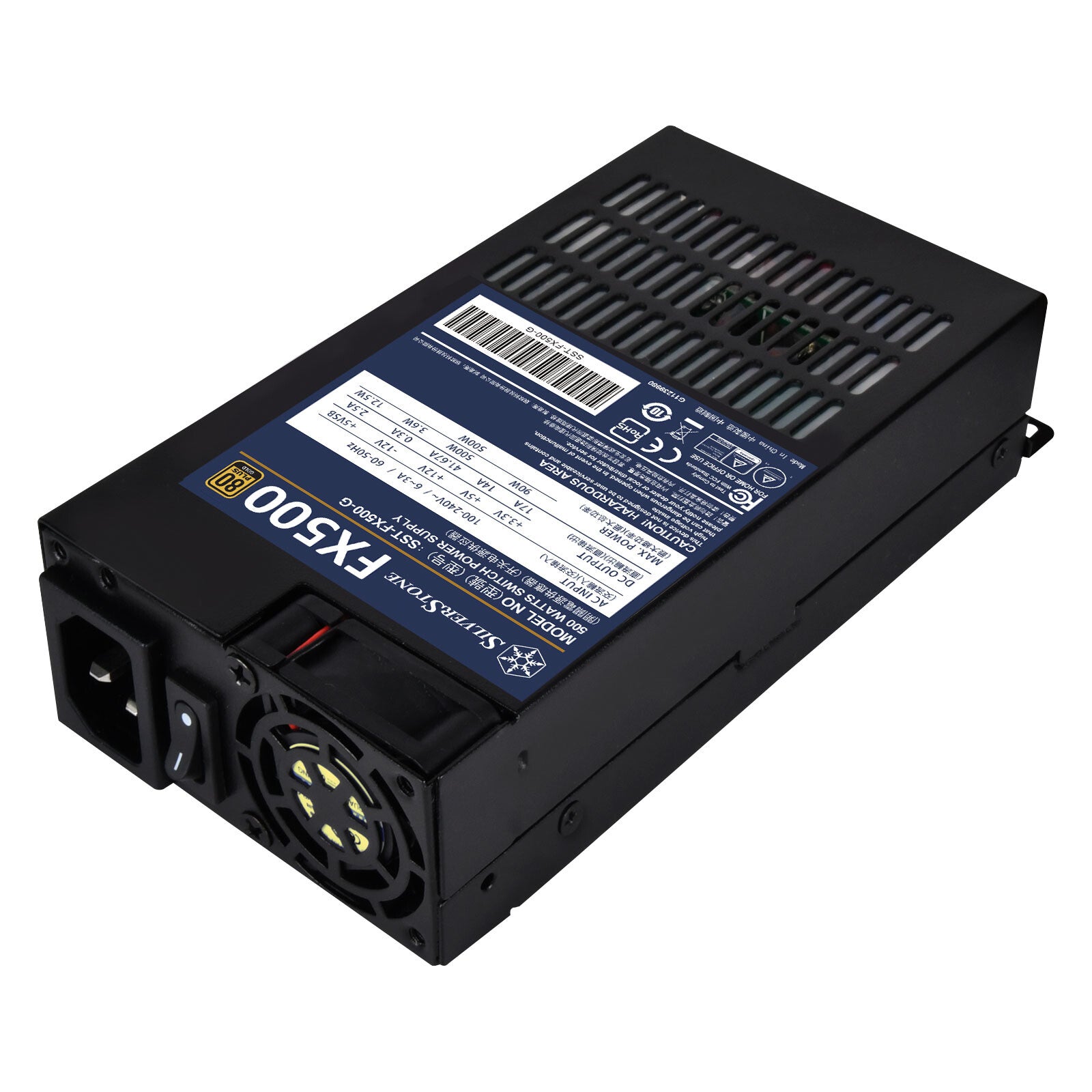

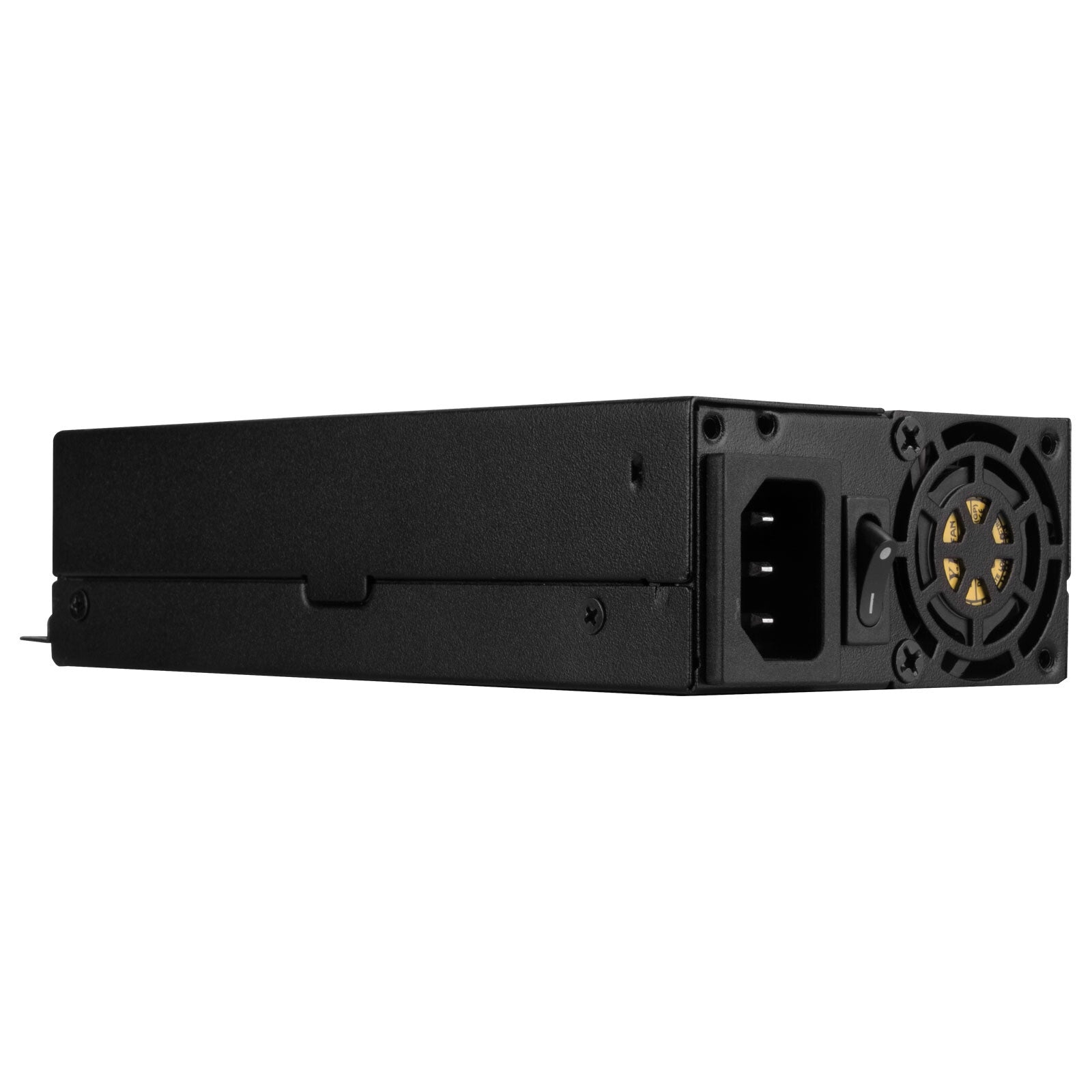

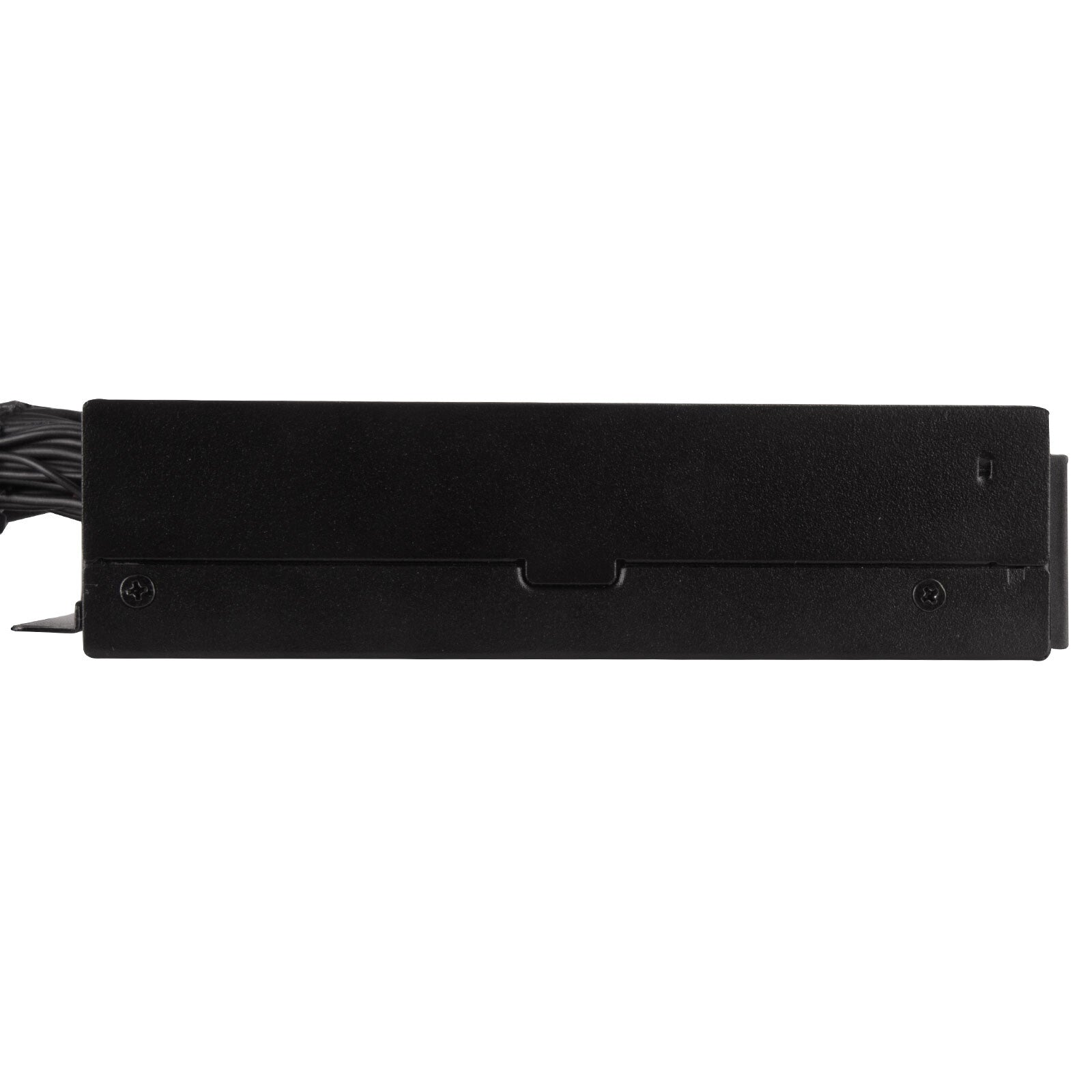

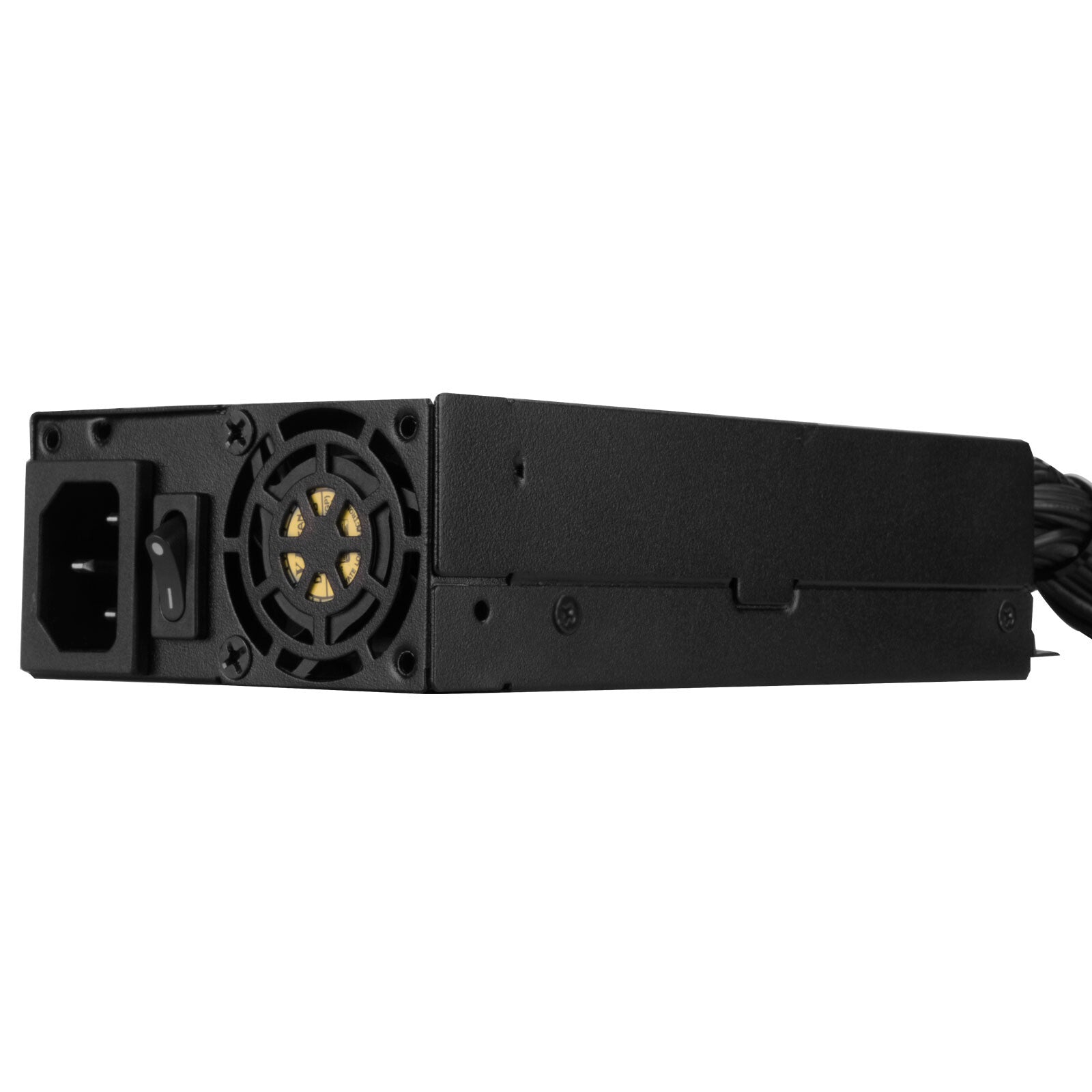

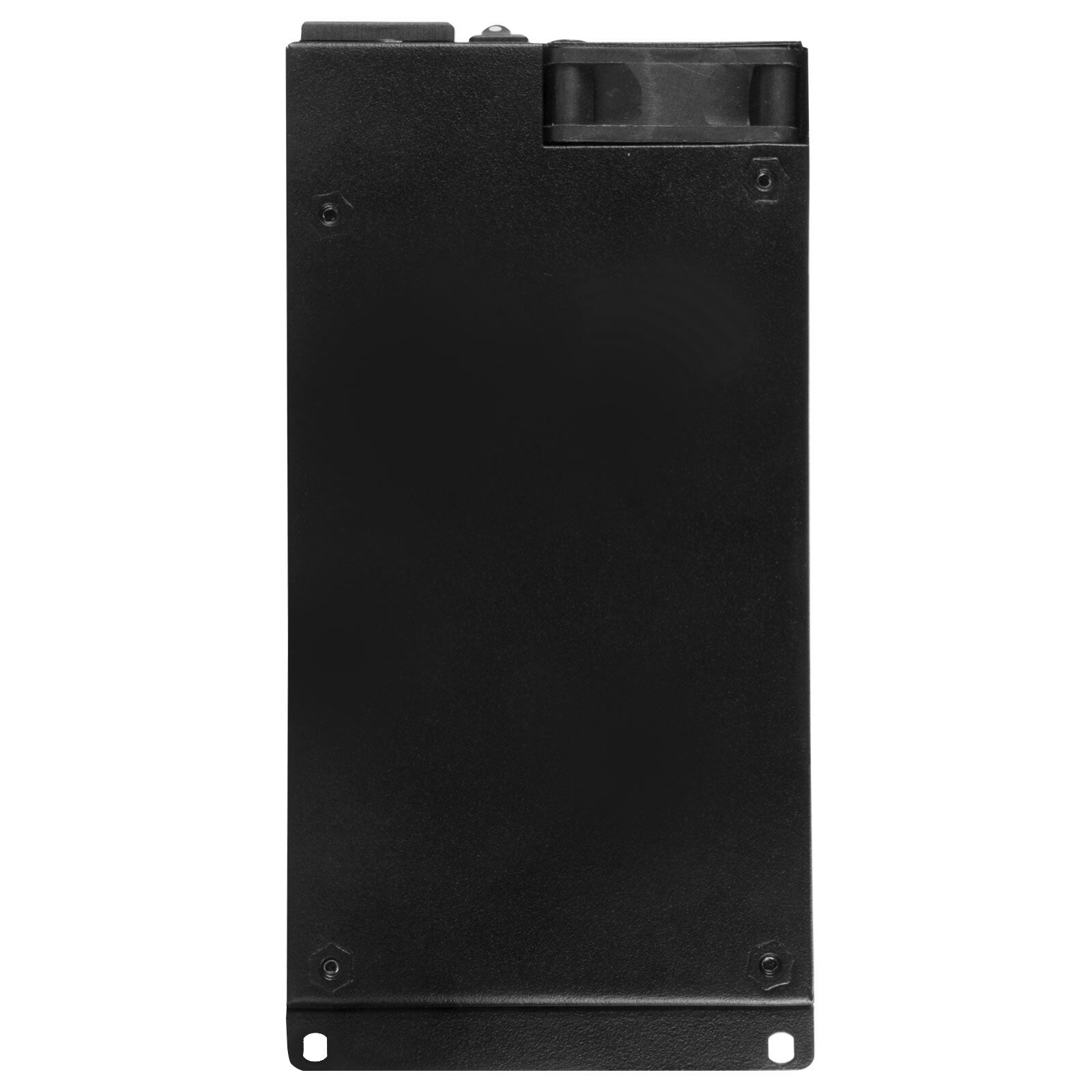

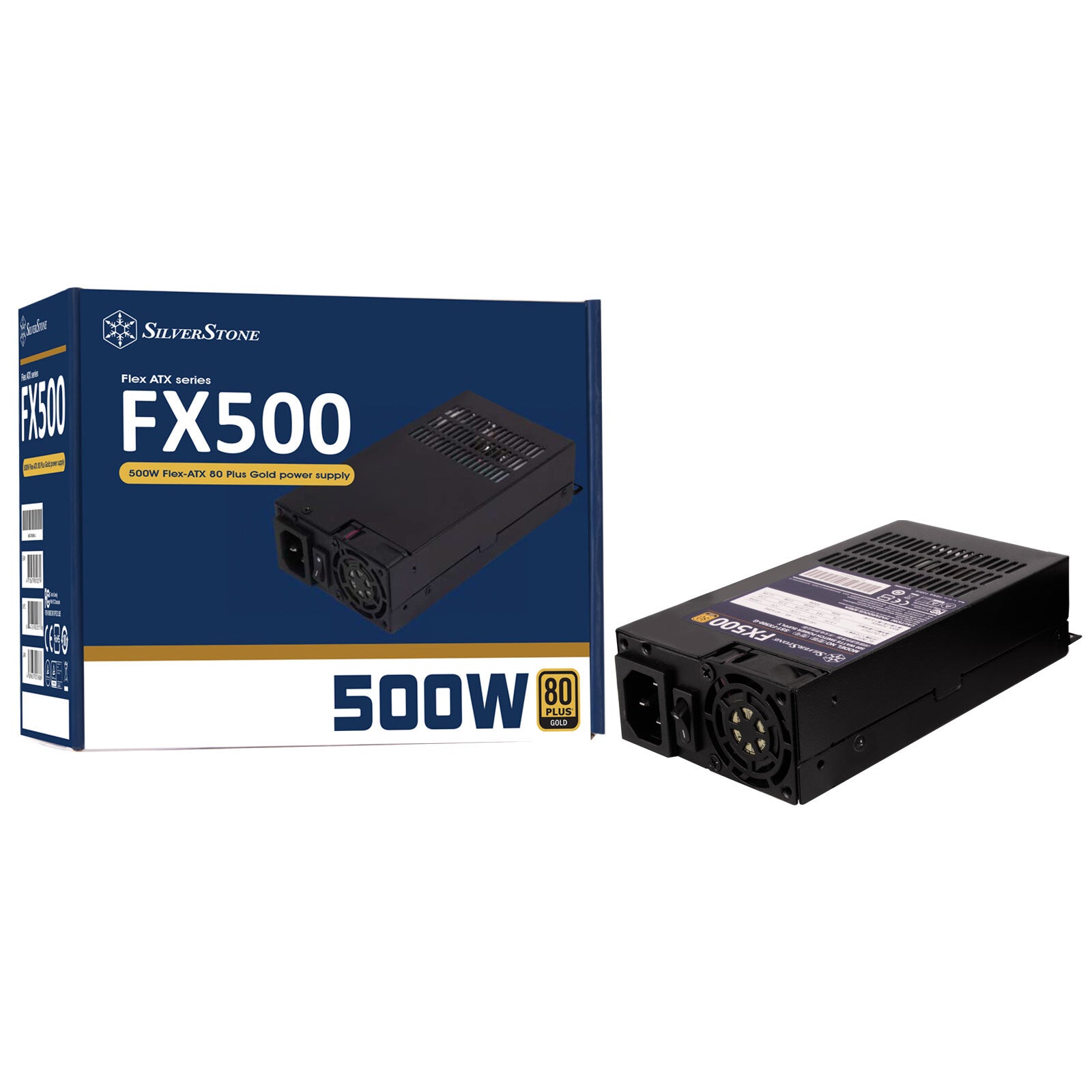

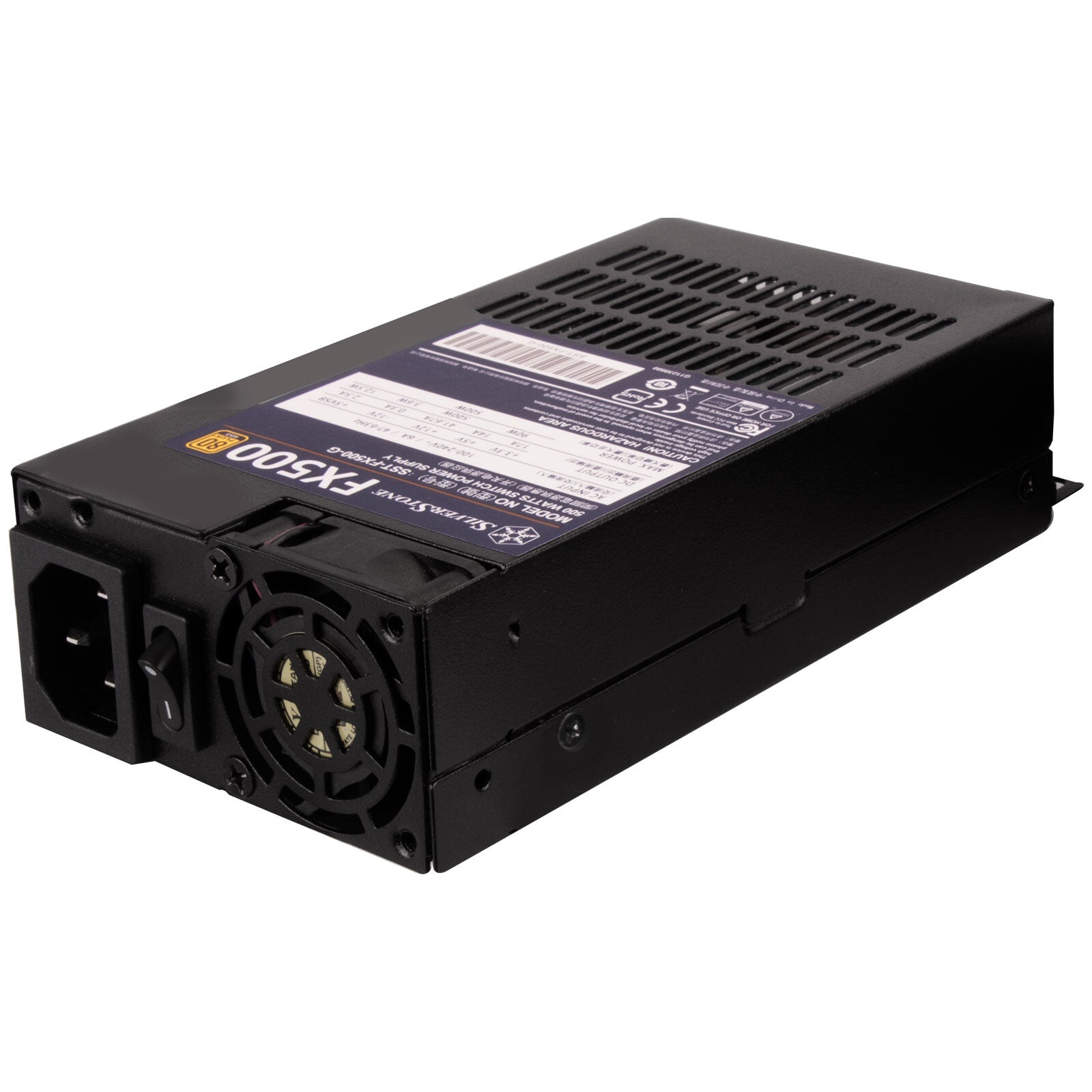

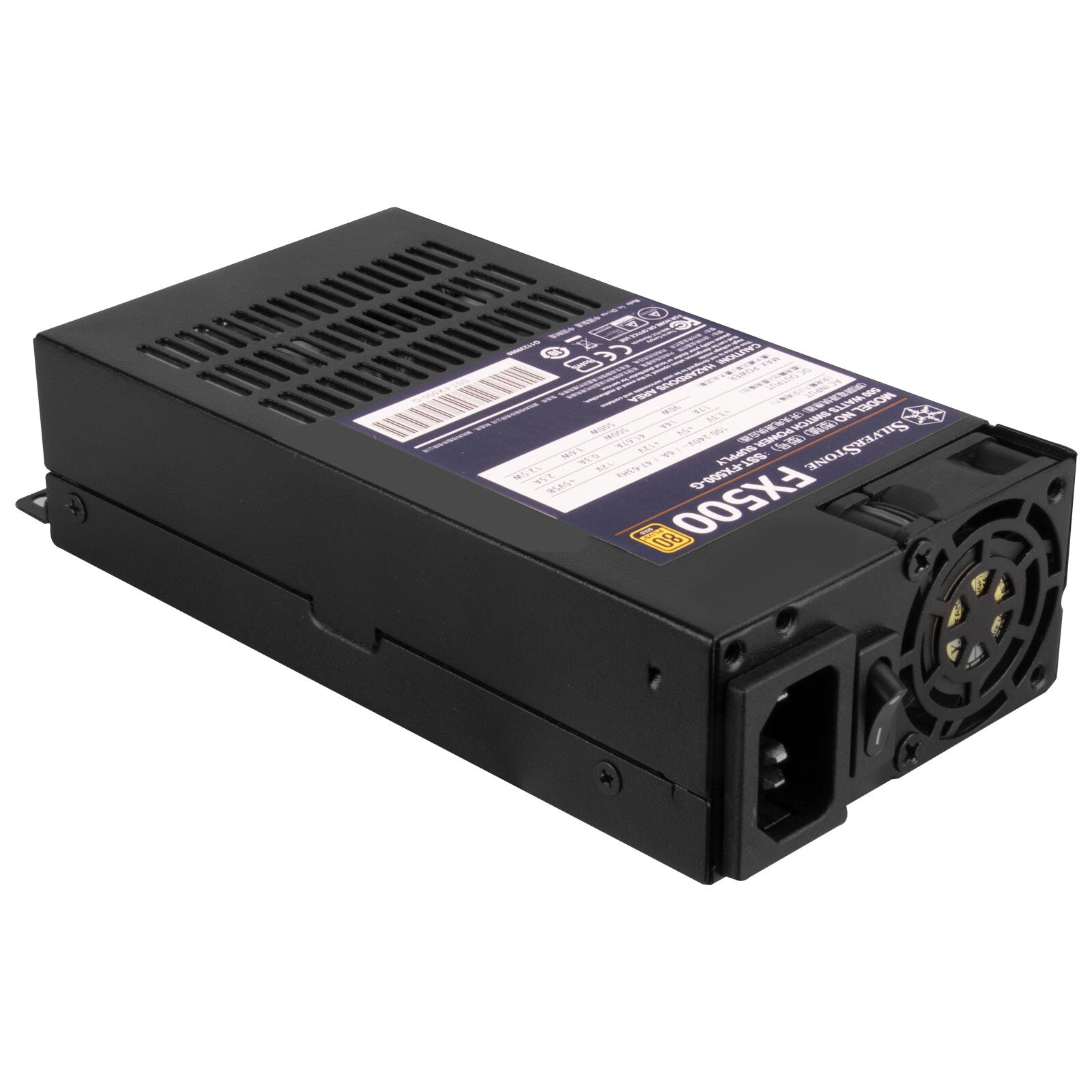

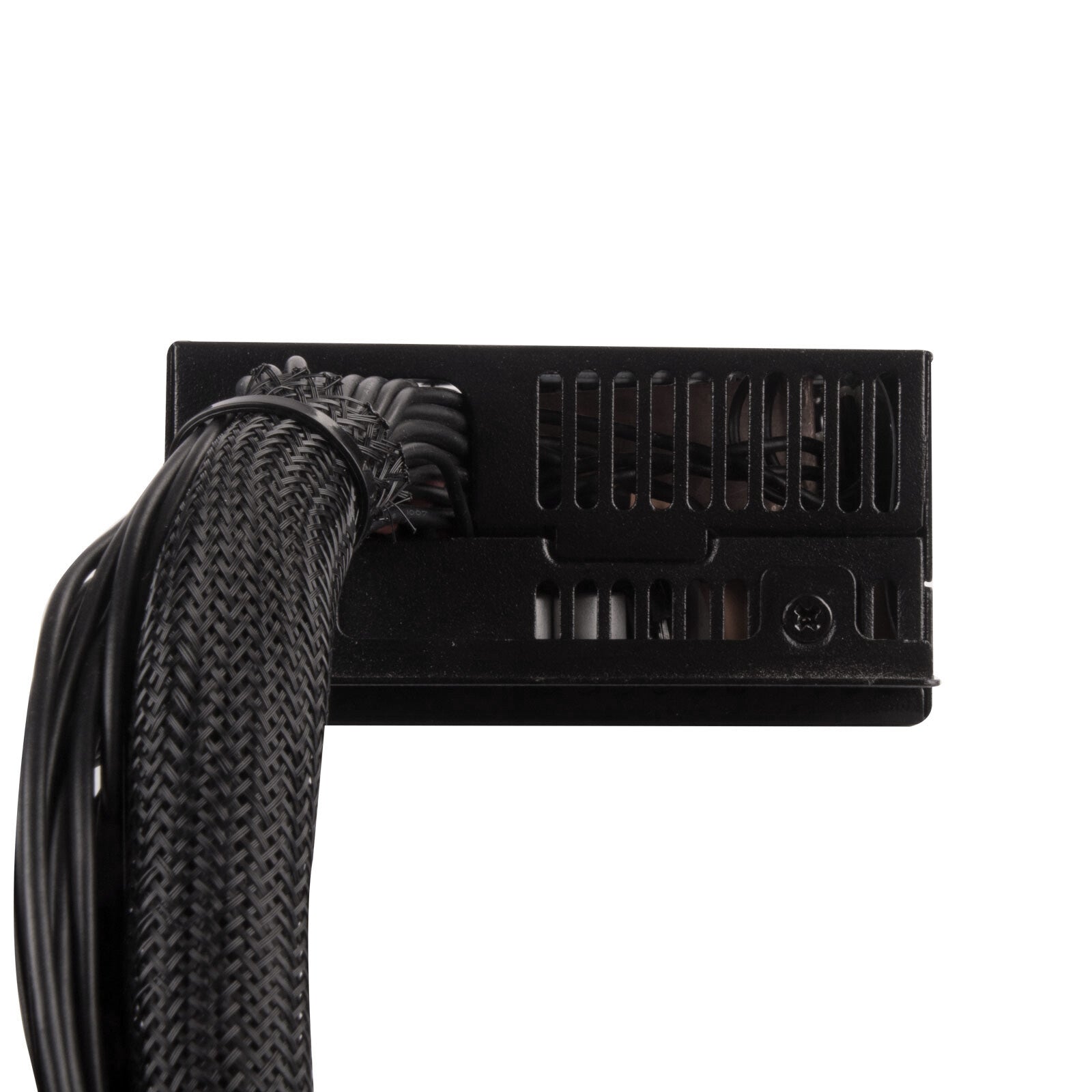

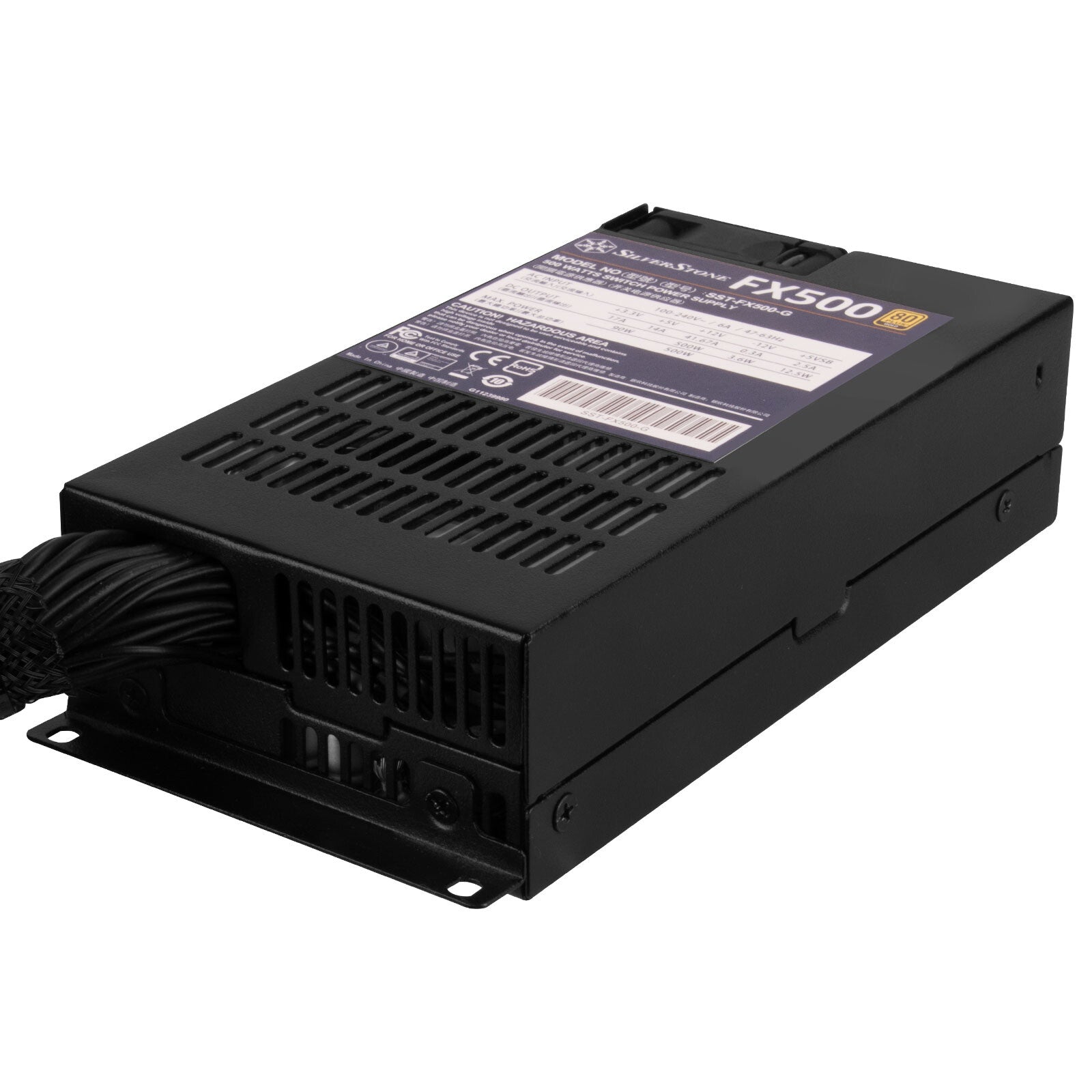

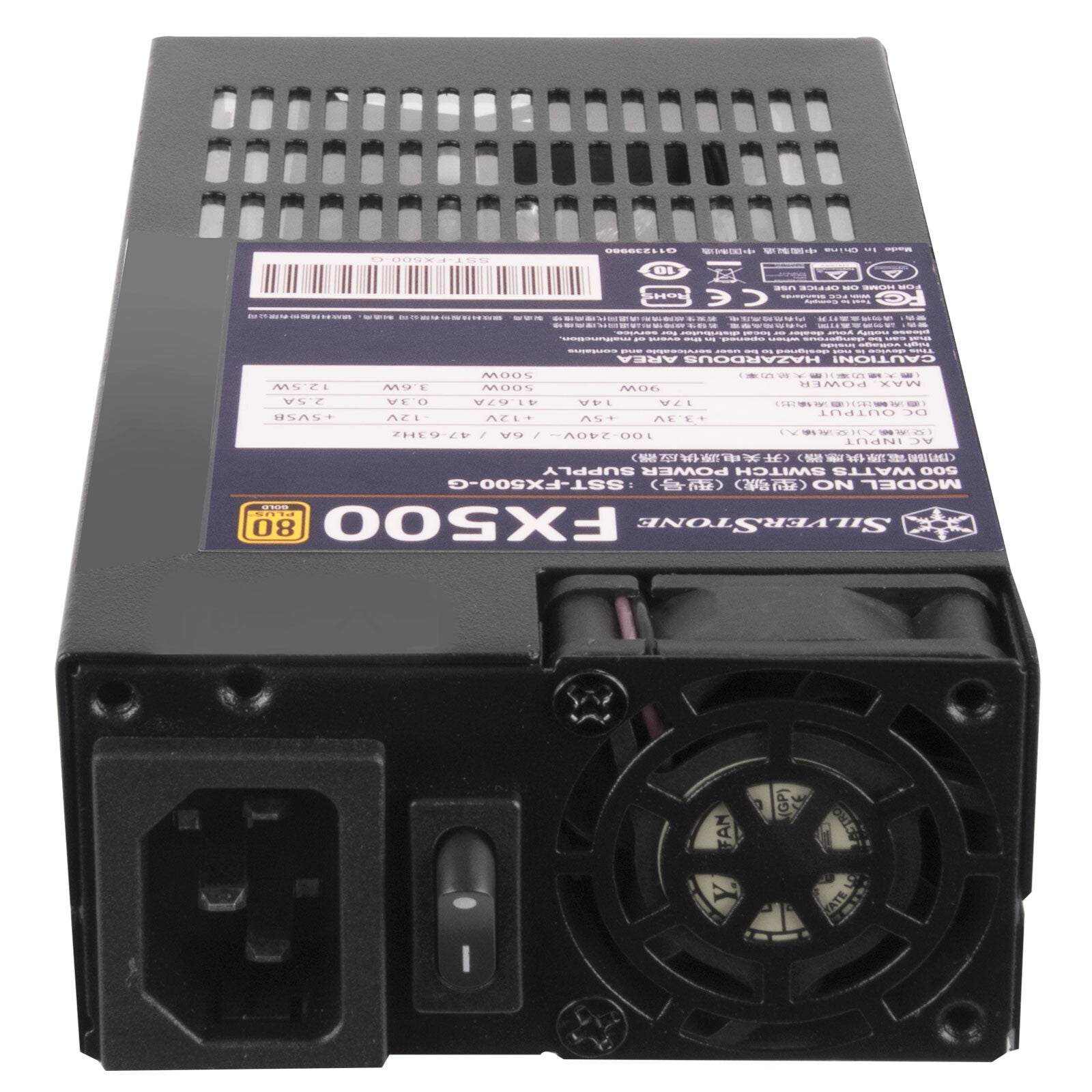

Silverstone FX500 power supply unit 500 W 20+4 pin ATX Flex ATX Black
KEY FEATURES
- 500 W 90 - 264 V 47 - 63 Hz
- Motherboard power connector: 20+4 pin ATX
- Server Flex ATX 80 PLUS Gold
- Active 4 cm
- Black
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Silverstone FX500 power supply unit 500 W 20+4 pin ATX Flex ATX Black
Description
Silverstone FX500. Total power: 500 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: Server, Power supply unit (PSU) form factor: Flex ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 4 cm. Width: 81.5 mm, Depth: 150 mm, Height: 40.5 mm
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery

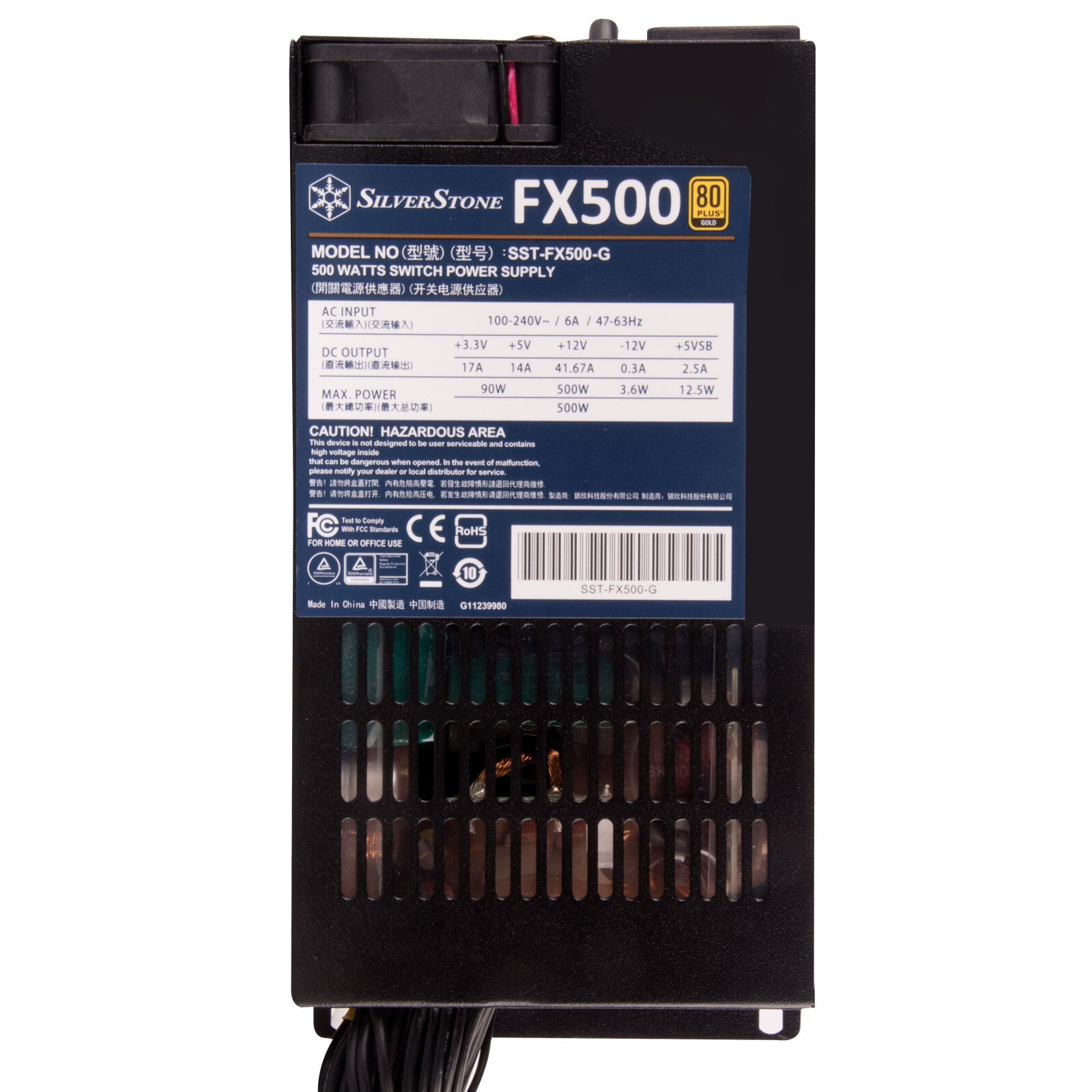

| Power | |
|---|---|
| Total power | 500 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+12V) | 500 W |
| Combined power (+5V) | 90 W |
| Max output current (+3.3V) | 14 A |
| Max output current (+12V) | 41.67 A |
| Max output current (+5V) | 17 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over power, Over voltage, Overheating, Short circuit |
| Ports & interfaces | |
|---|---|

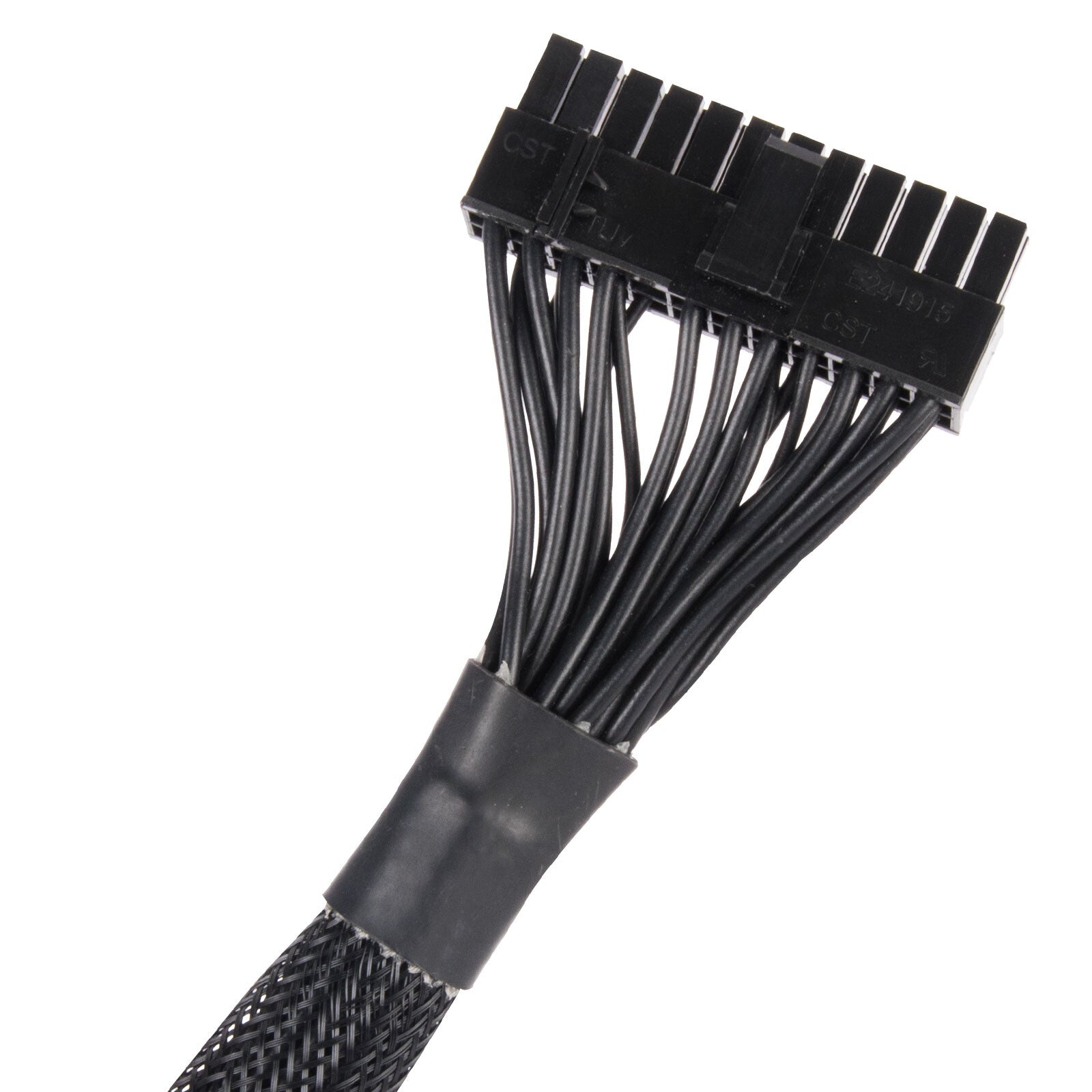

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 150,350 mm |

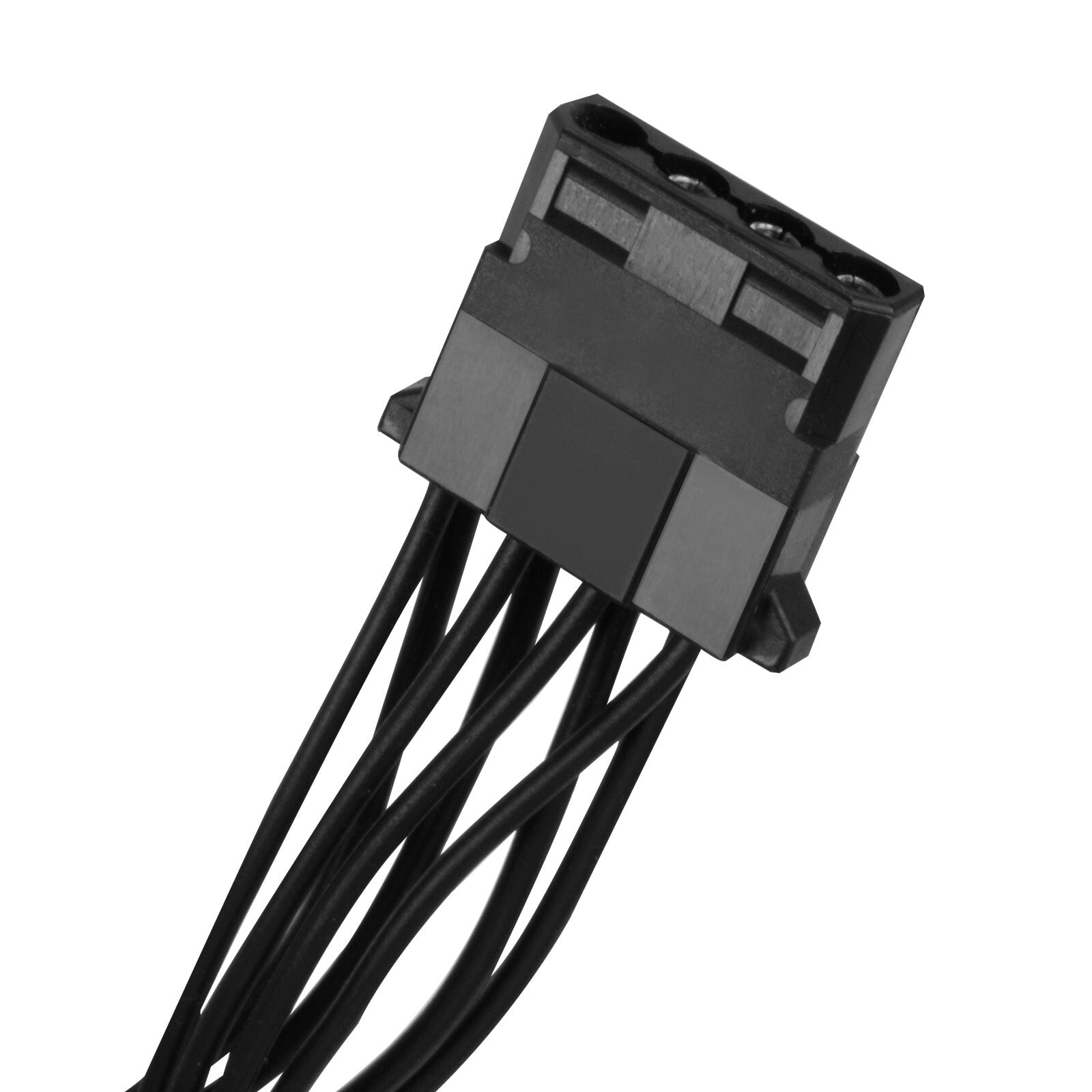

| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,350 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 35 cm |
| CPU P4 connector (4-pin) | 5 |

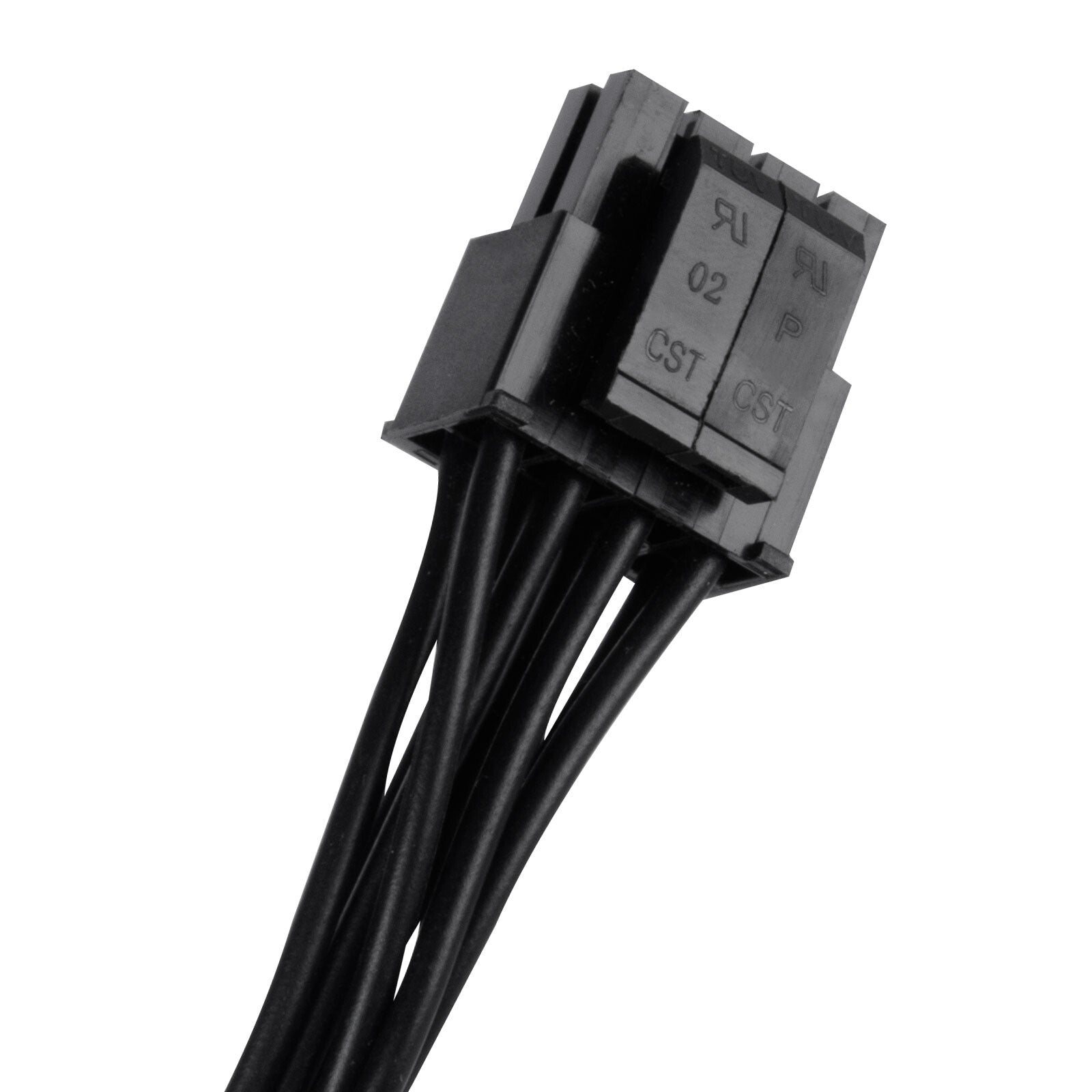

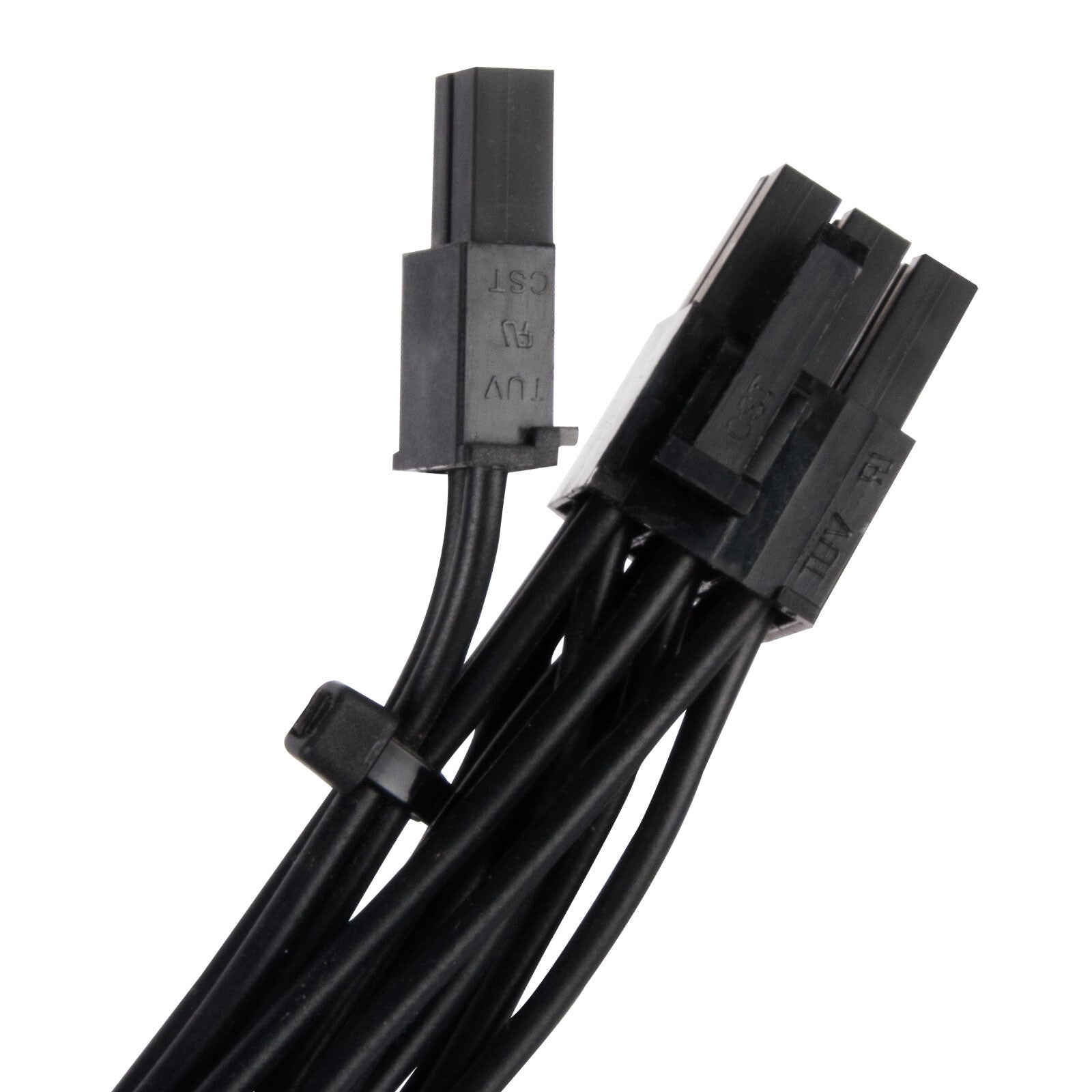

| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 45 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive cable length | 15 cm |

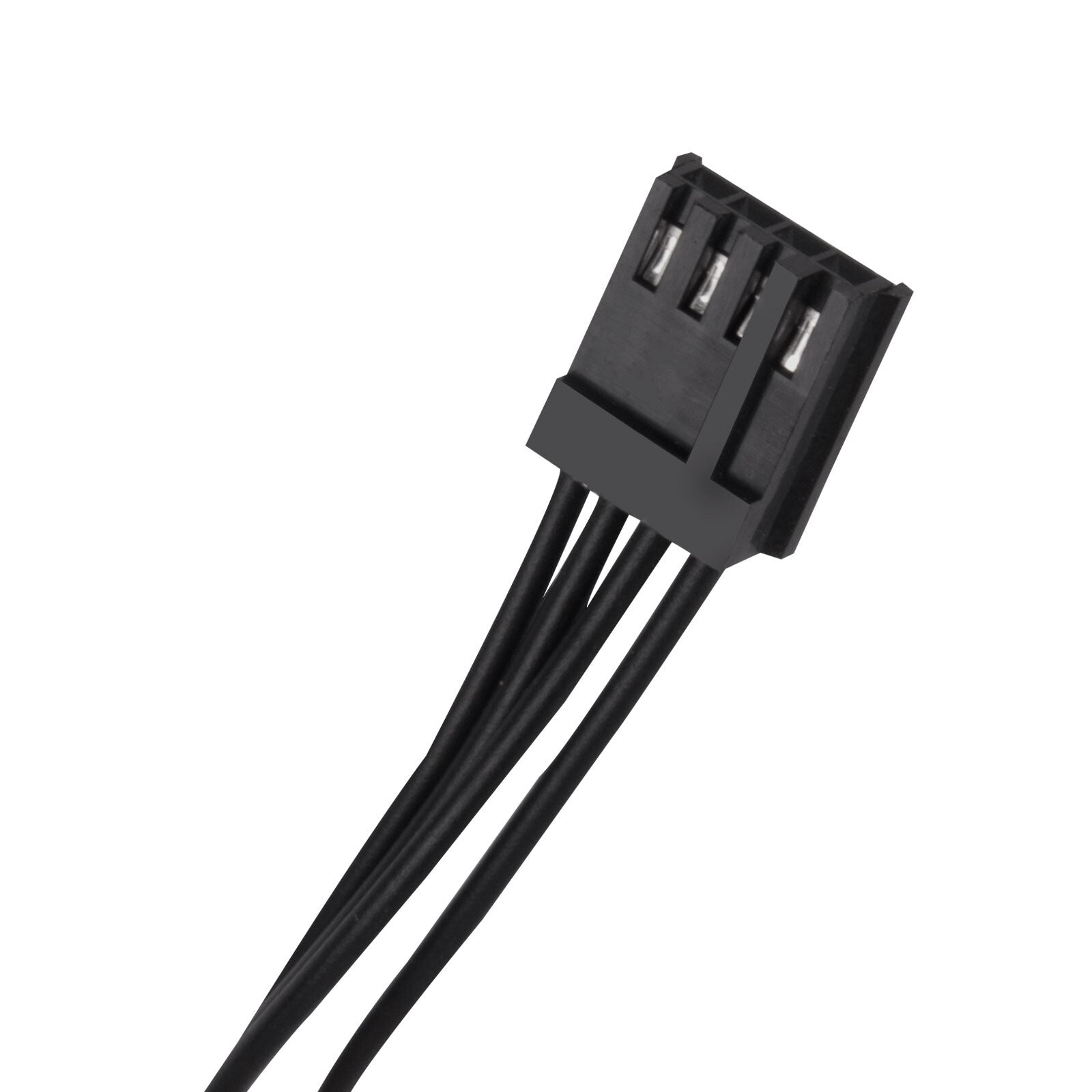

| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| Performance | |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | Flex ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
| Noise level | 20 dB |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 81.5 mm |
| Depth | 150 mm |
| Height | 40.5 mm |
| Weight | 960 g |
