Cooler Master X Silent Edge Platinum 1100 230V power supply unit 1100 W 24-pin ATX ATX Black
KEY FEATURES
- 1100 W 200 - 240 V 50/60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Platinum
- Passive
- Black
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Cooler Master X Silent Edge Platinum 1100 230V power supply unit 1100 W 24-pin ATX ATX Black
Description
Cooler Master X Silent Edge Platinum 1100 230V. Total power: 1100 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Passive. Compliance certificates: BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, REACH, UKCA, cUL, Certification: ErP 2014 Lot 3
Precise Silent Power
Engineered with a fanless design and industrial IC components, X Silent Edge Platinum features out Heat Pipe.
Dissipation Patent, ensuring quietness for even the most noise-sensitive environments.
Innovative Design
NO FAN, NO DUST
Equipped with a heat pipe and an innovative modular thermal structure, our design enhances thermal efficiency, essential for the low-temperature rise of key components and the ultra-quiet fanless operation.

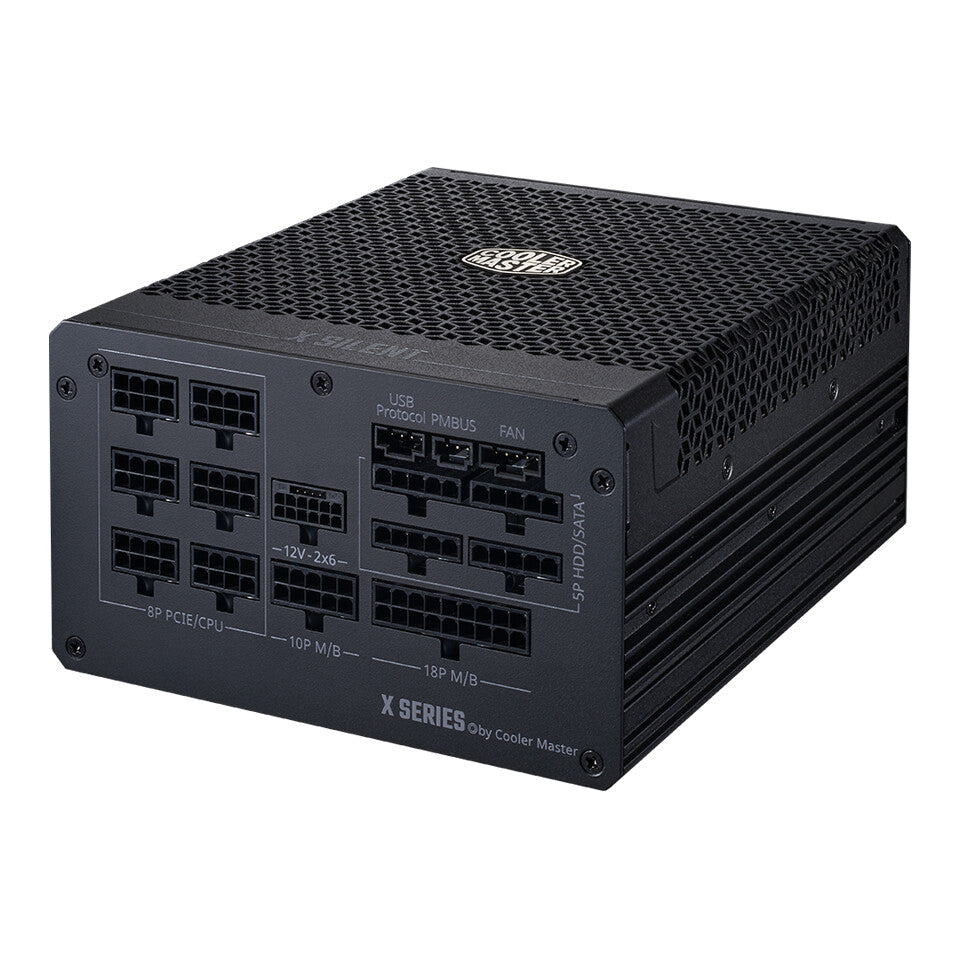

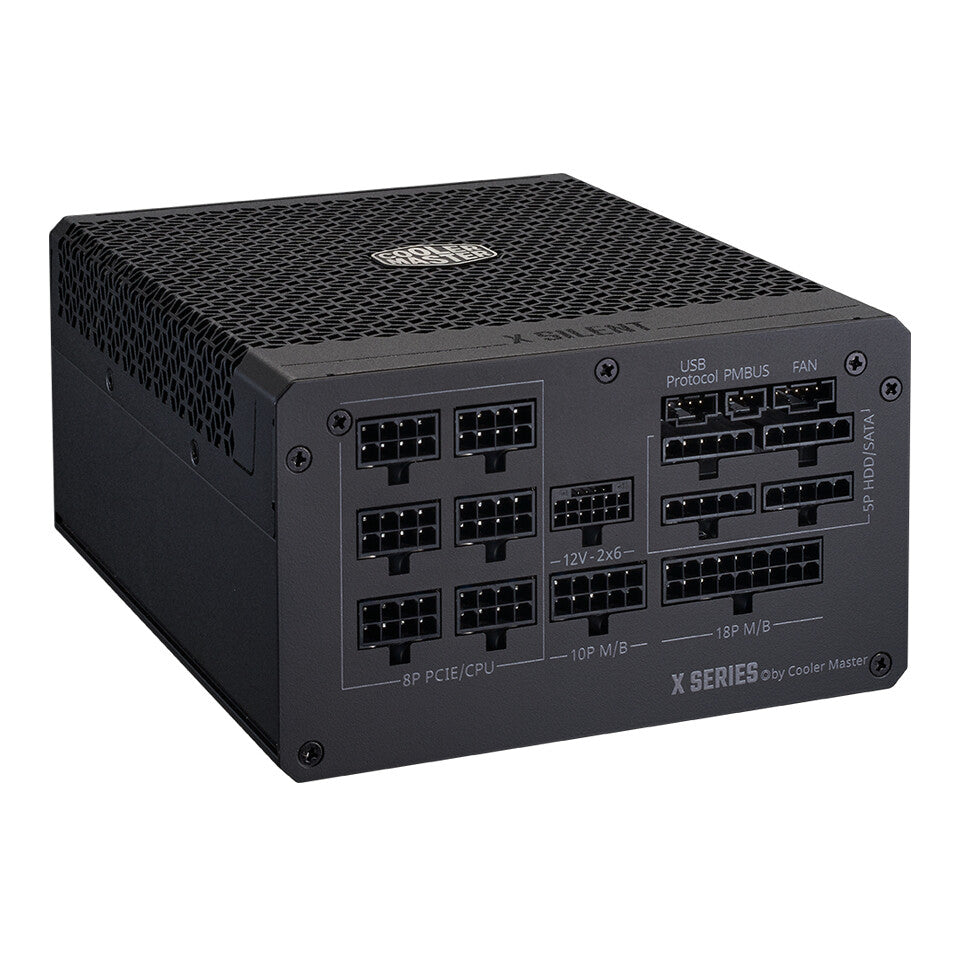

Ports & Slots
Fully Modular Cabling & Extra Functions
Modular cabling minimizes clutter, while the additional ports provide extra functionality.
Cooling System
HEAT DISSIPATION
Our Private Aluminum Thermal Mold effectively dissipates heat, and the Innovative Heat Pipe Thermal Tech uniformly regulates unit temperature. This ensures superior thermal control, enhancing efficiency and longevity in demanding environments.
Power Efficiency
Active Bridge Rectifier Boosts Efficiency 2%
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
ATX 3.1 Support & a Durable 90° Cable
Includes ATX 3.1 support and a 90° 12V-2×6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.
15 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Total power | 1100 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6.1 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1099.2 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 91.6 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power Good signal delay range | 100 - 150 ms |
| Efficiency | 94% |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 500,650,800,950 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 740,620,500,860 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power cable length | 55 cm |
| ATX Power connector (24-pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Silent mode | Yes |
| Mean time between failures (MTBF) | 100000 h |
| Certification | ErP 2014 Lot 3 |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| Number of fans | 0 fan(s) |
| Illumination | No |
| On/off switch | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
| Weight | 4.5 kg |
| Packaging data | |
|---|---|
| Package width | 382 mm |
| Package depth | 224 mm |
| Package height | 126 mm |
| Package weight | 5.2 kg |
| Package type | Box |
| Case or master carton quantity | 2 pc(s) |
| Case or master carton dimensions (W x D x H) | 396 x 265 x 250 mm |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, REACH, UKCA, cUL |
| Logistics data | |
|---|---|
| Master (outer) cases per pallet | 120 pc(s) |
| Master (outer) case width | 396 mm |
| Master (outer) case length | 265 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 2 pc(s) |
| Other features | |
|---|---|
| EPS cable length | 65 cm |
