Gigabyte H510M H V2 micro ATX Intel Motherboard | LGA1200 Socket - 2 x DDR4 Memory Slots
KEY FEATURES
- Supports 11th/10th Gen Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- GbE LAN with Bandwidth Management
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte H510M H V2?
How much RAM can the motherboard support?
Does it support M.2 storage?

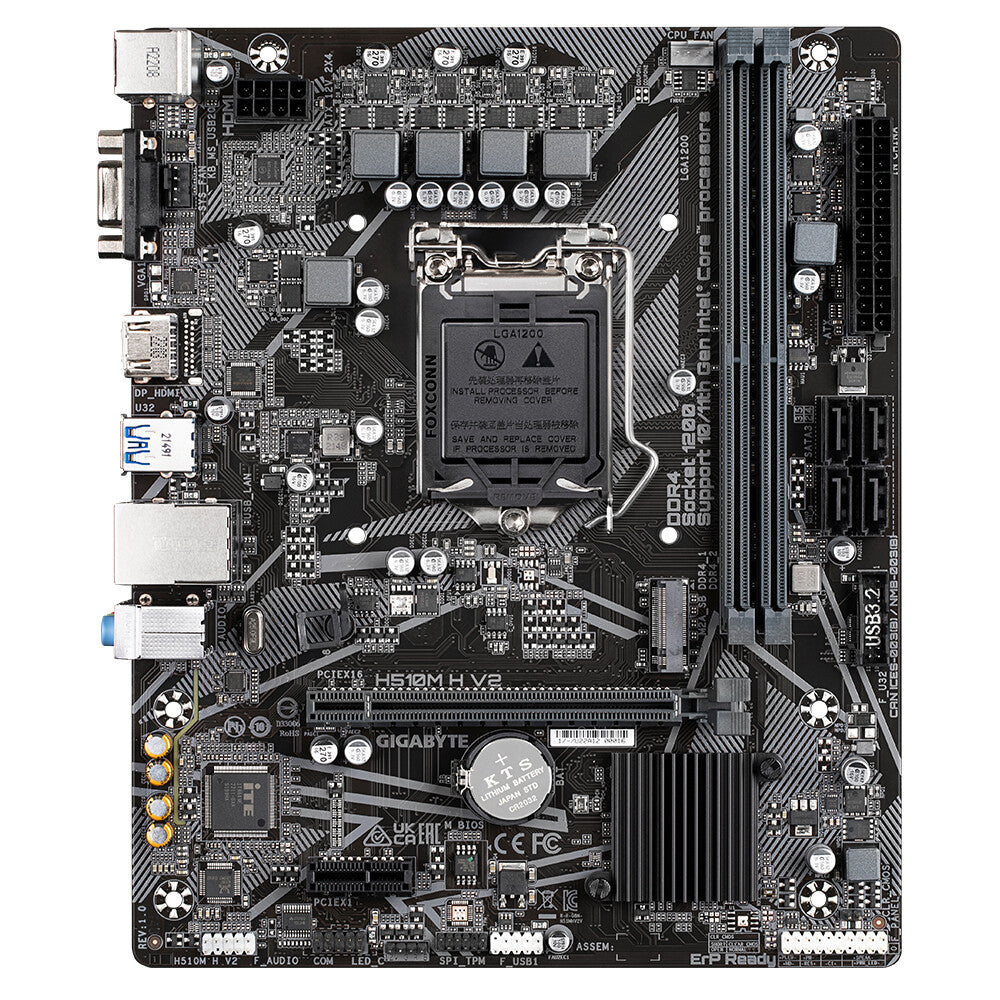

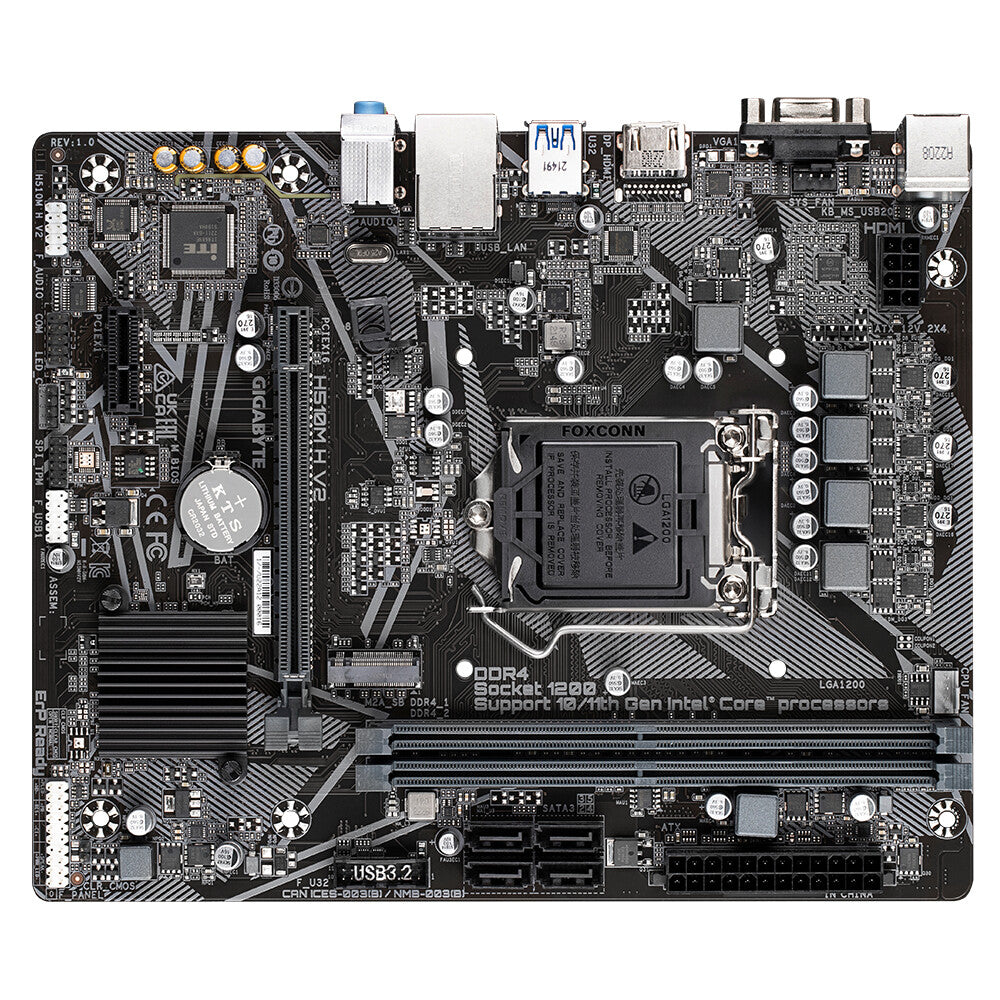

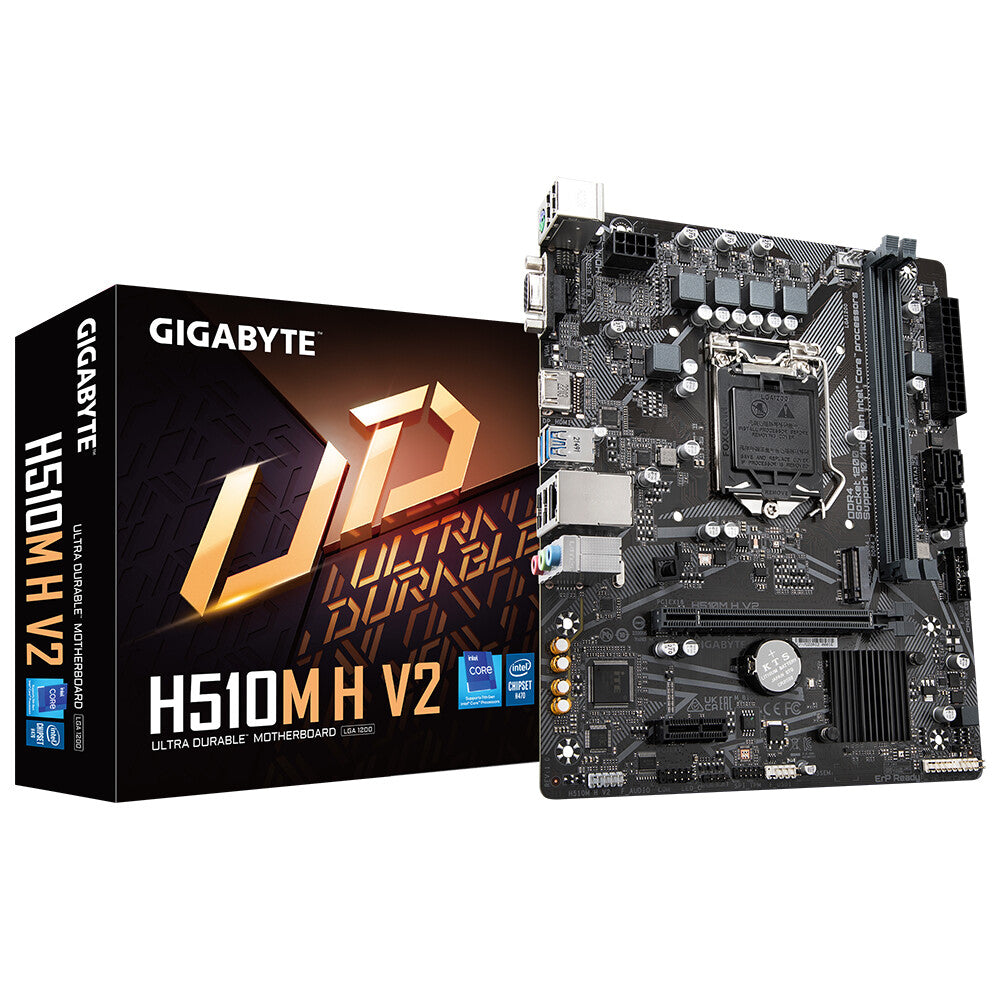

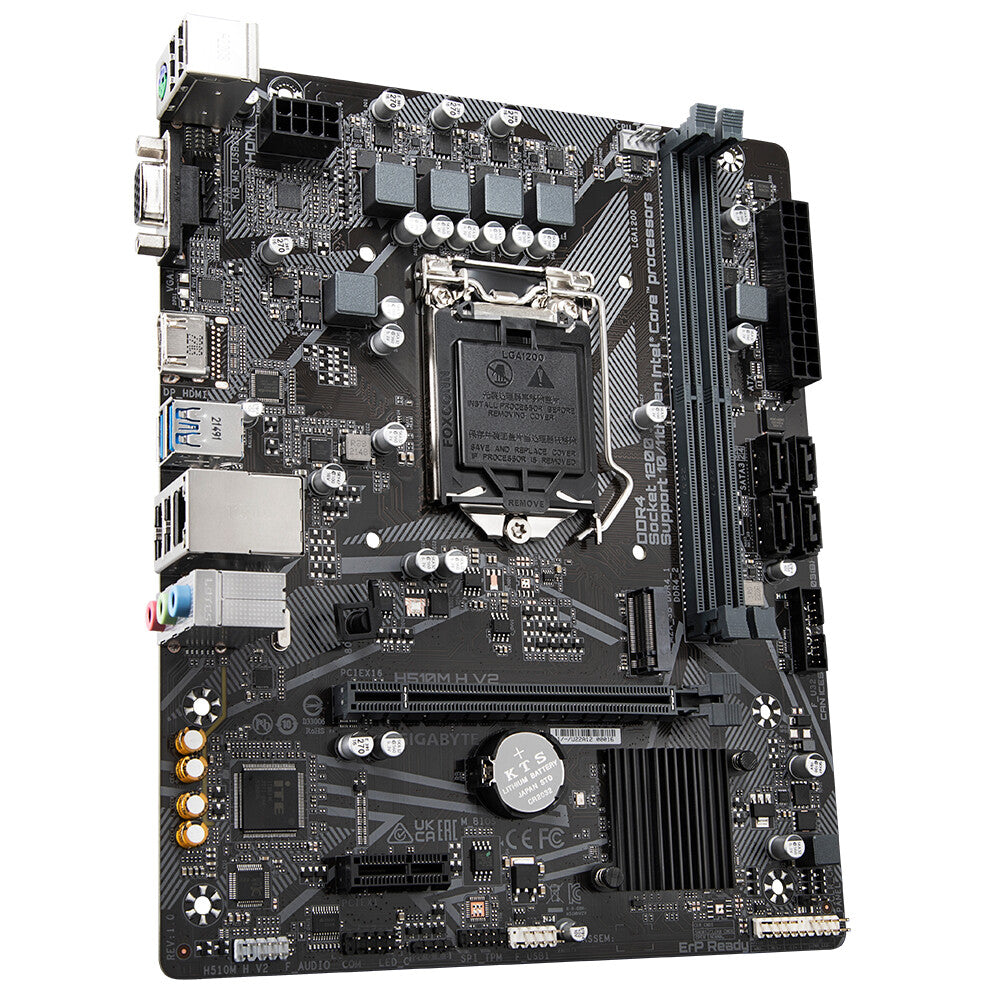

Gigabyte H510M H V2 micro ATX Intel Motherboard | LGA1200 Socket - 2 x DDR4 Memory Slots
Description
The Gigabyte H510M H V2 micro ATX Intel Motherboard is engineered for those who demand reliability and performance from their PC builds. With a focus on delivering a seamless experience, this motherboard supports a range of Intel processors and is packed with features that cater to both casual users and gaming enthusiasts alike.
Key Benefits
- Enhanced Network Performance: The integrated GbE LAN with Bandwidth Management improves network latency, ensuring low ping times even in crowded environments, perfect for gamers and streamers.
- M.2 Technology Ready: Featuring an NVMe PCIe Gen3 x4 2280 M.2 Connector, this motherboard allows enthusiasts to maximise their system's potential with faster storage options.
- Smart Fan 5 for Optimal Cooling: Maintain peak performance with Smart Fan 5, which allows for custom fan configurations and ensures your system stays cool under pressure.
- High-End Audio Experience: Equipped with high-end audio capacitors and an Audio Noise Guard, enjoy high-resolution sound that brings your games and media to life.
- Durability Against Elements: With Anti-Sulfur Design and Humidity Protection Glass Fabric PCB, this motherboard is built to withstand environmental challenges, ensuring longevity and reliability.
- User-Friendly BIOS and Software: The refreshed BIOS interface and GIGABYTE APP CENTER provide an intuitive experience for system setup and management, making it easier to keep your system optimised.
Addtional Features
The Gigabyte H510M H V2 is not just about performance; it's also about versatility. It supports a variety of Intel processors through its LGA 1200 socket, making it compatible with Intel Celeron, Core i3, i5, i7, i9, and Pentium series. With two DDR4 memory slots, it supports up to 64 GB of RAM, ensuring that you have enough memory for multitasking and demanding applications.
The motherboard also includes a PCI Express x16 slot for graphics cards, ensuring that you can upgrade your system as needed. Its HDMI and D-Sub outputs provide flexibility in connecting to displays, while the USB Type-A connectors offer ample connectivity for peripherals.
Why Buy
Choosing the Gigabyte H510M H V2 micro ATX Intel Motherboard means investing in a product that combines cutting-edge technology with robust features. Its thoughtful design ensures that both performance and durability are at the forefront, making it an ideal choice for anyone looking to build or upgrade their PC. Whether you're gaming, streaming, or working, this motherboard is built to deliver an exceptional experience.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Supported processor sockets | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Number of displays supported | 2 |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

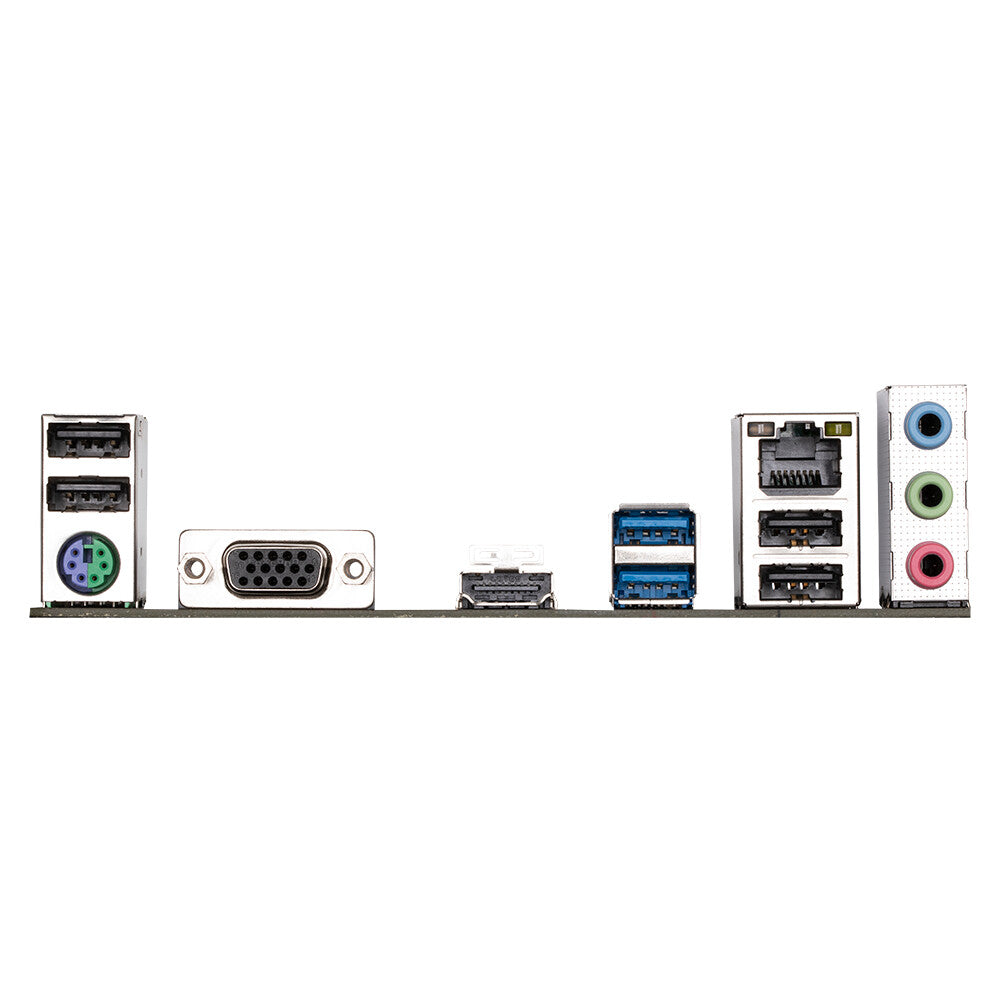

| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A |
| Microphone in | Yes |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| PC health monitoring | Fan, Temperature, Voltage |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel H510 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 2 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 756 g |
| Package height | 52 mm |
| Package depth | 235 mm |
| Package width | 265 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 185 mm |
| Width | 226 mm |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Batteries included | Yes |
| Cables included | SATA |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
