Gigabyte B650E AORUS STEALTH ICE ATX AMD Motherboard | AM5 Socket - 4 x DDR5 Memory Slots
KEY FEATURES
- AMD Socket AM5：Supports AMD Ryzen 9000/8000/ 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Match: Magnetic alignment for easy installation of large heat sinks
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- UC BIOS：User-Centred intuitive UX with Quick Access function

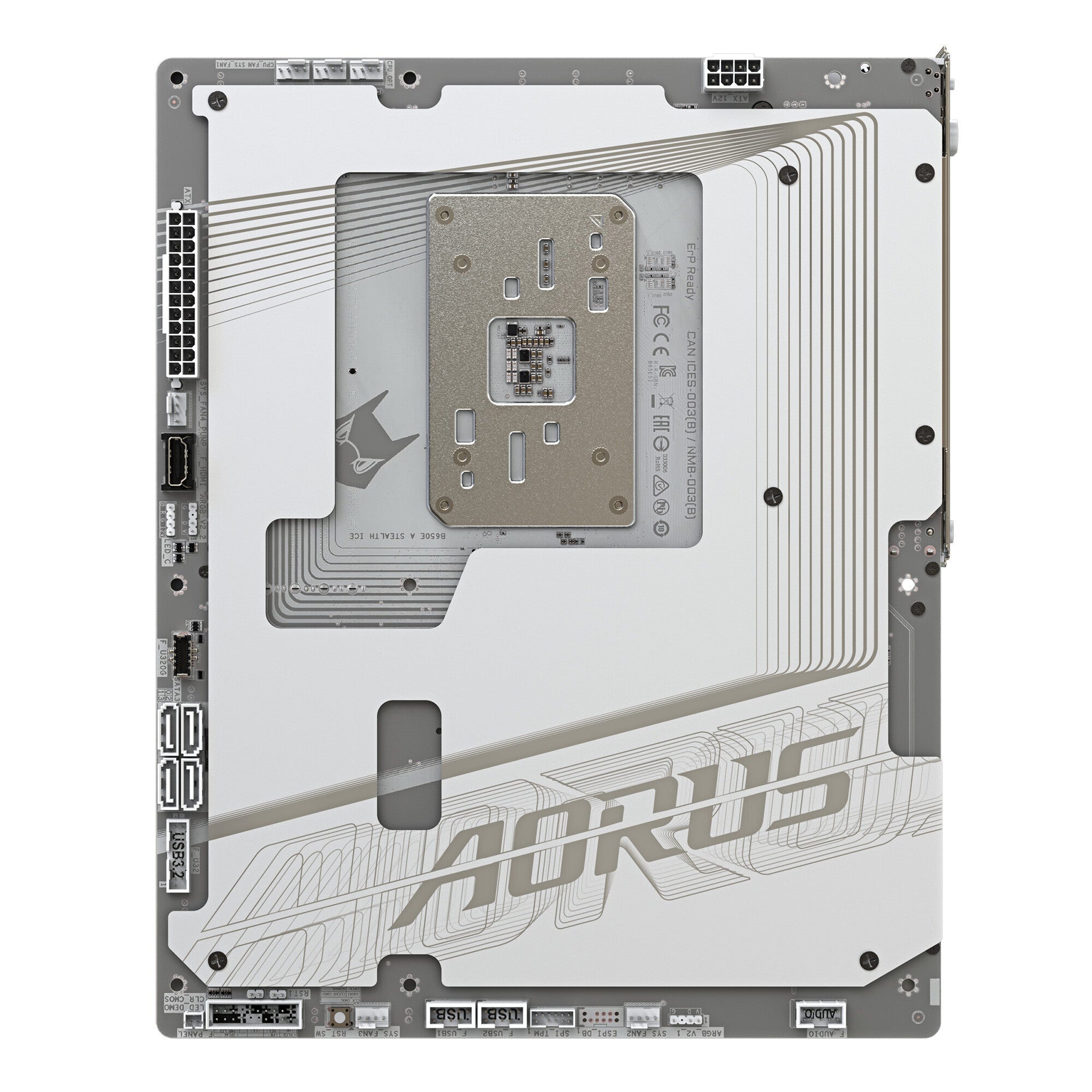

- Back Plate : With an iron base plate providing enhanced stability and support, this design not only boasts an attractive appearance but also excels in functionality
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can I install on this motherboard?
Does the motherboard support overclocking?
What type of connectivity options does it offer?
Gigabyte B650E AORUS STEALTH ICE ATX AMD Motherboard | AM5 Socket - 4 x DDR5 Memory Slots
Description
The Gigabyte B650E AORUS STEALTH ICE ATX AMD Motherboard is designed for those who demand excellence in their computing experience. Whether you're a passionate gamer, a dedicated content creator, or a professional seeking reliability, this motherboard delivers the performance and features you need to push your system to its limits. With its sleek white design and cutting-edge technology, it not only enhances your setup aesthetically but also ensures that you stay ahead of the competition.
Key Benefits
- Supports AMD Ryzen 9000 CPUs: Unlock the full potential of your system with compatibility for the latest AMD processors, ensuring top-tier performance for gaming and multitasking.
- 12+2+2 Phases VRM: Experience stable power delivery and efficient thermal management, allowing for overclocking capabilities that enhance your system's performance.
- Up to 8000MHz DDR5 (OC): Take advantage of lightning-fast memory speeds, ensuring smooth gameplay and efficient data processing for demanding applications.
- Multiple M.2 Slots: With 1x PCIe 5.0 M.2 and 3x PCIe 4.0 M.2 slots, enjoy rapid data transfer speeds and ample storage options for your games and files.
- Integrated Wi-Fi 7 and 2.5GbE LAN: Stay connected with the latest wireless technology and high-speed wired connections for seamless online gaming and streaming.
- RGB LED Pin Headers: Customise your build with vibrant RGB lighting options, enhancing the visual appeal of your setup.
Additional Features
The Gigabyte B650E AORUS STEALTH ICE is packed with features that cater to both performance and convenience. It boasts four DDR5 memory slots, allowing for a maximum internal memory of 256GB, ensuring that you have enough RAM for even the most demanding tasks. The motherboard's ATX form factor provides ample space for expansion, while the AMD B650 chipset ensures compatibility with a wide range of components.
For those who appreciate aesthetics, the motherboard's striking white colour scheme is complemented by RGB LED pin headers, allowing you to create a visually stunning setup. Additionally, the inclusion of screws and an antenna means you have everything you need to get started right out of the box.
Why Buy
Investing in the Gigabyte B650E AORUS STEALTH ICE ATX AMD Motherboard means choosing a product that combines cutting-edge technology with reliability and performance. Whether you're gaming, creating content, or simply looking to build a powerful PC, this motherboard is engineered to meet your needs. With its robust features and stylish design, it's not just a component; it's an essential part of your computing journey.
Elevate your system and experience the difference with Gigabyte's commitment to quality and innovation.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 8000 MHz |
| Supported memory clock speeds | 8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Discrete graphics support | Yes |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Number of RGB LED pin headers | 3 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| Number of water pump connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2x2 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

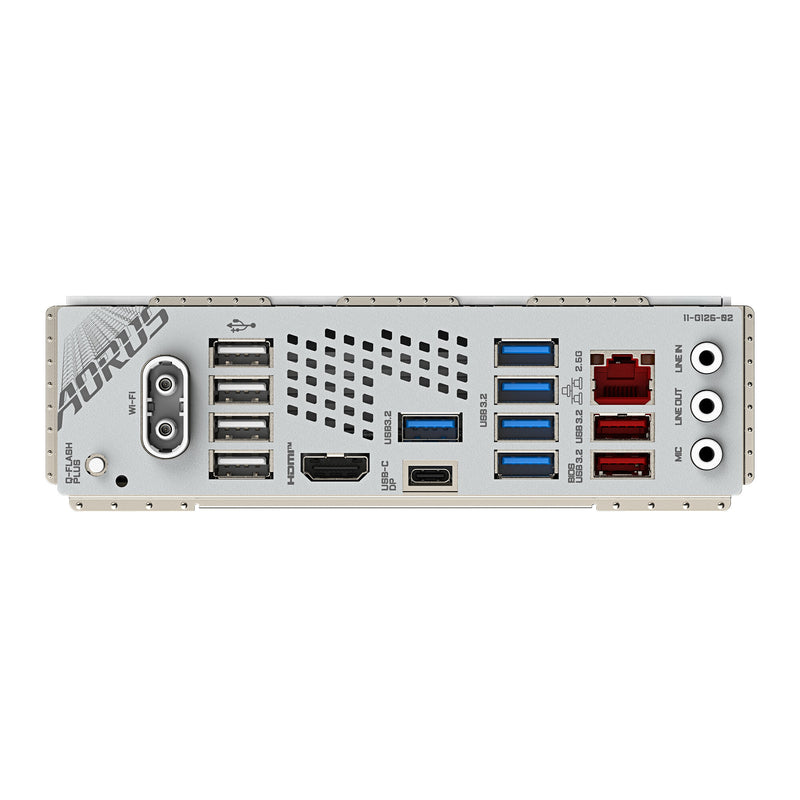

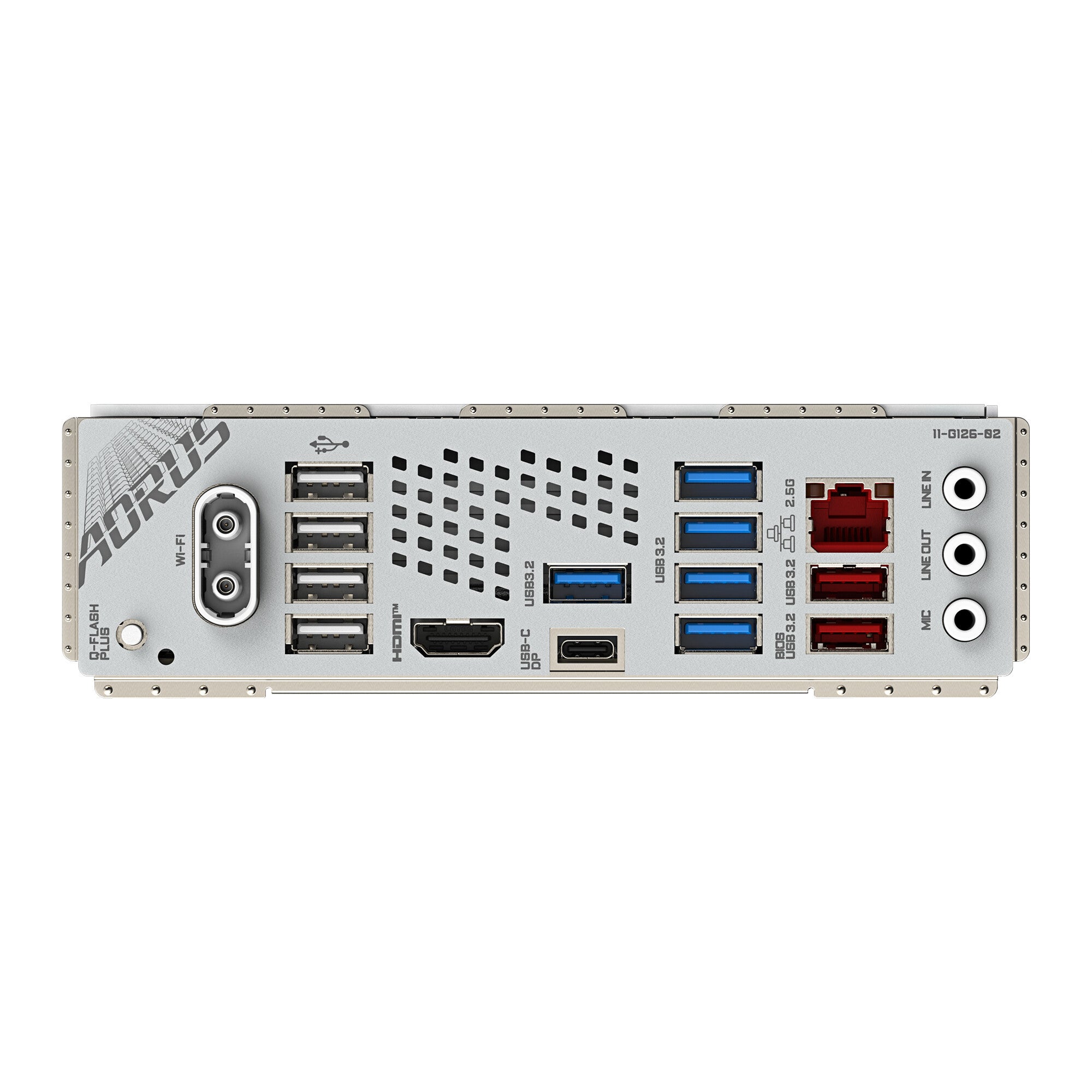

| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| WLAN controller model | MediaTek MT7925 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 11 x64 |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | White |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 25110 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 3.56 kg |
| Package height | 80 mm |
| Package depth | 294 mm |
| Package width | 345 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Drivers included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Batteries included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
