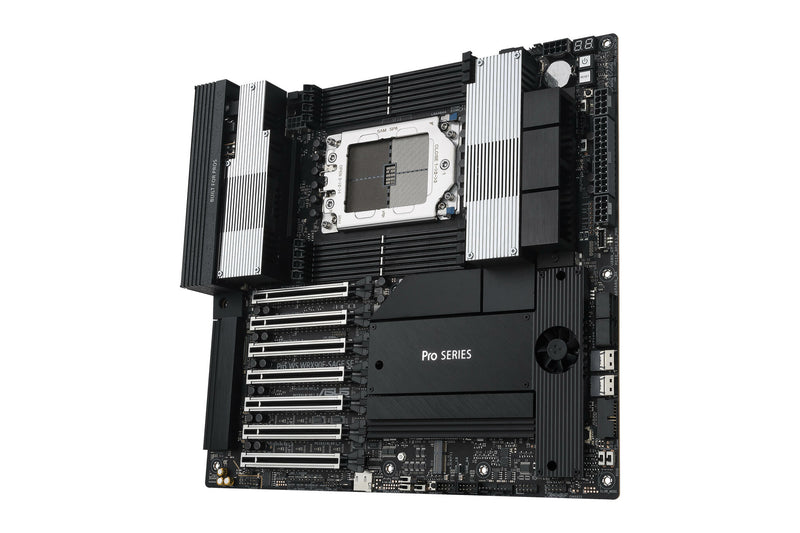

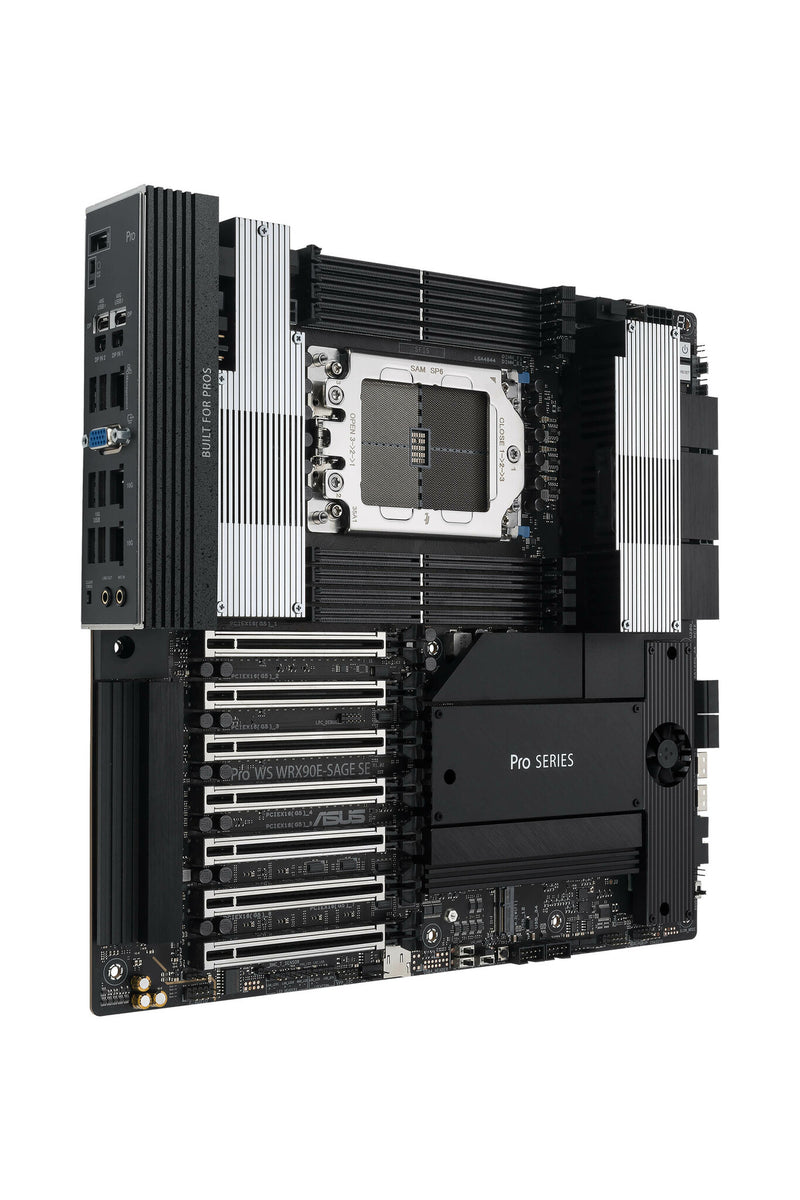

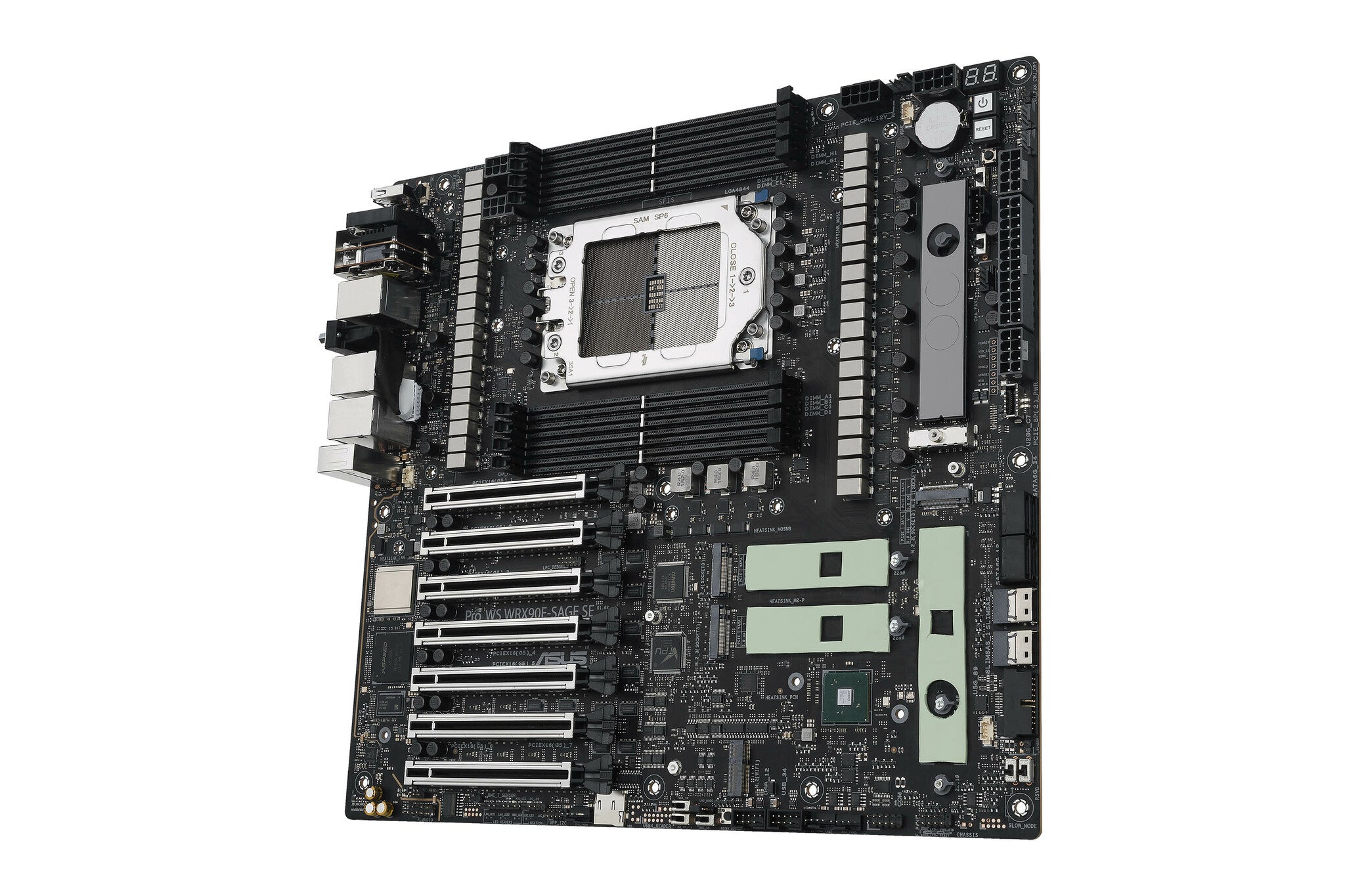

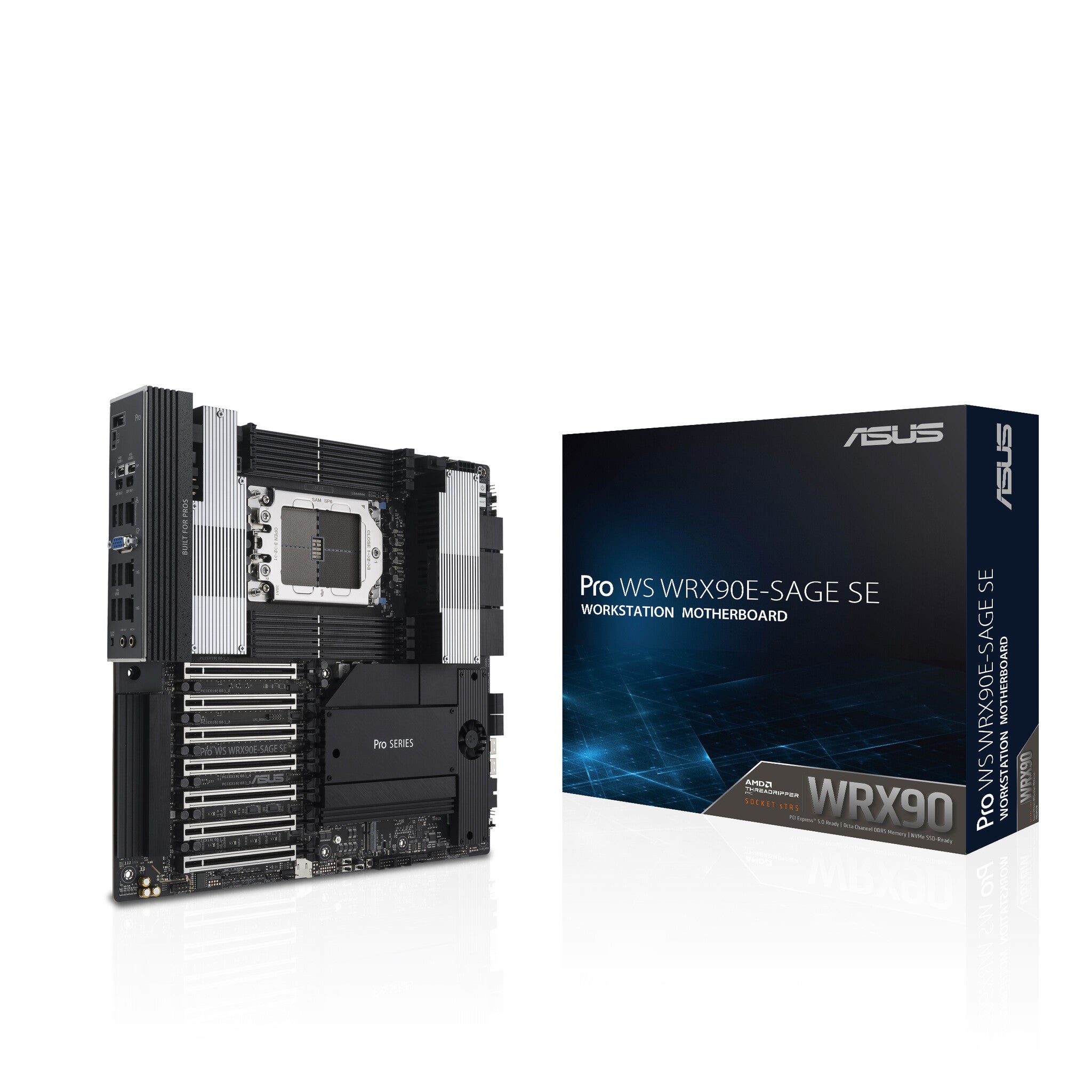

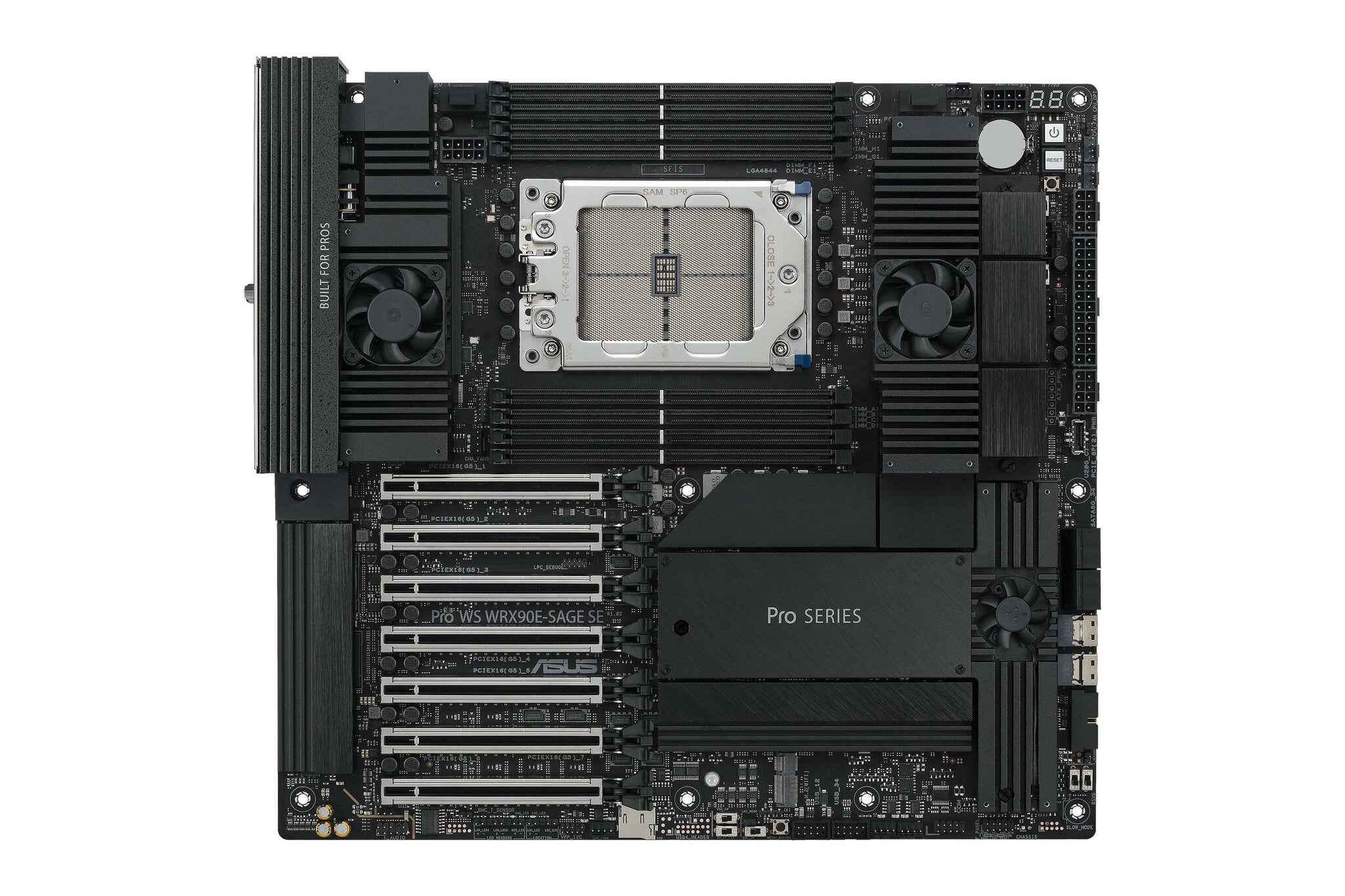

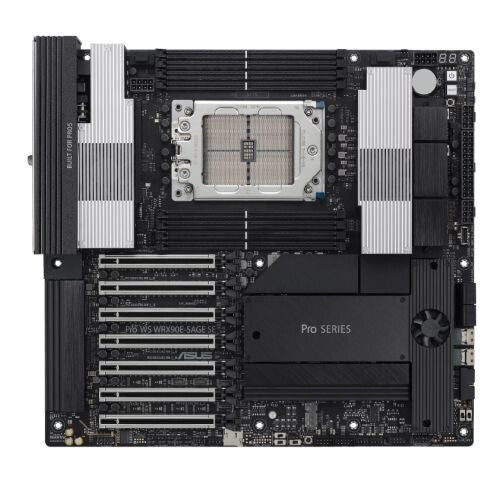

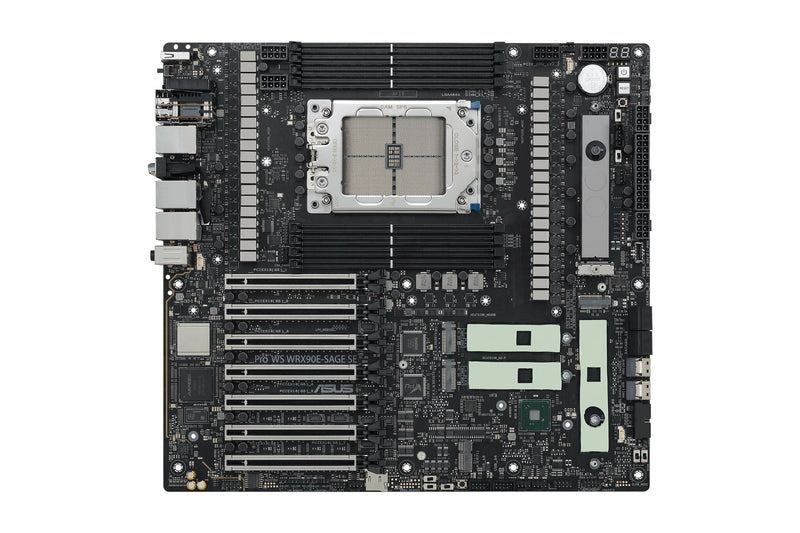

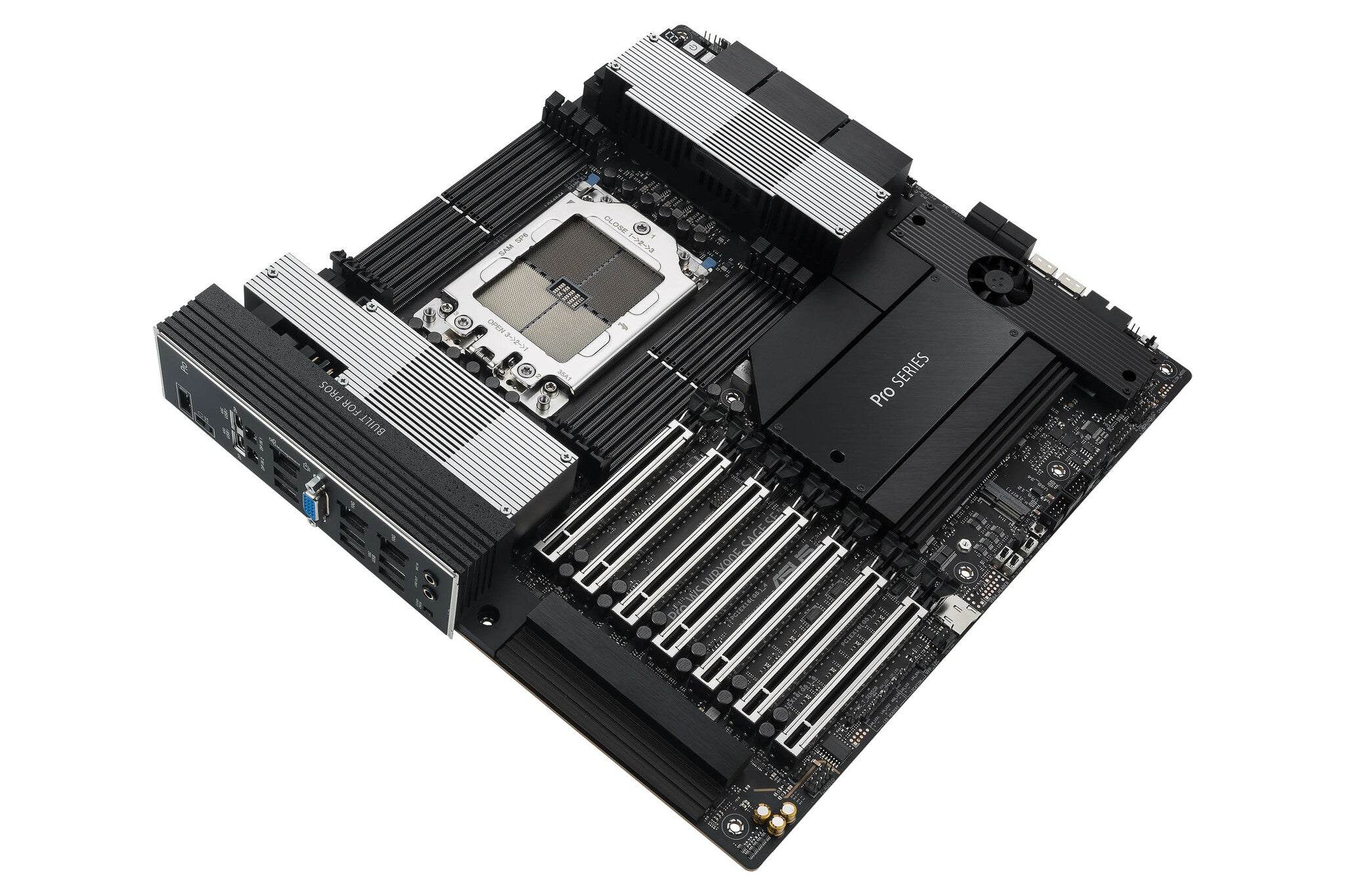

ASUS PRO WS WRX90E-SAGE SE EEB AMD Motherboard | sTR5 Socket - 8 x DDR5 Memory Slots
KEY FEATURES
- AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
- Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support
- CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC)
- Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad
- PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch
- Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does this motherboard have?
What type of networking does this motherboard support?
Can I overclock my CPU with this motherboard?
ASUS PRO WS WRX90E-SAGE SE EEB AMD Motherboard | sTR5 Socket - 8 x DDR5 Memory Slots
Description
The ASUS PRO WS WRX90E-SAGE SE is a cutting-edge workstation motherboard designed for professionals who demand exceptional performance and reliability. With its robust architecture and advanced features, this motherboard is tailored for high-end computing tasks, making it an ideal choice for content creators, engineers, and data analysts. Built to support the latest AMD Ryzen Threadripper PRO 7000 WX-Series processors, it offers unparalleled power and efficiency, ensuring that your workstation can handle even the most demanding applications with ease.
Key Benefits
- Multi-GPU Support: With seven PCIe 5.0 x16 slots, the motherboard allows for flexible system configurability, enabling you to enhance performance in modelling, simulation, and rendering applications.
- Ultrafast Networking: Equipped with dual 10 Gb Ethernet ports powered by Intel® X710-AT2, it ensures low-latency and high-speed data transfers, perfect for handling multi-terabyte files.
- High Capacity Storage: Featuring up to four M.2 PCIe 5.0 slots, users can RAID multiple NVMe devices, achieving massive I/O bandwidth and speedy data transfers for large files.
- CPU and Memory Overclocking Ready: Designed for overclocking enthusiasts, this motherboard supports advanced cooling solutions and robust power delivery, allowing you to push your system to its limits with stability.
- ECC R-DIMM Memory Support: With eight R-DIMM DDR5 memory slots that support ECC, the motherboard enhances reliability by preventing system crashes and data corruption, ensuring your workstation remains responsive under pressure.
- Comprehensive Fan Controls: Advanced fan control options allow you to manage cooling effectively, adapting to workload demands and maintaining optimal operating temperatures.
Addtional Features
The ASUS PRO WS WRX90E-SAGE SE motherboard is not just about raw power; it also boasts a variety of features that enhance its usability and performance: - Active VRM Cooling Solutions: The motherboard includes extruded aluminium heatsinks with active cooling on the MOSFETs and chokes, significantly improving thermal efficiency. - ProCool II Connectors: These ensure a reliable connection to the 12V CPU input, enhancing heat dissipation and stability during operation. - ASUS Control Center Express: This real-time IT monitoring and management software improves productivity and enhances security, making it easier to manage your workstation. - Innovative DIY Design: Features like PCIe Q-release Slim allow for easy removal of graphics cards, while SafeSlot and SafeDIMM designs ensure secure installation of expansion cards and memory modules. - 24/7 Reliability: Optimised for continuous operation, the motherboard is tested to function in diverse environments, making it a dependable choice for critical applications.
Why Buy
The ASUS PRO WS WRX90E-SAGE SE EEB AMD Motherboard is a powerful, reliable, and feature-rich solution for professionals seeking to build or upgrade their workstation. Its combination of advanced connectivity, robust design, and exceptional performance makes it a standout choice for those who require the best in their computing environment. Whether you're working on complex simulations, large-scale data analysis, or high-resolution content creation, this motherboard is engineered to meet your needs and exceed your expectations.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Compatible processor series | AMD Ryzen Threadripper PRO 7000 WX-Series |
| Processor socket | Socket sTR5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| ECC сompatibility | ECC |
| Memory channels | Octa-channel |
| Memory slots type | DIMM |
| Number of memory slots | 8 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| TPM connector | Yes |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 5 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2x2 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

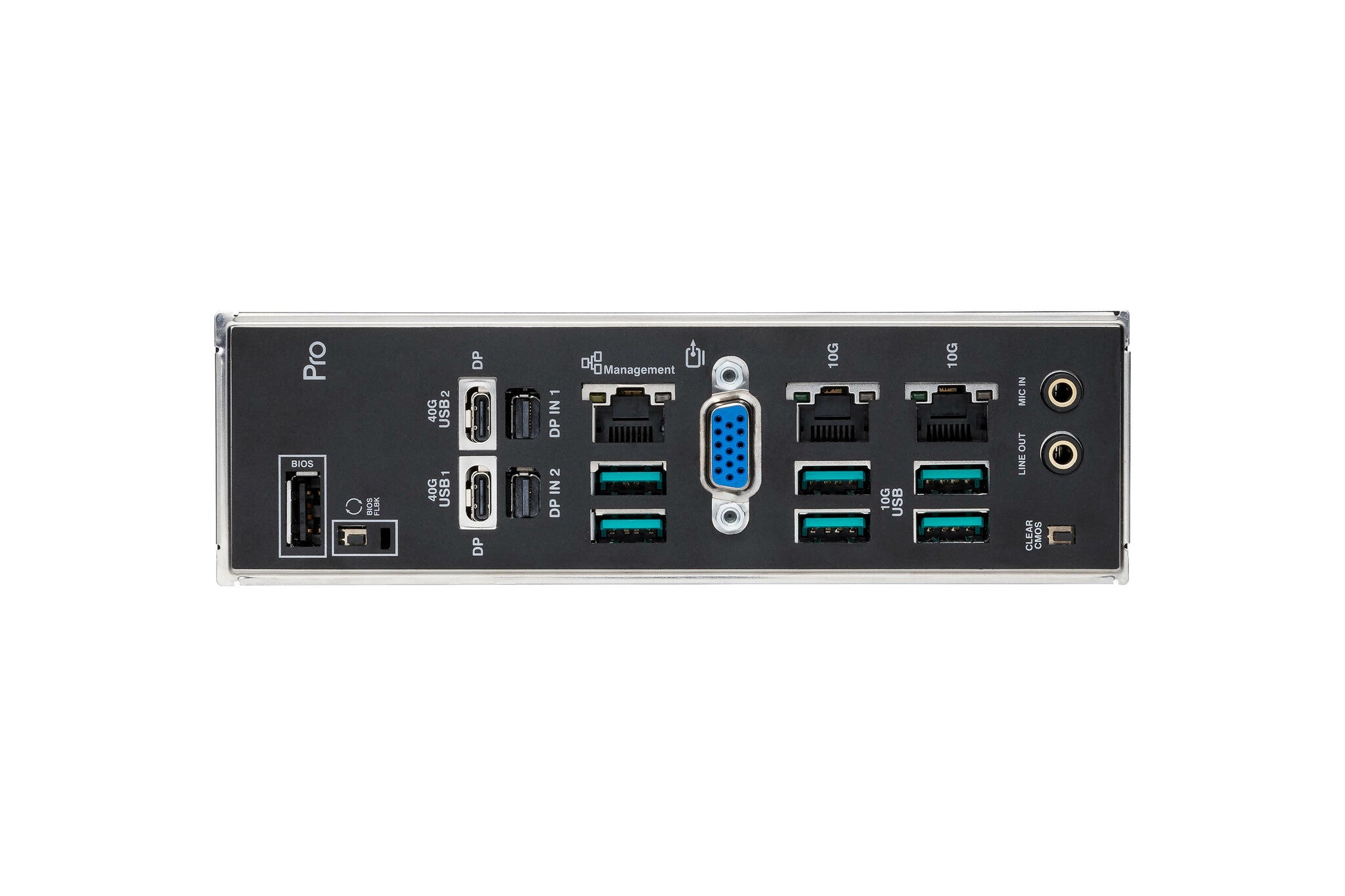

| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB4 Gen 3x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Product colour | Aluminium, Black |
| Audio chip | Realtek ALC1220P |
| Motherboard chipset | AMD WRX90 |
| Motherboard chipset family | AMD |
| Motherboard form factor | EEB |
| Component for | Workstation |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 7 |
| BIOS | |
|---|---|
| Clear CMOS button | Yes |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 3.62 kg |
| Package height | 79 mm |
| Package depth | 362 mm |
| Package width | 377 mm |
| Weight & dimensions | |
|---|---|
| Height | 50 mm |
| Depth | 330 mm |
| Width | 305 mm |
| Other features | |
|---|---|
| Weight | 3.33 kg |
| Mini DisplayPorts quantity | 2 |
