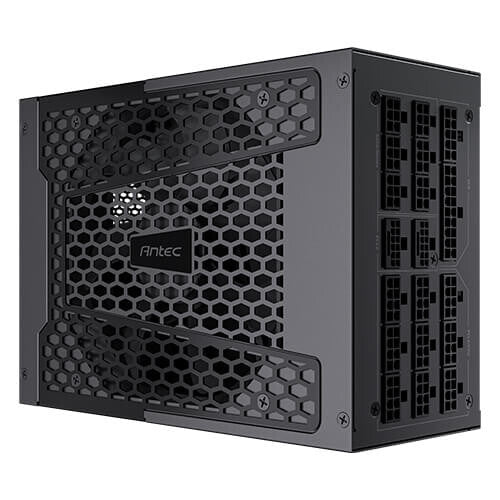

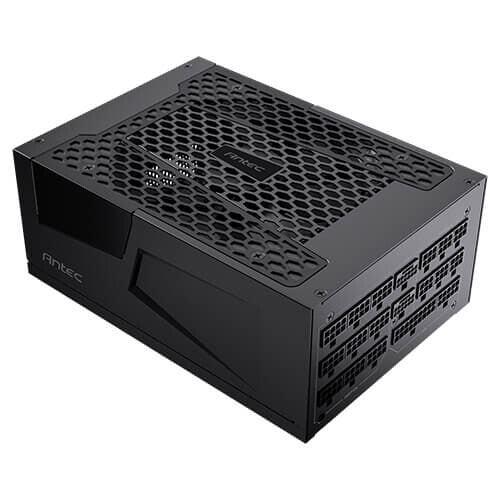

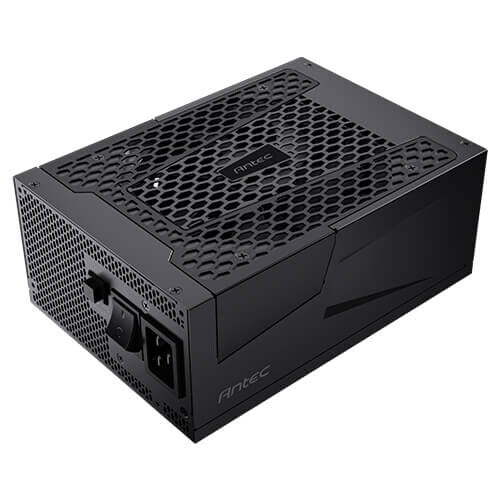

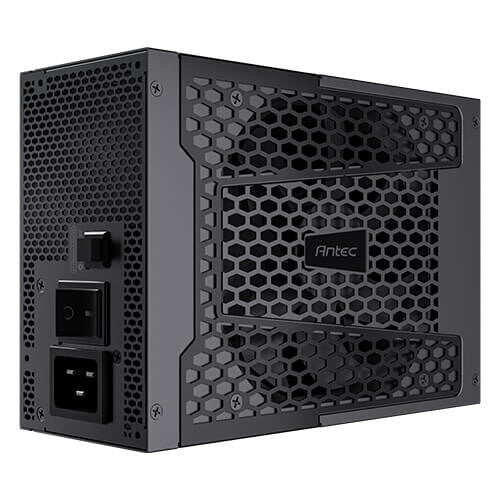

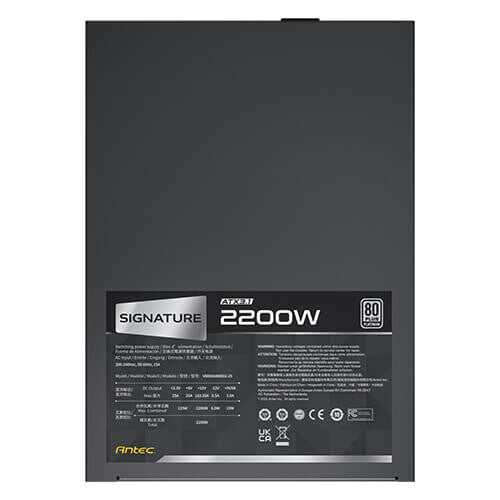

Antec SIGNATURE 2200 power supply unit 2200 W 20+4 pin ATX ATX Black
KEY FEATURES
- 2200 W 200 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Platinum
- Active 13.5 cm
- Black
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Antec SIGNATURE 2200 power supply unit 2200 W 20+4 pin ATX ATX Black
Description
Antec SIGNATURE 2200. Total power: 2200 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 505 mm, Depth: 600 mm, Height: 205 mm
Introducing the Signature 2200 Platinum ATX 3.1 Power Supply. The Signature 2200 Platinum ATX3.1 is Antec’s high-performance ATX 3.1 power supply,designed to support modern, power-demanding systems. It features key industry standards including ATX 3.1 and PCIe 5.1 compliance, 100% high-quality Japanese capacitors, fully modular cabling, and up to 94% efficiency certified by 80 PLUS® Platinum. Built for reliability and efficiency, the Signature 2200 is a solid foundation for advanced PC builds.
With robust GPU support, server-grade PhaseWave™ design, and quiet thermal performance, this power supply is engineered for AI computing, professional workloads, workstations, and next-generation PC enthusiasts. Delivering reliable, high-efficiency power, it’s ideal for AI-driven applications.
ATX 3.1 & PCIe 5.1 Compatible
Fully compliant with the latest ATX 3.1 standard, the Signature 2200 ensures top-tier reliability and power efficiency. The bundled PCIe 5.1 12V-2x6 GPU cables provide robust support for modern high-performance graphics cards.
100% High-Quality JP Capacitors
Built entirely with premium Japanese capacitors, the Signature 2200 Platinum ATX3.1 delivers ultra-tight voltage regulation, minimal ripple, and long-term stability.
PhaseWave TM Design
Server-grade full-bridge LLC architecture with synchronous rectification and DC-DC topology ensures consistently efficient and stable power delivery across all rails.

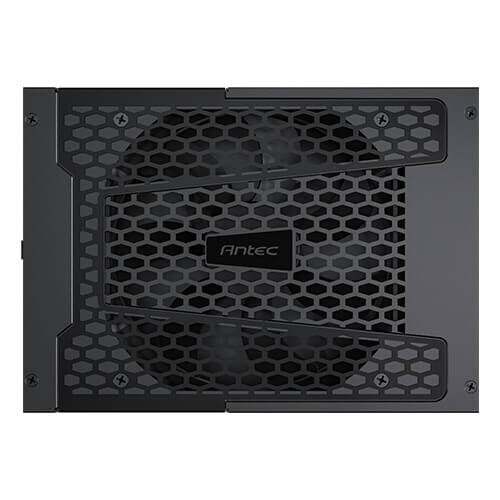

135mm FDB Silent Fan
Equipped with a whisper-quiet 135mm fluid-dynamic bearing fan for high airflow, durability, and near-silent operation even under load.

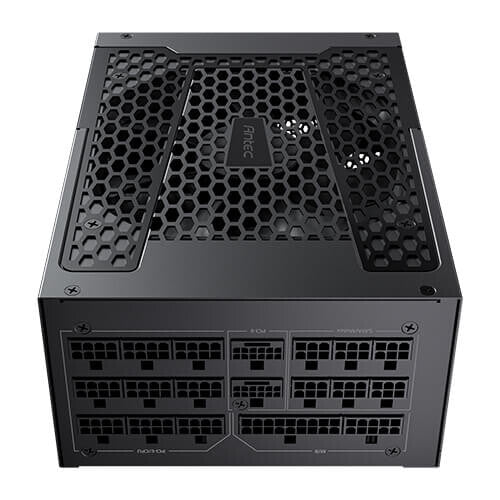

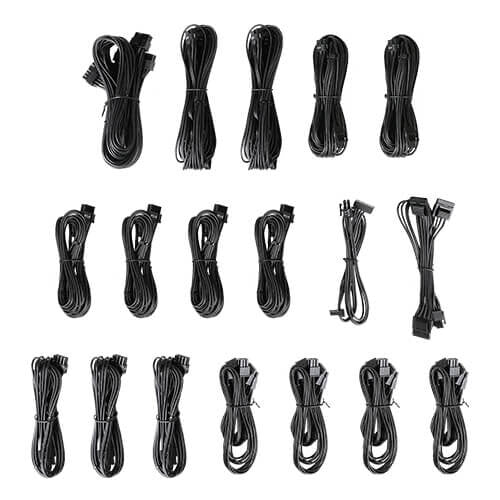

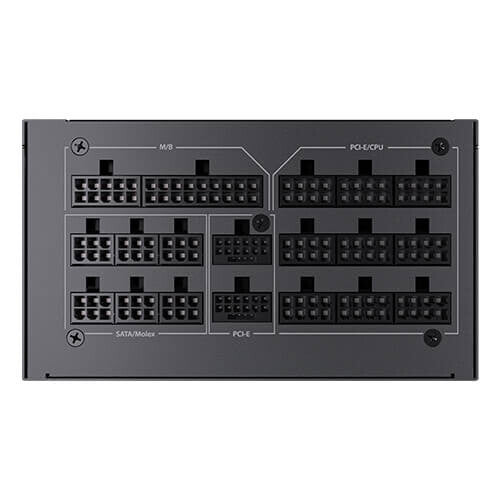

Full Modular
Cable Management
Reduces cable clutter and improves airflow with fully modular cables. Use only what you need for a clean, streamlined build and optimal thermal performance.
Compact
High-Power Design
Delivering up to 2200W of power, the Signature 2200 Platinum ATX 3.1 is built in a compact chassis, allowing for greater compatibility with a wide range of high-end cases compared to many other high-wattage PSUs.
12 years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Total power | 2200 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 2200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 183.33 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 18 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 120,450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) cable length | 700 mm |
| PCI Express power connectors (12+4 pin) | 2 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| General Information | |
|---|---|
| Product Family | SIGNATURE |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 505 mm |
| Depth | 600 mm |
| Height | 205 mm |
| Weight | 4.43 kg |
| Packaging data | |
|---|---|
| Package weight | 4.85 kg |
