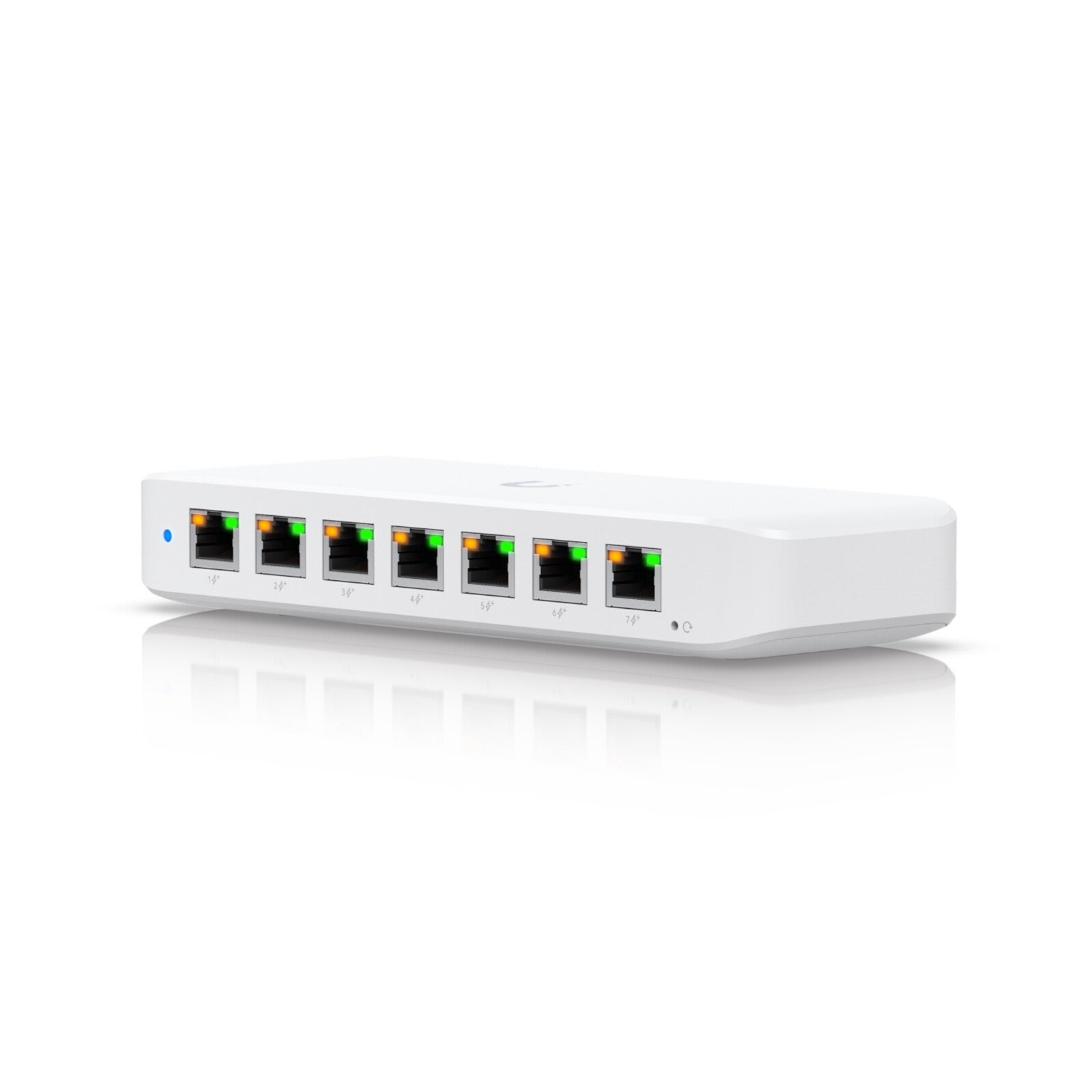

Ubiquiti USW-ULTRA-210W UniFi Switch Ultra 8 Port Gigabit POE+ Compact Layer 2 Managed Switch
KEY FEATURES
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Ubiquiti USW-ULTRA-210W UniFi Switch Ultra 8 Port Gigabit POE+ Compact Layer 2 Managed Switch
Description
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
(7) GbE PoE+ output ports
(1) GbE port with optional PoE++ input
202W PoE availability with the included AC power adapter
Dimensions
203 x 76 x 33 mm (8 x 3 x 1.3)
Weight
Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
210W adapter: 770 g (1.7 lb)
Enclosure Material
Polycarbonate
Management Interface
Ethernet In-Band
Networking Interface
(8) GbE RJ45 ports
POE Interface
(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total Non-Blocking Throughput
8 Gbps
Switching Capacity
16 Gbps
Forwarding Rate
11.904 Mpps
Power Method
(1) 54V, 3.9A power adapter (Included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
Power Supply
54V, external, 3.9A/210W
Supported Voltage Range
44—57V DC
Max. Power Consumption
9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)
Total Available POE
PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W
Max. Power Wattage Per Port by PSE
30W
Button
Factory Reset
Ambient Operating Temperature
PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Layer 2 Features
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
LED - System
Status
LED - Ethernet
PoE
Link Activity
UniFi Network Requirement
Version 8.0.7 and later
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Data transmission | |
|---|---|
| Switching capacity | 16 Gbit/s |
| Throughput | 8 Gbit/s |
| Jumbo frames support | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | No |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
| Reset button | Yes |
| LED indicators | Activity, Link, PoE, Status |
| Wall mountable | Yes |
| Certification | CE, FCC, IC |
| Power | |
|---|---|
| Power source | DC/PoE |
| Power supply included | Yes |
| Number of power supply units | 1 |
| DC input voltage | 44 - 57 V |
| Input current | 3.9 A |
| Power consumption (max) | 9 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 7 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Total Power over Ethernet (PoE) budget | 202 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 203 mm |
| Depth | 76 mm |
| Height | 33 mm |
| Weight | 320 g |
| Packaging data | |
|---|---|
| Manual | Yes |
