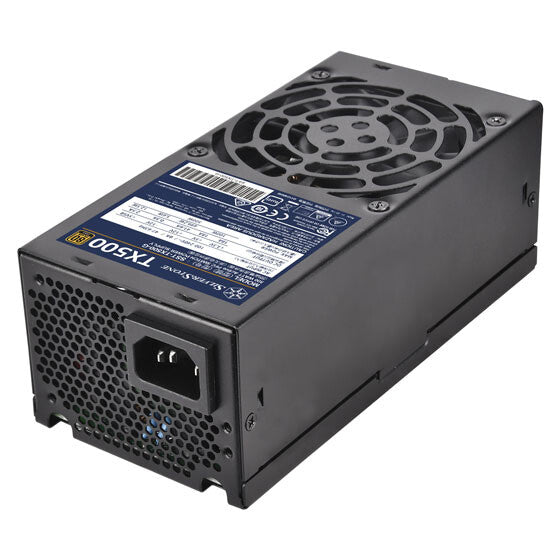

Silverstone TX500 Gold power supply unit 500 W 20+4 pin ATX TFX Black
KEY FEATURES
- Support standard TFX form factor
- ￭ 500W continuous power output at 50°C operating temperature rated for 24/7 operation
- ￭ High efficiency with 80 PLUS Gold certification
- ￭ Silent running 80mm fan with 18 dBA minimum
- ￭ Multiple protection circuitry
- ￭ Single PCI-E 6+2pin connectors support
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Silverstone TX500 Gold power supply unit 500 W 20+4 pin ATX TFX Black
Description
Silverstone TX500 Gold. Total power: 500 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, CPU power cable length: 45 cm. Purpose: PC, Power supply unit (PSU) form factor: TFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 8 cm. Width: 85 mm, Depth: 175 mm, Height: 65 mm
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
Built-in 80mm fan has excellent airflow and low noise, perfect for quiet home or office use.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Total power | 500 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 499.2 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 41.6 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 45 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | TFX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
| Noise level | 18 dB |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
| Weight | 1.38 kg |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Harmonized System (HS) code | 84733020 |
