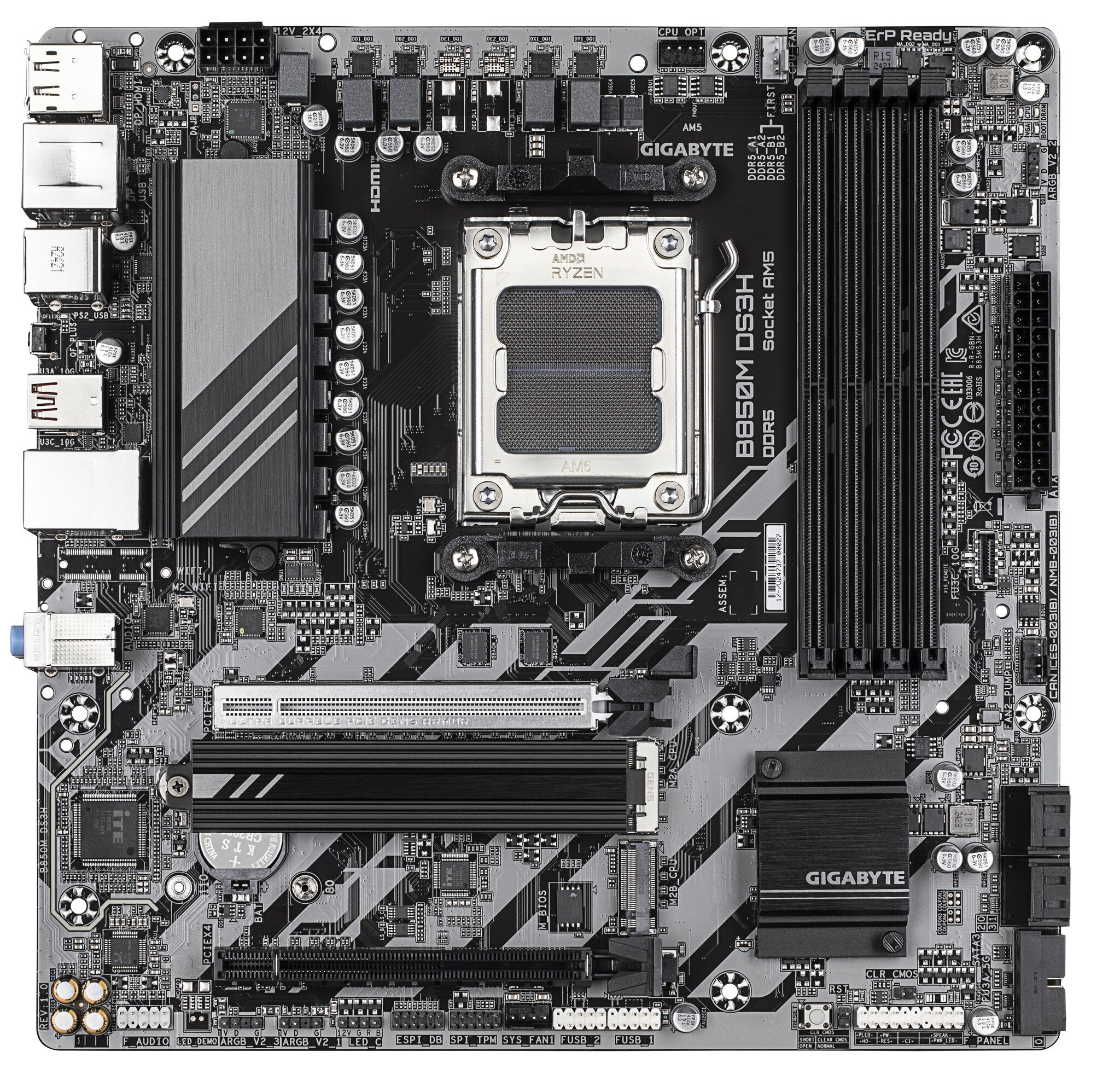

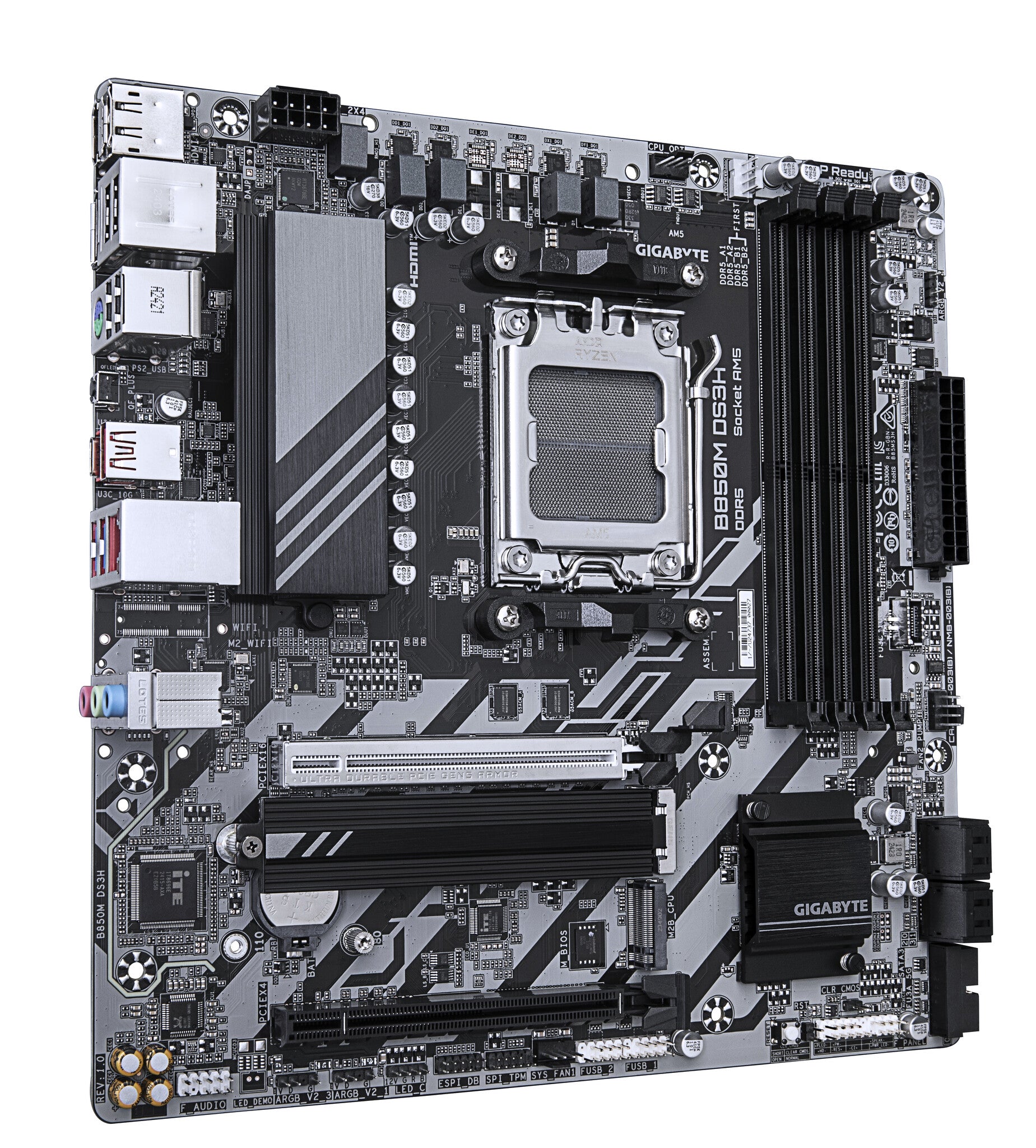

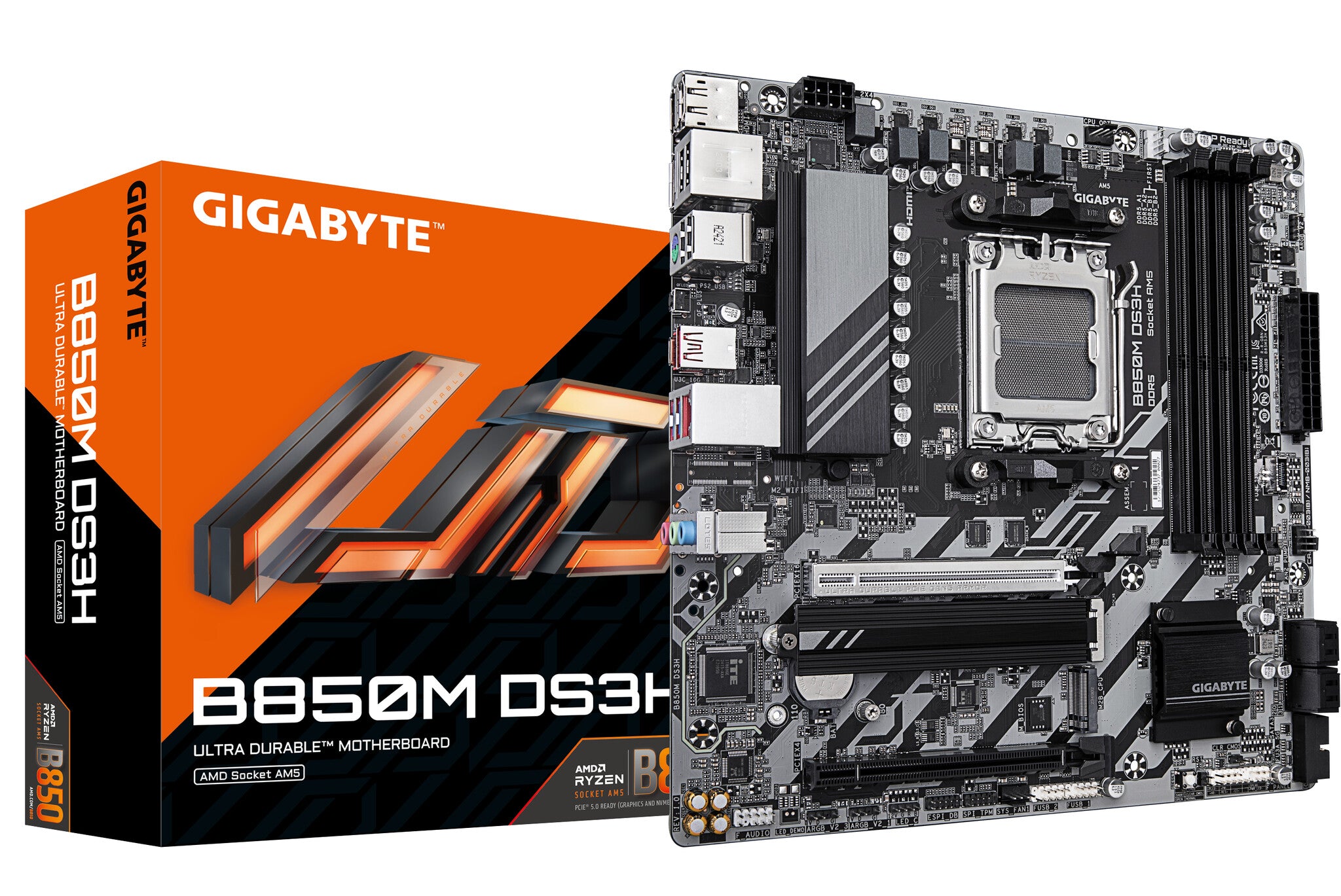

Gigabyte B850M DS3H micro ATX AMD Motherboard | AM5 Socket - 4 x DDR5 Memory Slots
KEY FEATURES
- Twin 8+2+2 Phases Digital VRM with DrMOS
- Dual Channel DDR5：4*DIMMs
- PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch
- M.2 Gen5 with M.2 Heatsink, MOSFET Heatsink
- 2.5GbE LAN, Q-Flash Plus
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte B850M DS3H?
How much RAM can the motherboard support?
Does it support SSDs?
Gigabyte B850M DS3H micro ATX AMD Motherboard | AM5 Socket - 4 x DDR5 Memory Slots
Description
Elevate your computing experience with the Gigabyte B850M DS3H micro ATX AMD Motherboard. Designed to support the latest AMD Ryzen 9000 Series CPUs, this motherboard is a cornerstone for any high-performance PC build. Whether you're gaming, creating content, or tackling professional tasks, the B850M DS3H ensures your system runs smoothly and efficiently.
Key Benefits
- Advanced Compatibility: Supports AMD Ryzen 7000, 8000, and 9000 Series processors, allowing you to choose the best CPU for your needs.
- High-Speed Memory Support: With four DDR5 memory slots, the motherboard accommodates up to 256 GB of RAM, ensuring lightning-fast data processing and multitasking capabilities.
- Robust Power Delivery: The 16+2+2 Phases Digital VRM design provides stable power to your CPU, enhancing performance during demanding tasks and gaming sessions.
- Future-Proof Connectivity: Equipped with PCIe 5.0 and PCIe 4.0 M.2 slots, you can enjoy ultra-fast data transfer speeds and expand your storage options effortlessly.
- Enhanced Networking: The integrated 2.5 Gigabit Ethernet ensures a reliable and speedy internet connection, perfect for online gaming and streaming.
- Customisable Aesthetics: With RGB LED pin headers, you can personalise your build's lighting to match your style, creating a visually stunning setup.
Addtional Features
The Gigabyte B850M DS3H is not just about performance; it's packed with features that enhance usability and reliability. The motherboard supports both HDD and SSD storage options, allowing you to configure your system according to your performance needs. With RAID levels 0, 1, and 10 support, you can optimise your data storage for speed or redundancy. Additionally, the motherboard's maximum resolution of 4096 x 2160 pixels ensures stunning visuals, making it ideal for content creators and gamers alike.
Designed in a micro ATX form factor, it fits seamlessly into a variety of cases, making it a versatile choice for any build. The inclusion of screws and antennas simplifies installation, ensuring you can get started with your new setup without hassle. Plus, with a three-year warranty, you can trust in the durability and reliability of your investment.
Why Buy
Choosing the Gigabyte B850M DS3H micro ATX AMD Motherboard means investing in a product that combines cutting-edge technology with user-friendly features. Its robust design and extensive compatibility make it suitable for a range of applications, from gaming to professional work. With the assurance of Gigabyte's quality, you can build a system that not only meets but exceeds your expectations.
Experience the difference with Gigabyte's commitment to performance and reliability. This motherboard is more than just a component; it's the foundation of your next great computing adventure.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Number of RGB LED pin headers | 4 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of CPU fan connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Total number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

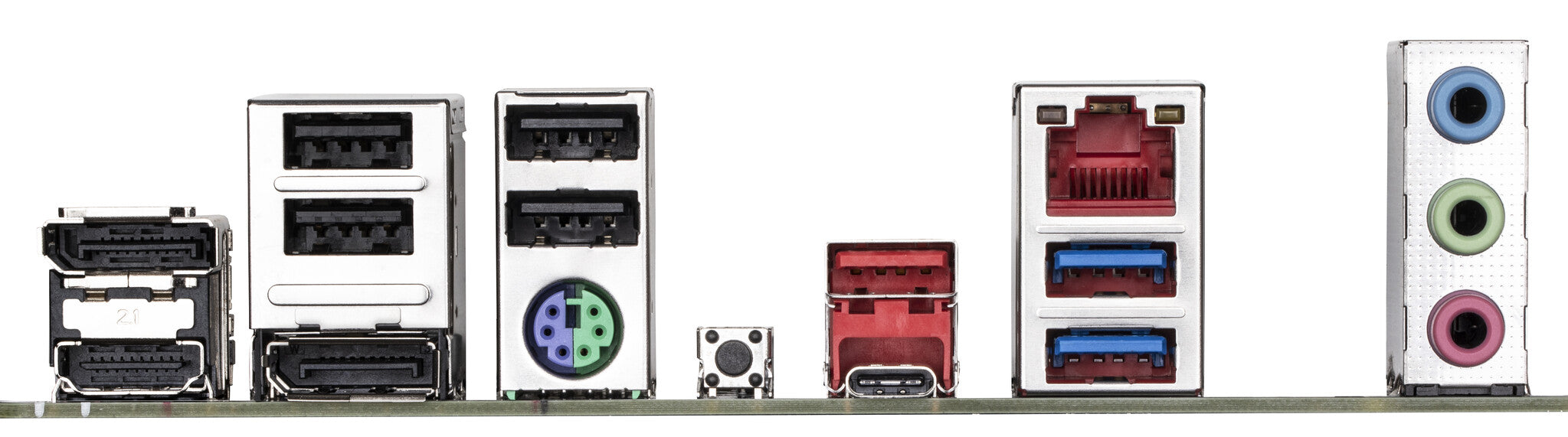

| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DisplayPort version | 2.1 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD B850 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 25110 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 1.34 kg |
| Package height | 68 mm |
| Package depth | 268 mm |
| Package width | 270 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Screws included | Yes |
| Antenna included | Yes |
| Batteries included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 1.14 kg |
