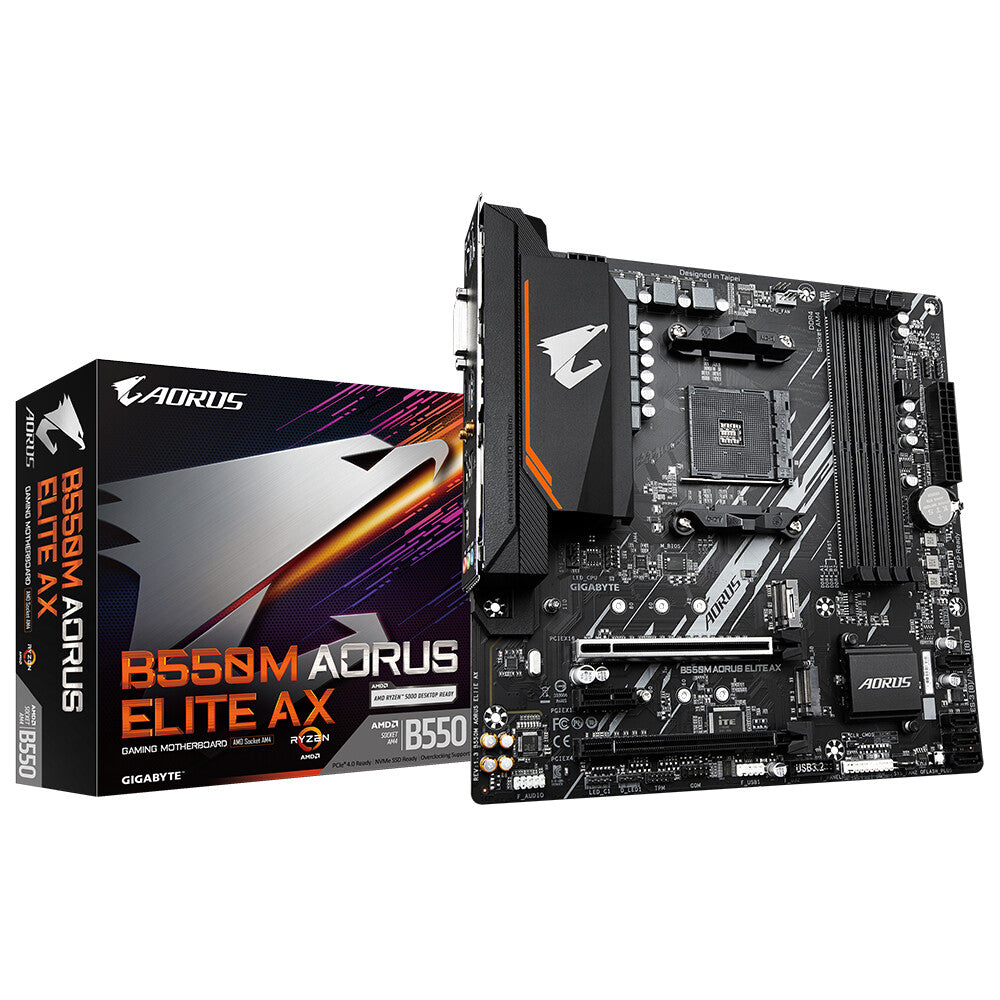

Gigabyte B550M AORUS ELITE AX micro ATX AMD Motherboard | AM4 Socket - 4 x DDR4 Memory Slots
KEY FEATURES
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Onboard Wi-Fi 6E 802.11ax & BT 5.3
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can I install on this motherboard?
Does this motherboard support Wi-Fi?
What is the warranty period for this motherboard?
Gigabyte B550M AORUS ELITE AX micro ATX AMD Motherboard | AM4 Socket - 4 x DDR4 Memory Slots
Description
Elevate your computing experience with the Gigabyte B550M AORUS ELITE AX micro ATX AMD Motherboard. Designed for those who demand performance and reliability, this motherboard is a perfect foundation for your next PC build. With advanced features and robust technology, it's tailored to support the latest AMD Ryzen processors, ensuring your system runs smoothly and efficiently.
Key Benefits
- AMD StoreMI Technology: Combines the speed of SSDs with the capacity of HDDs, significantly reducing boot times and enhancing overall performance.
- Compatibility with AMD Ryzen CPUs: Supports 3rd, 4th, and 5th generation AMD Ryzen processors, providing flexibility for future upgrades.
- High Memory Capacity: With 4 DDR4 memory slots, you can expand your system's memory up to 128 GB, perfect for multitasking and demanding applications.
- Wi-Fi 6E Support: Experience faster wireless connectivity with the latest Wi-Fi 6E technology, ensuring seamless online gaming and streaming.
- Robust Power Design: Features a 5+3 phases Pure Digital VRM, delivering stable power to your CPU for optimal performance under load.
- Multiple Connectivity Options: Equipped with USB 3.2 Gen 2, HDMI, and PCIe 4.0 M.2 slots, providing versatile options for your peripherals and storage devices.
Addtional Features
The Gigabyte B550M AORUS ELITE AX is not just about performance; it's also built with user-friendly features. The motherboard is designed in a micro ATX form factor, making it suitable for compact builds without compromising on features. It includes RGB LED pin headers to customise your system's aesthetics, and it comes with screws and an antenna included for easy setup. The motherboard supports both ECC and non-ECC memory, giving you the flexibility to choose the best memory type for your needs.
With a maximum resolution of 4096 x 2160 pixels, this motherboard is also ideal for high-definition gaming and content creation. The dual M.2 slots support the latest PCI Express generations, ensuring you can take advantage of the fastest storage solutions available.
Why Buy
Investing in the Gigabyte B550M AORUS ELITE AX micro ATX AMD Motherboard means choosing a reliable partner for your computing needs. Its combination of cutting-edge technology, extensive compatibility, and user-friendly features makes it an excellent choice for gamers and professionals alike. Whether you're building a new system or upgrading an existing one, this motherboard will help you unlock your PC's full potential, delivering an exceptional performance that meets the demands of today's applications.
Experience the difference that a high-quality motherboard can make in your computing journey with Gigabyte.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Supported processor sockets | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory per slot | 32 GB |
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 4733 MHz |
| Supported memory clock speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Number of RGB LED pin headers | 5 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| Number of water pump connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| DVI-D ports quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| WLAN controller model | Realtek RTL8852CE |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Cooling type | Passive |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 2nd M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 1.27 kg |
| Package height | 65 mm |
| Package depth | 265 mm |
| Package width | 265 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Screws included | Yes |
| Antenna included | Yes |
| Batteries included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
