DrayTek VSQ60X-K network switch Unmanaged L2 2.5G Ethernet (100/1000/2500) Black
KEY FEATURES

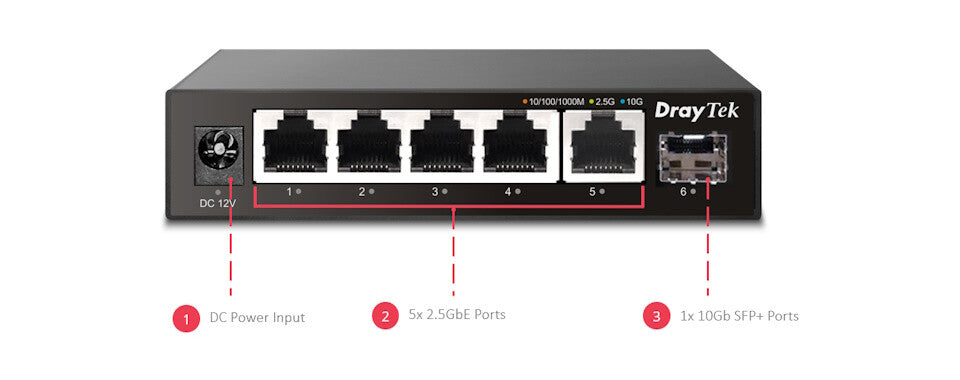

- 5 x RJ-45 2.5 Gigabit Ethernet Ports
- 1 x SFP+ 10GbE Port for Uplink / Fibre
- Compact form factor
- Wall Mountable
- Fanless (Silent) Operation
- Power consumption
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
DrayTek VSQ60X-K network switch Unmanaged L2 2.5G Ethernet (100/1000/2500) Black
Description
DrayTek VSQ60X-K. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 45 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE...
VigorSwitch Q60x is a small, high-performance unmanaged 2.5 Gigabit Ethernet switch with 5 x 2.5-Gigabit RJ-45 LAN ports and 1 x 10-Gigabit SFP+ port. Use the faster 2.5 GbE ports for high-speed connections between switches, servers, and wireless access points such as the VigorAP 805. The 10Gb SFP+ interface can be an ideal option for uplink purposes to connect to a router or another switch.
Our lightweight, low-power network switch is easy to deploy. This VLAN-aware device requires no configuration, offers fanless operation, and comes with a power supply.
2 RTB
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Cloud-managed | No |
| Web-based management | No |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 1 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 45 Gbit/s |
| Forwarding rate | 33.5 Mpps |
| Jumbo frames support | Yes |
| Design | |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, Power |
| Performance | |
|---|---|
| Fanless | Yes |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Power consumption (max) | 4.85 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 114 mm |
| Depth | 90 mm |
| Height | 25 mm |
| Weight | 250 g |
| Packaging data | |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | No |
| Package type | Box |
| Package width | 175 mm |
| Package depth | 120 mm |
| Package height | 83 mm |
| Package weight | 407 g |
