D-Link DGS-1026MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey
KEY FEATURES
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 8192 entries Switching capacity: 52 Gbit/s
- Rack mounting
- AC Power supply included Power over Ethernet (PoE)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
D-Link DGS-1026MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey
Description
D-Link DGS-1026MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 1. MAC address table: 8192 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting

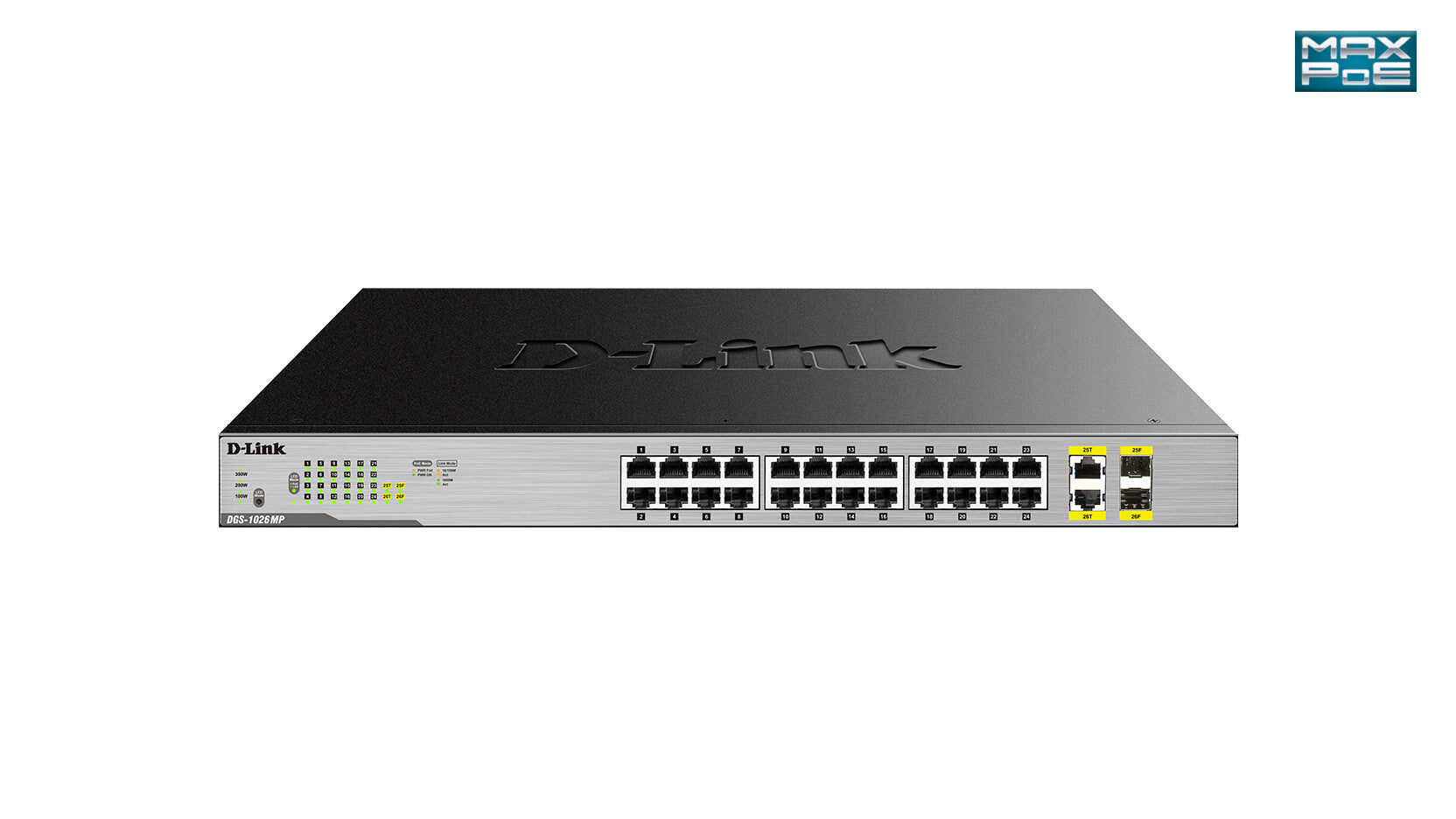

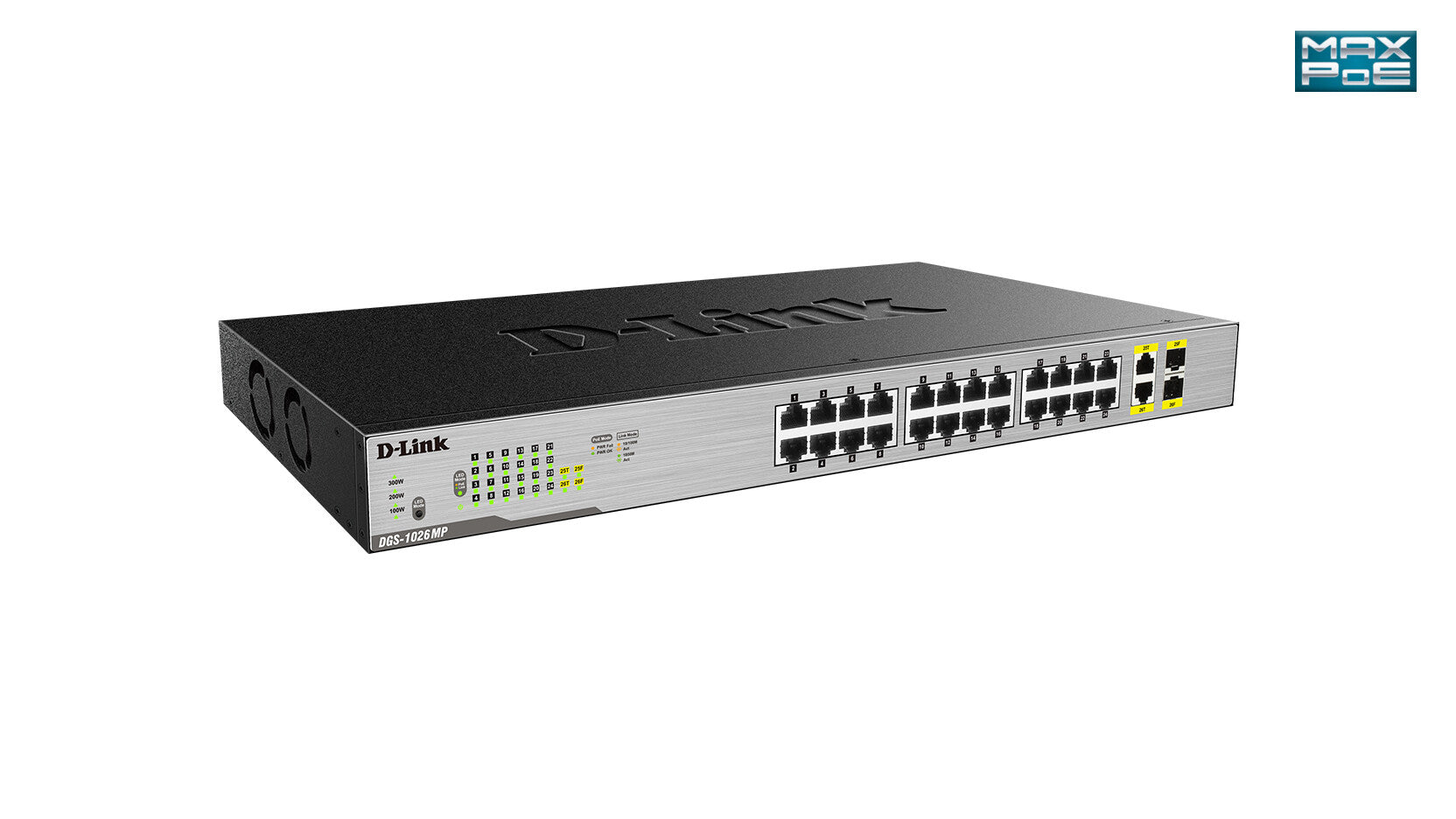

26 Port Gigabit Max PoE Switch
DGS-1026MP
The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.
Power over Ethernet
The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.
Expand Your Network
With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.
Energy Efficient
To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.
Hassle-Free Setup
The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 52 Gbit/s |
| Throughput | 38.69 Mpps |
| Forwarding rate | 38.69 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 0.512 MB |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Black, Grey |
| LED indicators | Activity, Link, PoE, Power, Power fail, Speed |
| Number of fans | 2 fan(s) |
| Safety | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 |
| Certification | FCC Class ACECCCRoHSVCCIBSMIRCM |
| Performance | |
|---|---|
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 205975 h |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI |
| Shipping (inner) case gross weight | 8.79 kg |
| Pallet height (sea) | 177.5 cm |
| Products per pallet (sea) | 80 pc(s) |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Pallet gross weight (sea) | 369.8 kg |
| Pallet height (air) | 136.5 cm |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Products per pallet (air) | 60 pc(s) |
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Pallet gross weight (air) | 281.8 kg |
| Products per shipping (inner) case | 2 pc(s) |
| Shipping (inner) case net weight | 8.39 kg |
| Shipping (inner) case length | 52 cm |
| Shipping (inner) case width | 20.5 cm |
| Shipping (inner) case height | 41 cm |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 444.1 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1515 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 250.4 mm |
| Height | 44 mm |
| Weight | 3.1 kg |
| Packaging data | |
|---|---|
| Package width | 388 mm |
| Package depth | 506 mm |
| Package height | 90 mm |
| Package weight | 3.7 kg |
