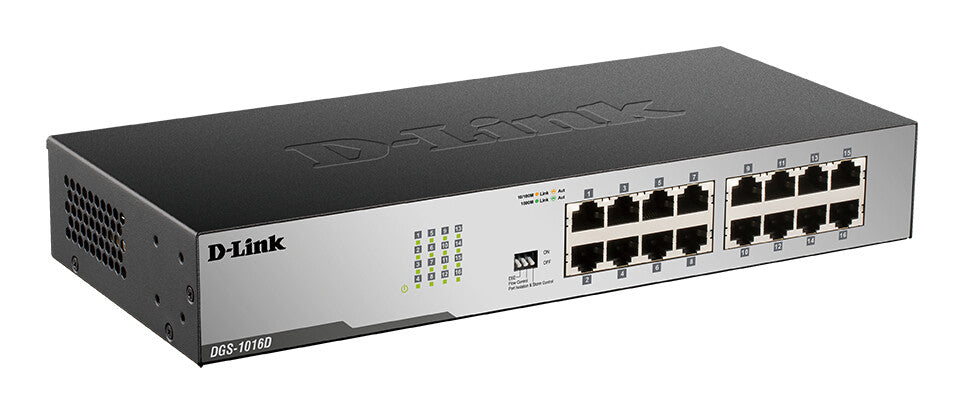

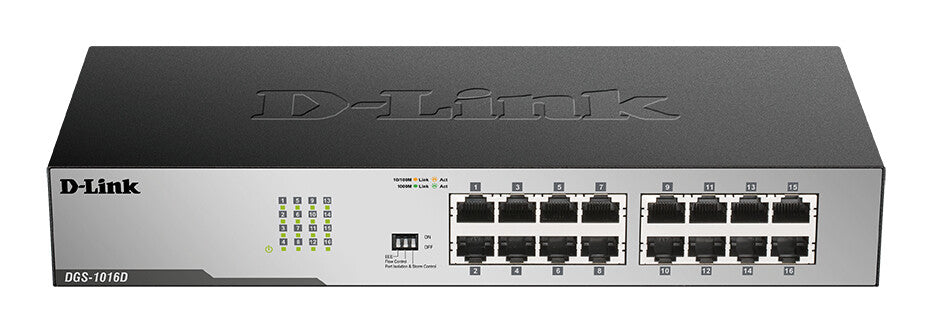

D-Link DGS-1016D 16-Port Gigabit Unmanaged Desktop Switch
KEY FEATURES
- Physical
- 16 or 24 Gigabit Ethernet ports for fast network speeds and backwards compatibility
- Durable metal housing
- Fanless design for silent operation Performance
- IEEE 802.3x Flow Control
- Auto MDI/MDI-X crossover for all ports
- Half/full-duplex for Ethernet/Fast Ethernet speeds
- Supports up to 10,000 bytes jumbo frames Energy Efficiency
- Innovative D-Link Green Ethernet technology
- Link status detection
- 802.3az Energy-Efficient Ethernet (EEE)
- RoHS-compliant Easy Installation
- Plug-and-play installation with no additional configuration required DIP Switch-Controllable Features
- Energy-Efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
D-Link DGS-1016D 16-Port Gigabit Unmanaged Desktop Switch
Description
D-Link DGS-1016D 16-Port Gigabit Unmanaged Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s
The first of the Green Ethernet products the DGS-1016D provides 3 key benefits to end users through its cutting edge innovative eco-friendly technology
Reduces power consumption & creates less heat
Extended product life
Reduces Operating Costs
Power Savings by Number of Connected Ports and Link Status
Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on and continue to consume considerable amount of power. With Green Ethernet technology, D-Link switches can automatically detect link status and reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.
Power Savings by Cable Length
The Green Ethernet switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.
Overall Power Savings Per Day
For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day and powered off 14 hours a day, and connected to the switch using 20 meter cables, D-Link's Green Ethernet can save up to 20% power used for each system.
Get the blazing speed of Gigabit Ethernet with the D-Link GigaExpress DGS-1016D, an 16-port 10/100/1000Mbps Gigabit Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality.
Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile and compact 1RU height design of the DGS-1016D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space.
Power-Packed
It features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. The D-Link DGS-1016D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
It also features diagnostic LEDs which display status and activity, allowing you to quickly detect and correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems.
Warranty: Limited
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
|---|---|
| Full duplex | Yes |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.340 MB |
| Design | |
|---|---|
| Number of fans | 0 fan(s) |
| Safety | CSA + NRTL/C |
| Performance | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Technical details | |
|---|---|
| Shipping (inner) case gross weight | 9.5 kg |
| Pallet height (sea) | 193 cm |
| Products per pallet (sea) | 250 pc(s) |
| Master (outer) cases per pallet (sea) | 50 pc(s) |
| Pallet gross weight (sea) | 495 kg |
| Pallet height (air) | 121.2 cm |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Products per pallet (air) | 150 pc(s) |
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Pallet gross weight (air) | 304.5 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case net weight | 8.84 kg |
| Shipping (inner) case length | 57.2 cm |
| Shipping (inner) case width | 19.7 cm |
| Shipping (inner) case height | 35.9 cm |
| Power | |
|---|---|
| Power source | 100-240VAC, 50/60 Hz |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Weight | 1.75 kg |
| Packaging data | |
|---|---|
| Package width | 180 mm |
| Package depth | 328 mm |
| Package height | 108 mm |
| Package weight | 1.77 kg |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 280 x 180 x 44 mm |
| I/O ports | 10BASE-T, 100BASE-TX & 1000BASE-T |
