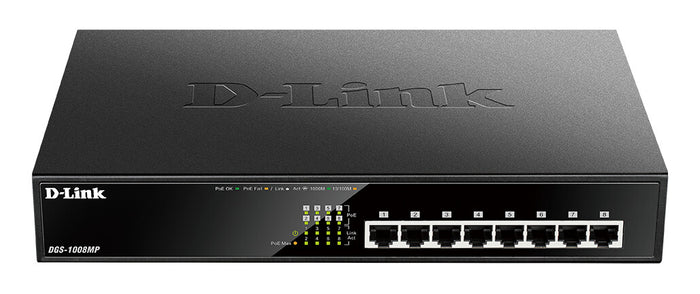

D-Link DGS-1008MP 8-Port Desktop Gigabit Max PoE Switch
KEY FEATURES
- High-Speed Networking
- Eight 10/100/1000 Mbps Ethernet ports
- Full/half-duplex for 10/100 Mbps Ethernet and full-duplex for 1000 Mbps Ethernet Reliability
- IEEE 802.3x Flow Control
- Store-and-forward switching scheme
- RoHS compliant Easy Setup
- Plug-and-play installation
- Auto MDI/MDI-X crossover on all ports Desktop and Rackmount Design
- Rack-mountable 11” metal casing (1U)
- Fanless design PoE Functionality
- IEEE 802.3at-compliant
- 125 W total power budget
- Up to 30 W power output per port
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
D-Link DGS-1008MP 8-Port Desktop Gigabit Max PoE Switch
Description
D-Link DGS-1008MP 8-Port Desktop Gigabit Max PoE Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.
Warranty: Limited
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet buffer memory | 0.192 MB |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Technical details | |
|---|---|
| Shipping (inner) case gross weight | 15.3 kg |
| Pallet height (sea) | 193.5 cm |
| Products per pallet (sea) | 180 pc(s) |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Pallet gross weight (sea) | 563.8 kg |
| Pallet height (air) | 193.5 cm |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Products per pallet (air) | 180 pc(s) |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Pallet gross weight (air) | 563.8 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case net weight | 14.2 kg |
| Shipping (inner) case length | 54.5 cm |
| Shipping (inner) case width | 40.6 cm |
| Shipping (inner) case height | 28.5 cm |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 13.5 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 140 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.84 kg |
| Packaging data | |
|---|---|
| Package width | 262 mm |
| Package depth | 391 mm |
| Package height | 102 mm |
| Package weight | 2.85 kg |
