D-Link DGS-1005P Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
KEY FEATURES
- Unmanaged L2
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s
- Power supply included Power over Ethernet (PoE)
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
D-Link DGS-1005P Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Description
D-Link DGS-1005P. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Fast. Compact. Convenient.

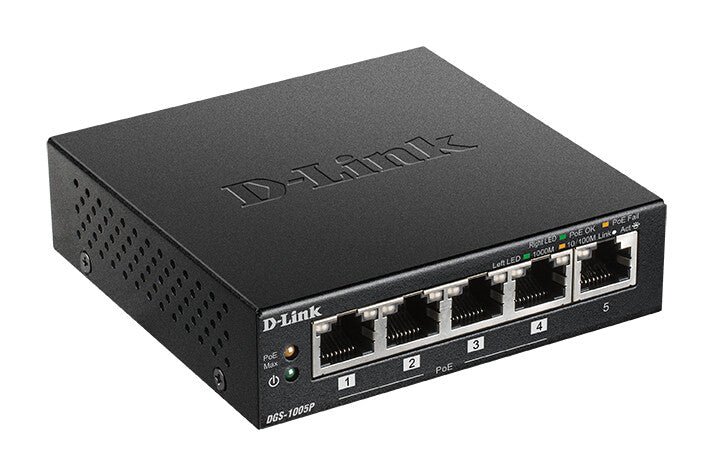

The D‑Link DGS‑1005P 5‑Port Desktop Gigabit PoE+ Switch enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), network video cameras and IP phones to the network. Built with home and small business users in mind, the DGS‑1005P is compact and operates silently, making it ideal for most rooms and offices.
Gigabit Performance.
The DGS-1005P features plug-and-play installation and requires no configuration.
Automatic MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-1005P maximises network performance while minimising the transmission of bad network packets.
Power Over Ethernet+
The DGS-1005P features four Gigabit Ethernet ports that support the IEEE 802.3af and IEEE 802.3at PoE, supplying up to 30 W on each PoE port and providing a total power budget of 60 W.
You can connect compatible devices to the DGS-1005P without using an additional power supply. This allows you to save on cabling and power supplies and to install devices on locations without immediate access to power outlets.
Green Technology
The DGS-1005P features green technology such as IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection.
EEE adjusts the power consumption of the switch based on network utilisation, reducing energy use during periods of inactivity. Link status detection powers down unused ports, saving power when connected devices are shut down or disconnected. Cable length detection adjusts the power output of the port based on the cable length, reducing the power requirements of the switch.
Compact and Silent
The compact design of the DGS-1005P allows placement in most locations, including those where space is at a premium.
The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noise-sensitive areas such as workstations and meeting rooms.
Warranty: 2 year
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|

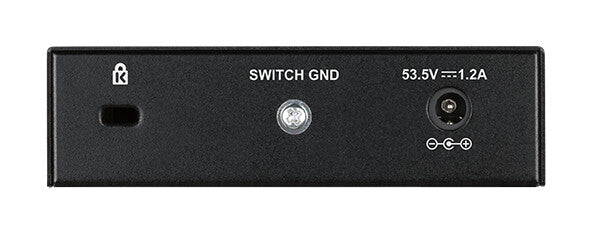

| Power connector | DC-in jack |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| MAC address auto-learning supported | Yes |
| Full duplex | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Security | |
|---|---|
| Packet filtering | 7.44 Mpps |
| Design | |
|---|---|
| Certification | CE, BSMI, FCC , VCCI, RCM, cUL, CB, LVD, BSMI |
| Wall mountable | Yes |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Housing material | Metal |
| Product colour | Black |
| Rack mounting | No |
| Performance | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Buffer size | 64 KB |
| Plug and Play | Yes |
| Power | |
|---|---|
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 260 g |
| Height | 28 mm |
| Depth | 98 mm |
| Width | 100 mm |
