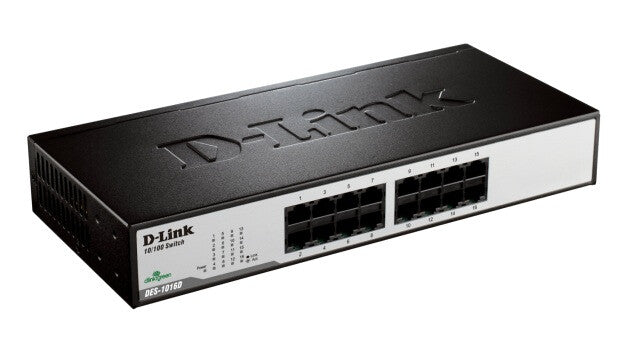

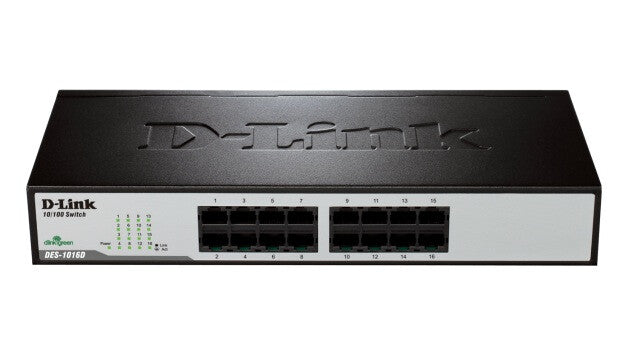

D-Link DES-1016D Unmanaged Fast Ethernet (10/100) Black
KEY FEATURES
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 16
- 100BASE-TX, 10BASE-T
- MAC address table: 8000 entries Switching capacity: 3.2 Gbit/s
- AC Power supply included
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
D-Link DES-1016D Unmanaged Fast Ethernet (10/100) Black
Description
D-Link DES-1016D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
The DES-1016D 16-Port Fast Ethernet Unmanaged Desktop Switch is designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
Ideal for Basic Networking Tasks
With the D-Link DES-1016D, you can easily expand your network by adding more computers or devices with speeds up to 200 Mbps per port in full-duplex mode.
Auto-Sensing 10/100 Ports
The DES-1016D use auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to 10 or 100 Mbps devices to create an integrated network. Each port automatically adjusts for straight-through or crossover cables to make the right link.
Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full.
Quality of Service (QoS)
The switches provide 802.1p priority queues for QoS, allowing users to run bandwidth-sensitive applications such as multimedia and VoIP Internet telephone without data flow bottlenecks that can degrade the quality of the network connection.
Save on Energy Costs
The switches support IEEE802.3az EEE which enables the switches to reduce power consumption when the switches are at low utilization, allowing users to save on power usage and costs. During these periods of low utilization, the switches can enter a low-power state and use up less power than regular operations.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Half duplex | Yes |
| Full duplex | Yes |
| MAC address auto-learning supported | Yes |
| Auto-sensing | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 3.2 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.2 Gbit/s |
| Packet forwarding rate (10 Mbps) | 14.88 pps |
| Packet forwarding rate (100 Mbps) | 148.8 pps |
| Protocols | |
|---|---|
| Supported network protocols | CSMA/CD |
| Design | |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Performance | |
|---|---|
| Internal memory | 2 MB |
| Mean time between failures (MTBF) | 492.096 h |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RCM, VCCI, cUL |
| Shipping (inner) case gross weight | 9.87 kg |
| Pallet height (sea) | 2 m |
| Products per pallet (sea) | 180 pc(s) |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Pallet gross weight (sea) | 372.3 kg |
| Pallet height (air) | 137.9 cm |
| Pallet gross width | 110 cm |
| Pallet gross length | 120 cm |
| Products per pallet (air) | 120 pc(s) |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Pallet gross weight (air) | 253.9 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case net weight | 9 kg |
| Shipping (inner) case length | 42 cm |
| Shipping (inner) case width | 39.2 cm |
| Shipping (inner) case height | 31.1 cm |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 2.1 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 7.1652 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 280 mm |
| Depth | 150 mm |
| Height | 44 mm |
| Weight | 1.06 kg |
| Packaging data | |
|---|---|
| Package width | 282 mm |
| Package depth | 376 mm |
| Package height | 78 mm |
| Package weight | 1.8 kg |
