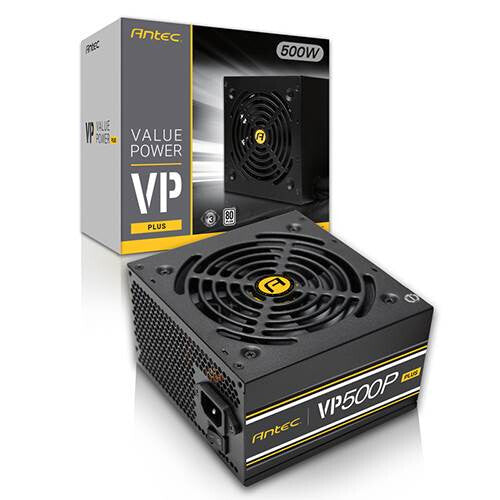

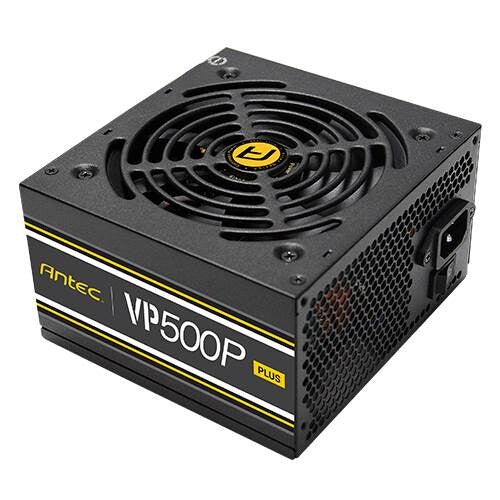

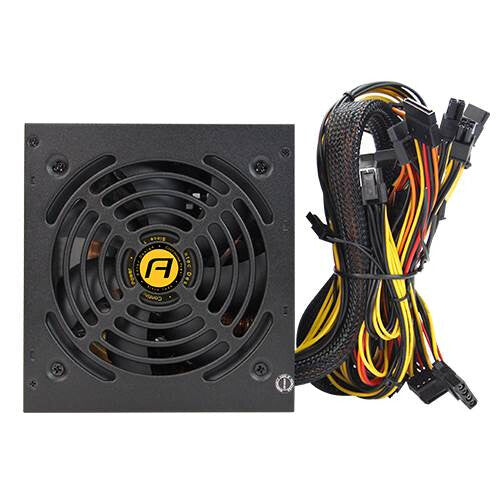

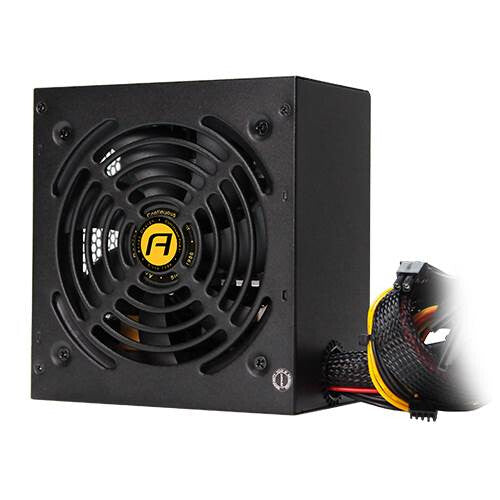

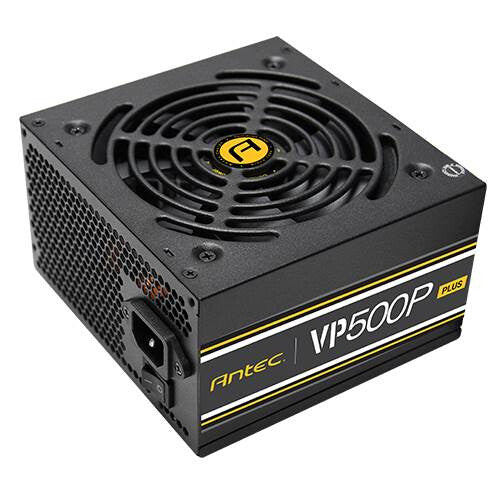

Antec VP500P Plus 500W ATX Non-Modular Power Supply Unit |
KEY FEATURES
- Continuous Power - Guaranteed 500W Continuous Power from Antec
- 80 PLUS® 230V Standard Certified - Up to 85% efficient, to reduce your electricity bill
- AQ3 - Antec Quality 3 year warranty
- 120mm Silent Fan
- Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
- CircuitShield™ - Full suite of industrial grade protections: UVP/OVP/SCP/OPP/NLO
- Multi PCI-E - 2 PCI-E connectors for multiple GPU support
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Antec VP500P Plus 500W ATX Non-Modular Power Supply Unit |
Description
Antec VP500P Plus GB. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 500,650,800 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
The new generation of VP500P PLUS is crafted for quality, performance and incredible value.
This entry-level solution is rated from 500W to 700W, saving energy through its high efficiency of up to 85% efficient and is 80 PLUS® 230V Standard certified.
Delivering up to 85% efficiency,
the VP P PLUS series utilizes active PFC, Japanese capacitors, and provides efficiency during max and low loads—living up to the performance standards that we are known for.

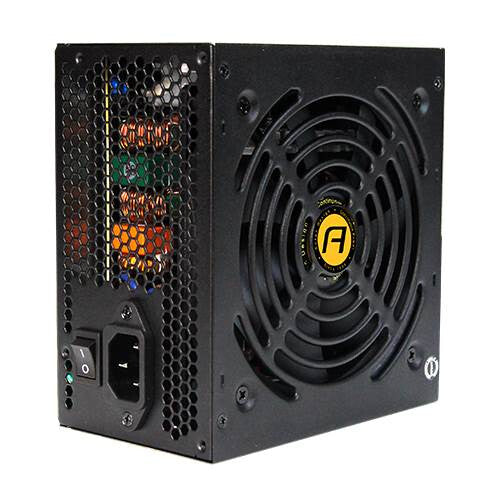

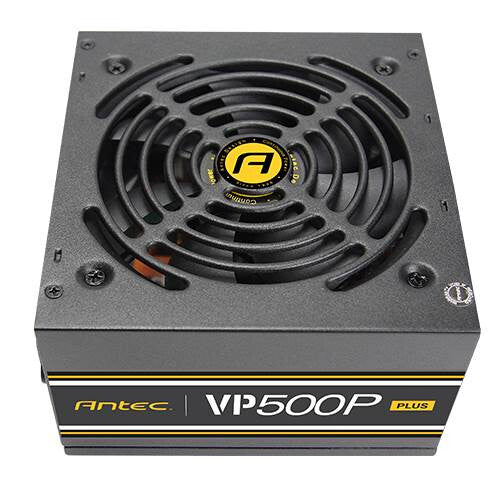

120 mm
Silent Fan
The 120 mm Silent Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation.
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature.
Warranty: 3 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery

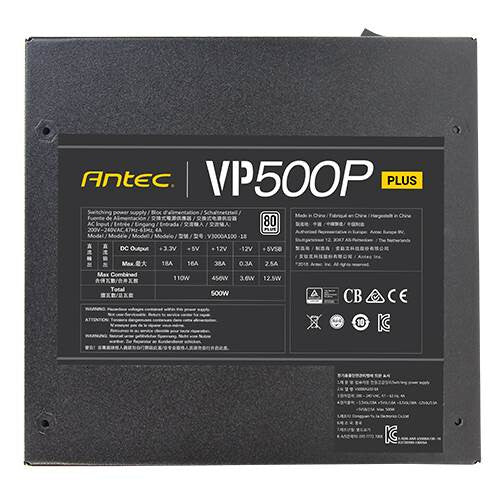

| Power | |
|---|---|
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
| Efficiency | 85% |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 16 A |
| Max output current (+12V) | 38 A |
| Max output current (+3.3V) | 18 A |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+3.3V) | 110 W |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.9 |
| Input current | 4 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 500 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Floppy disk drive cable length | 95 cm |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 65 cm |
| PCI Express power connectors (6+2 pin) | 2 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 650,800 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 500,650,800 mm |
| Number of SATA power connectors | 7 |
| Motherboard power cable length | 50 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC/Server |
| Design | |
|---|---|

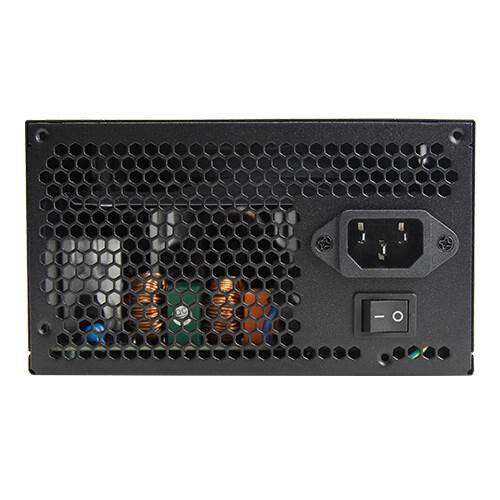

| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 1.71 kg |
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package weight | 2.1 kg |
| Other features | |
|---|---|
| Harmonized System (HS) code | 84733020 |
