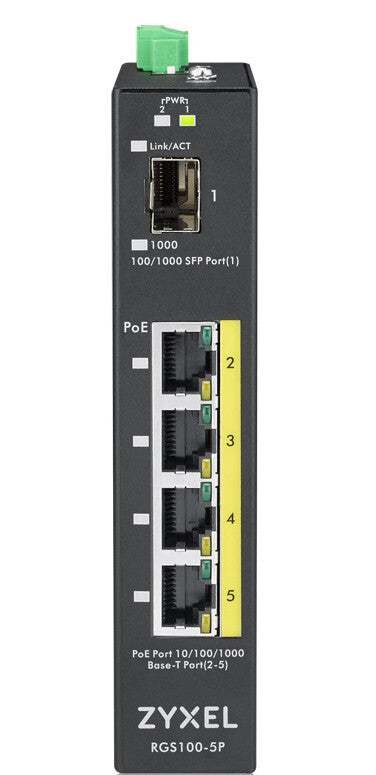

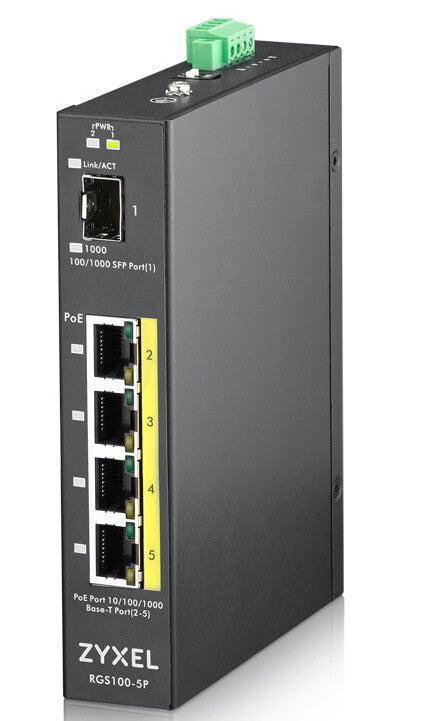

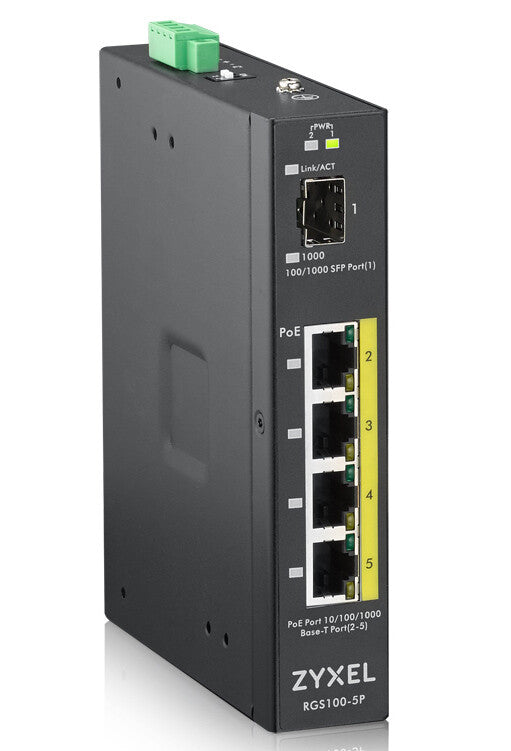

Zyxel RGS100-5P Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
KEY FEATURES
- Unmanaged L2
- Basic switching RJ-45 Ethernet ports quantity: 4
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s
- Rack mounting
- Power over Ethernet (PoE)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Zyxel RGS100-5P Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Description
Zyxel RGS100-5P. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE.... DC input voltage: 12 - 58 V. Power over Ethernet (PoE). Wall mountable, Rack mounting
5-port GbE Unmanaged PoE Switch Along with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the new RGS100-5P PoE switch with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The wide operating temperature range ensures reliable performance in adverse environments and expands RGS100-5P’s network availability in a wide variety of field applications. Benefits Rugged and reliable design for harsh environments Designed with fanless and IP30 standard metal mechanism, the Zyxel RGS100-5P is able to to deliver excellent thermal controls and withstand dusty environments and can be installed on either a DIN rail or wall mount for efficient use of cabinet space. In addition, wide-ranging operating temperature tolerance allows RGS100-5P to be deployed across a spectrum of harsh environments. Equipped with dual DC power inputs, the RGS100-5P is capable of highavailability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD (electrostatic discharge) and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances. Trouble-free installation and easy extendibility This rugged unmanaged PoE switch comes with four (4) 10/100/1000 Base-T copper PoE ports and one (1) 100/1000-Base-X SFP fiber interface. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility. Plug-and-Play deployments The Zyxel RGS100-5P is able to negotiate the optimal data speed and activate duplex mode automatically with N-Way feature. It can also detect the type of connection to any Ethernet device with support for auto-MDI/MDI-X. Broadcast storm protection can easily be activated via DIP switch. Plug-and-play makes deploying the RGS100-5P hassle-free for any application or scenario.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Fiber optic connector | SFP |
| Network | |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| MAC address auto-learning supported | Yes |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
| Transmission distance (max) | 40 km |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Throughput | 7.44 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.25 MB |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| Performance | |
|---|---|
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 568430 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
|---|---|
| DC input voltage | 12 - 58 V |
| Input voltage | 12 - 58 V |
| Power consumption (max) | 125 W |
| Power protection features | Short circuit |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 42625 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 29.1 mm |
| Depth | 107.3 mm |
| Height | 139 mm |
| Weight | 500 g |
| Packaging data | |
|---|---|
| Wall mounting kit | Yes |
| Rack mount kit | Yes |
| Package width | 70 mm |
| Package depth | 177.8 mm |
| Package height | 205 mm |
| Package weight | 700 g |
