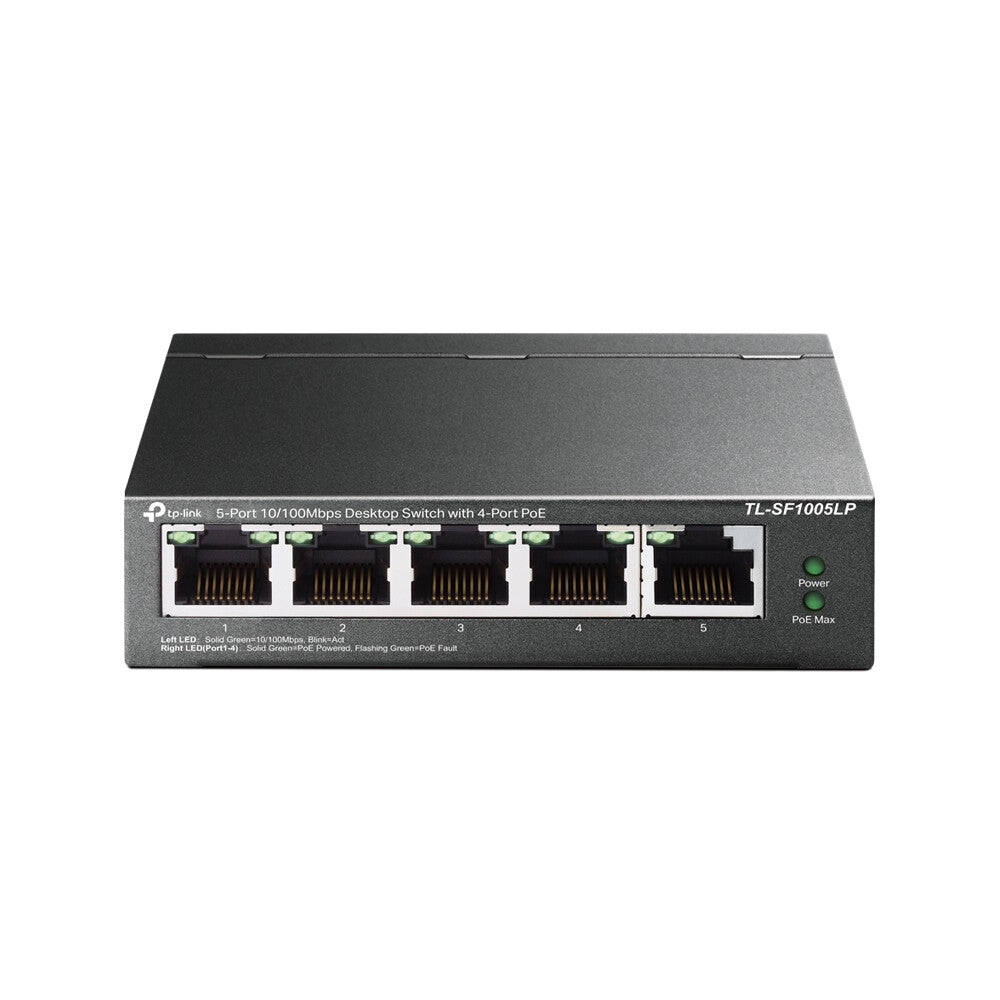

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Name: TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
Brand: TP-LINK
SKU: TL-SF1005LP
Price: 33.89 GBP
Availability: InStock

SKU: TL-SF1005LP

£33.89

Quantity select

13 in stock. Need more? Contact us!

FREE carbon neutral delivery on orders over £99

Description

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af,...

Delivery & Returns

Got questions? Call our team on 020 8208 1234

£33.89

Quantity

Quantity select

Description

Professional Fast Ethernet Switch with 4 PoE Ports

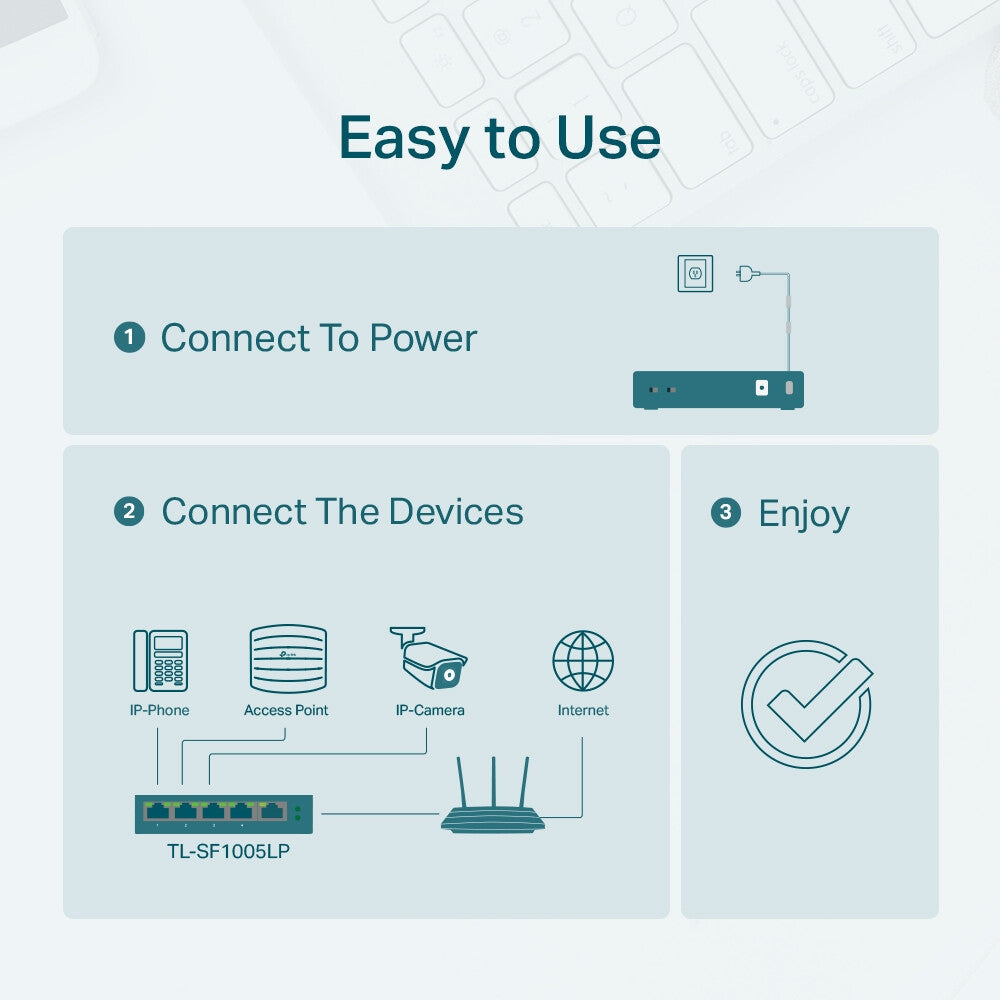

Plug and Play, with PoE Transmission for Surveillance up to 250 m

TL-SF1005LP

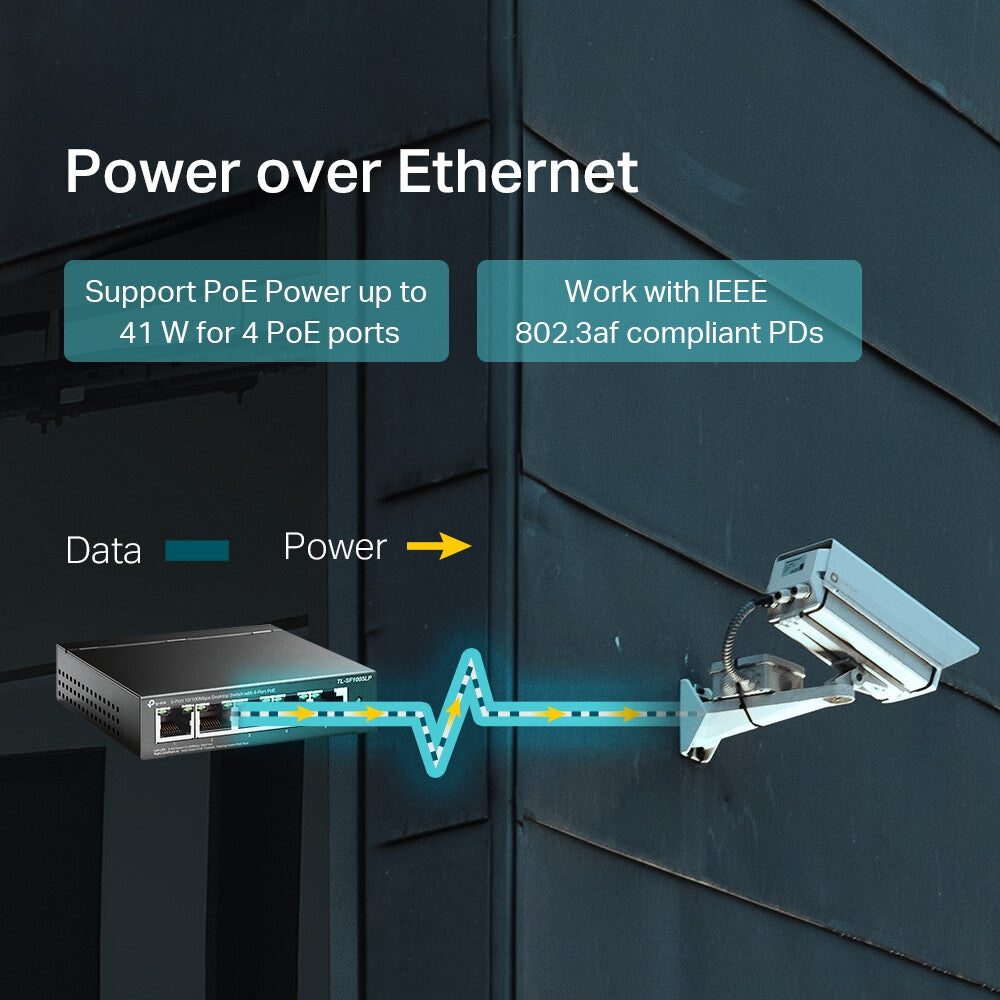

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

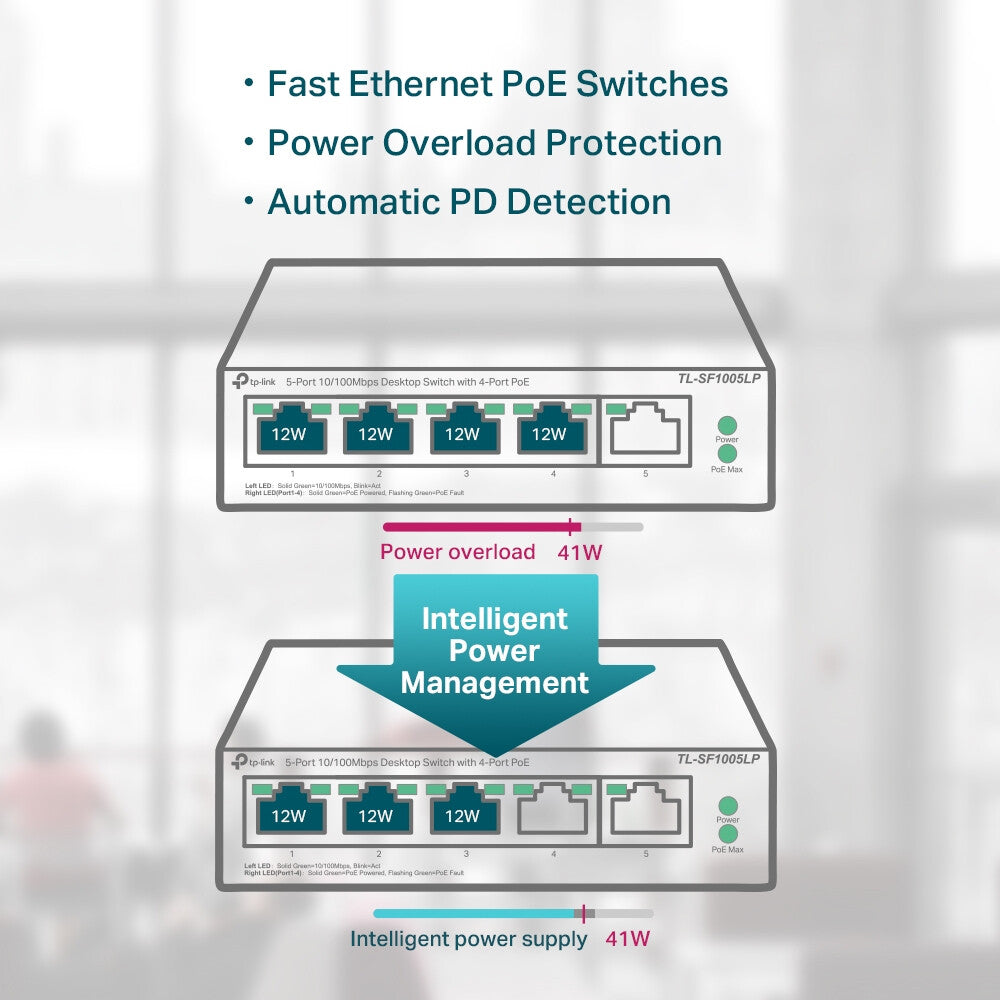

Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

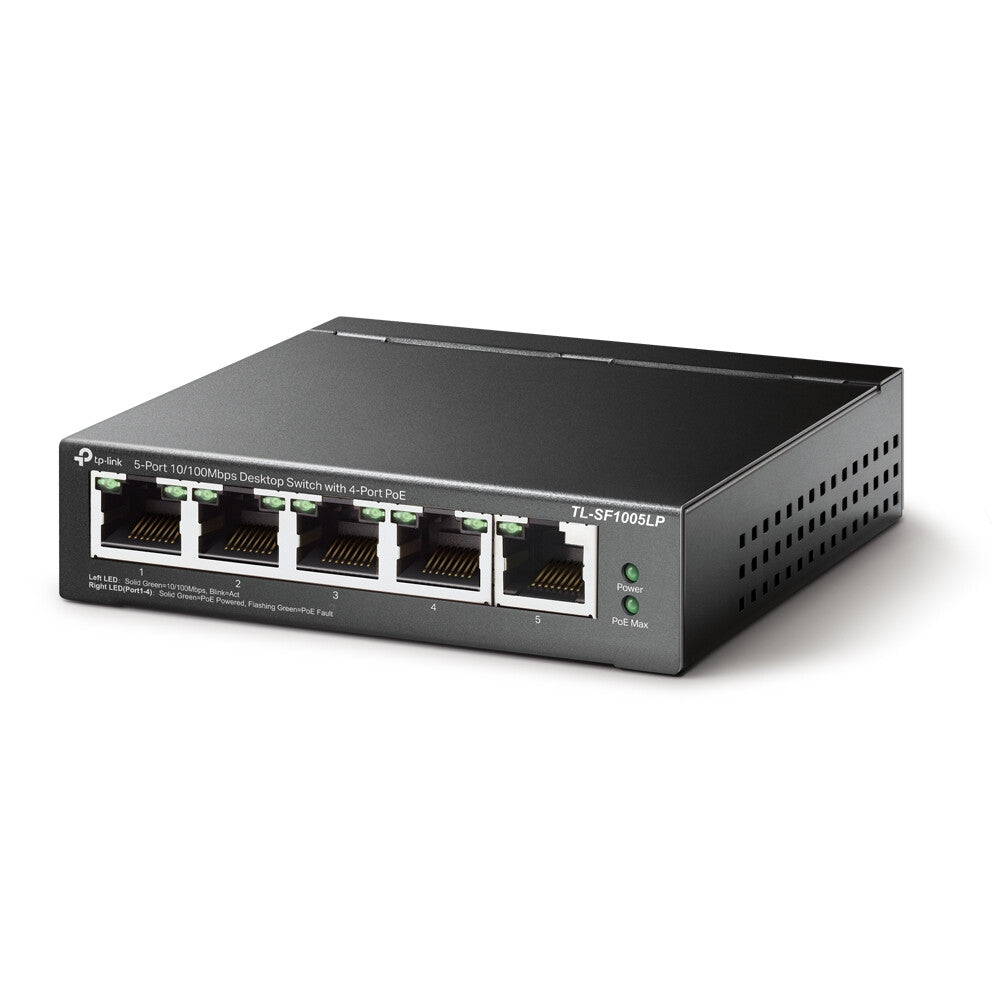

The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch

View Product Specifications

Reviews

Frequently Asked Questions

When will it arrive?

Any order over £59 wil be shipped on our free 2-3 working day service, if you opt for Next Working Day shipping then this will be with you the next working day between 09:00 and 18:00. Deliveries to Northern Ireland, Channel Islands and the Scottish Highlands will be on a 3 day service.

What information do I need to provide for the delivery?

How long is the returns policy?

Delivery & Returns

How long will it take to receive my order?

We provide multiple shipping options for our customers including next day delivery. If you opt for Next Working Day shipping order needs to be placed before 2 PM; all orders placed after 2pm will be processed following working day and then this will be with you the next working day between 09:00 and 18:00. Deliveries to Northern Ireland, Channel Islands and the Scottish Highlands will be on a 3 working day service.

Can I choose a specific day to receive my order?

This is something that we are working hard to bring to you - we recognise that having deliveries on preferred days not only makes it easier for you but it is also great for the environment. By having deliveries arranged on days that you are going to be in or consolidating your orders to arrive to you at the same time means that the courier won't need to come back multiple times due to missed deliveries or multiple deliveries.

Can I change my delivery address once the order has been placed?

Our systems are highly automated, where possible we will do our utmost to accommodate this. To ensure we maintain a high delivery success rate most of our orders are picked and prepped for shipment within 30 minutes

How do I return my order?

If you need to return your order please raise a return through your order page detailing the reason for return. Once this form has been submitted it will be reviewed by the Returns Department who will contact you to arrange the return.
Please note the returns department may ask for more information such as the serial number(s) and images where applicable to process the return.

How long do I have to return an item?

For most products bought online, you have a legal right to change your mind within 14 days and receive a refund. If you wish to return unwanted products, you must let us know that you want to return them within 14 calendar days from the day after delivery. The item must also be returned to us within 7 working days from approval of return and receipt of the return label

Are returns free?

Returns for faulty / damaged items will be free of charge
Returns for unwanted items that have no fault will incur a minimal returns fee - delivery charges will not be refunded

Save On Delivery Carbon Neutral Deliveries Free Standard Delivery Over £99

Management features
Switch type	Unmanaged

Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	5

Network
Flow control support	Yes
Auto MDI/MDI-X	Yes
MAC address auto-aging supported	Yes
Auto-negotiation	Yes
Full duplex	Yes
Half duplex	Yes
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
10G support	No
Networking standards	IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Data transmission
Jumbo frames	2000
Jumbo frames support	Yes
Store-and-forward	Yes
Forwarding rate	0.744 Mpps
Switching capacity	1 Gbit/s
MAC address table	2000 entries

Design
LED indicators	Yes
Product colour	Black
Rack mounting	No

Performance
Harmonized System (HS) code	85176990
Fanless	Yes

Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance	Yes

Power
Power consumption (max)	47 W
Input voltage	53.5 V
Input current	0.81 A
AC input frequency	50 Hz
AC input voltage	220 V
Power supply included	Yes
Power source	DC/PoE

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	41 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE)	Yes

Operational conditions
Heat dissipation	160.27 BTU/h
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions
Height	25 mm
Depth	98 mm
Width	100 mm

Packaging data
Package weight	740 g
Package height	121 mm
Package depth	196 mm
Package width	131 mm
AC adapter included	Yes
User guide	Yes

Management features
Switch type	Unmanaged

Network
Flow control support	Yes
Auto MDI/MDI-X	Yes
MAC address auto-aging supported	Yes
Auto-negotiation	Yes
Full duplex	Yes
Half duplex	Yes
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
10G support	No
Networking standards	IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Data transmission
Jumbo frames	2000
Jumbo frames support	Yes
Store-and-forward	Yes
Forwarding rate	0.744 Mpps
Switching capacity	1 Gbit/s
MAC address table	2000 entries

Power
Power consumption (max)	47 W
Input voltage	53.5 V
Input current	0.81 A
AC input frequency	50 Hz
AC input voltage	220 V
Power supply included	Yes
Power source	DC/PoE

Operational conditions
Heat dissipation	160.27 BTU/h
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
