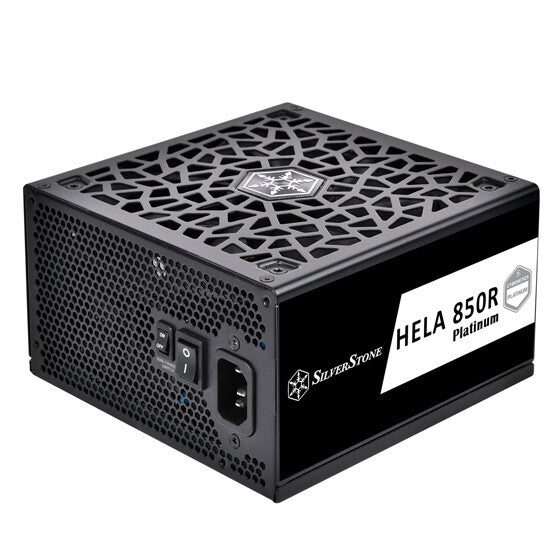

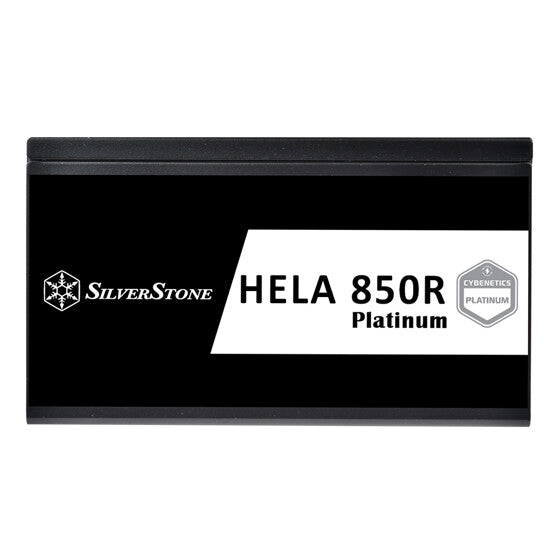

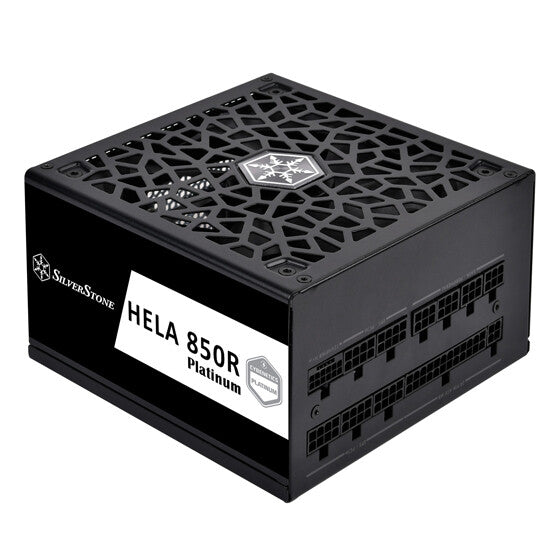

Silverstone HELA 850R Platinum power supply unit 850 W 20+4 pin ATX ATX Black
KEY FEATURES
- 100% modular cables
- Super flexible black flat cables
- All Japanese electrolytic capacitors
- Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
- 24/7 continuous power output with 50℃ operating temperature
- 180° angled SATA connectors designed for stack mounted hard drives

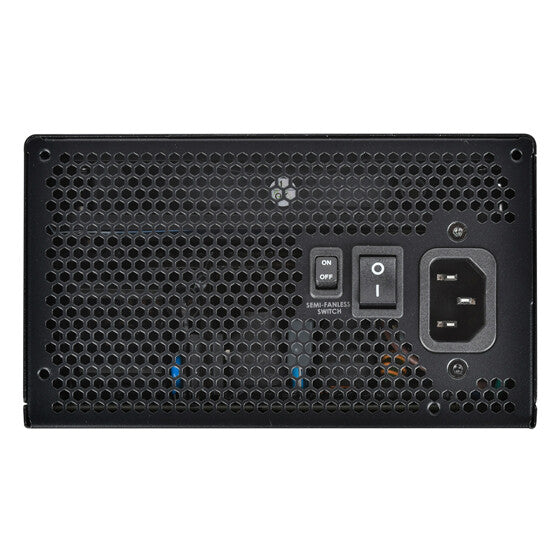

- Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Silverstone HELA 850R Platinum power supply unit 850 W 20+4 pin ATX ATX Black
Description
Silverstone HELA 850R Platinum. Total power: 850 W, AC input voltage: 90 -264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm

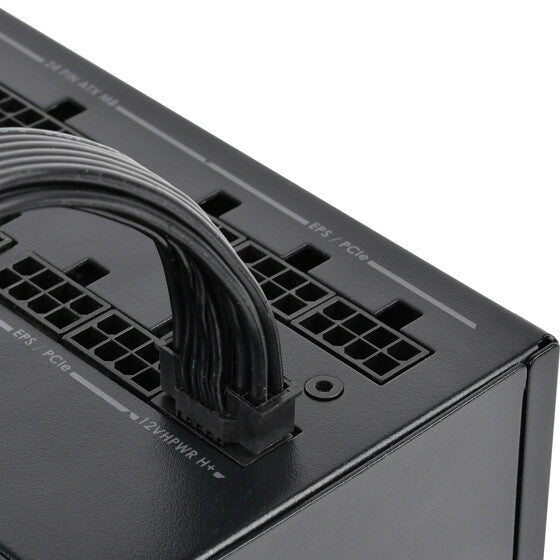

12VHPWR PCIe connector supports ATX 3.0 and PCIe Gen5 standards
The 16 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems.
Cybenetics Platinum Certified
Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity

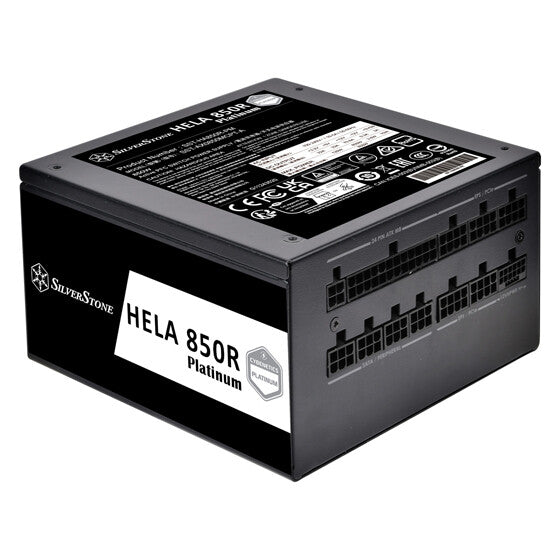

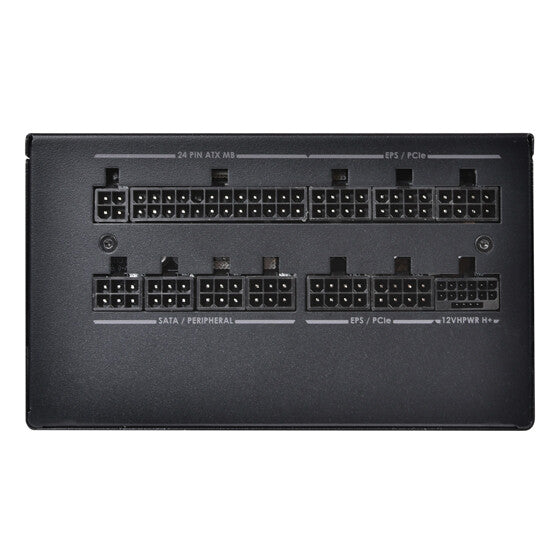

Fully modular design with universal EPS / PCIe connector interface
Flat cables have much greater flexibility to allow for tighter folding and management of cable
All Japanese electrolytic capacitors
Ensure reliable power and long-life span

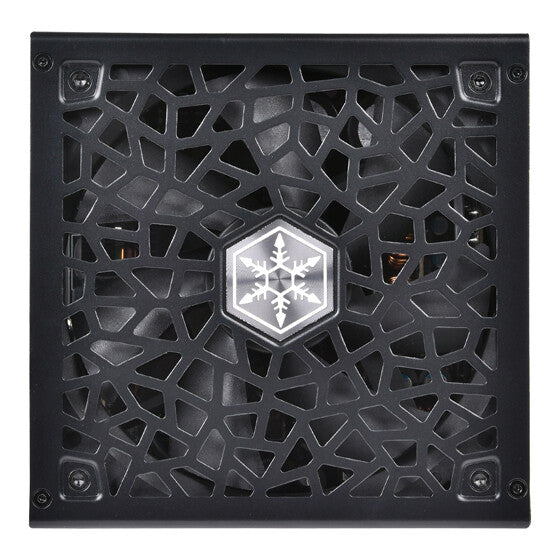

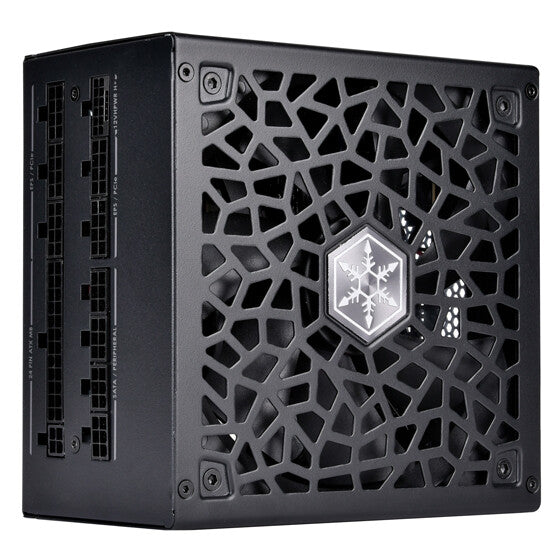

Silent 135mm FDB fan
Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office use
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Total power | 850 W |
| AC input voltage | 90 -264 V |
| AC input frequency | 47 - 63 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |

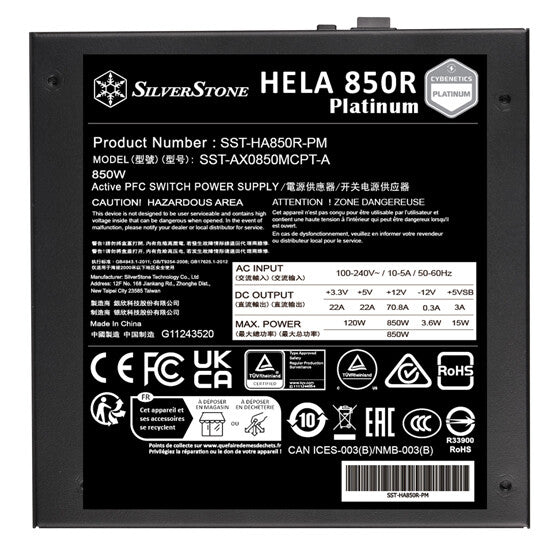

| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,600 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 75 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.0 |
| Silent mode | Yes |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.56 kg |
