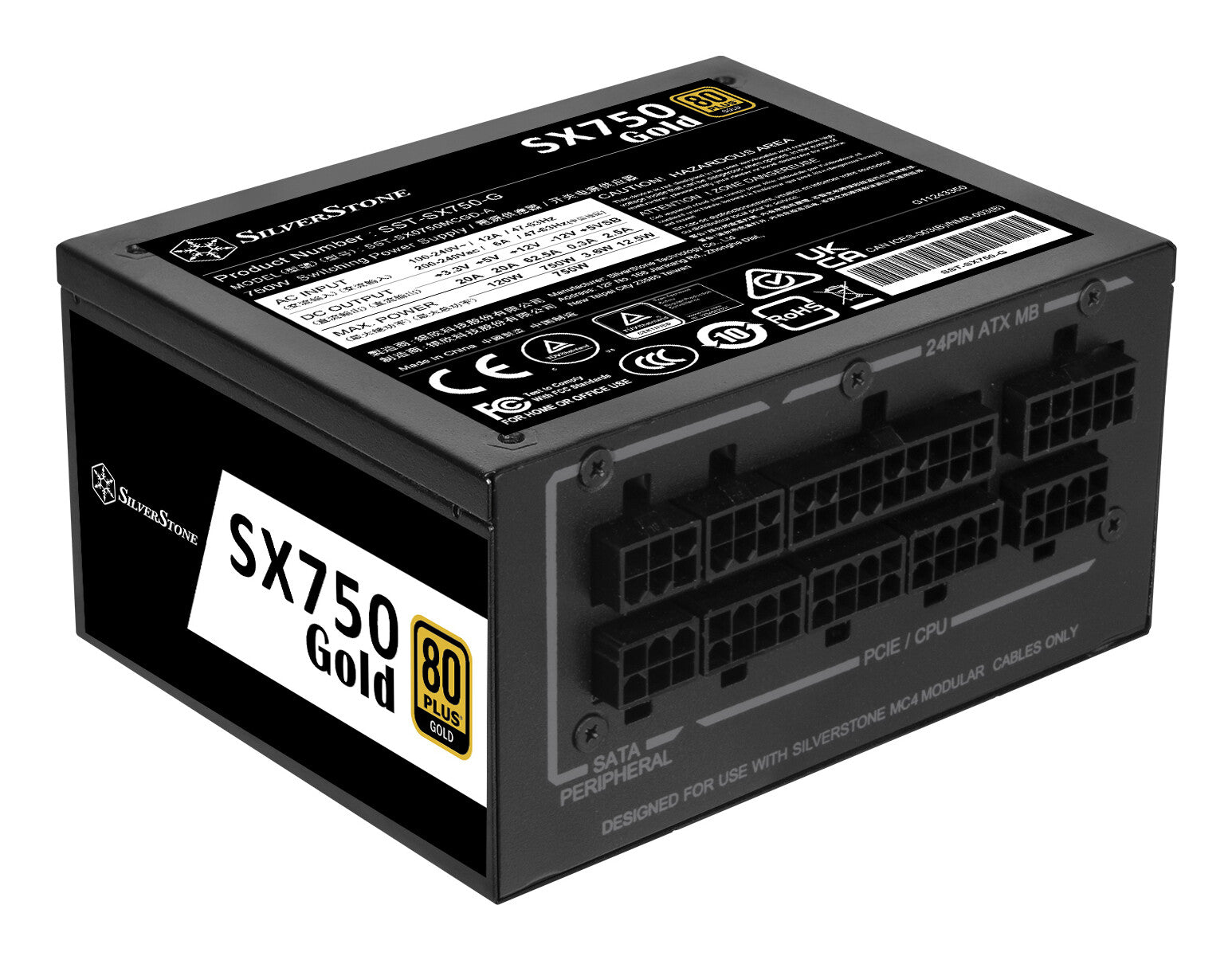

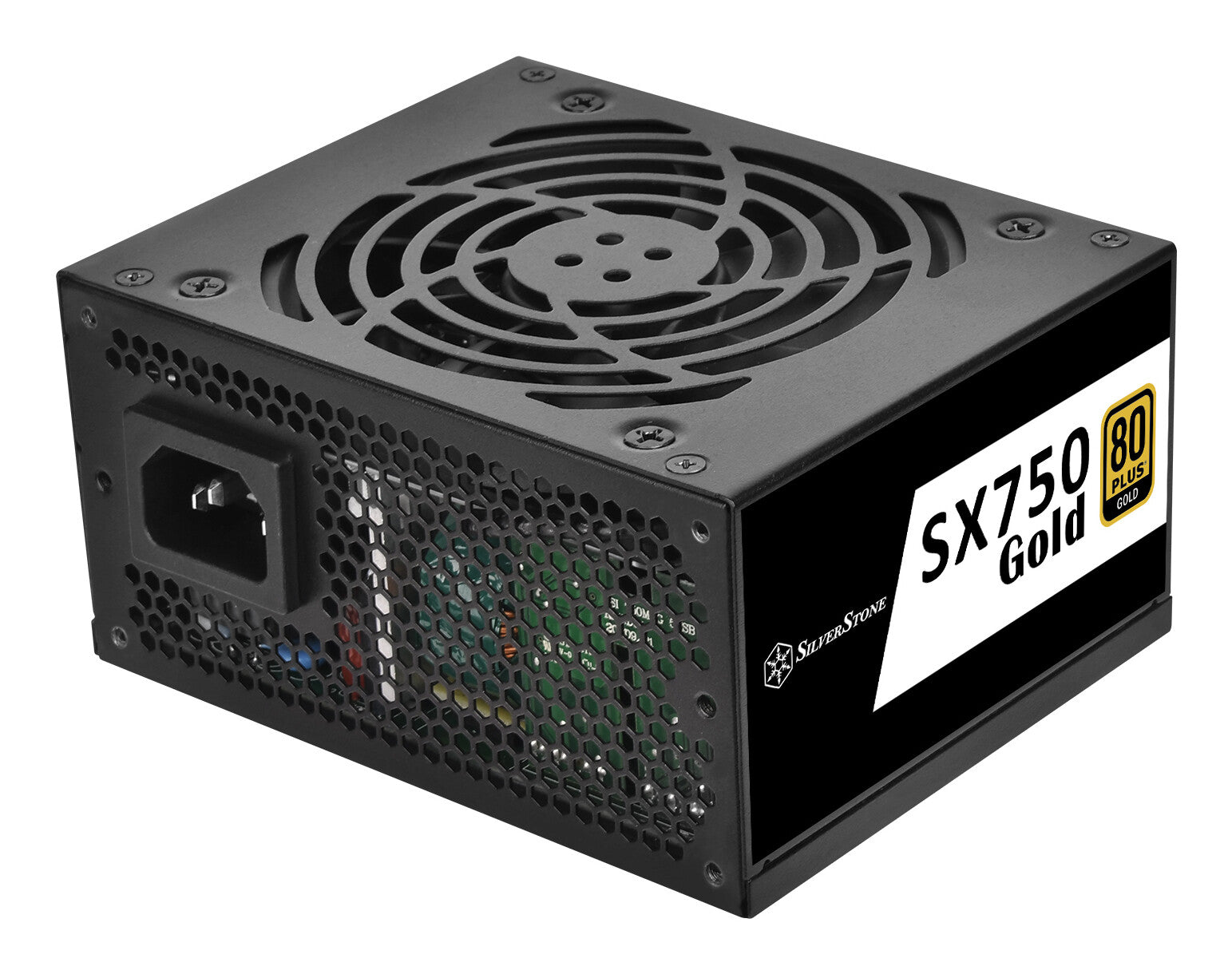

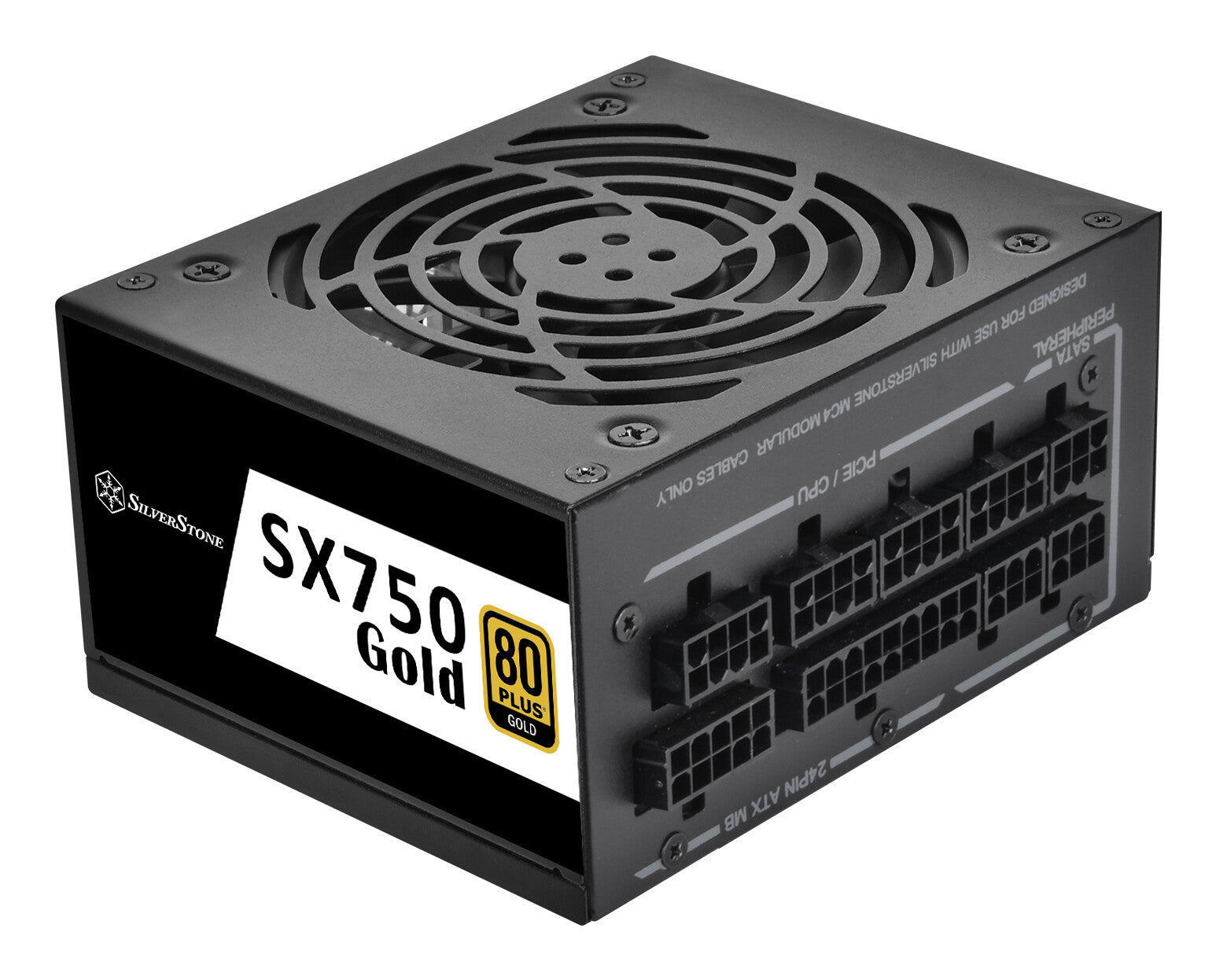

Silverstone SX750 Gold 750W SFX Fully-Modular Power Supply Unit | 80 PLUS Gold
KEY FEATURES
- Standard SFX form factor
- Silent 92mm HYB fan
- All Japanese electrolytic capacitors
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- 100% modular cables
- All cables with flexible flat arrays
- 180° angled SATA connectors designed for stack mounted hard drives
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Silverstone SX750 Gold 750W SFX Fully-Modular Power Supply Unit | 80 PLUS Gold
Description
Silverstone SX750 Gold. Total power: 750 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 100,200,300 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Width: 125 mm, Depth: 100 mm, Height: 63.5 mm
80 PLUS Gold 750W SFX fully modular power supply
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
Standard SFX form factor

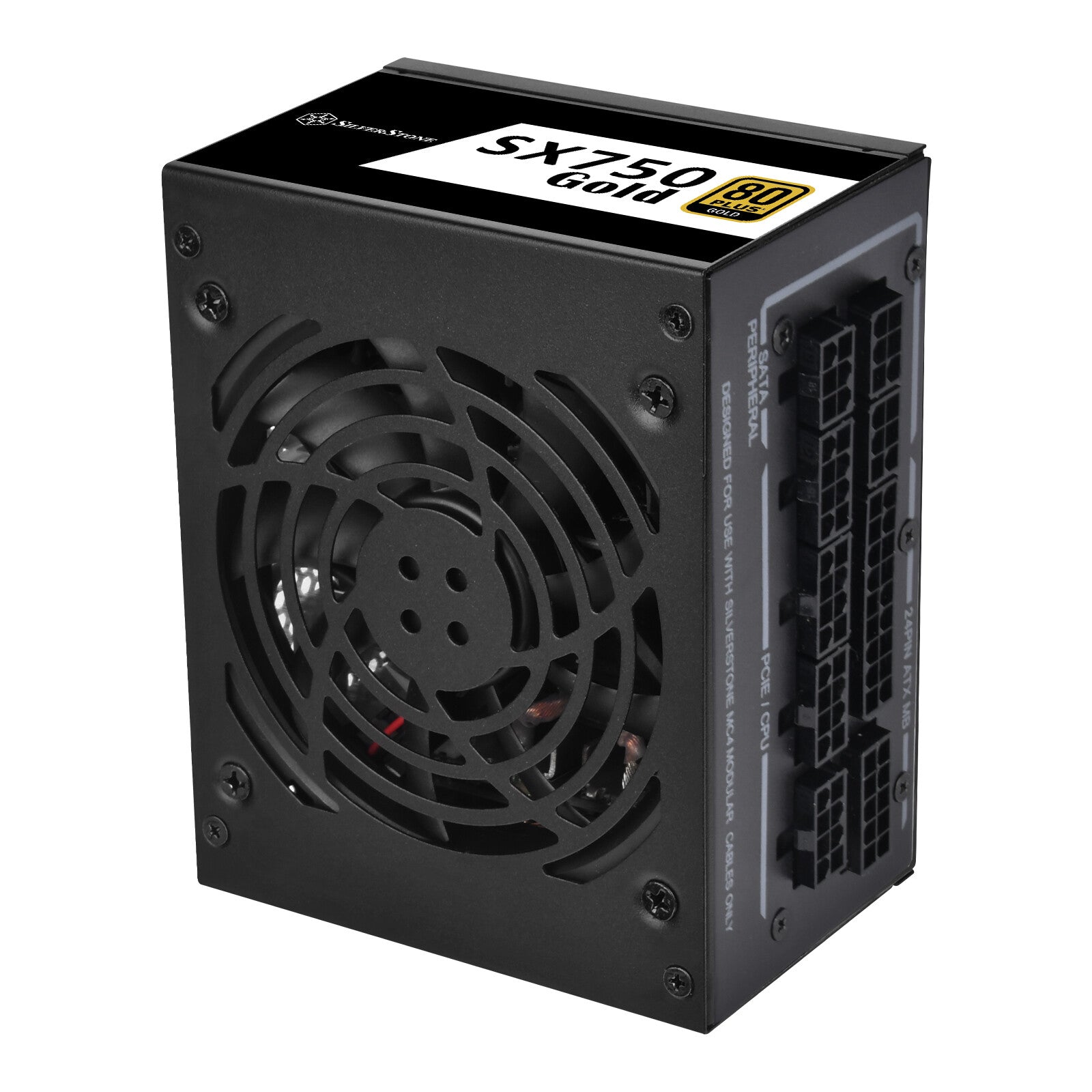

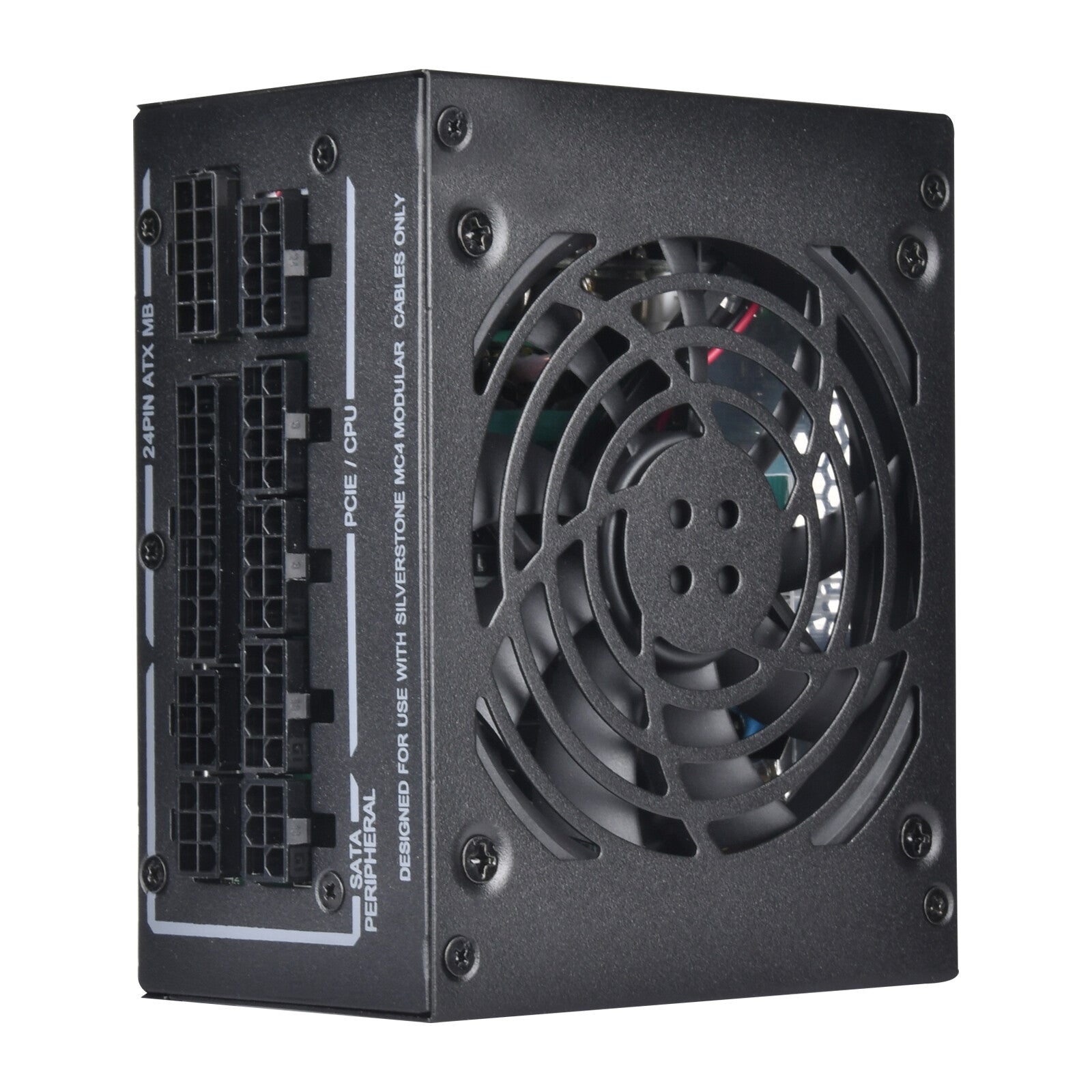

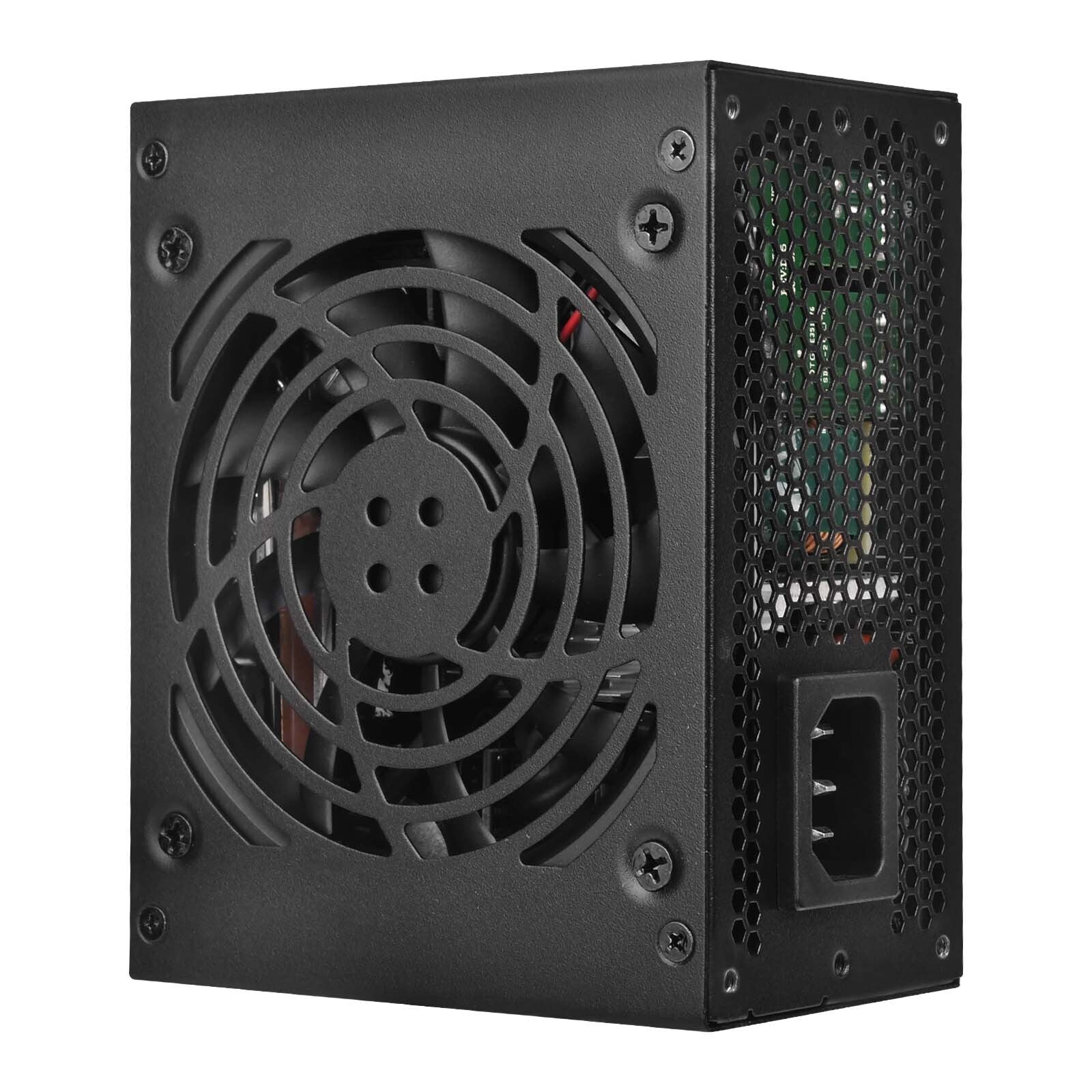

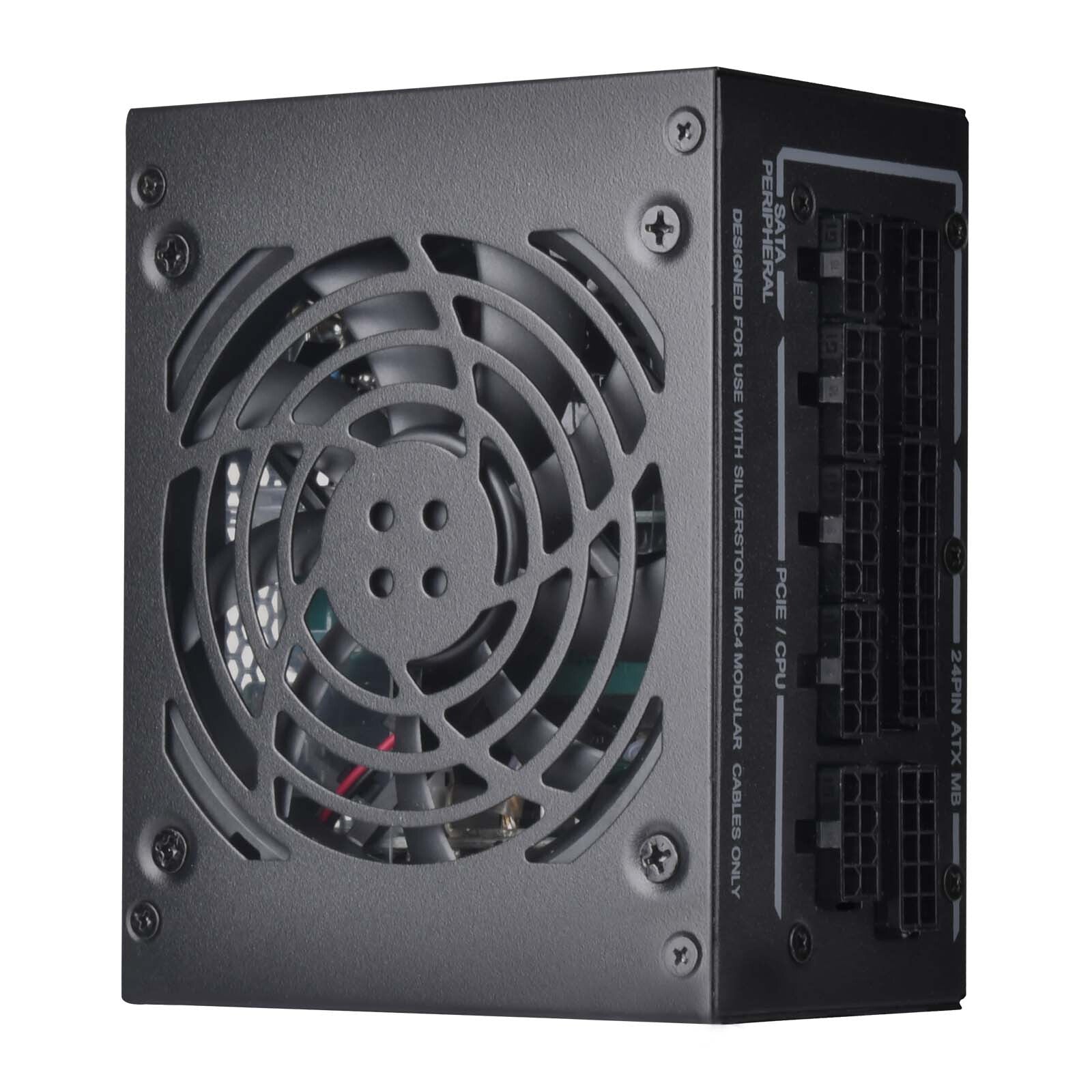

Built-in 92 mm fan has excellent airflow and low noise, perfect for quiet home or office use
Japanese electrolytic capacitors
±3% regulation and low ripple & noise performance for high stability

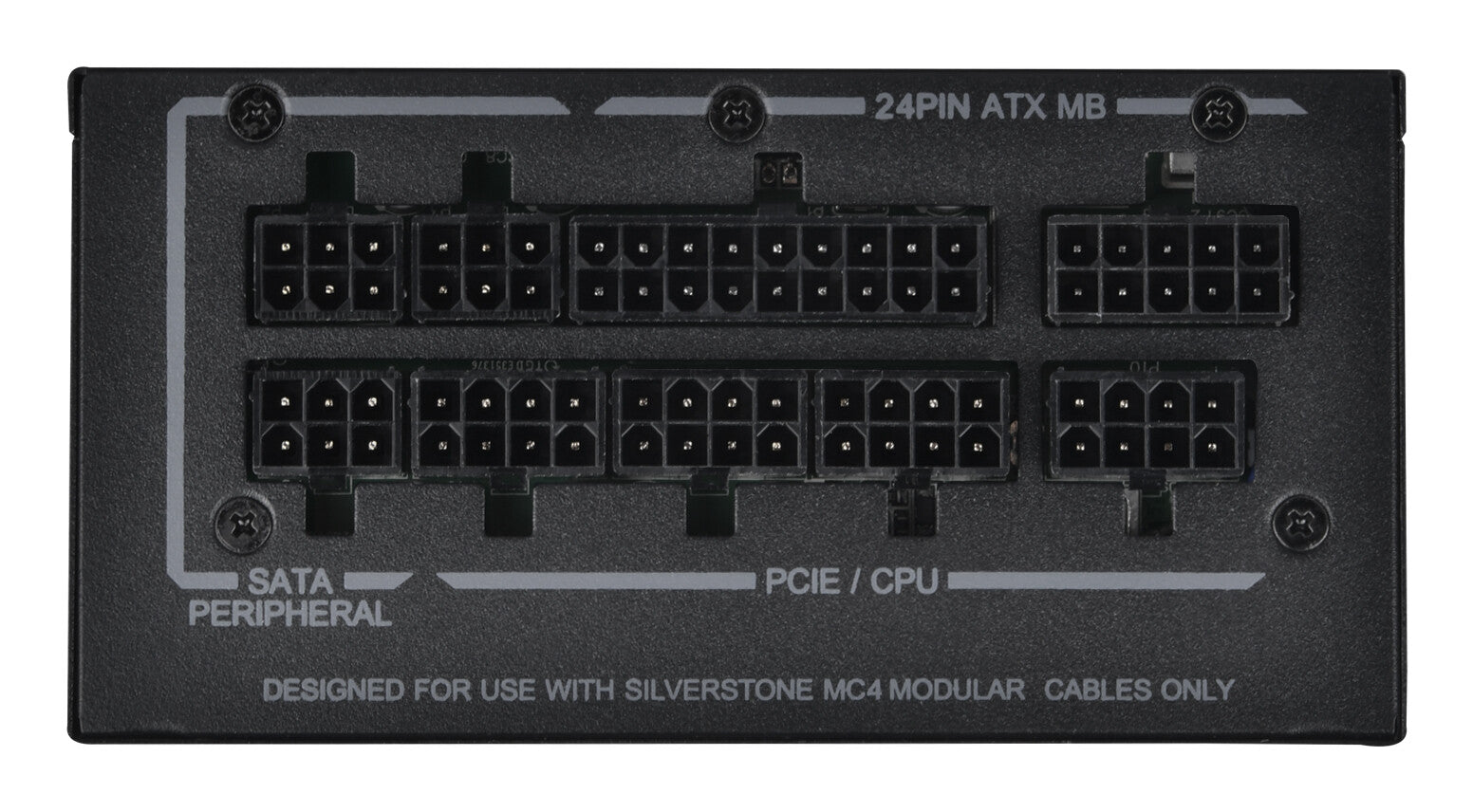

100% modular cable design for easy removal in a case with cable routed and tied down
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery

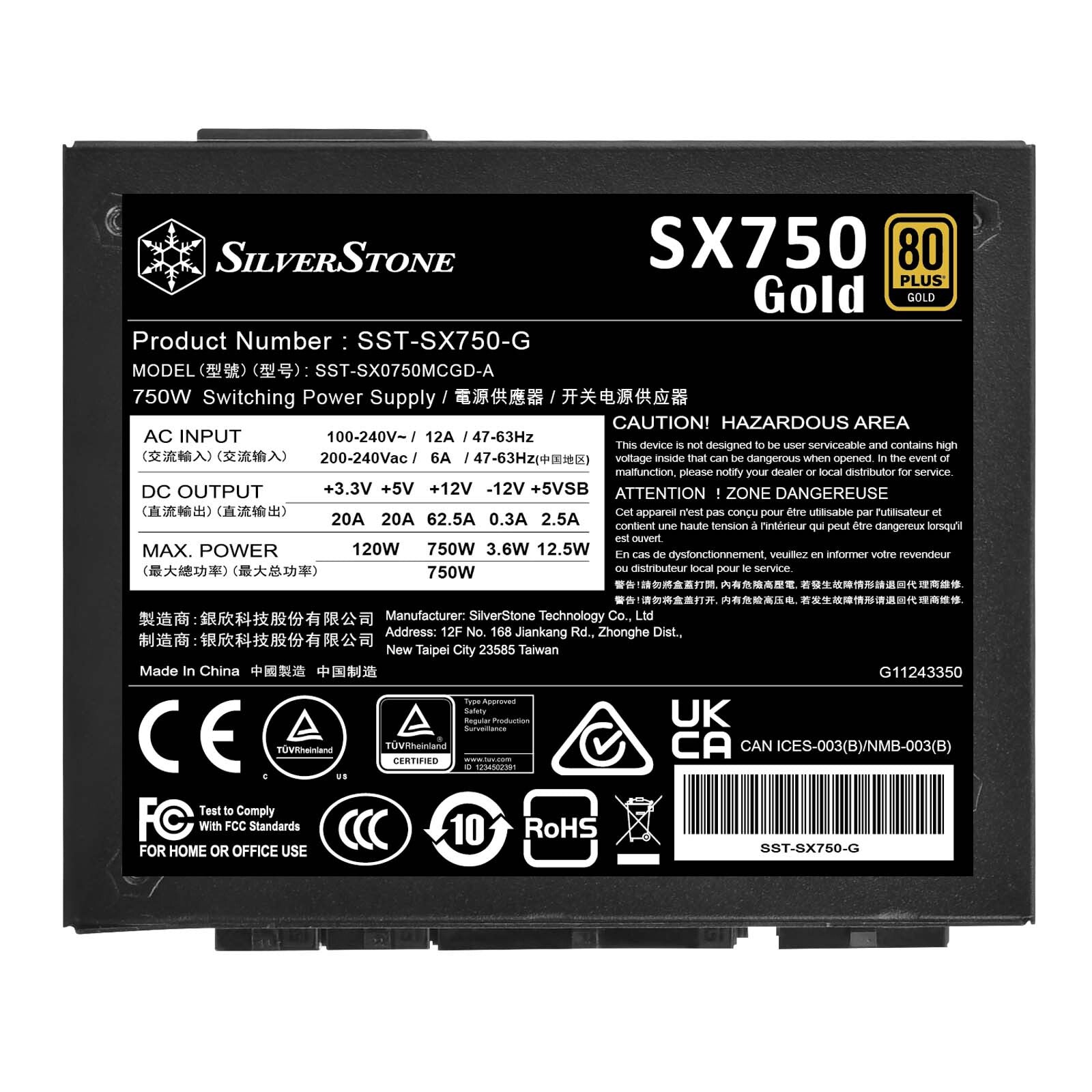

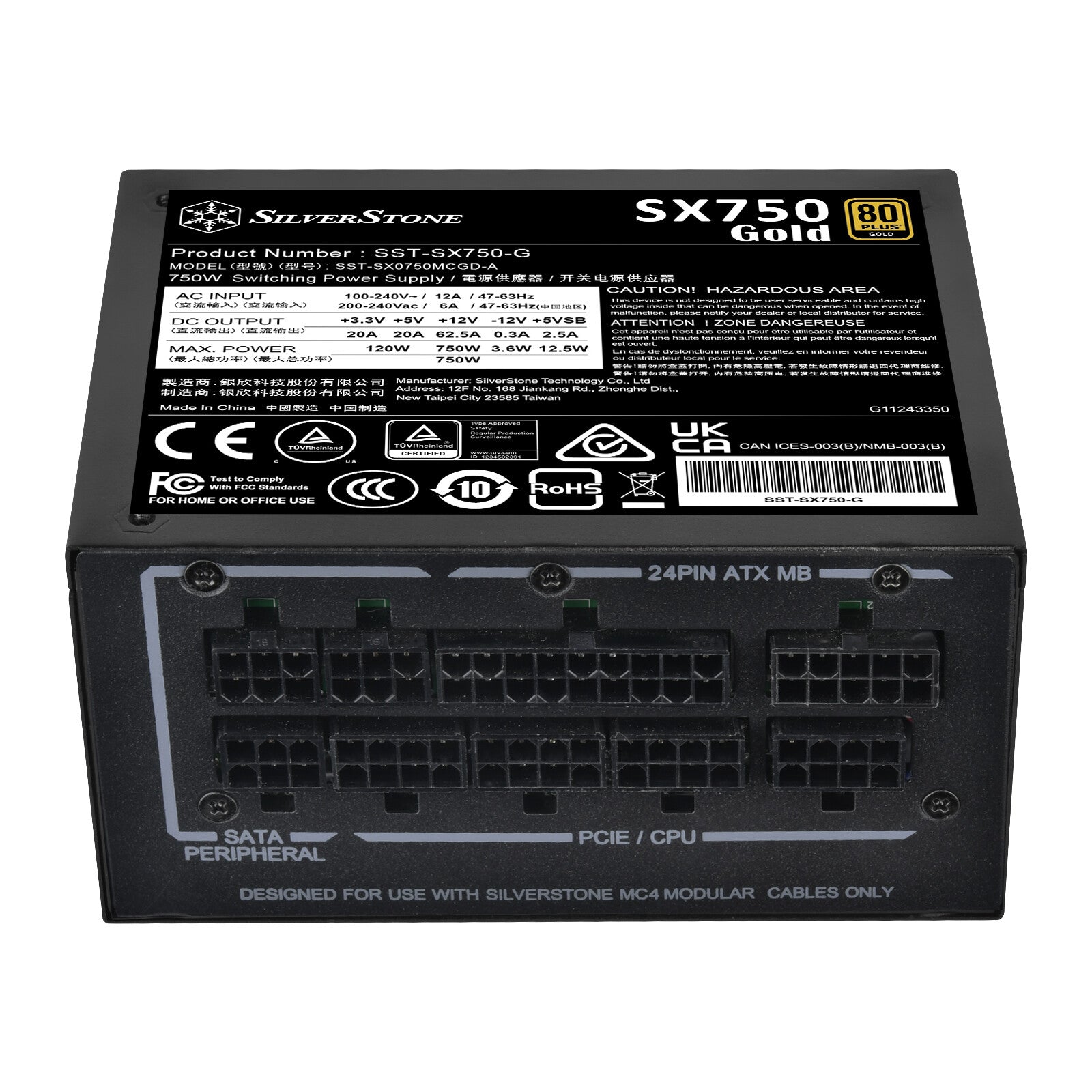

| Power | |
|---|---|
| Total power | 750 W |

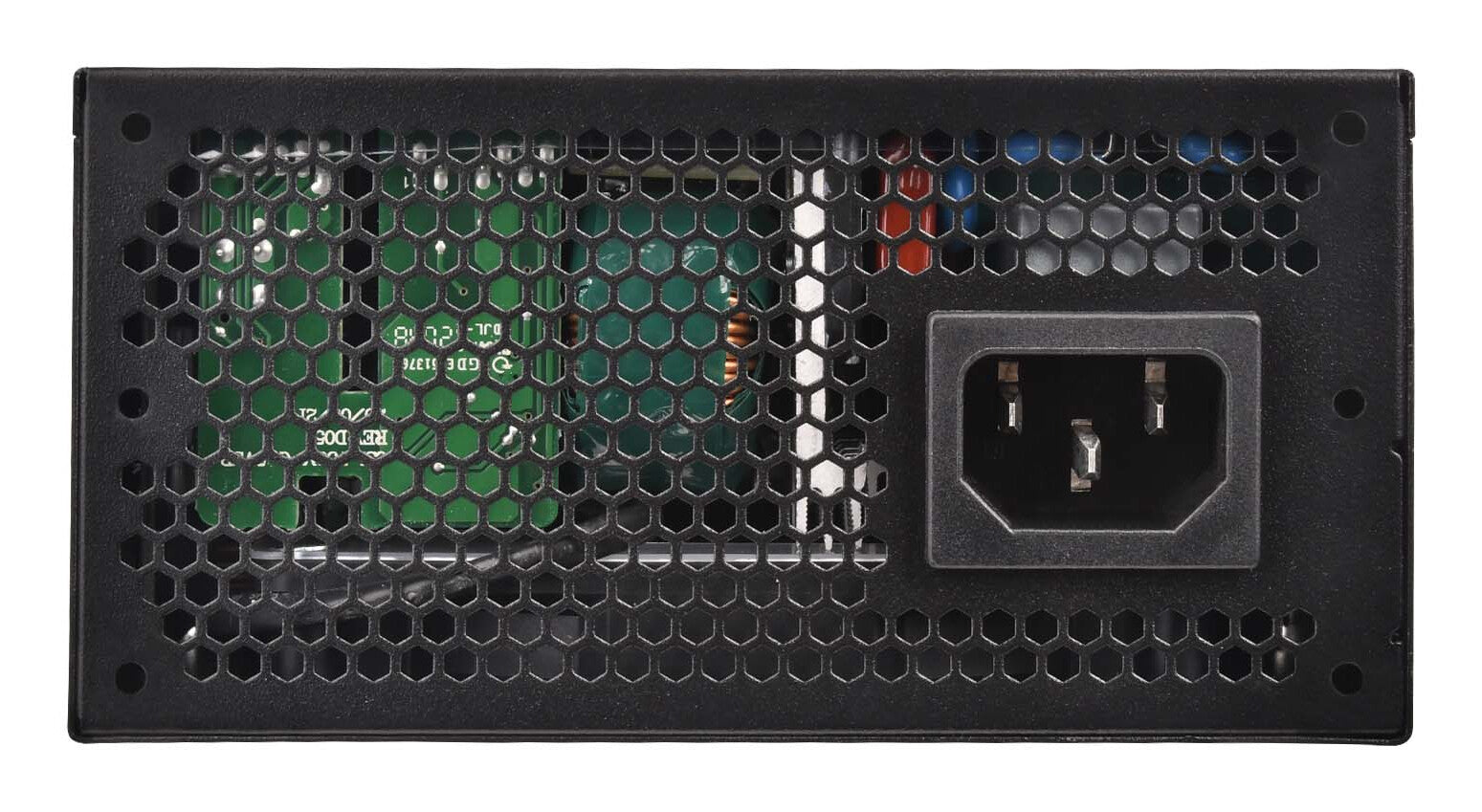

| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|

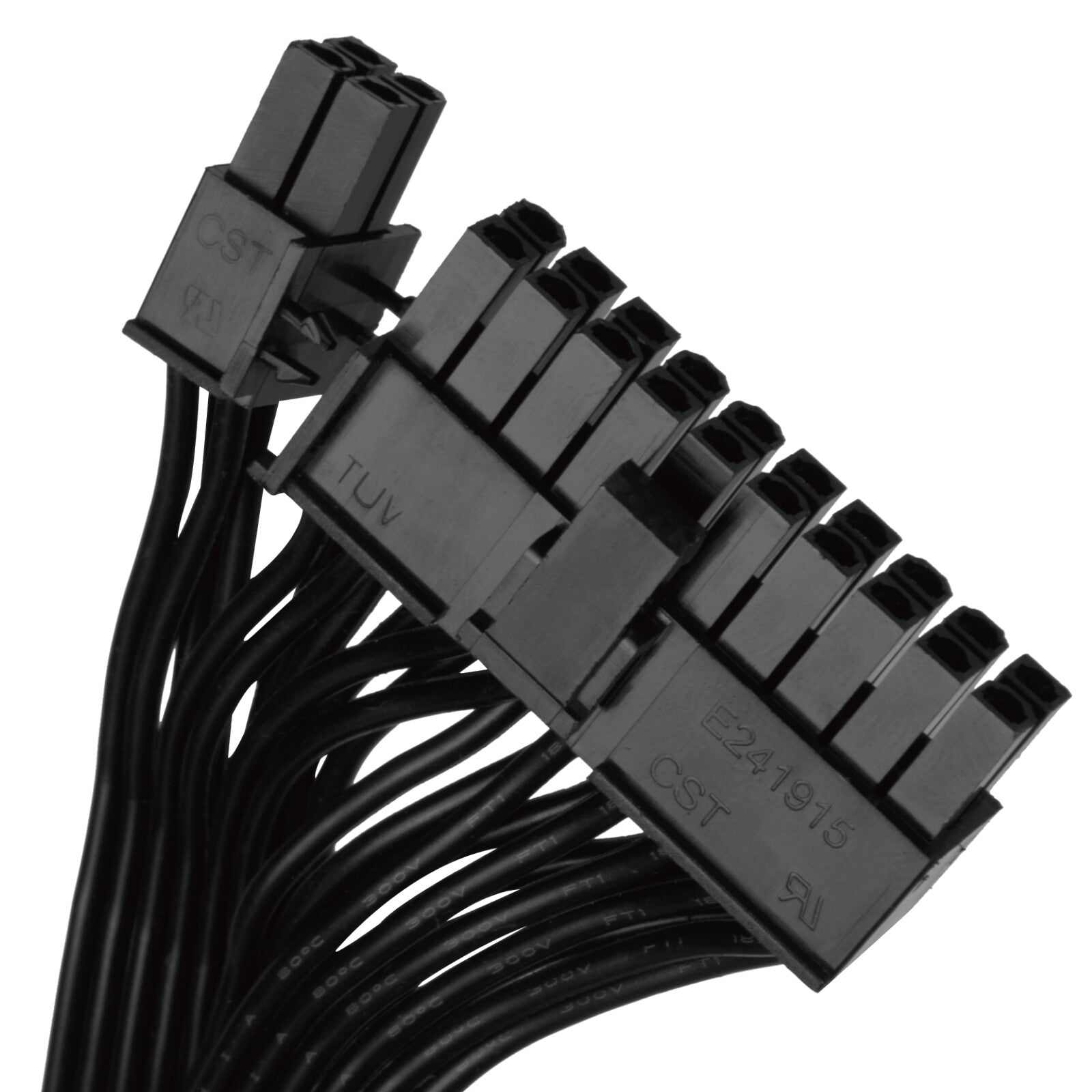

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 30 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 100,200,300 mm |

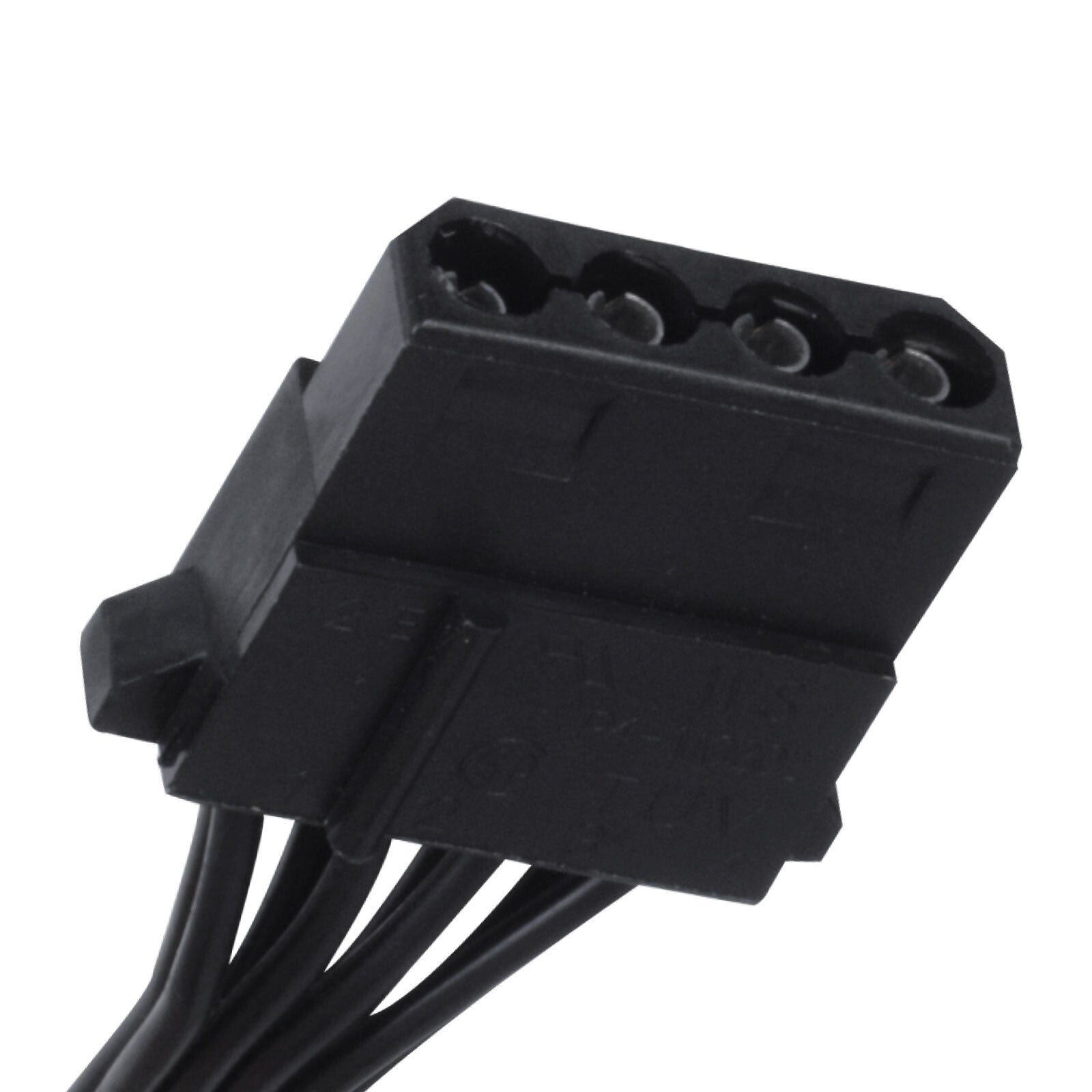

| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 100,200,300 mm |

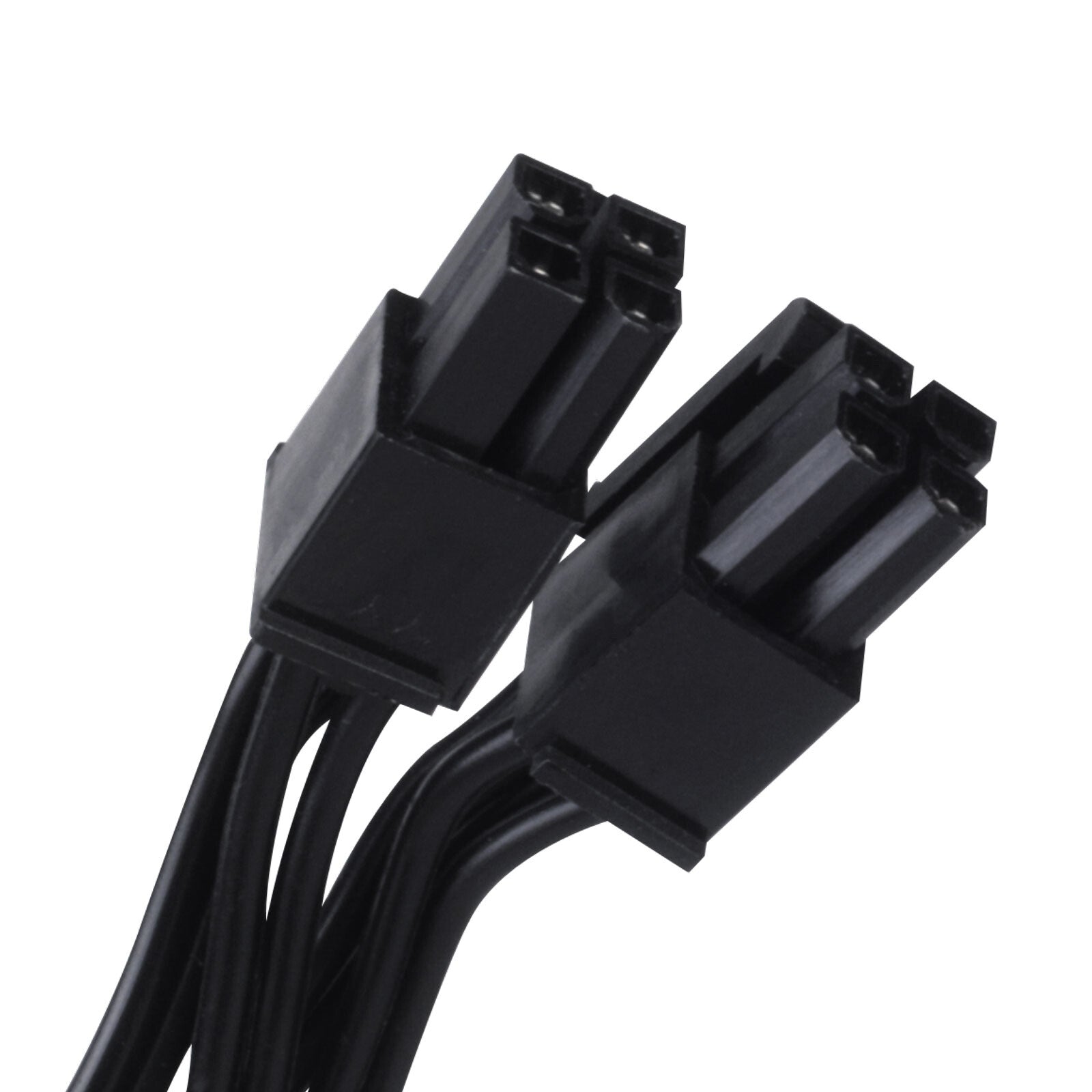

| EPS power connector (8-pin) | Yes |

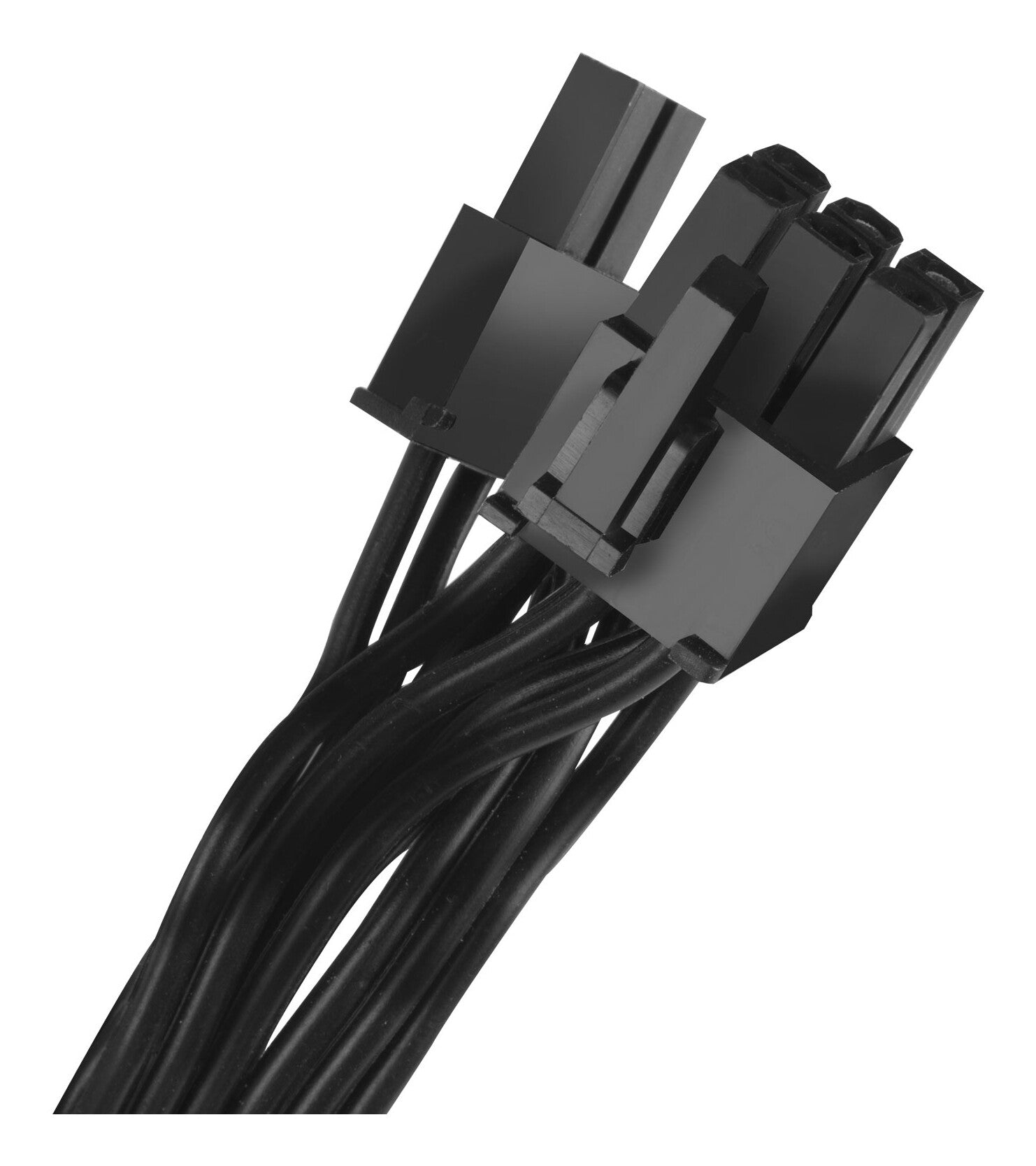

| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (8-pin) | 2 |
| PCI Express power cable length | 55 cm |
| Floppy disk drive cable length | 10 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Gold |
| Noise level | 18 dB |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
| Weight | 1.49 kg |
