Silverstone DA1650 1650W 2U Fully-Modular Power Supply Unit | 80 PLUS
KEY FEATURES
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 50℃ operating temperature

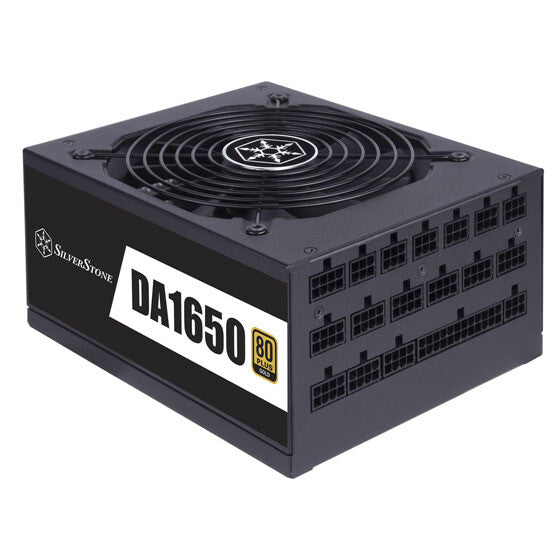

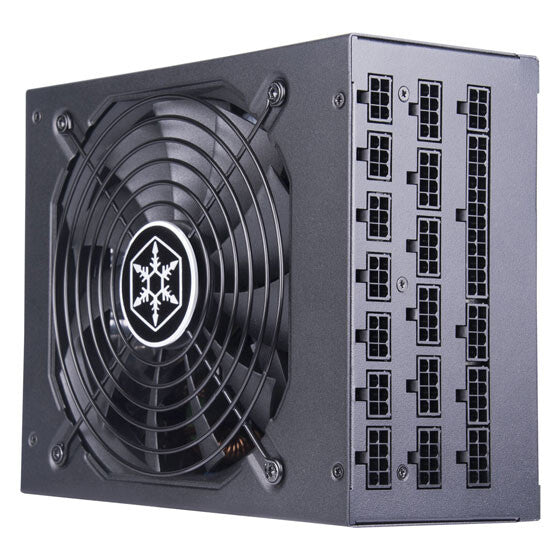

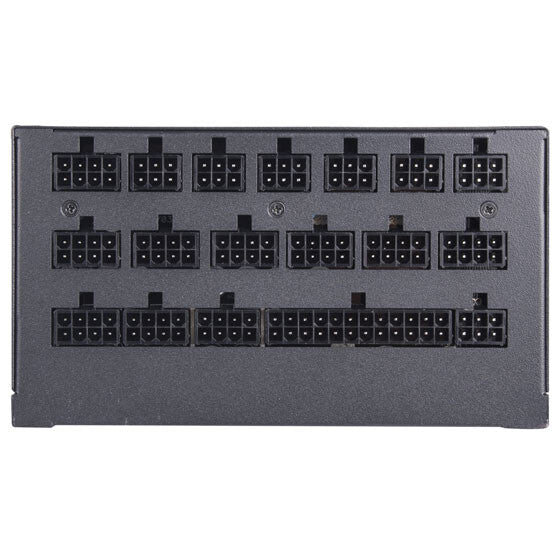

- 100% modular design with universal EPS / PCIe connector interface for maximum flexibility

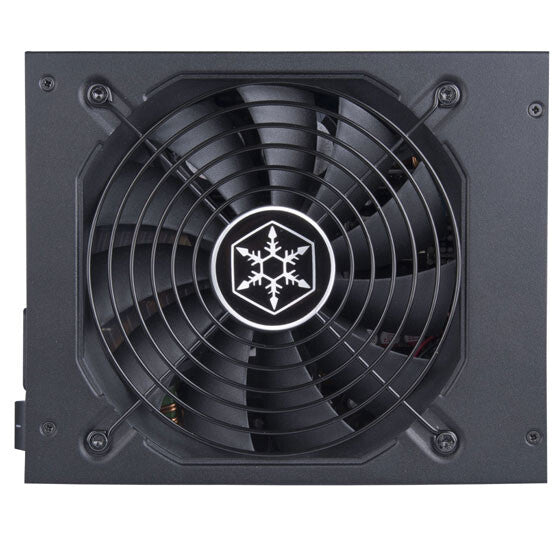

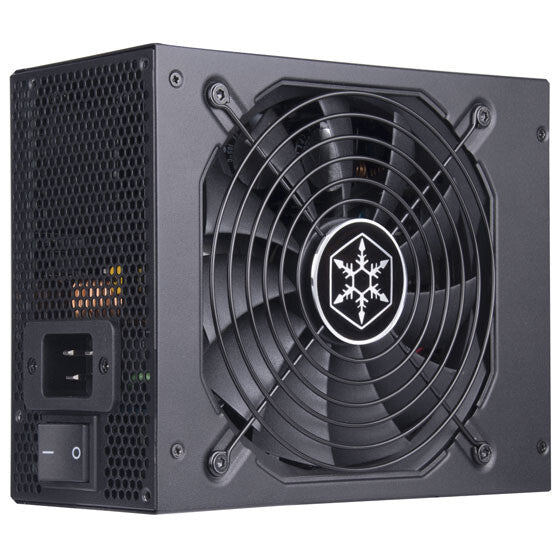

- Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
- Strict ±2% voltage regulation and low ripple & noise
- All Japanese capacitors
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Silverstone DA1650 1650W 2U Fully-Modular Power Supply Unit | 80 PLUS
Description
Silverstone DA1650. Total power: 1650 W, AC input voltage: 90 - 264 V, AC input frequency: 43 - 63 Hz. Motherboard power connector: 20-pin ATX, Motherboard power cable length: 60 cm. Purpose: PC/Server, Power supply unit (PSU) form factor: 2U, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 13.5 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 180 mm, Height: 86 mm
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity Flat cables have much greater flexibility to allow for tighter folding and management of cables 180mm depth sets new standard for 1650W+ PSUs with modular cables Powerful single +12V rail design, perfect for high-end components, upgrades and overclocking ±2% regulation and low ripple & noise performance for high stability Ultra silent 135mm FDB fan with intelligent RPM control provides cool performance at higher loading conditions and silent operation during idle to low loading conditions. Fanless mode operation works up to 30% loading (495W)
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery

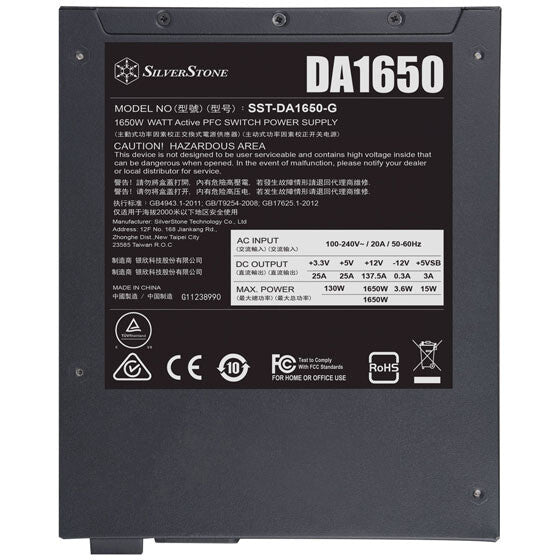

| Power | |
|---|---|
| Total power | 1650 W |

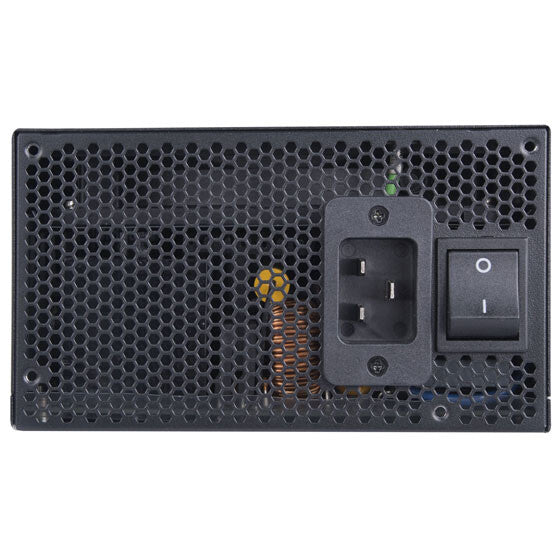

| AC input voltage | 90 - 264 V |
| AC input frequency | 43 - 63 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1650 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 137.5 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 16 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6-pin) | 12 |
| Floppy disk drive connector | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | 2U |
| 80 PLUS certification | 80 PLUS |
| Noise level | 36 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
| Weight | 2.09 kg |
| Other features | |
|---|---|
| Harmonized System (HS) code | 84733020 |
