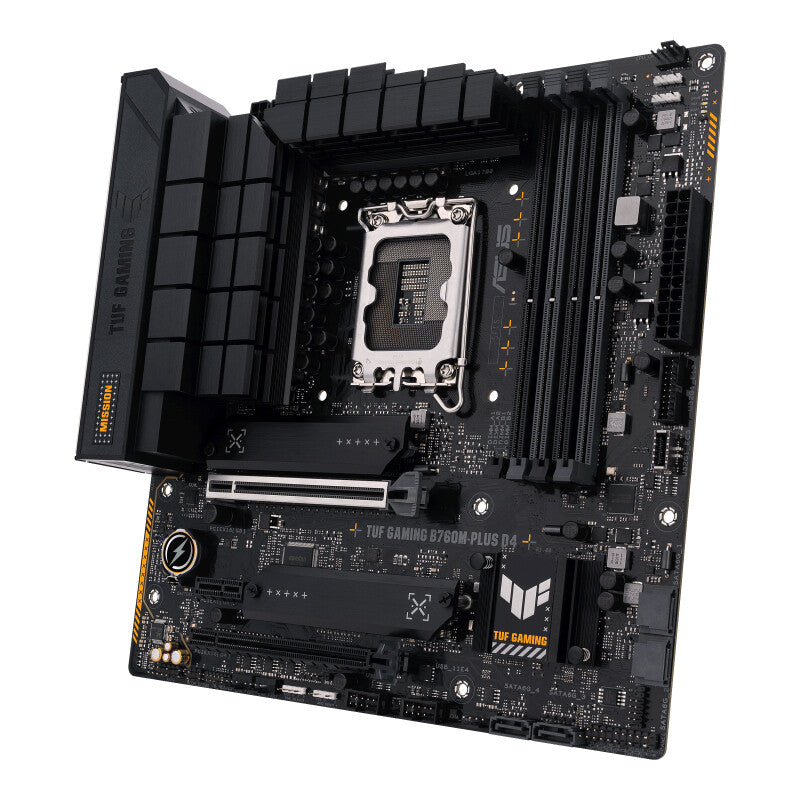

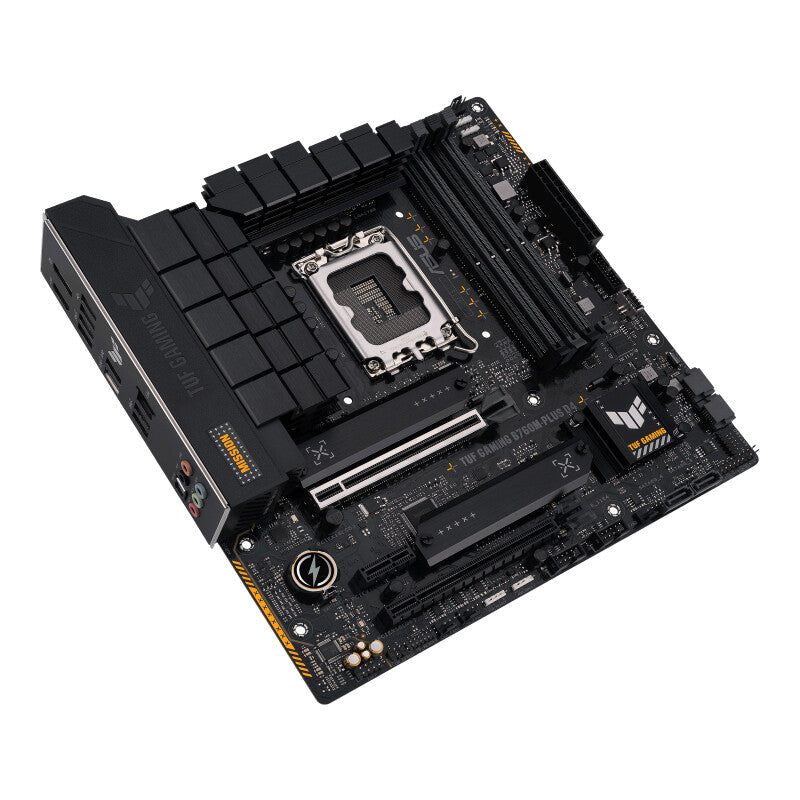

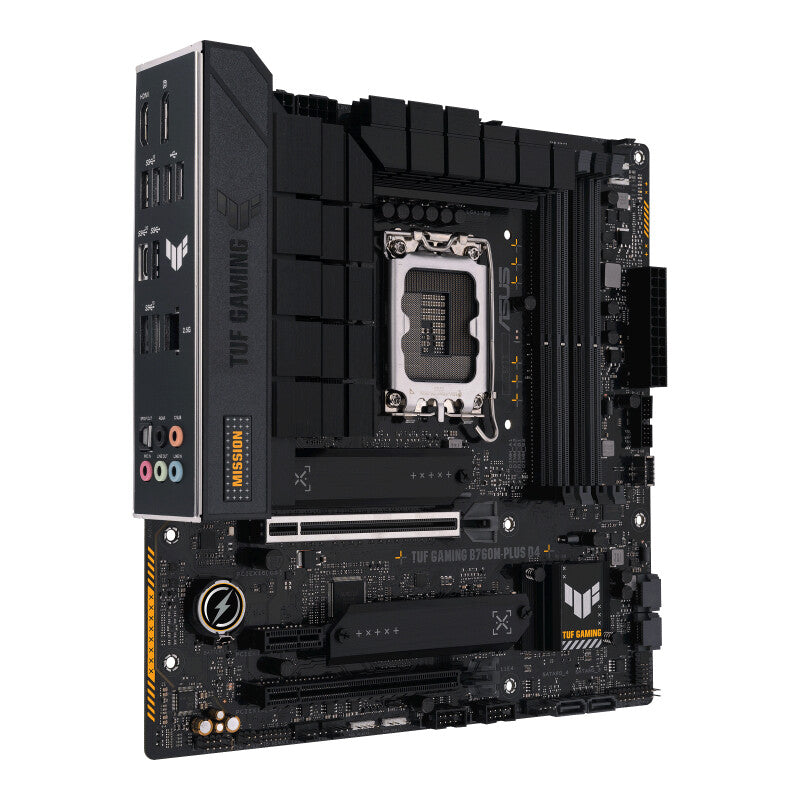

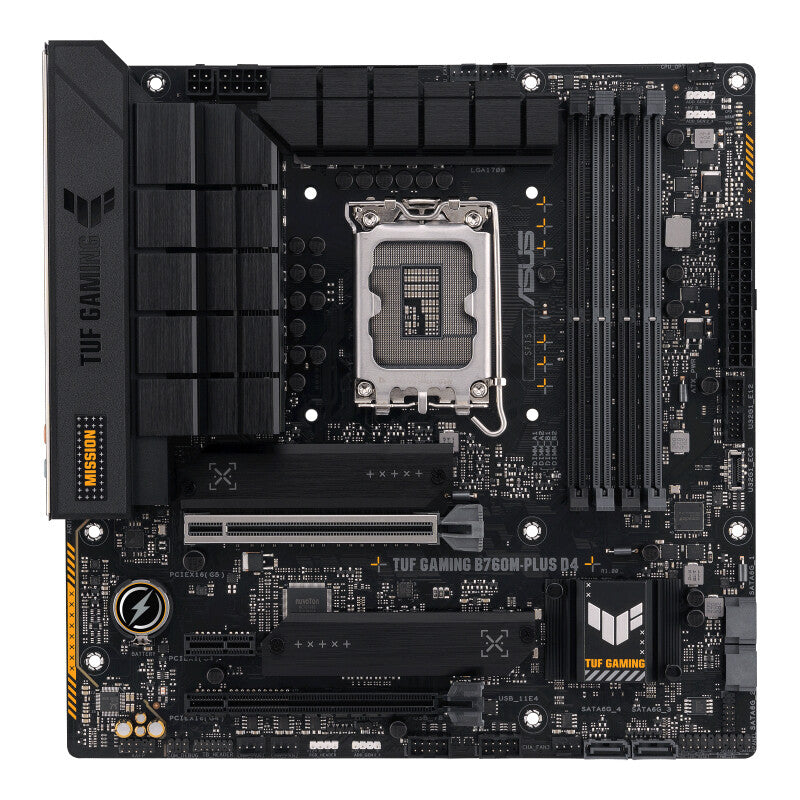

ASUS TUF GAMING B760M-PLUS D4 micro ATX Intel Motherboard | LGA1700 Socket - 4 x DDR4 Memory Slots
KEY FEATURES
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- PC micro ATX Intel B760 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 128 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the ASUS TUF GAMING B760M-PLUS D4 support?
What form factor is the ASUS TUF GAMING B760M-PLUS D4?
Does the ASUS TUF GAMING B760M-PLUS D4 have RGB lighting?
ASUS TUF GAMING B760M-PLUS D4 micro ATX Intel Motherboard | LGA1700 Socket - 4 x DDR4 Memory Slots
Description
Elevate your gaming experience with the ASUS TUF GAMING B760M-PLUS D4 micro ATX Intel Motherboard. Designed to harness the full potential of the latest Intel processors, this motherboard combines cutting-edge technology with robust durability, ensuring you stay ahead in the gaming arena. With military-grade components and an advanced cooling system, the TUF GAMING B760M-PLUS D4 is built for marathon gaming sessions, delivering rock-solid performance when it matters most.
Key Benefits
- Military-Grade Durability: Engineered with high-quality components, this motherboard undergoes rigorous testing to withstand extreme conditions, ensuring reliability during intense gaming sessions.
- Optimised Power Delivery: Featuring 12+1 power stages, it provides stable power and efficiency for all compatible Intel processors, enhancing overall performance.
- Comprehensive Cooling Solutions: The upgraded cooling system keeps your components running at optimal temperatures, preventing overheating and ensuring peak performance.
- Flexible System Tuning: With intelligent control features, you can easily adjust settings to match your gaming style, allowing for a fully tailored experience.
- Easy DIY Setup: The TUF GAMING Alliance ensures compatibility with a wide range of components, making it simple for builders of all levels to create their dream rig.
- Immersive Gaming Features: Enjoy ultrafast networking, pristine audio, and RGB lighting that syncs with your gear, enhancing your gaming atmosphere.
Addtional Features
The ASUS TUF GAMING B760M-PLUS D4 is not just about performance; it also offers a host of features designed for gamers. It supports up to 128GB of DDR4 memory across four slots, ensuring you have ample memory for multitasking and demanding applications. The motherboard is equipped with PCIe 4.0 storage support, allowing for faster data transfer rates and improved load times.
Additionally, the motherboard includes a 2.5 Gigabit Ethernet interface, providing a reliable and speedy connection for online gaming. The Armoury Crate software enhances your experience with tools for fan control, hardware monitoring, and RGB lighting customisation, ensuring your setup not only performs well but looks great too.
Why Buy
Choosing the ASUS TUF GAMING B760M-PLUS D4 micro ATX Intel Motherboard means investing in a product that is built to last. With its combination of durability, performance, and user-friendly features, it is the perfect foundation for your next gaming rig. Whether you're a casual gamer or a competitive player, this motherboard will provide the reliability and performance you need to dominate your games.
Experience the difference that a high-quality motherboard can make in your gaming setup. The TUF GAMING B760M-PLUS D4 is ready to take your gaming to the next level.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of chassis fan connectors | 3 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |

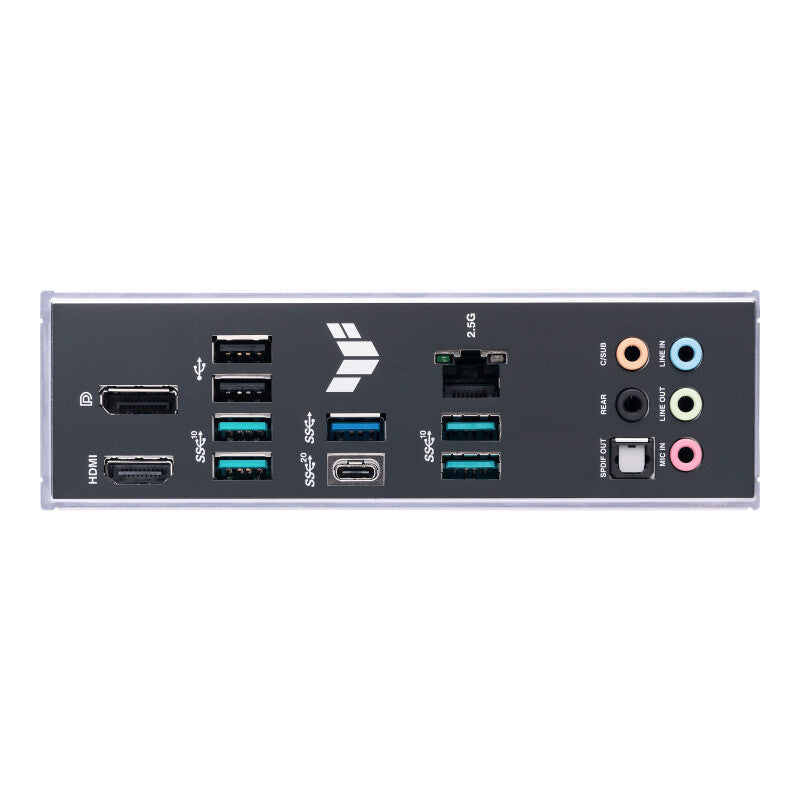

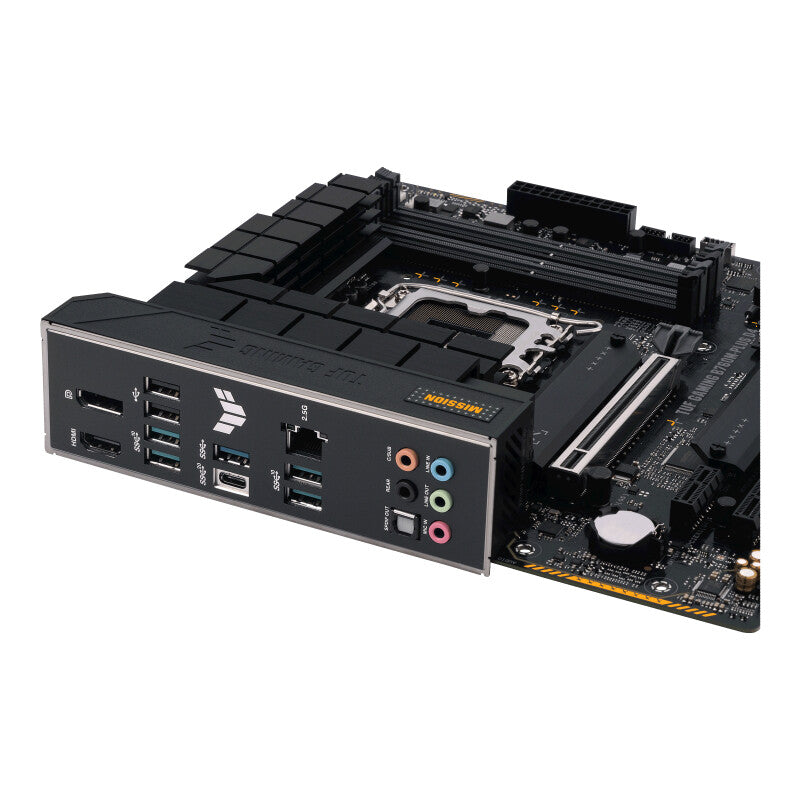

| Rear panel I/O ports | |
|---|---|
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| Clear CMOS button | Yes |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
