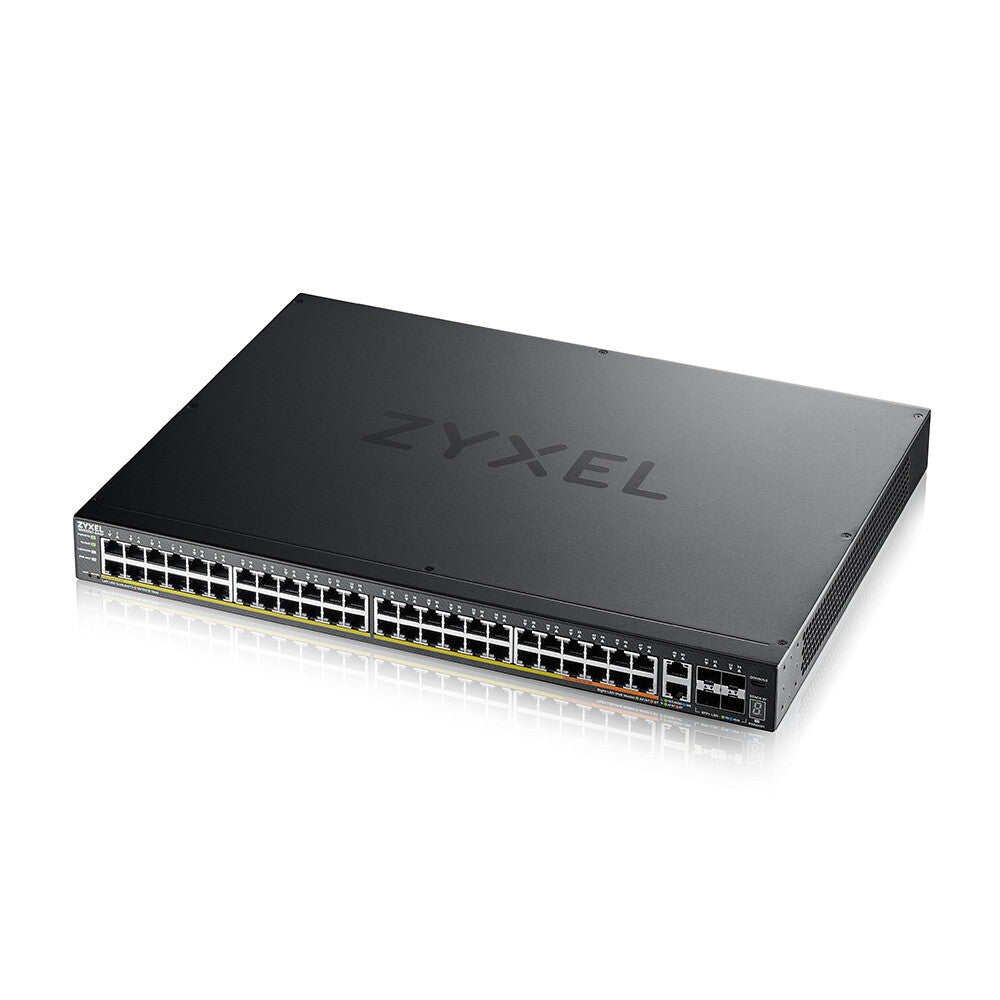

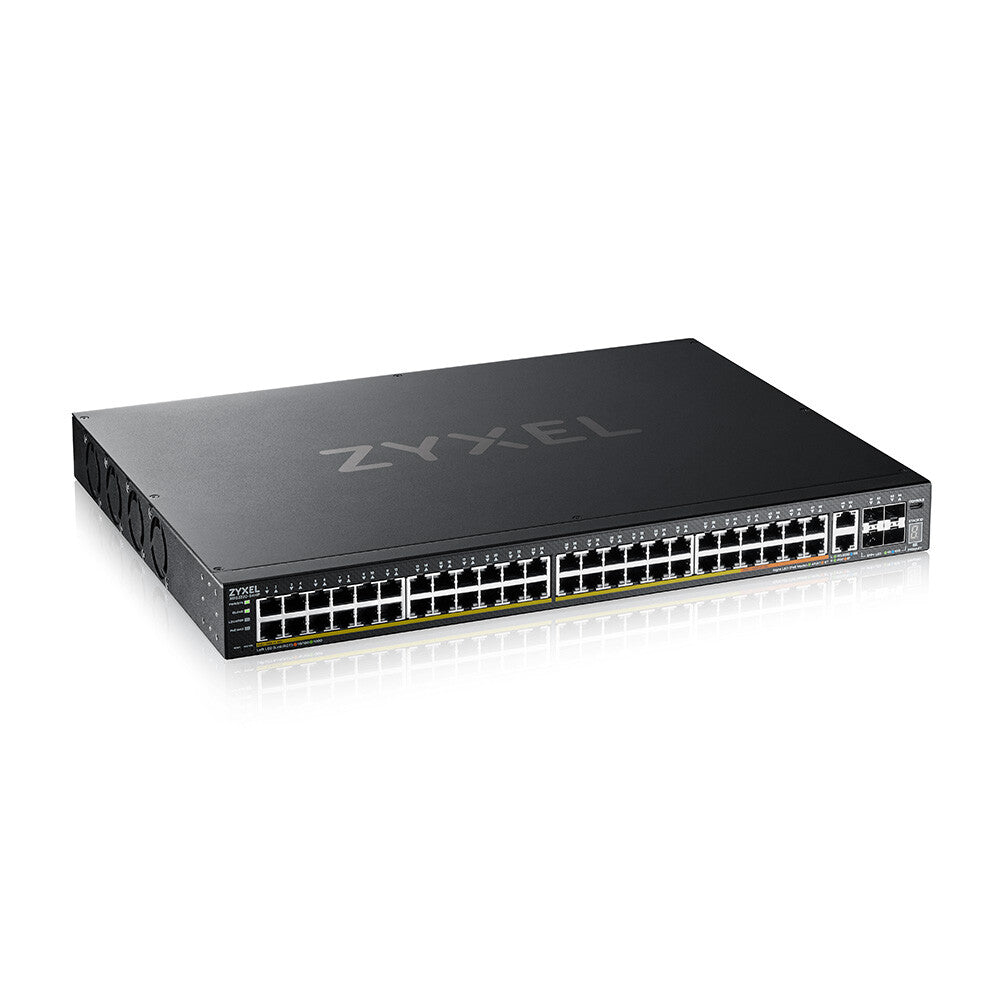

Zyxel XGS2220-54HP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
KEY FEATURES
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 32000 entries Switching capacity: 216 Gbit/s
- Rack mounting
- AC Power supply included Power over Ethernet (PoE)
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Zyxel XGS2220-54HP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Description
Zyxel XGS2220-54HP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP+ modules quantity: 4. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an,.... Power over Ethernet (PoE). Rack mounting
Nebula Cloud-managed Layer 3 Enterprise Switch
The XGS2220 Series is a family of Layer 3 access Switches that consists of six models, including PoE, Non PoE and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access; PoE models allow flexible options with larger PoE budgets and a mix of 60 W and 30 W ports to power devices like the latest WiFi 6/6E Wireless Access Points; The Fiber model aims to achieve business connectivity for high fiber port density requirement.
Flexible 10G For Converged Networking Applications
On top of four 10G SFP+ uplinks, the XGS2220 Series comes with two additional 10G Multi-Gig RJ 45 ports to offer the flexibility to connect to servers, network storage, or other high speed network devices. Business can operate smoothly with the better extensibility and robust network infrastructure.
Multiple Power Budget options
PoE models come with 10 ports of PoE++ (IEEE 802.3bt) offering up to 60 W per port and 16-40 ports of PoE+ (IEEE 802.3at) delivering up to 30 W per port to meet a variety of applications, including the latest generation of Wireless Access Points.
Within the range, the 3 PoE models of 30HP, 54HP and 54FP can offer larger Power budgets of 400 W, 600 W and 960 W respectively, allowing flexibility in powering a full range of PoE devices efficiently for applications like VoIP, surveillance, high density networked AV applications and Zyxel’s compressive WiFi 6/6E AP portfolio.
Nebula, Manage It Your Way!
The support of NebulaFlex Pro allows you to easily switch management modes between standalone management and intuitive Nebula cloud managed mode with 1 YEAR Pro Pack bundled. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Installed SFP+ modules quantity | 4 |
| 10G Ethernet (copper) ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Routing entries | 64 |
| 10G support | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x |
| Data transmission | |
|---|---|
| Packet buffer memory | 2 MB |
| Jumbo frames support | Yes |
| Forwarding rate | 161 Mpps |
| Switching capacity | 216 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
|---|---|
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 214.388 h |
| Flash memory | 64 MB |
| Internal memory | 1024 MB |
| Power | |
|---|---|
| Power consumption (max) | 754.11 W |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 600 W |
| Power over Ethernet (PoE) ports quantity | 50 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 2571.52 BTU/h |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5 kg |
| Height | 44 mm |
| Depth | 330 mm |
| Width | 441 mm |
